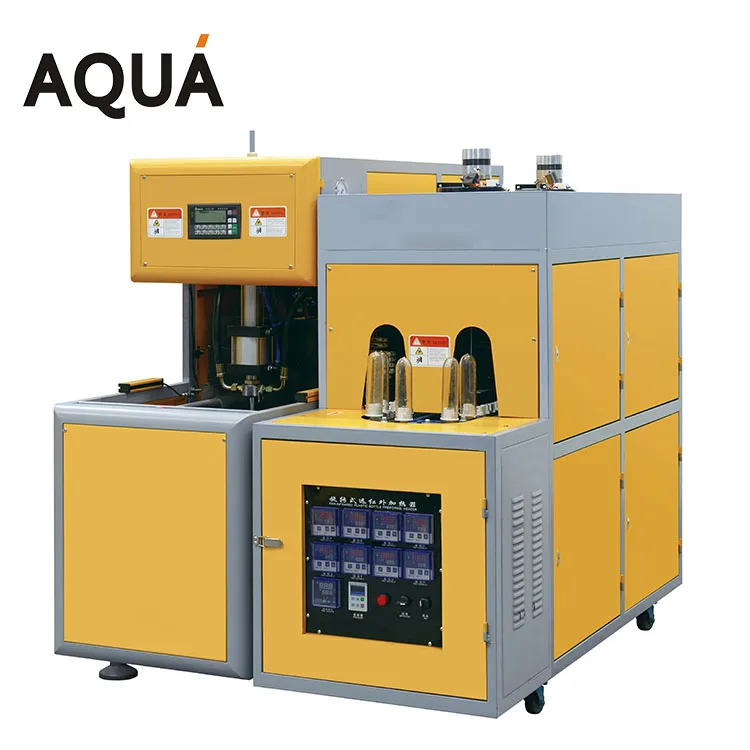

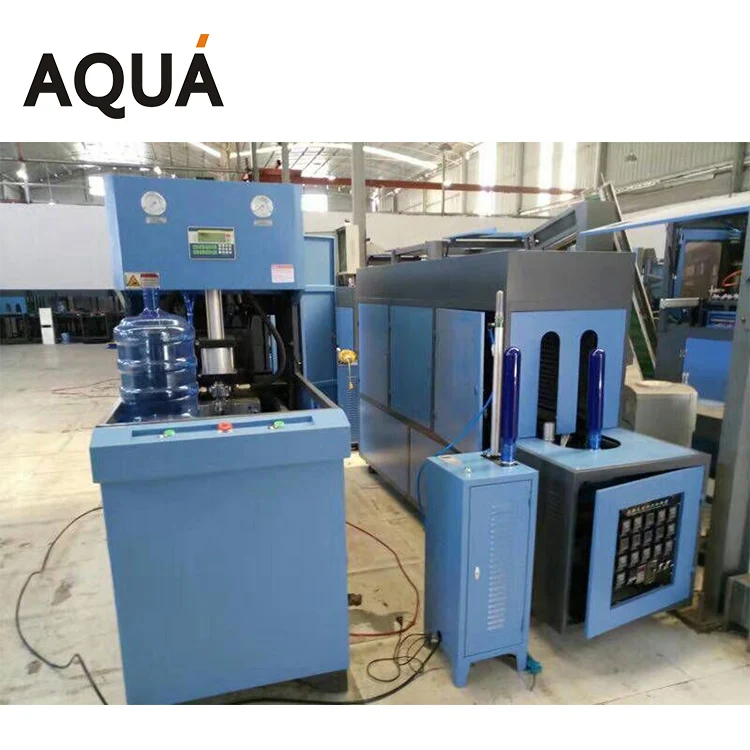

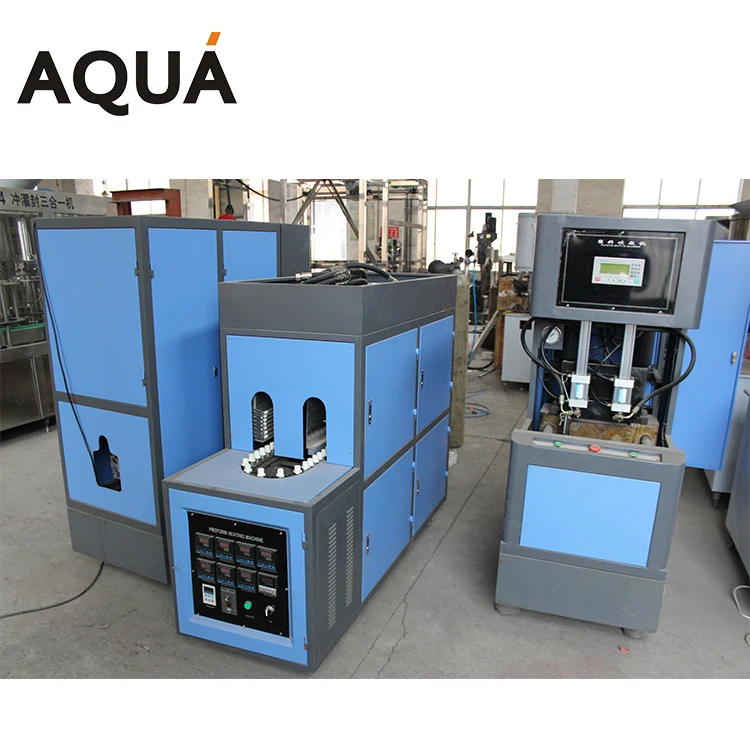

20L 19L Manual PET Blow Molding Machine With Preform Pre Heating
semi automatic blowing machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Technical Dates
Main machine (blowert + oven) | Model type | Tech data |
Product Spec | Max. product volume(L/cav) | 20L |
Max. preform neck size(mm) | 100 | |
Max. product diameter(mm) | 180 | |
Max. product height (mm) | 300 | |
Cavities | 1 | |
Blow molding part | Die force (KN) | 100 |
Die stroke (mm) | 270 | |
Max. mould size(mm) | 390*345 | |
Mould thickness | Adjustable | |
Mould spacing(mm) | Adiustable | |
Max. pulling stroke(mm) | 400 | |
Operation pressure(Mpa) | 0.8-1.0 | |
Operation air pressure consumption (1tr/min) | 200 | |
Blow pressure(Mpa) | 1.2-2.8 | |
Blow air pressure consumption (1tr/min) | 300 | |
Output(pcs/h) | 1600 | |
Machine size(LxWxH)(m) | 1.46*0.58*1.8 | |
Machine weight(KG) | 650 | |
Oven | Temperature grade(rate) | 8 |
Heating time(S) | 90-200 | |
Voltage(V) | 220 or as your request | |
Frequency(HZ) | 50/60 | |
Total power(KW) | 16 | |
Oven Size (LxWxH) | 1.35*0.55*1.15 | |
Oven weight (KG) | 300 |
Auxiliary Machines

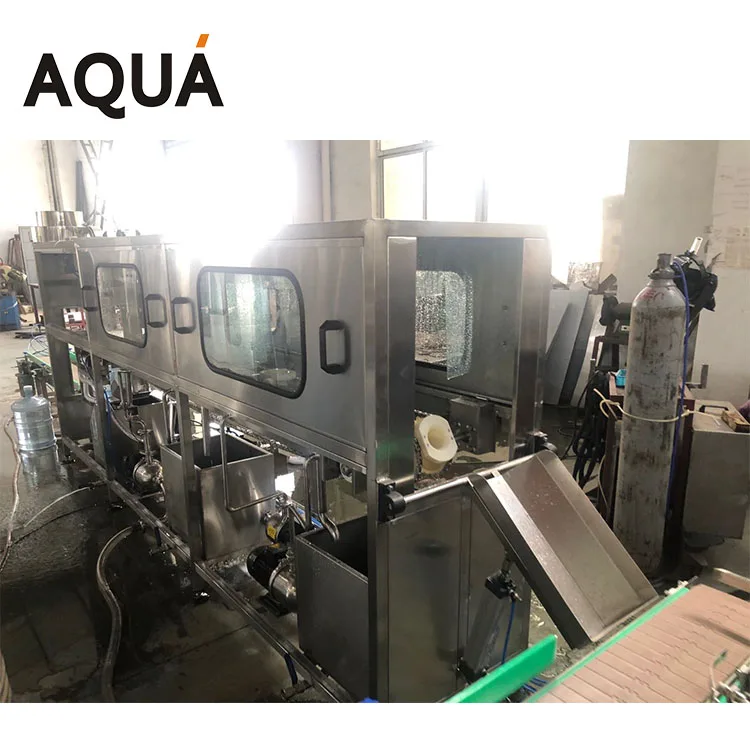

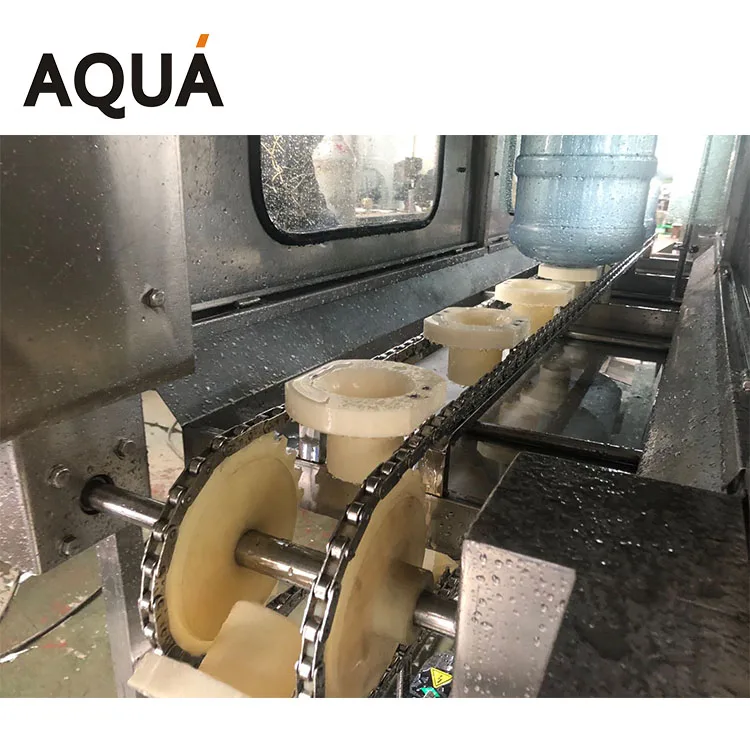

We also supply 120BPH 5 GALLON Water filling line

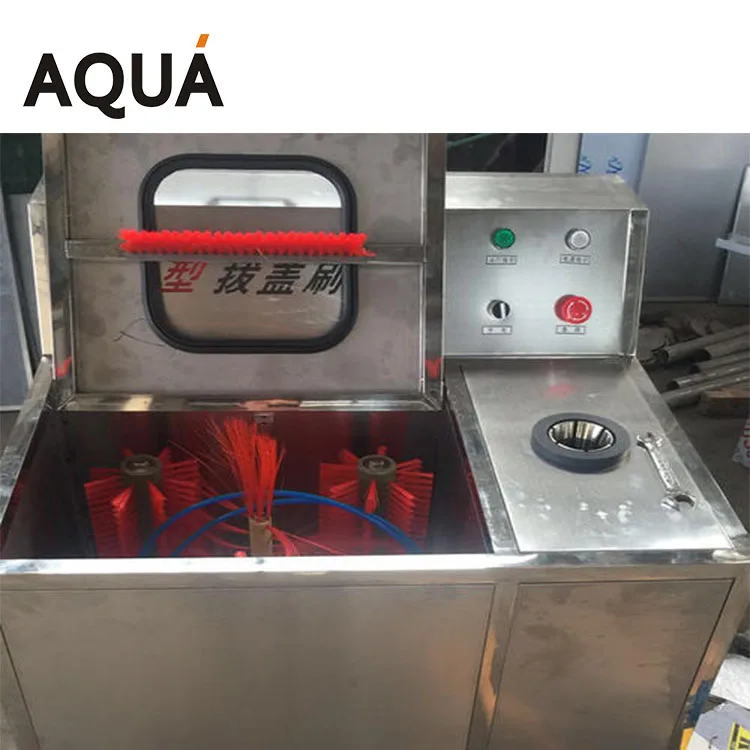

5 Gallon Brush and Decapper Machine
