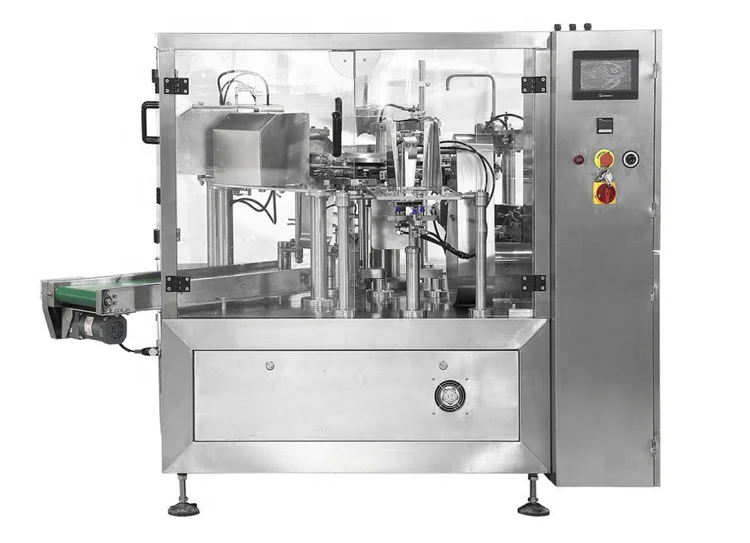

Automatic Pouch Machine Rotary Pre made Zipper Bag Cranberry Raisin Packaging Machine
- Category: >>>
- Supplier: Foshan Zhengchang Machinery Equipment Co. Ltd.
Share on (62388394313):
Product Overview
Description
Features
1.Automatic Diagnosis and Alarm System
2.SUS 304
3.IP65 & Dustproof
4.No Manual Work Required
5.Stable Production
6.Speed Adjustment
7.Wide Range of Packing
8.Touch Screen with PLC
Specification
Item | ZC-8200 | ZC-8250 | ZC-8300 | ||
Packing Speed | Max 60 bags / min | ||||
Bag size | L100-300mm | L100-350mm | L150-450mm | ||
W70-200mm | W130-250mm | W200-300mm | |||
Bag Type | Pre-made bags, Stand up bag, Three or Four-side sealed bag, Special-shaped bag | ||||
Weighing Range | 10g~1kg | 10~2kg | 10g~3kg | ||
Measurement Accuracy | ≤±0.5 ~ 1.0%，depend on the measurement equipment and materials | ||||
Maximem bag width | 200mm | 250mm | 300mm | ||
Gas consumption | 0.8Mpa 0.3m³/min | ||||
Total power/ voltage | 1.5kw 380v 50/60hz | 1.8kw 380v 50/60hz | 2kw 380v 50/60hz | ||
Air compressor | Not less than 1 CBM | ||||
Dimension | L1900*W1400*H1450mm | L2000*W1500*H1550 | |||
Machine Weight | 1300kg | 1500kg | |||
Complete system
Z type bucket conveyor
The hoister is applicable for vertical lifting of granule material such as corn, food, fodder, plastic and chemical industry, etc.

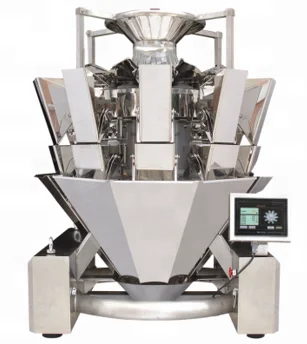

Multi-heads wegher(10-32 heads)
It is suitable for weighing various granular, flaky, round and irregular materials, hardware, etc.
Rotary table
The conveyor is applicable for transferring bag from take off conveyor. 304SS materials , diameter 1200mm, we can make this machine according to your requirement.
Finish product conveyor
The machine can send the packaged finished pouch to the inspection device or to final packaging platform.

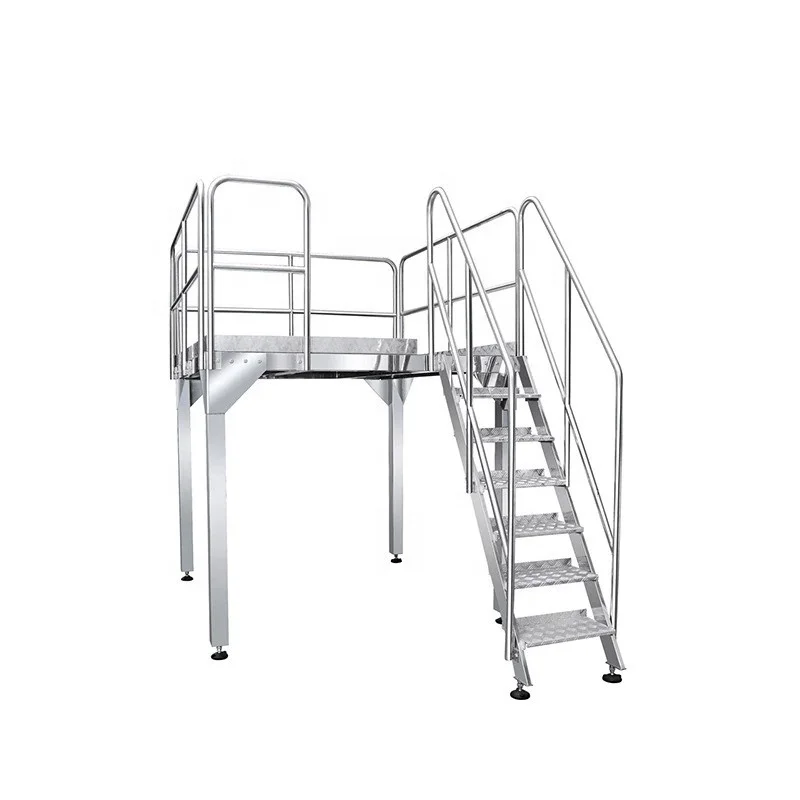

Supporting platform
The platform is mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system.
Elevator conveyor
It is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry
Packing Solution
The Filling System is Just for Your Reference.We Will Offer You the Best Solution According to Your Product Mobility, Viscosity,Density, Volume, Dimensions, Etc.
Liquid Packing Solution —— Piston Pump Filller Is Specialized for Liquid Filling Such as Water, Juice, Laundry Detergent, Ketchup, Etc.
Solid Packing Solution —— Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta,
Dried Fruit, Vegetable, Etc.
Granule Pack Solution —— Volumetric Cup Fillier Is Specialized for Granule Filling Such as Chemial, Beans, Salt, Seasoning, Etc.
