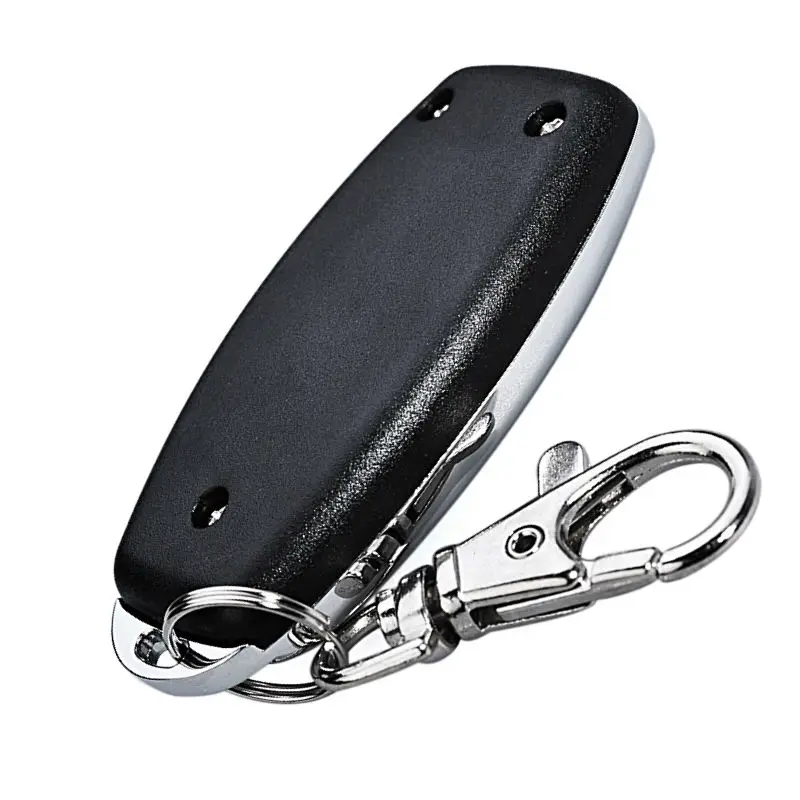

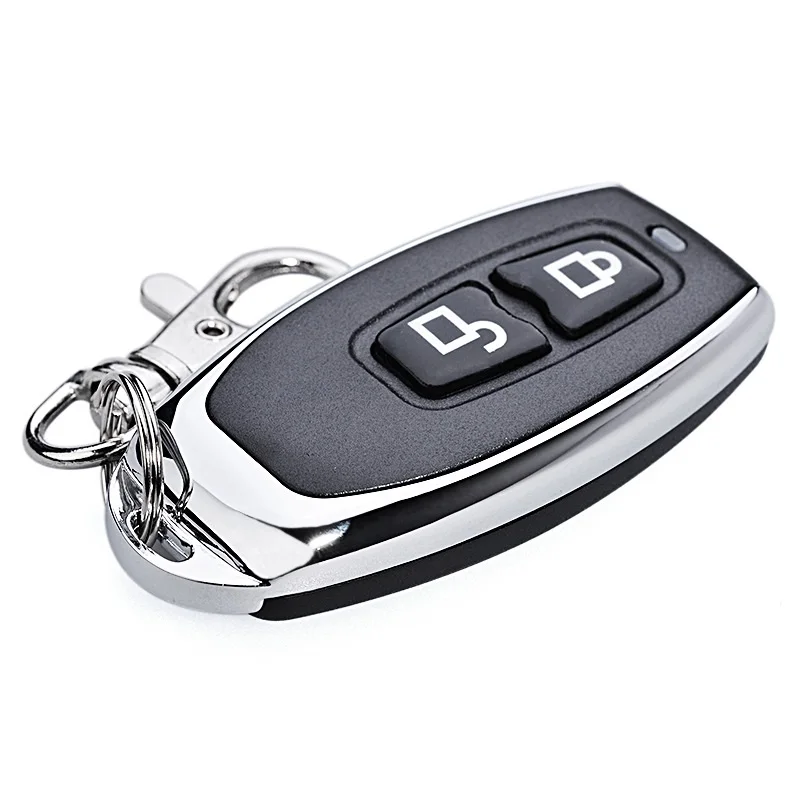

min size 433MHZ EV1527 learning code 2 button wireless remote control
- Category: >>>
- Supplier: Shenzhen Fengbaode Electronic Technology Development Co. Ltd.
Share on (62388484866):
Product Overview
Description
Product Description
Product Name | FBD-X02-433M |
Transmission distance： | 100 meters(Open space) |
Chip and Operating mode： | Fixed code (2260,2262 2264 etc) |

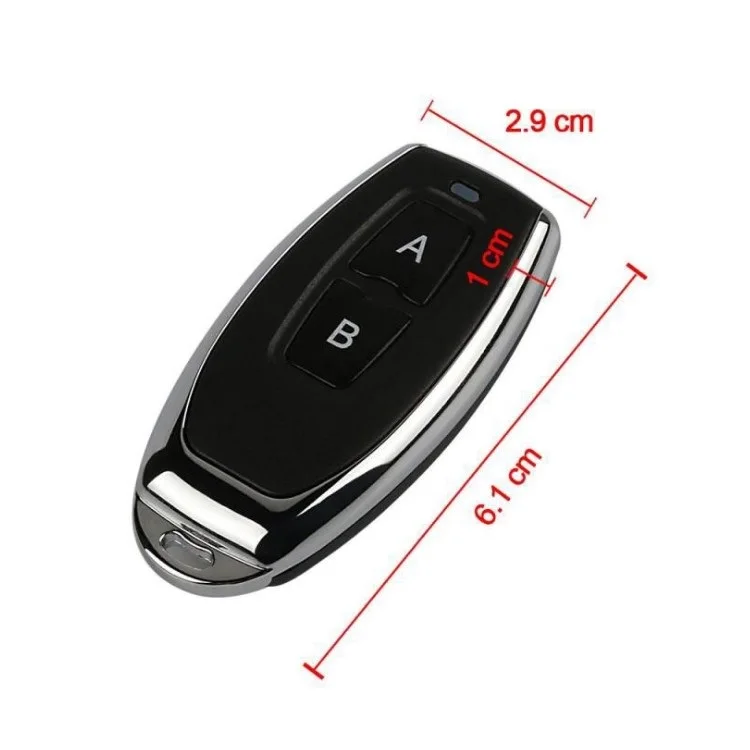

size： | 61*29*13mm |
Product performance description
产品性能介绍说明
There are a variety of chip models to choose from:
1. Fixed code: PT2262/2264; SC2260;
2. Learning code: ev1527; pt2240; HS2240; HS527;
3. Rolling code: HCS301
Product Brand: FBD
Product model: FBD-XX01 series Working frequency: 315MHz/433MHz and other frequencies are optional
Frequency deviation: ±150KHz
Working voltage: DC6V (3V button battery *2) Transmitting power: ≥10mW
Launch distance: ≥50m
Transmission rate: 300hz---60khz
Details Images

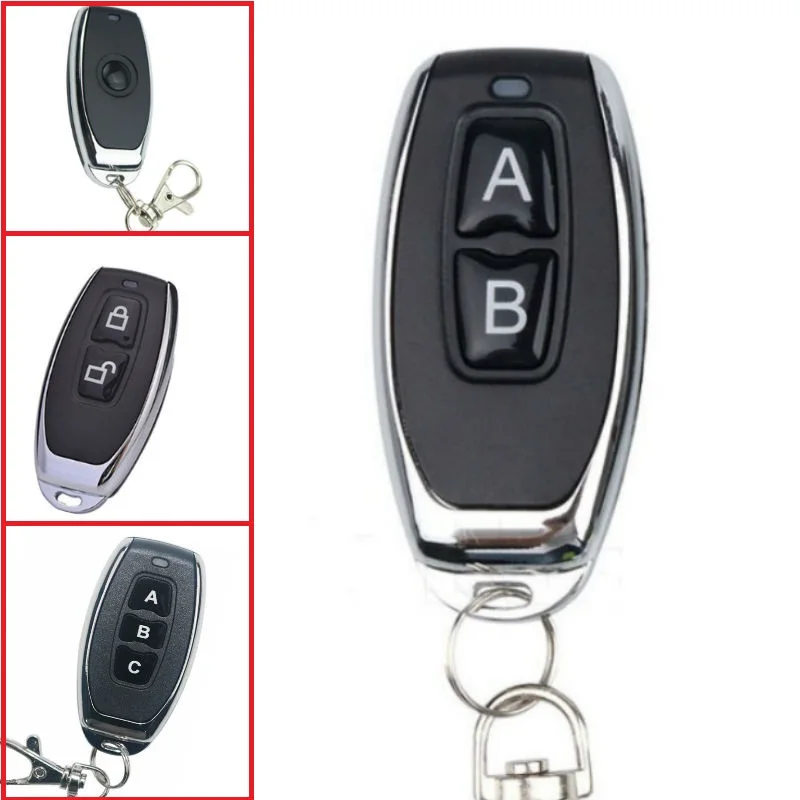

There are a variety of button symbols to choose from

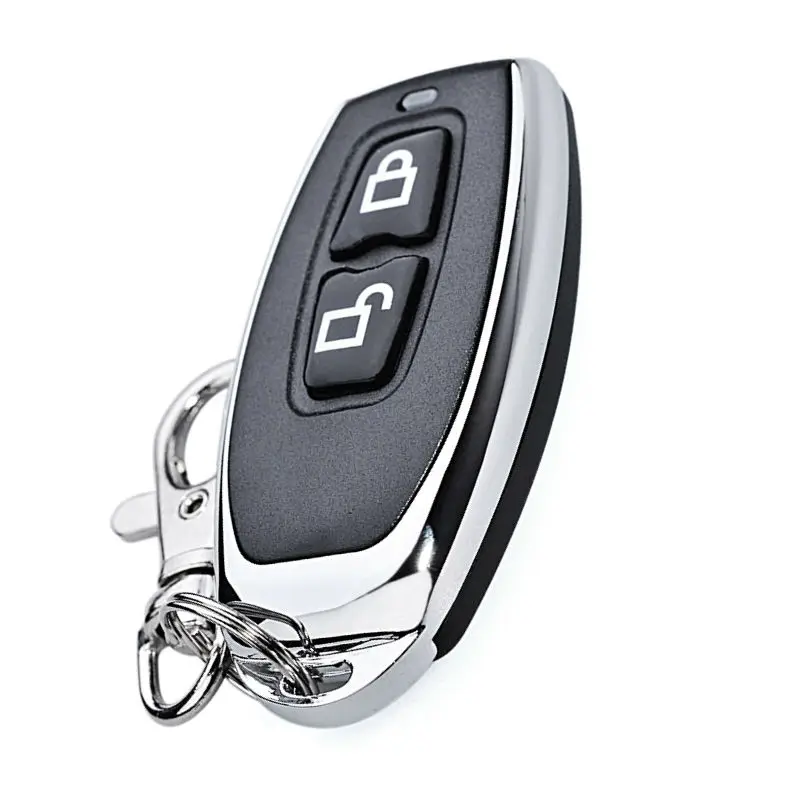

Lock and unlock button symbol

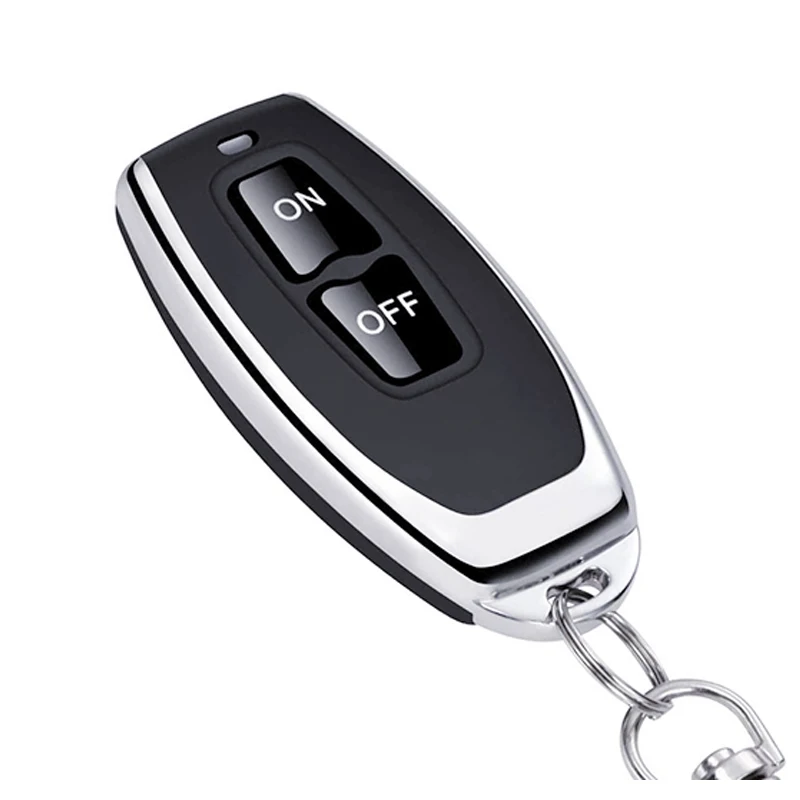

ON/OFF button symbol

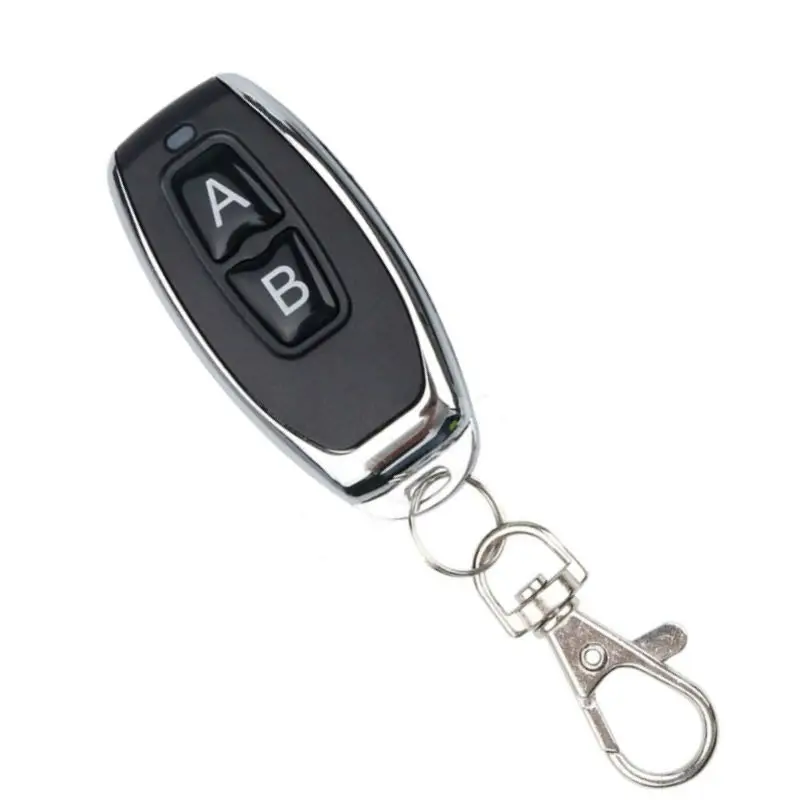

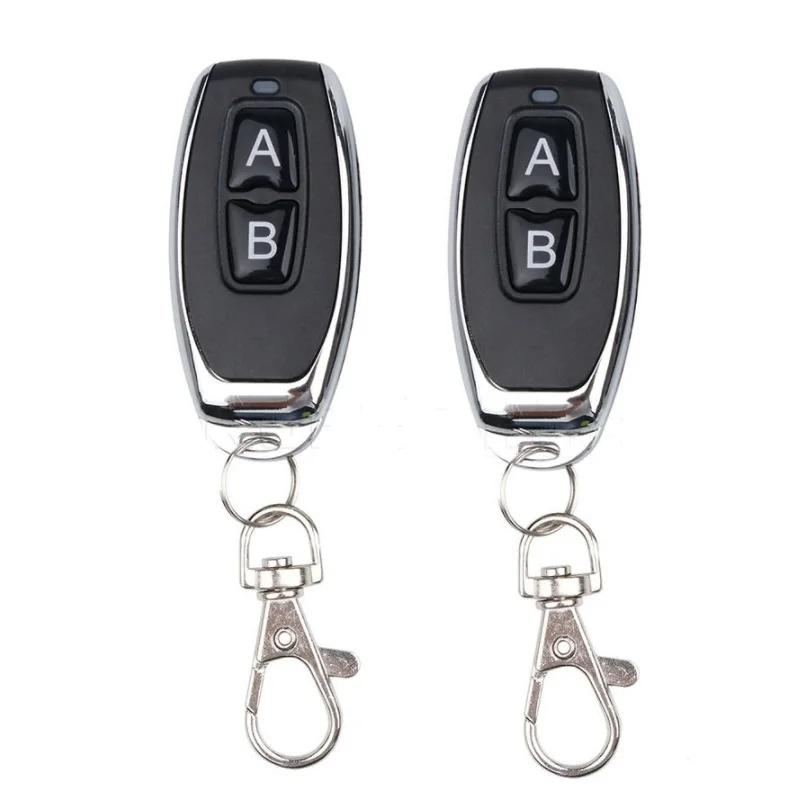

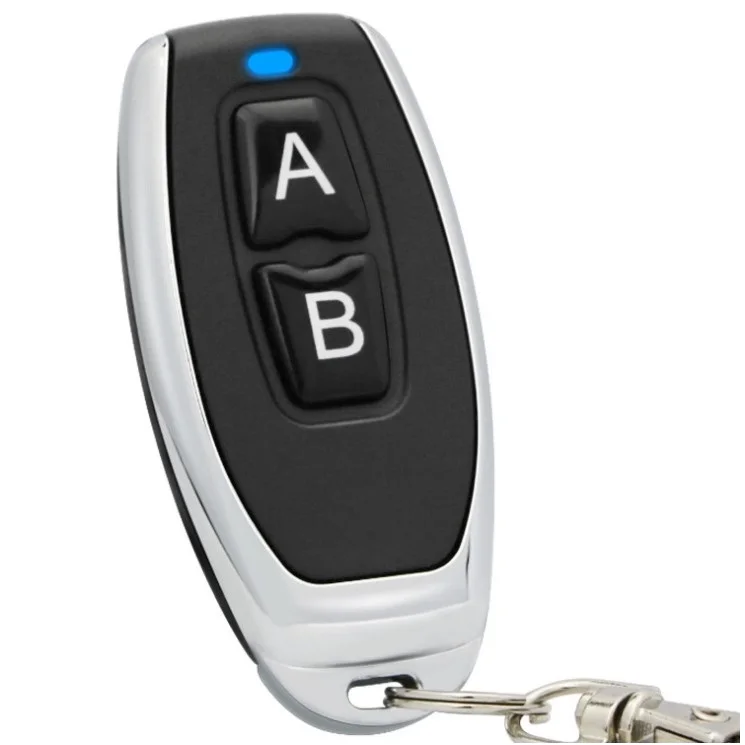

A/B button symbol
Product Usage
Product usage introduction

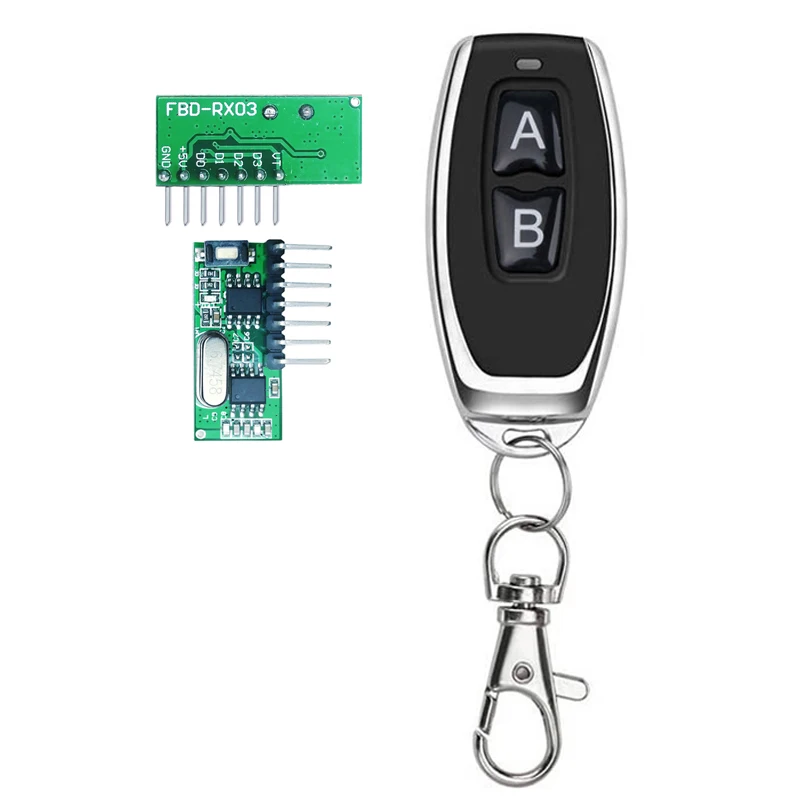

Can be matched with our FBD-RX03 receiver module with decoder
Receiver module parameters;
Receiver module parameters;
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: inching, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to the 4 buttons of the remote control "ABCD"
7. The receiver module can store the remote control: 20
8. Support coding chip model: EV1527, PT2262, 2264, 2260 and other customization
Description of product use effect

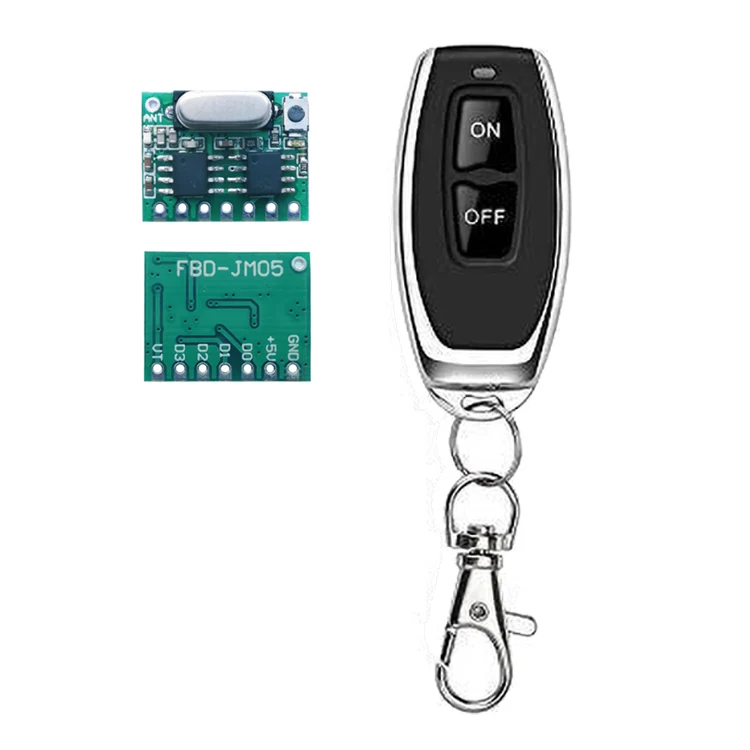

Can be matched with our FBD-JM05 receiver module with decoder
Receiver module parameters;
Receiver module parameters;
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: inching, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to the 4 buttons of the remote control "ABCD"
7. The receiver module can store the remote control: 20
8. Support coding chip model: EV1527, PT2262, 2264, 2260 and other customization
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Introduction
Founded in 2013, Shenzhen Fengbaode Electronic Technology Development Co., Ltd. is located in Shenzhen, Guangdong Province, the largest raw material processing and production center for digital electronic products. It is a professional wireless remote control, intelligent remote control project, wireless RF remote control transmitter receiving wireless The control solution solves the development of electronic software and hardware and production and processing enterprises. Main intelligent remote control project, 315 433MHZ anti-theft alarm remote control, battery car motorcycle anti-theft remote control transmitter, electric door garage door retractable door remote control LED lamp kilometer high power remote control, wireless transceiver module 2.4G Bluetooth remote control, car control Circuit board controller remote control switch VR remote control VR helmet glasses, etc.,the variety is complete, the price is fair, the company's complete scientific quality management system, product quality has been recognized by the industry. The company has a strong focus on keeping promises, complying with contracts to ensure product quality, and featuring diversified product management. Variety of models, complete models, and the principle of small profits but quick turnover to win the support of the new and old customers.
Our Services & Strength

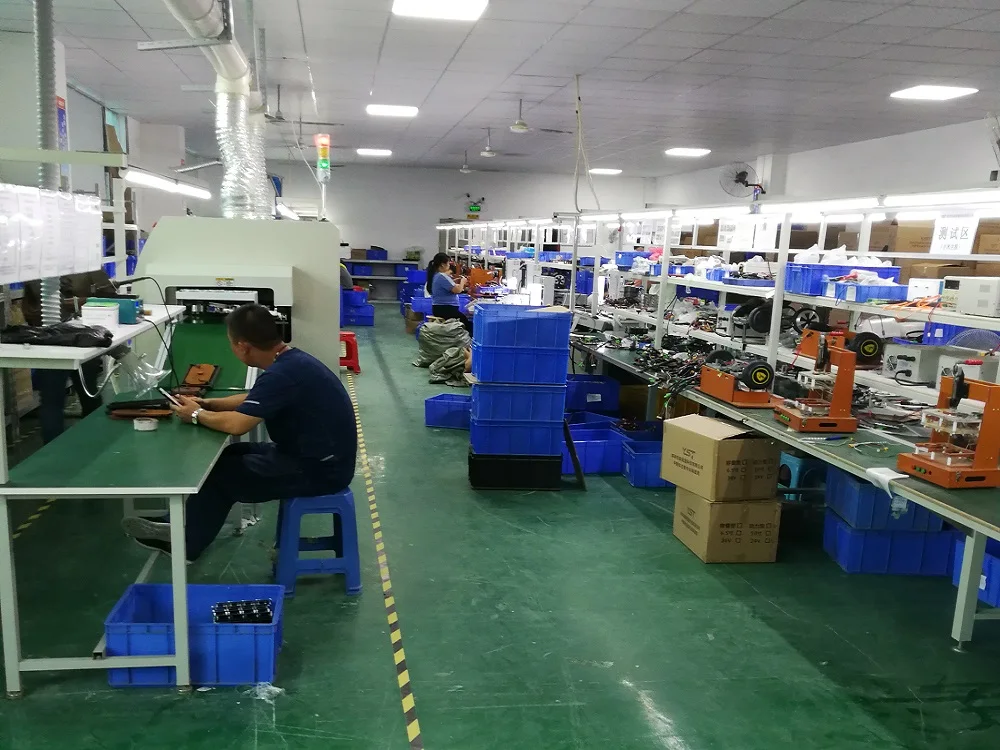

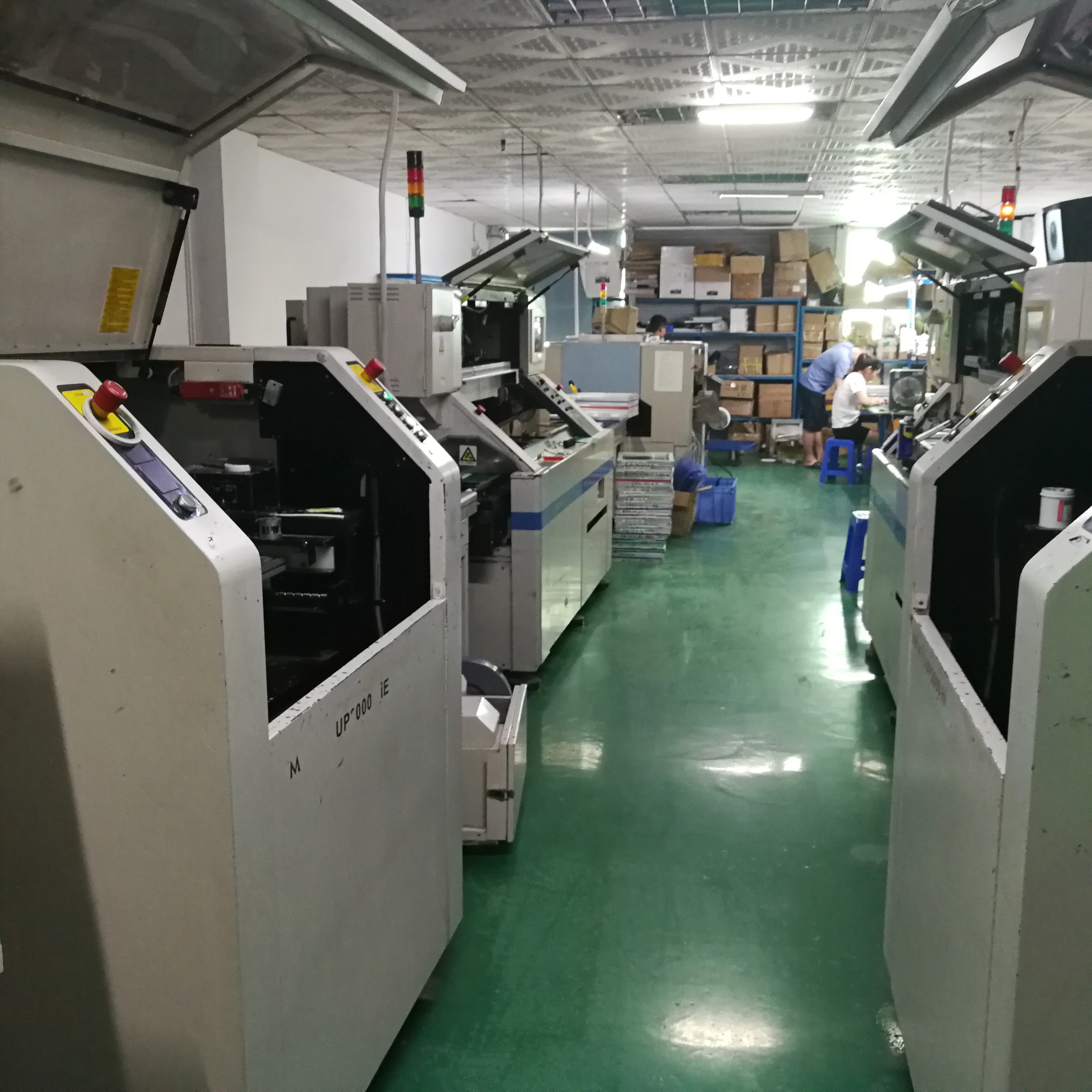

1: We have our own factory, production line, SMT and plug-in, automatic screwdriver machine, etc. and R&D department
