800tpd Complete Manganese Ore Mining Beneficiation Processing Rock Washing Plant For Sale
- Category: >>>
- Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Share on (62388521122):
Product Overview
Description
Products Description
Manganese Wash Plant---Product Description |
【Introduction】:Manganese mineral belongs to the weak magnetic minerals, which can be recovered by high-intensity magnetic separator. Xinhai applies the magnetic process to separate manganese mineral, including two stages, rough separate the high-intensity magnetic ore and concentrate the medium intensity magnetic ore, thus improve the manganese grade by 4% to 10%. 【Application】:The magnetic extraction process of manganese mineral can be applied to separate high phosphate ore, high-silicon ore and low bixbyite ore. |
Process Description
Manganese Wash Plant---Process Description
Rough separate the high-intensity magnetic ore
Xinhai adopts special high-intensity ;magnetic separator of manganese ore to remove impurities preliminary, then uses spiral classifier to classify rougher concentrate, rougher tailings directly discharge ;into the tailings thickener at last.
Classifying
The underflow of the classifier been delivered into the magnetic separator to concentration, and the overflow been dewatered at the thickener.
Thickening
The concentration overflow discharged into the backwater system, the concentration underflow converged with the concentration becoming the concentrates.
Xinhai adopts special high-intensity ;magnetic separator of manganese ore to remove impurities preliminary, then uses spiral classifier to classify rougher concentrate, rougher tailings directly discharge ;into the tailings thickener at last.
Classifying
The underflow of the classifier been delivered into the magnetic separator to concentration, and the overflow been dewatered at the thickener.
Thickening
The concentration overflow discharged into the backwater system, the concentration underflow converged with the concentration becoming the concentrates.

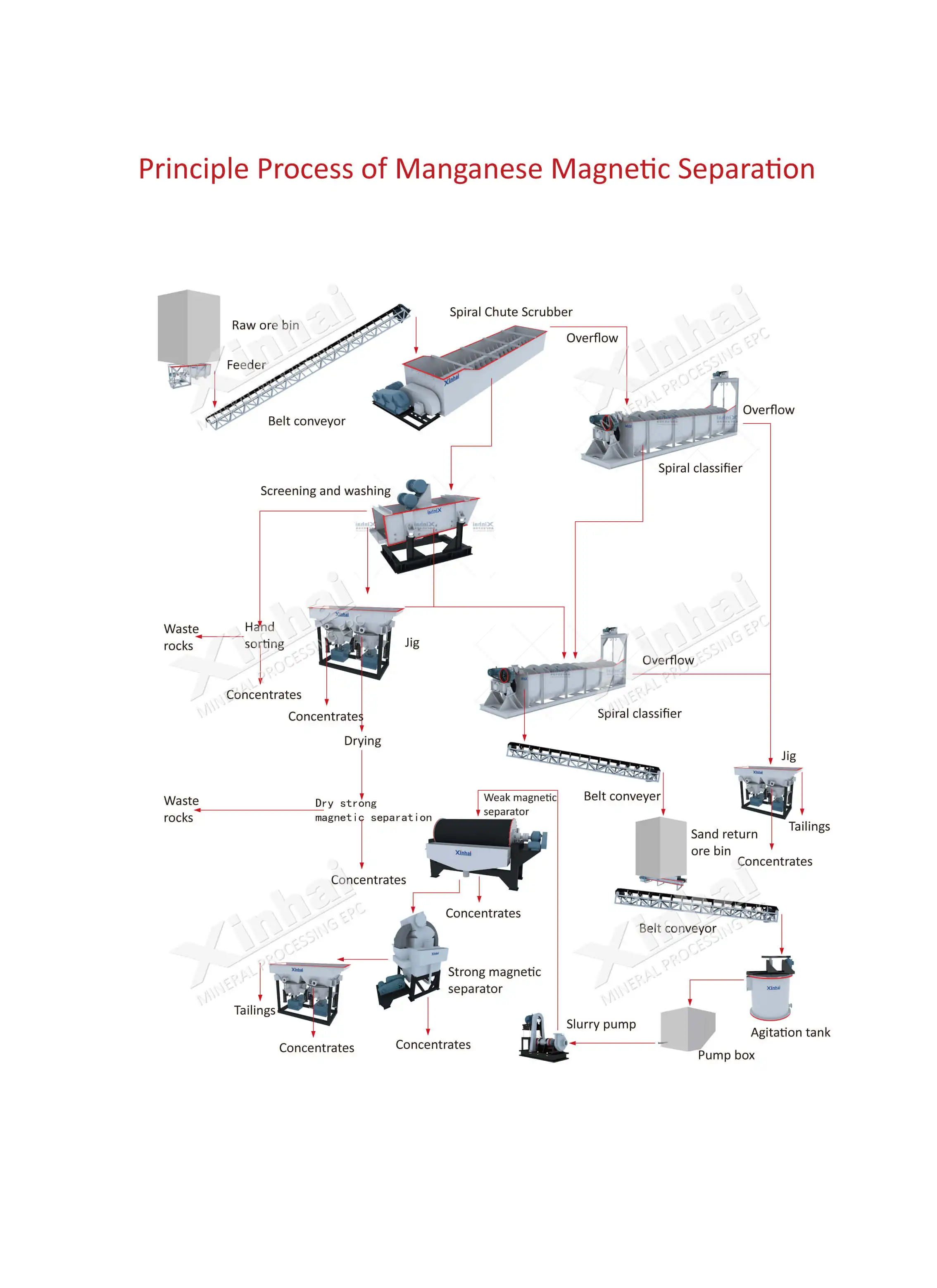

Process Flow
Recommend Products
The manganese ore processing plant mainly include following equipment,You can "click" the picture to know more information!
crusher | screening | grinding | jig | dewatering |
