99% Recovery Rate Waste Copper Wire Recycling Machine Wire Stripping Recycling Equipments

Product Overview

Description



99% Metal recycling rate waste copper wire recycling machine wire stripping recycling equipments





Scrap copper crushing and recycling machine

Scrap copper crushing and recycling machine introduction:

1.The scrap copper crushing and recycling machine mainly uses a coarse crushing and a secondary fine crushing to completely pulverize various copper-containing materials, which uses the specific gravity sorting or electrostatic sorting method to classify and recycle the scrap copper. The recovery rate of scrap copper is greater than 99.3%. It is suitable for all kind of Copper-containing materials.

2. The recycling machine is an aluminum sorting machine that is popular among major renewable resource companies, foundries, used car dismantling and crushing plants, electronics industry, metallurgy, chemicals, food, medicine, ceramics, building materials and coatings.



99% Metal recycling rate waste copper wire recycling machine wire stripping recycling equipments







Scrap copper crushing and recycling machine application:

Scrap copper crushing and recycling machine is used for the scrap copper crushing and recycling operation, which is suitable for all kinds of copper wire, enameled wire copper, copper wire, packaged copper, briquetting copper, copper scrap, copper scrap, copper scrap, waste mechanical copper, white copper plating, gold-plated copper, scrap copper casting, engine, electrolytic copper and waste beryllium copper, and the recovery rate of scrap copper is greater than 99.3%.



99% Metal recycling rate waste copper wire recycling machine wire stripping recycling equipmen







Scrap copper crushing and recycling machine type:

1:Specific gravity sorting

Specific gravity sorting can control the walking route according to the weight of the copper miscellaneous separation, so that these can be sorted and recovered in sequence between different materials and self-weighted materials.

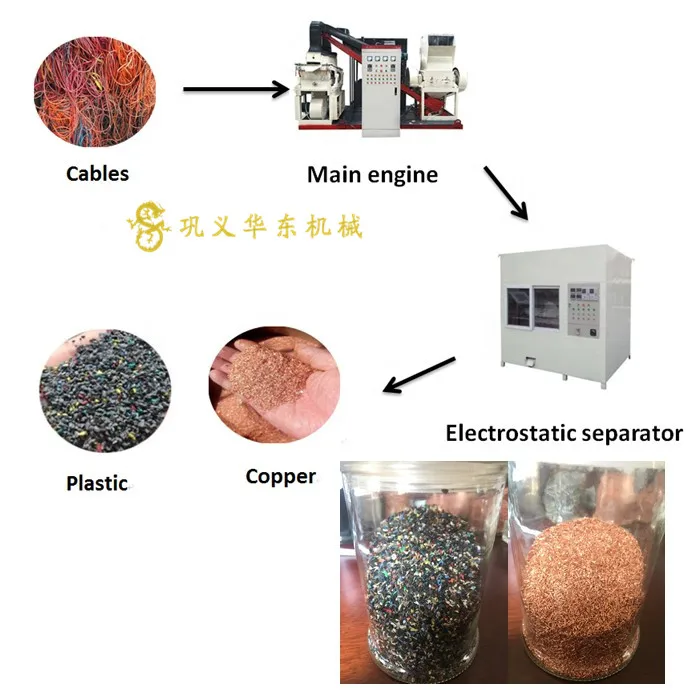

2: Electrostatic sorting machine

Electrostatic sorting machine adopts mechanical copper impurities separation, which is complete dry separation with no need for chemical test machine, separation liquid, etc.

The impurities can be less than 0.1% after electrostatic separation, and the purity of sorting can reach 99.9%.

3: Weight selection machine
The separation of copper impurities is achieved according to the weight of the copper miscellaneous and the water brush speed.

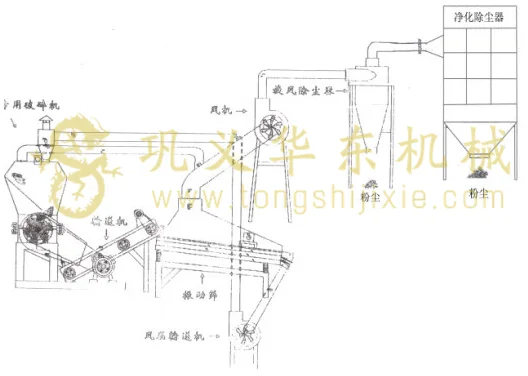

Scrap copper crushing and recycling machine composition:

The machine consists of a coarse crusher, a secondary crusher, an electrostatic recovery machine or a specific gravity recovery machine, and a conveyor, etc.

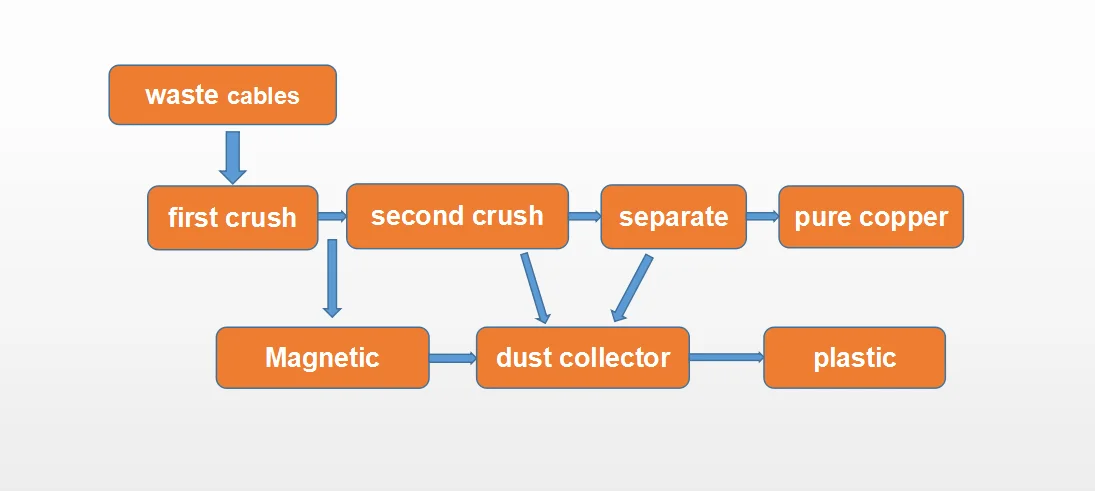

Scrap copper crushing and recycling machine operation principle:

The copper-containing material is sheared by high pressure, torn into small pieces after entering the coarse random double-cutter, and sent to the secondary fine crusher to machine it with multiple blades until the copper-containing material is discharged into the specified size from the screen.

The equipment completes the classification of the final copper and scrap metal.

Scrap copper crushing and recycling machine features:

1: The copper-containing material treated by the scrap copper crushing and recycling machine has a copper recovery efficiency of more than 99.3%.

2: Secondary crushing greatly reduces the power consumption and wear of the production line, greatly improving the finished product status and classification efficiency.

3: With a variety of sorting equipment, it solves the classification problem of copper mixed materials.

4: The whole set of production lines are well sealed, no splash, low screen average, and the finished product is uniform in size.

5: Fully automatic line greatly reduces labor and increases production efficiency.







Scrap copper crushing and recycling machine parameters:

Model	output	power	weight
JS-340	0.3-0.5	50-65kw	5.4
JS-450	0.8-1	70-81.5kw	6.8
JS-650	1.2-1.8	95	8.2
JS-800	2-3	160	12
JS-1180	5-10	330	23





































 Recycling machine parameters:

Project Model Productivity (t/h) Total power (kw) Total Weight (kg) Dimensions Length * width * height(mm) FX-30 3 9.5 1300 3600×1860×1700 FX-50 5 12.5 1600 3900×1900×1700 FX-70 7 14.5 2000 4600×1900×1700

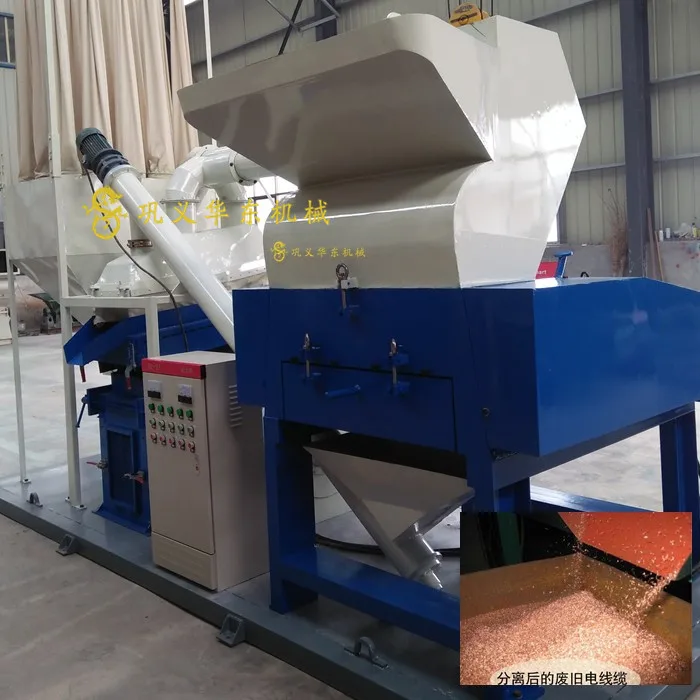

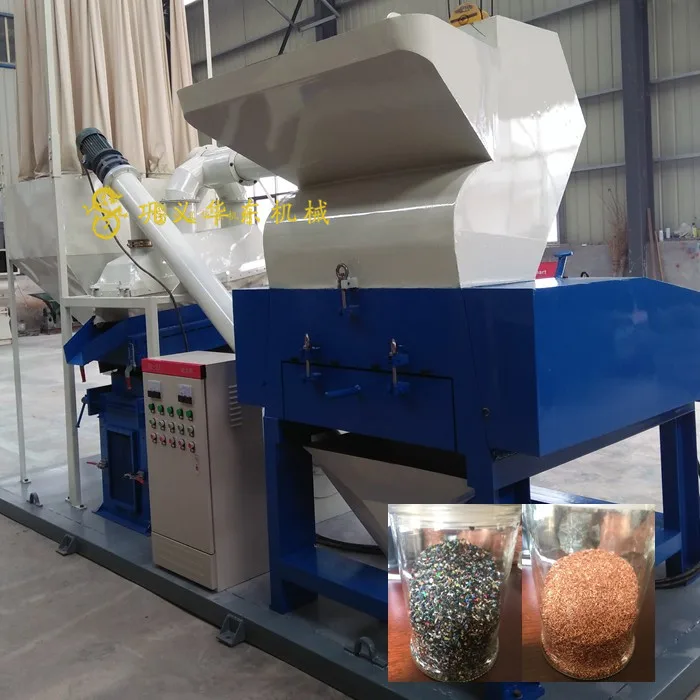

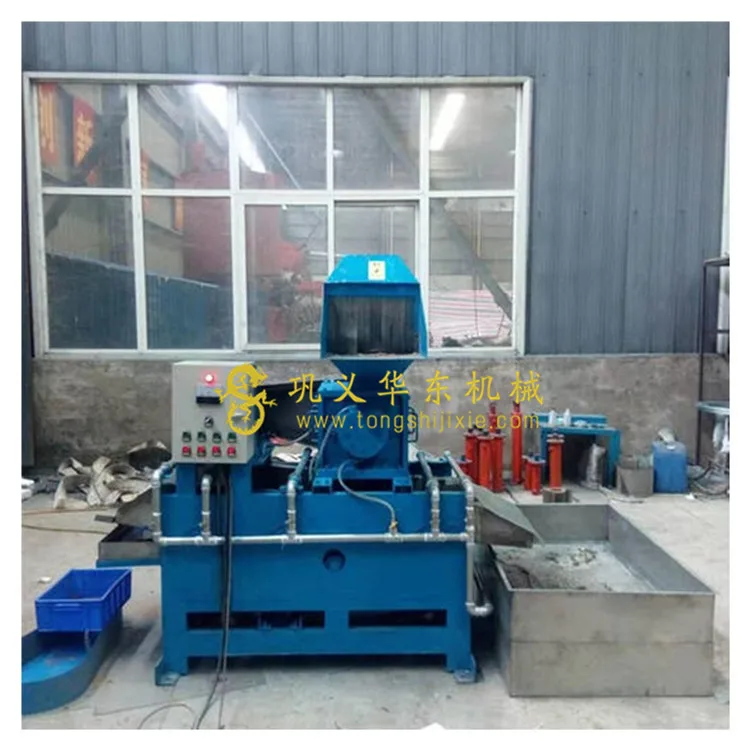

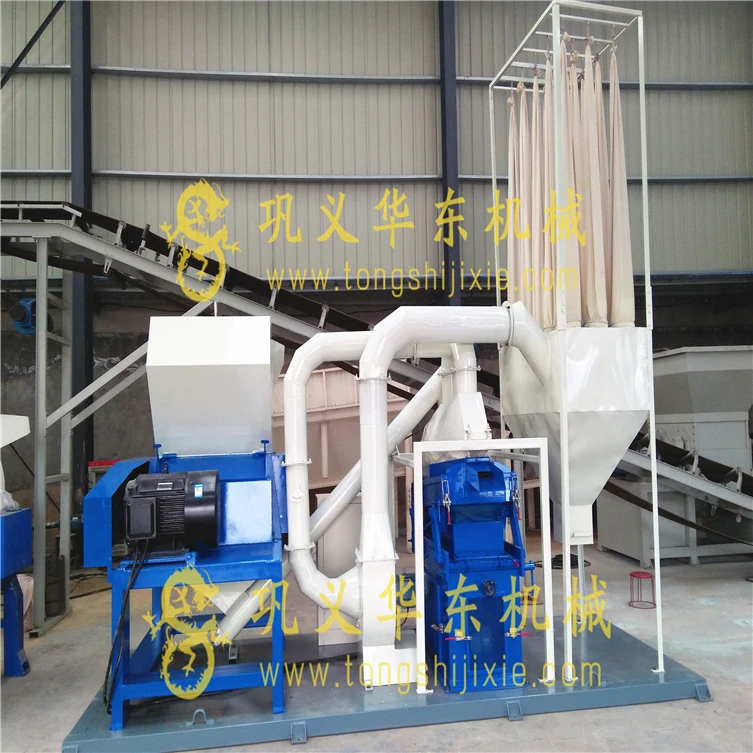

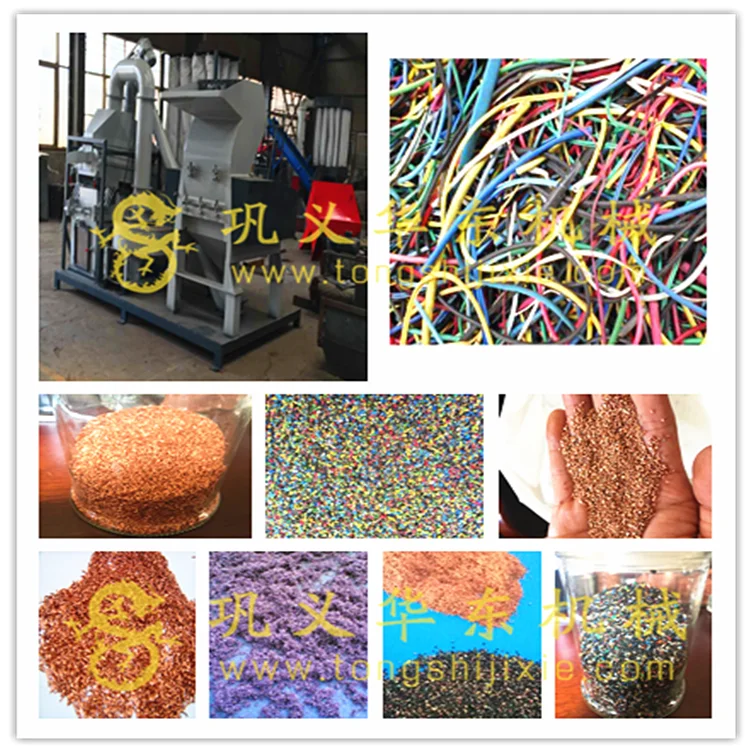

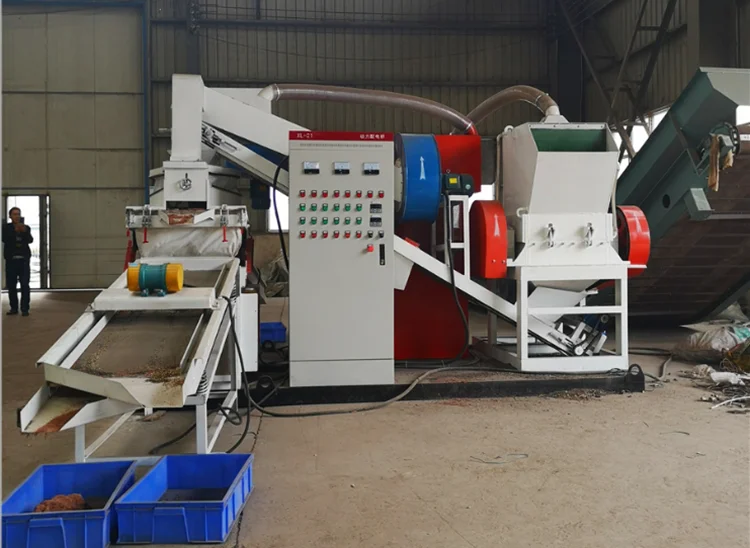

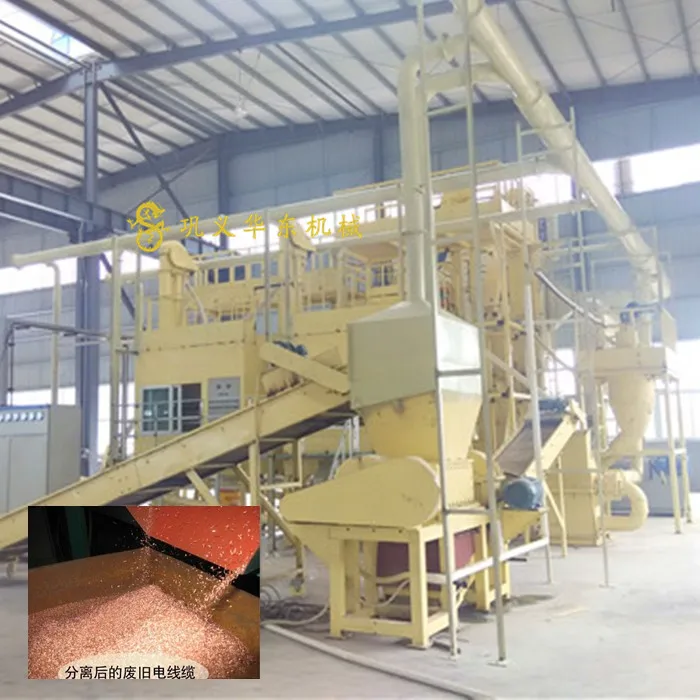

 Equipment display:
