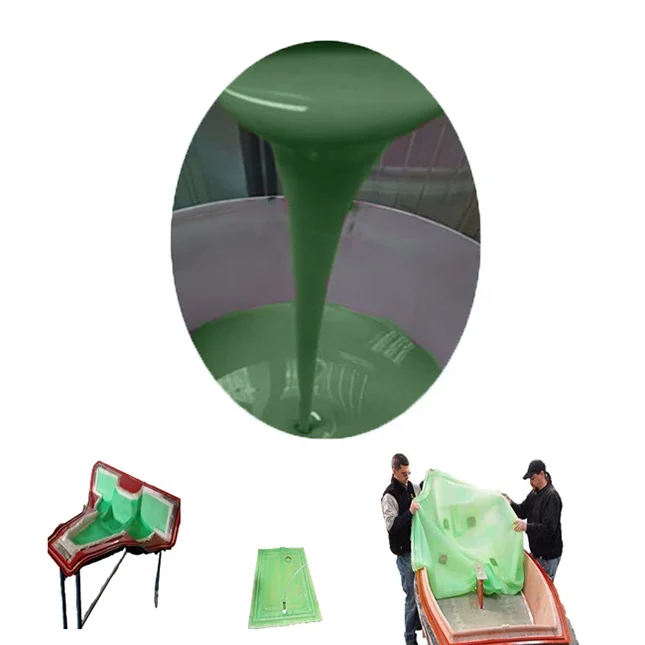

Anti corrosive RTV2 Platinum Based RTV2 Silicone Rubber For Vacuum Bag
- Category: Rubber Raw Materials >>>
- Supplier: Shenzhen Zhihua Chemical Co. Ltd.
Share on (62388819026):
Product Overview
Description
Description
DC-A25 is a kind of two part silicone rubber in addition cure or platinum cure type with mixing ratio of 1:1 or 10:1.It can cure at room temperature as well as under heat. It’s mainly used for mold making.
Technical Parameters
Model | Color | Mixing ratio (%) | Pot life (mins, under 25℃) | Curing time
| Hardness ( Shore A ) | Tensile- strength (MPa) | Tear- strength (kN/m) | Viscosity （After A/B mixed ,mPa.s） | Shrinkage rate (%) | Elongation （%） |
DC-A25 | Translucent | 1:1 or 10:1 | 20-40 | (3-5hrs under 25℃); (20-30 mins under 60℃) | 25±2 |
>5.5
|
>20
|
4000-25000(can be adjusted)
| <0.1% | > 500% |
DC-A25 is is used for glass vacuum laminating machines/Furnace etc
heat-resistant, high elasticity, special surface property (no adhesion) and physiological inertia, anti-aging,
anti-corrosive, non-polluting
anti-corrosive, non-polluting
Step 1: prepare the original molds
Prepare an perfect original mold and clean it totally before operation.
＊Notes: Make sure your original molds and operation tool were cleaned up totally to avoid uncured problem .
Step 2: Take 100 G part A and 100 G part B (Or 100 G part A and 10 G part B) and mix them evenly.
＊Notes: Addition cure mold making silicon rubber is two parts flowing liquid, Pls follow the step strictly:
1.Weigh the two part exactly by electronic weight. If any part not in exactly weight, it may cause changing of hardness, or even cause uncured problem.
2.Mix part A and part B evenly. Otherwise the silicon rubber will be partly solidified and this will give birth to difficulties in your final operation. What’s more, the finished molds will meet a short life. All of these will cause a waste of silicone rubber.
Step 3: Vacuum pumping
Without exception, this step takes less than 10 minutes. Otherwise, it will cause cross linking reaction, and no more further steps will be available.

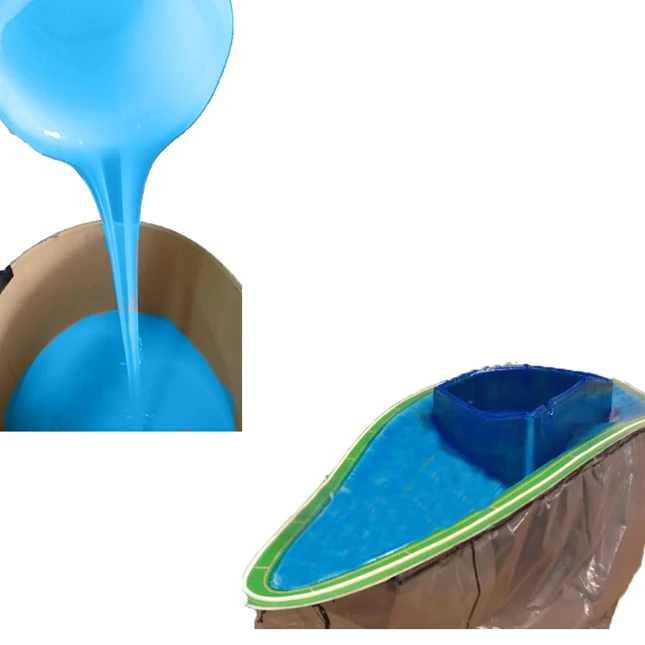

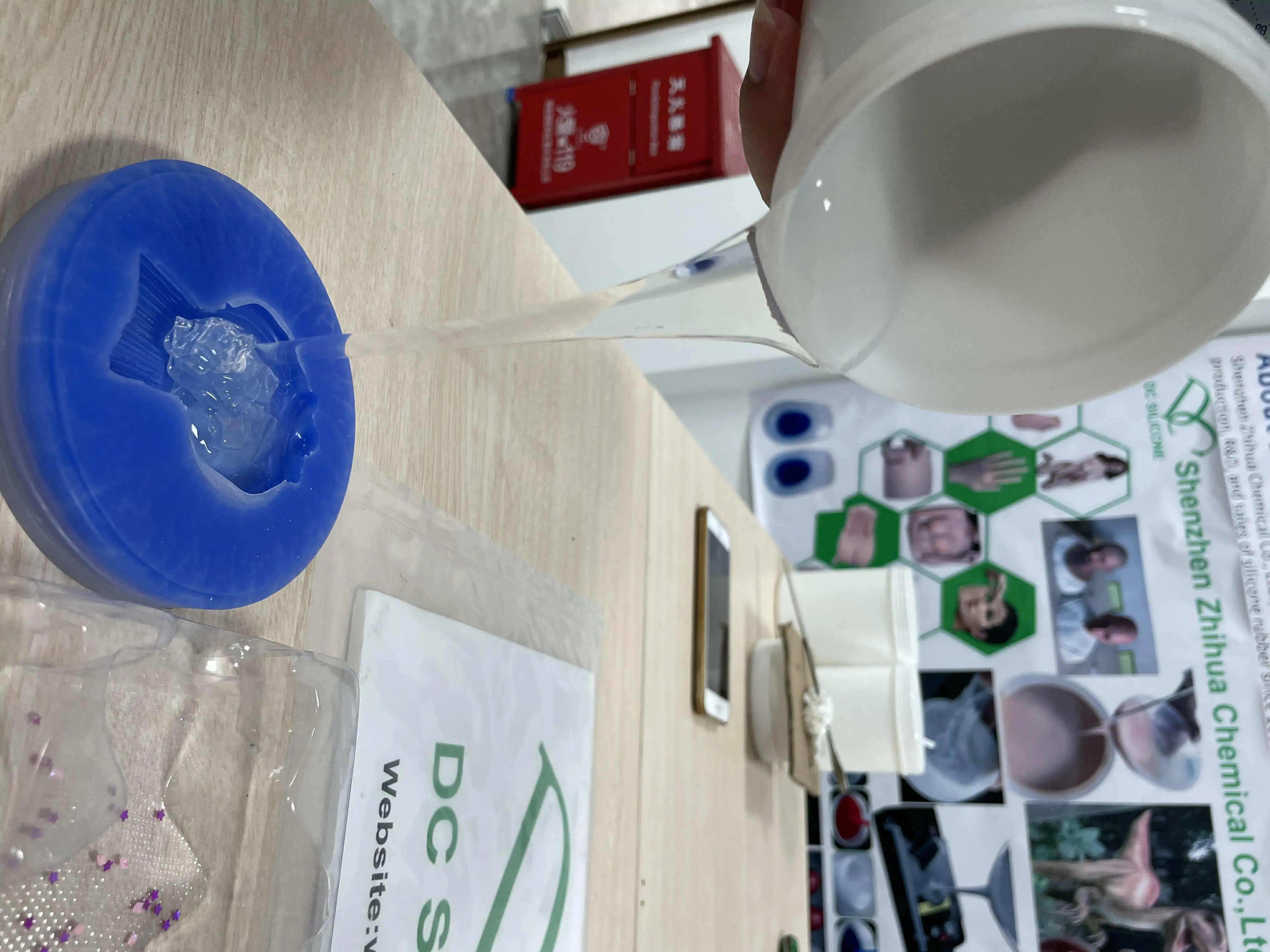

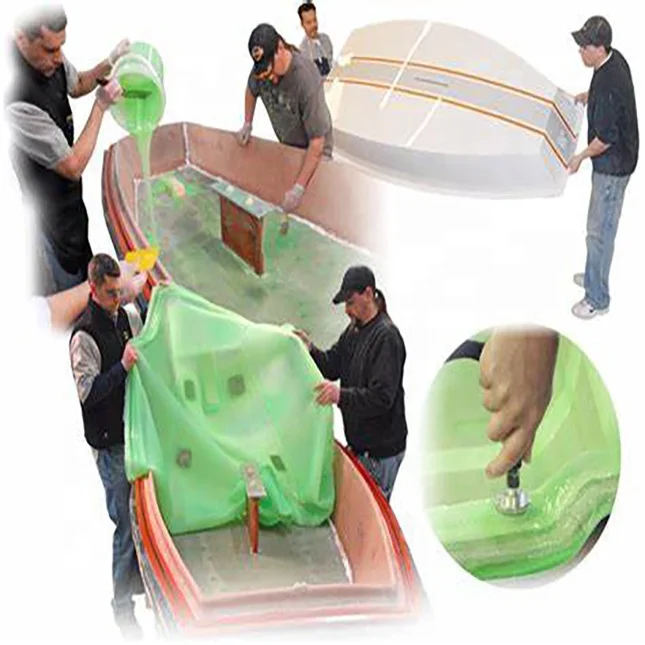

Step 4: Pouring casting or Brush operation
＊Notes:1. For simple pattern products we suggest use pouring operation way, which will be very easy to operate and demould. Pourable silicone require low viscosity which will be easy to flow smoothly and easy to de-air .
2.For delicate pattern products we suggest use brushing operation way, which can copy the pattern exactly. Brushable silicone require high viscosity which won’t be easy to flow away and easy to brush .
- We suggest to set the silicone mold for another 12 hours after demould before you put it into a large production .
Shipping
Shipping can be flexibly adjusted according to the quantity of order and the specific requirements of clients.
1. 1:1 mix ratio: 20KG/drum + 20KG/drum with vacuum packing ;
200KG/drum + 200KG/drum packing
200KG/drum + 200KG/drum packing
2.10:1 mix ratio: 20KG/drum + 1KG/bottle with vacuum packing
200KG/drum + 20KG/drum with vacuum packing
200KG/drum + 20KG/drum with vacuum packing
As addition cure silicone is a kind of platinum cure system, which will be easy to cause uncured problem ,so pls kindly follow the tips as below :
＊Do not mix with liquid condensation silicone rubber or even the tool which used for condensation silicone rubber.(Don’t mix anything which has touch the tin cure silicone).
＊Do not mix with organic matter which contains N, S, P organics and ionic compound like Sn, As,Hg, Ph. (Do not smoke when you use this addition silicone rubber).
＊Do not add any pigment or powder into the addition cure silicone rubber without any testing to prevent uncured problem.
FAQs
Q: Do you have a factory?
A:Yes，we have a factory in Shenzhen. As a leading manufacturer of silicone rubber in China, we are standing in silicone field for
nearly 10 years, depends on our high quality products and best service.
Q:How can I get the samples?
A:We are honored to offer you samples. Testing is believing. So we can provide you 1kg free sample by air. The silicone sample is
free for you, and you should only pay the small part of shipping cost by air. But when we have a successful cooperation in the
future we will return the air shipping cost you paid before.
Q: How about the lead time?
A: Within10-20 days after getting the prepayment.
Q: How can we pay?
A: For small sample shipping cost, you can pay either by paypal or western union or by T/T.
Q: Can you do CO, Form E, Form F, Form A etc?
A: Yes, we can do them for you without extra cost. We are always finding ways to save cost for you.
Why choose us?
Attractive price to help you save cost
High quality with stable performance.
Free technical support and sample test to check the quality.
More than 10 years experience of silicone rubber producing.
Relate products purchasing assistance
China visiting reception
Factory visiting Reception
New market developing
New products research and development
Engineers Site Instruction
Hardness can be customized
according to your requirement
Color and package could be customized
Shenzhen Zhihua Chemical Co.,Ltd.(DC SILICONE) was established in 2008,is a science and technology Company which is concentrating on production, R&D, and sales of Chemical products, especially silicone rubber. We are praised as the leading professional manufacturer of Mould Making Silicone Rubber, Addition Silicone Rubber ,Life Casting Silicone Rubber, Electronic Potting Compound, Pad Printing Silicone Rubber, and so on. There has two main Series of best selling silicone rubber in our company. The DC-A Series Addition cure silicone rubber and The DC- C Series Condensation cure silicone rubber.
