Concox Qbit GT360 Waterproof personal mini gps tracker for kids

Product Overview

Description

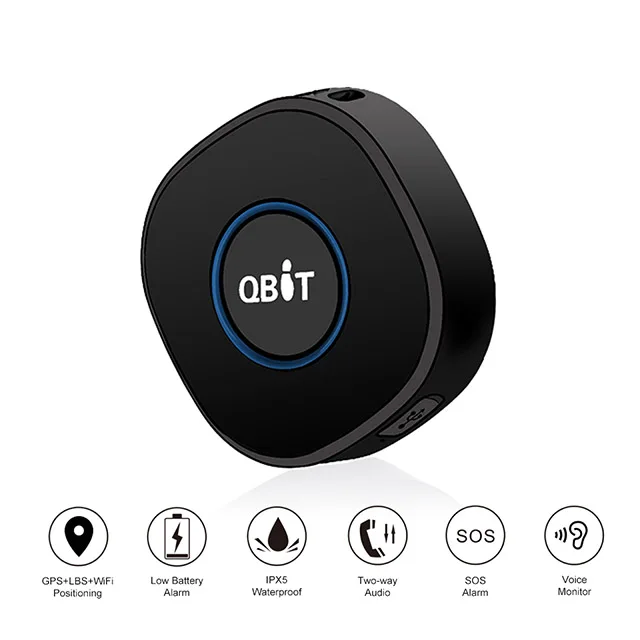

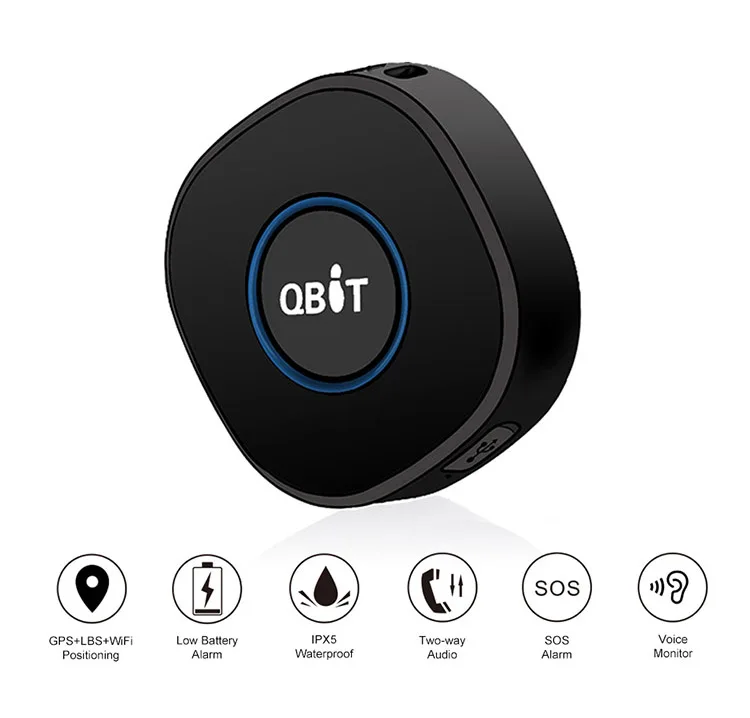

Concox Qbit GT360 Waterproof personal mini gps tracker for kids



Model:Qbit



Description:





Features:



1.Mini personal gps tracker with real time GPS position
2.Network: GSM850/900/1800/1900M;
3.Battery standby time is 3-4 days, working time:3 days (every 10 mins update location working mode)
4.Support iOS and Android system
5.voice monitor,two-way communication,offline alert,low power alert,geo-fence alert,etc
6.Position:GPS+WIFI+LBS
7.google map


Technical Parameter:

Hardware Specification
Memory	64 Mb
GSM frequency	GSM 800/1900MHz
GPRS	Class 12, TCP/IP
Max output	GSM 850/1900MHz (33dBm ±3dBm)
	GSM 900/1800MHz (30dBm ±3dBm)
Max frequency error	±0.1ppm
Receive sensitivity	Class II RBER2%(-102dBm)
GPS Specification
GPS chipset	High sensitivity GPS chips
Frequency	GPS L1, 1575.42MHz
Channels	66
Location Accuracy	<10 meters
Tracking Sensitivity	- 165dBm
Acquisition Sensitivity	- 148dBm
TTFF (open sky)	Avg. hot start ≤1sec
	Avg. cold start ≤32sec

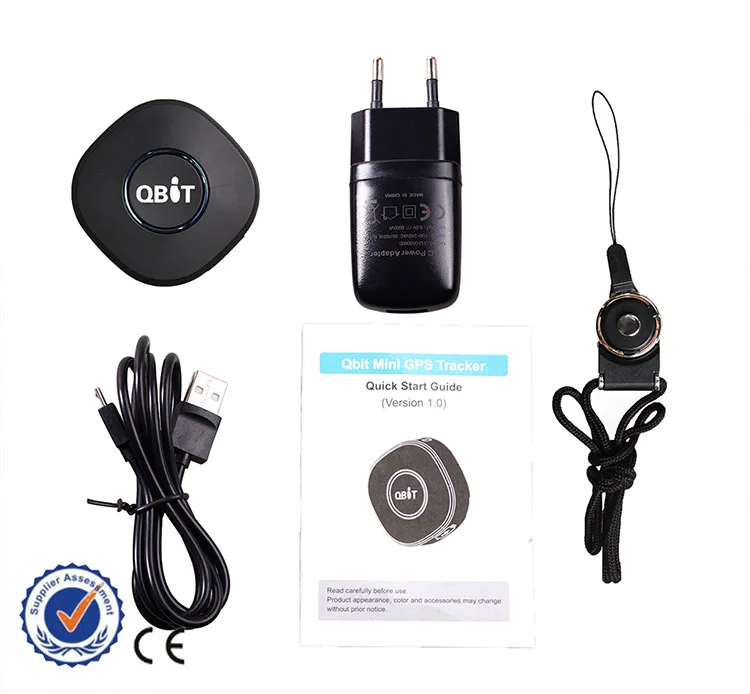

Function & Package
Voice monitor range	≤ 3M
Button	1xSOS
GSM/GPS antenna	Built-in quad band GSM antenna/18.0 x 18.0 x 2.0mm GPS ceramic antenna

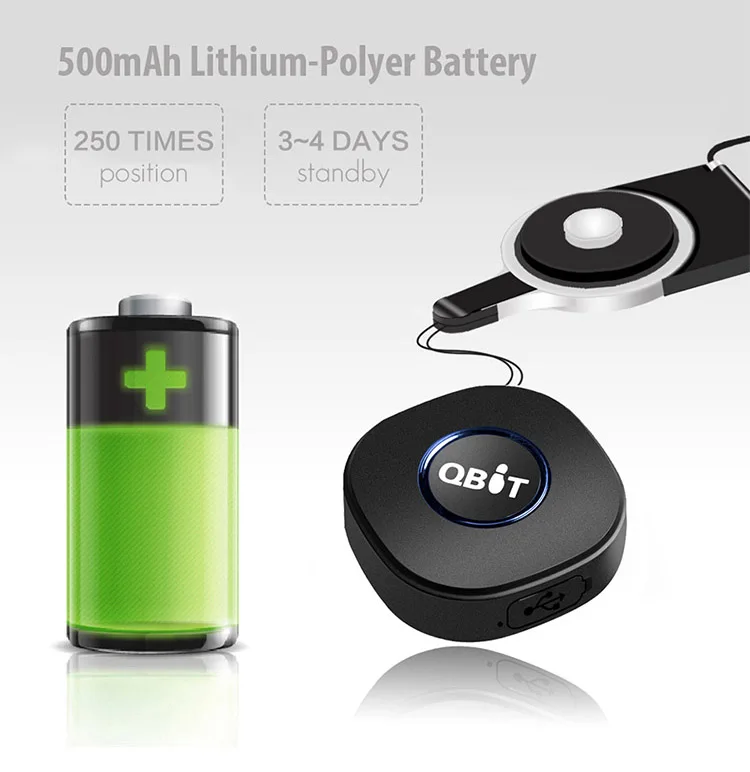

Standby time	3-4 days
Working time	3 days (positioning every 10 minutes)

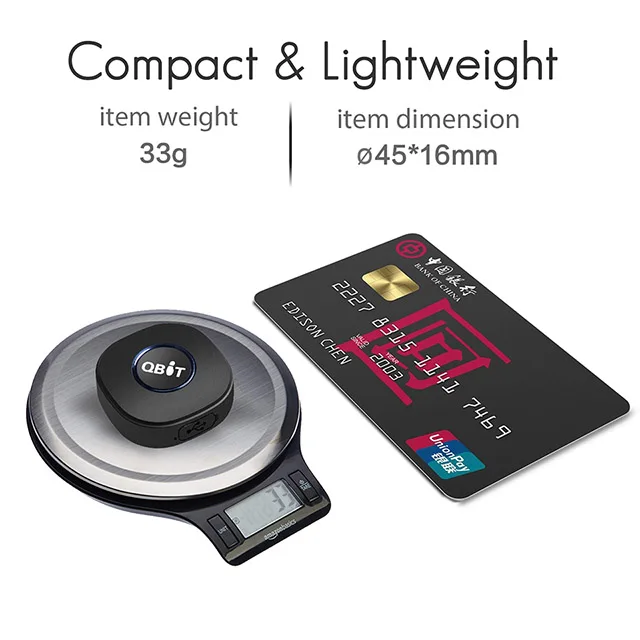

Device weight	33g

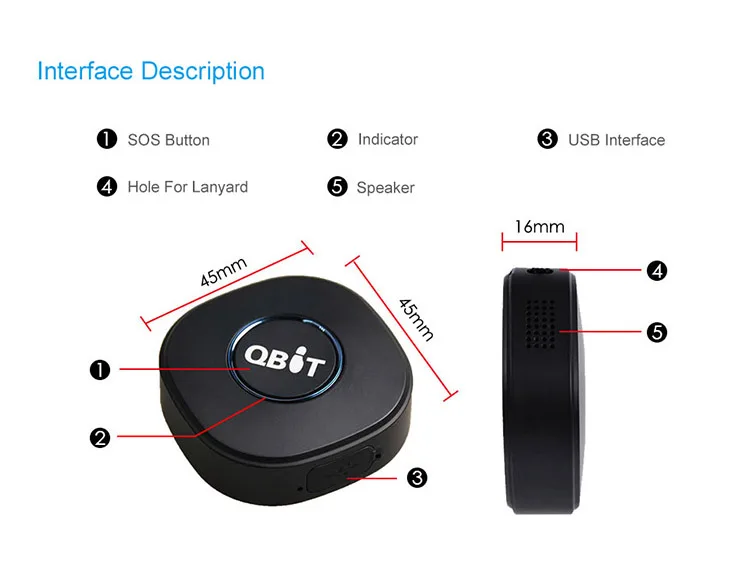

Device dimension	45.0 x 45.0x 16.0mm
LED indicator	Green/Blue/Green
Operating temperature	-20℃ ~+60 ℃
Standby current	≤5mA
Charger	5VDC/1A
Calling time	2 hours
