2m Quilt Computer Sewing Quilting Machine/ single needel quilting machine for Comforter/ Computerized mattress quilting machine

Product Overview

Description

2m Quilt Computer Sewing Quilting Machine/ single needel quilting machine for Comforter/ Computerized mattress quilting machine



1. Introduction of Computerized mattress quilting machine



The computerized quilting machine is a combination of quilting machine and computer operating system. With precise computer control system, it can perfectly quilt all kinds of complicated patterns on the entire coordinate system.



Compared with previous quilting machine, This computerized quilting machine production speed, mechanical performance, noise pollution and other indicators are much highly better. with so many advantages,this computerized quilting machine is widely used for quilting various quilts, matterss, sofa cushion, sleeping bags, bedspreads, carpet, blanket, mat,rug, curtains, etc.

2. Principle of Computerized mattress quilting machine

The computerized quilting machine adopts XY-Z motion working systems. The XY axis controls the movement of quilting head , the Z axis controls the quilting.

1. Z-axis direction -control the movement of the quilting needle up and down.

2. X-axis direction - control the left and right movement of the quilting machine head.

3. Y-axis direction - control the front and rear movement of the quilting machine head.









3. Features of Computerized mattress quilting machine

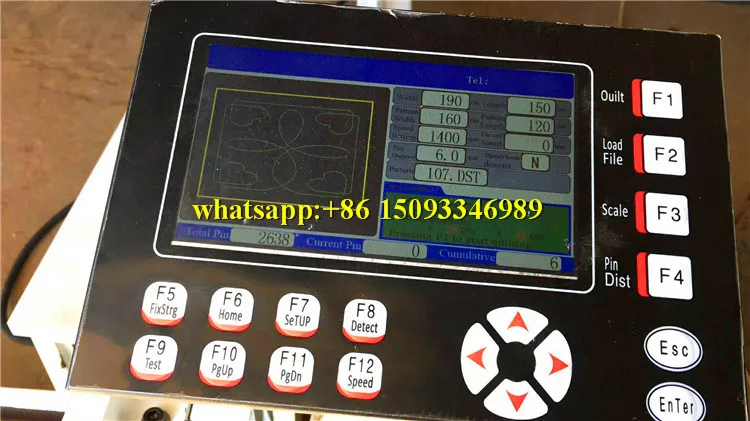

1. Computer language is full English layout. Easy to operate and understand
2. Quilting size, quilting thickness, needle speed, stitch length, pattern, etc.can be set or adjusted on computer control system
3. Quilting pattern can be choosen from computer or USB from customers.  easy and convenient to operate. Needle point and needle return method are adjusted freely
4. Automatic detection when thread disconnection. Fully automatic needle memory return. Fully automatic self-repair functions. You can see the display of spindle speed, stopping factor, output statistics, and remaining memory on the display.

5.Uniform needle step, quilting pattern is pretty and not easily deformed.
6.The computer quilting machine occupies a small area,  quilting size is large.machine size can be customized according to customzer needs



4. Parameters of  Computerized mattress quilting machine

Model	JC-9-2023	JC-9-2225	JC-9-2528	JC-9-2830	JC-9-3032
Max. Quilting size	2*2.3m	2.2*2.5m	2.5*2.8m	2.8*3m	3*3.2m
Max.Needle Drop size	1.9*2.2m	2.0*2.3m	2.3*2.6m	2.6*2.8m	2.8*3m
Die performance	Single head, single needle, large rotating shuttle
Quilting thickness	1200g/m2
Needle speed	1500-2500Needle/minute
Stitch distance	2-7mm
Needle type	18-22#
Power	1.5KW, 220v
Machine size	3.0*2.9*1.4m	3.2*3.1*1.4m	3.5*3.4*1.4m	3.8*3.4*1.4m	4.0*3.5*1.4m
Weight	600kg	700kg	800kg	900kg	1000kg
Packing size	3.2*1.2*1m	3.4*1.2*1m	3.6*1.2*1m	4*1.2*1m	4.2*1.2*1m
Note	Machine size can be customized according to customer’s need

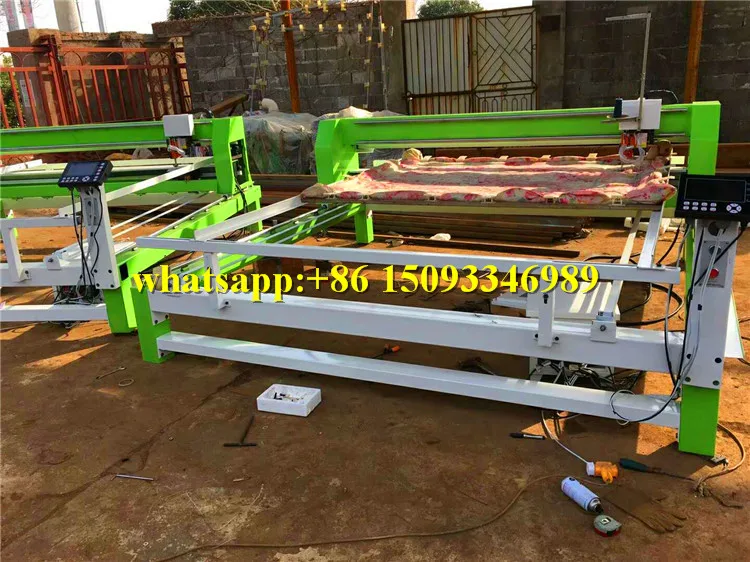

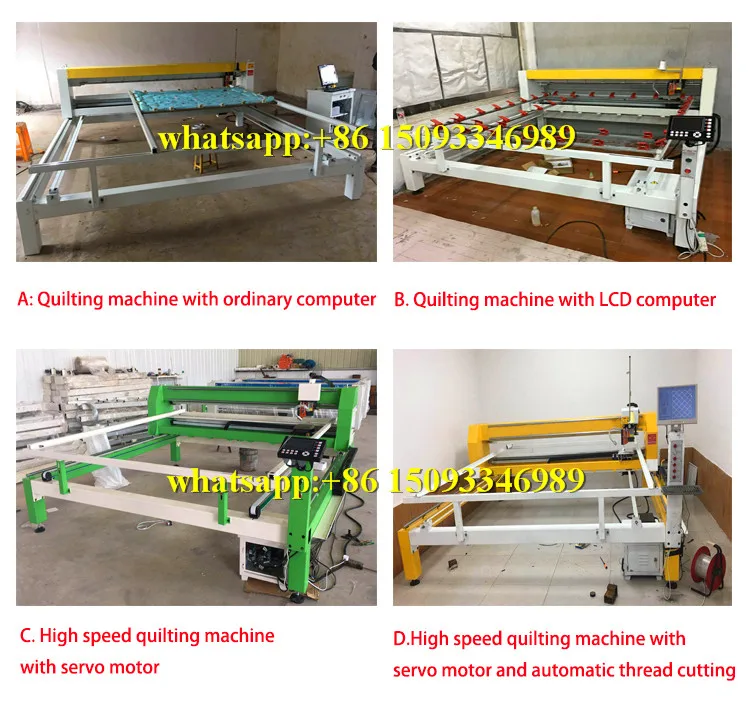

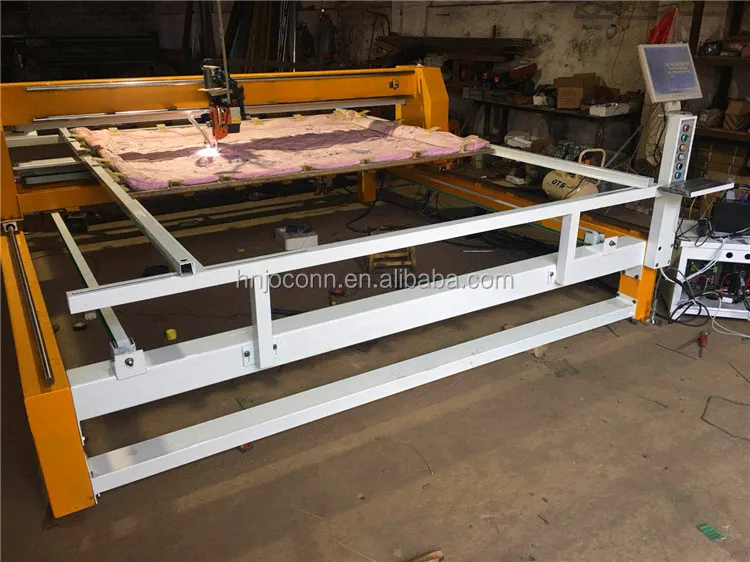

5. pictures of Computerized mattress quilting machine

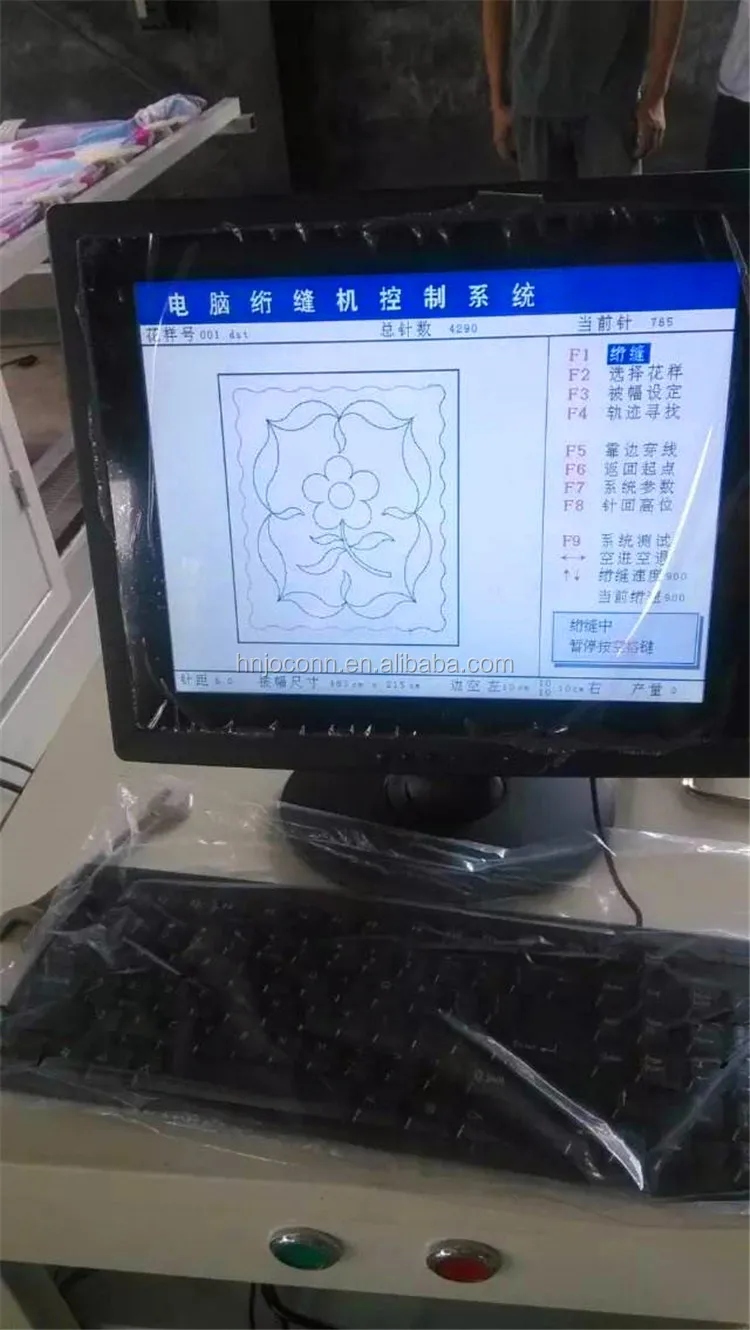

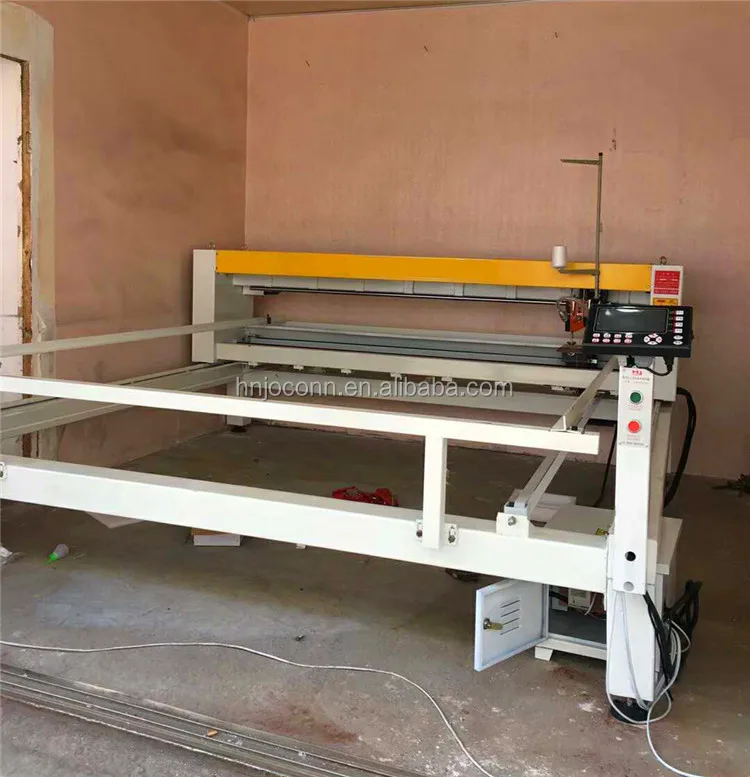

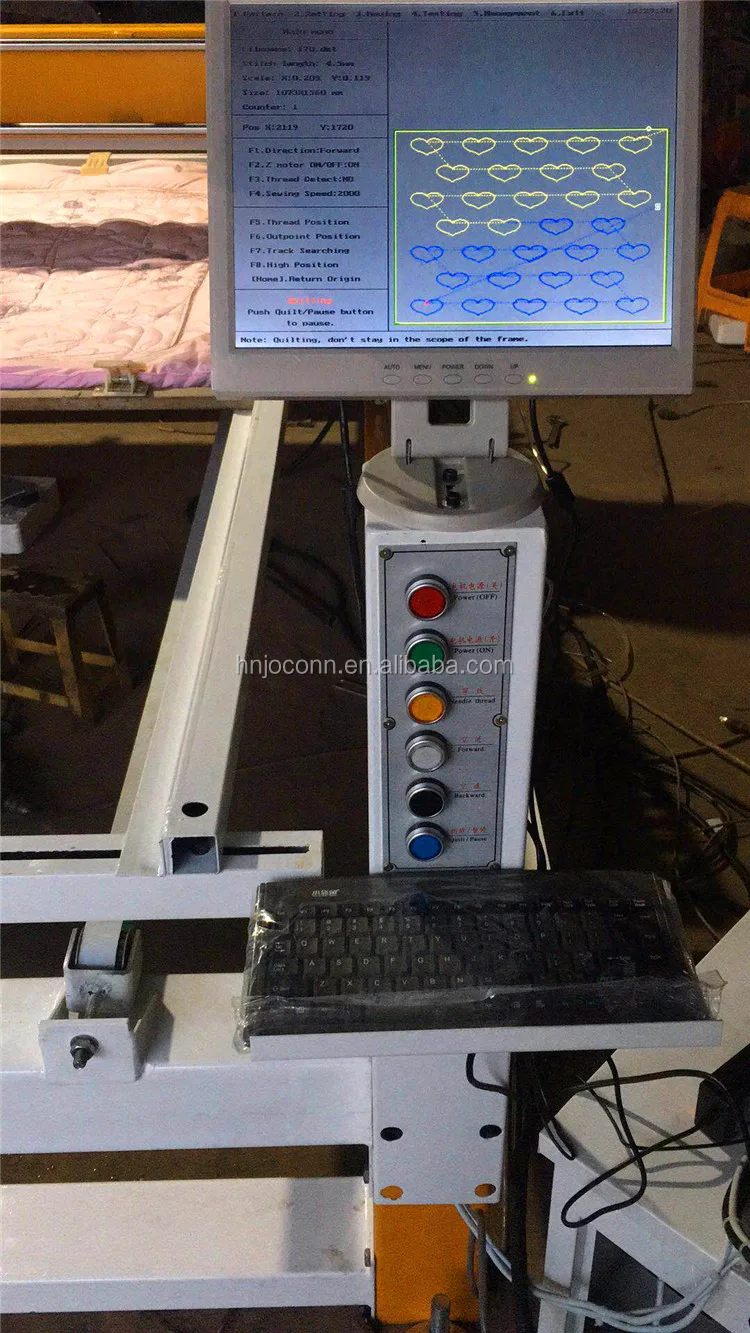

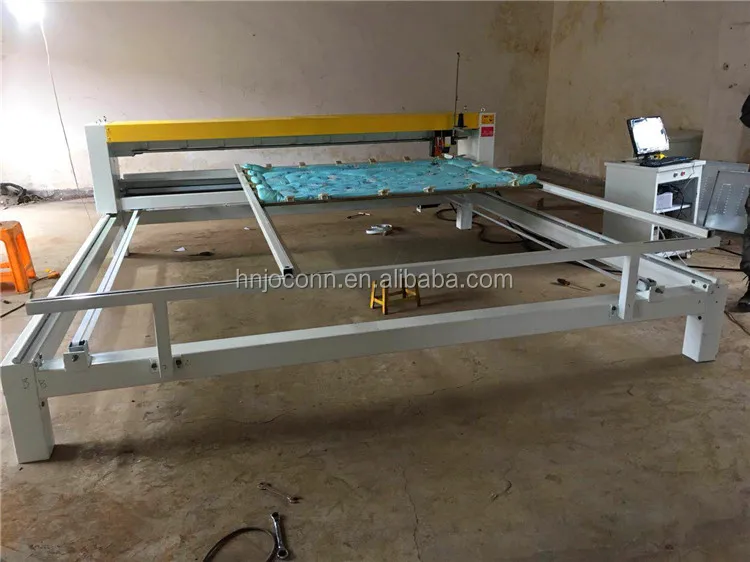

A. Quilting machine with ordinary computer

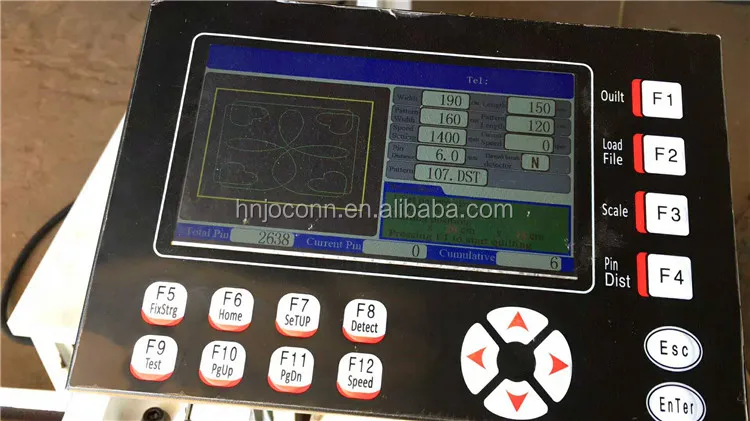

B. Quitling machine with LCD computer

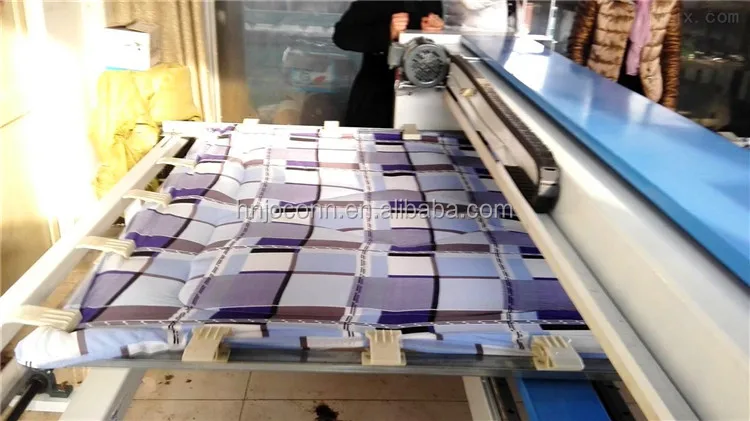

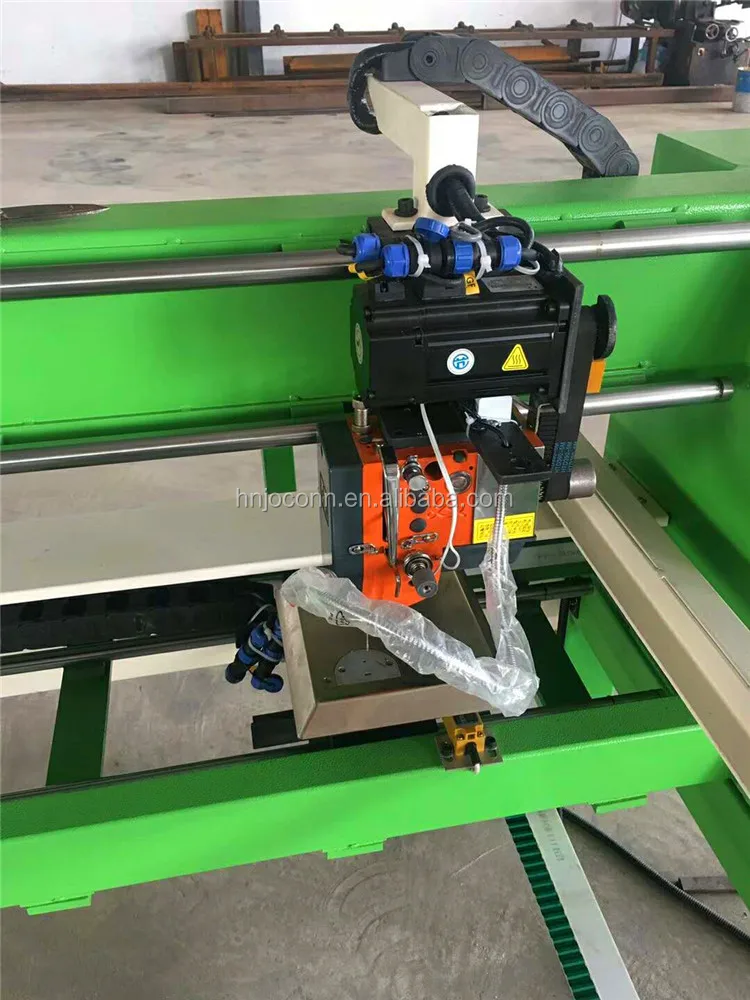

C. High speed quilting machine with servo motor







D. High speed quilting machine with servo motor and automatic thred cutting

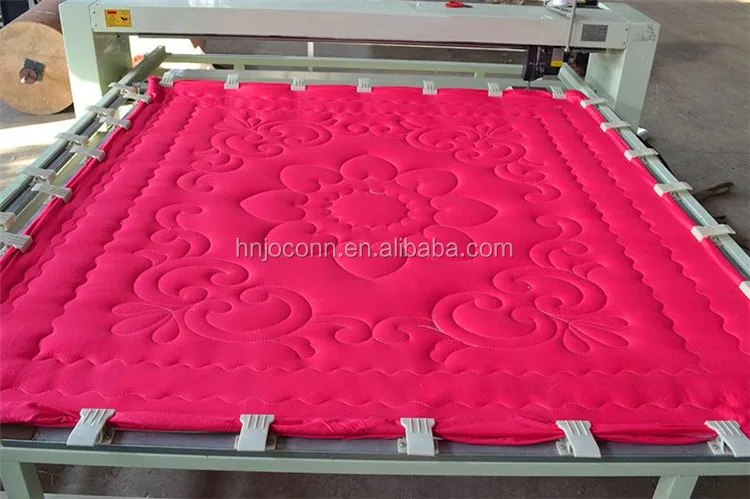

6. Final products
