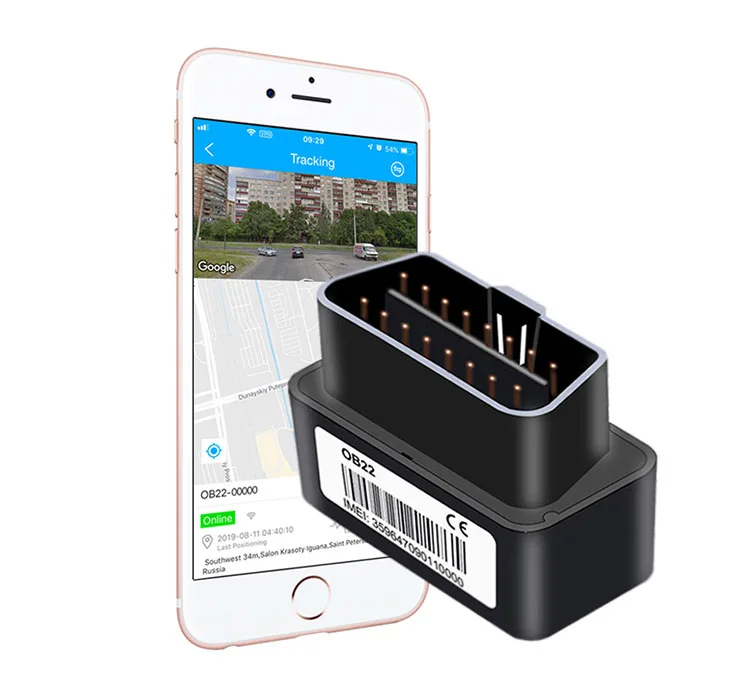

Concox OBD2 plug and play JIMI OB22 car tracking system OBD gps tracker with ACC detection
- Category: Navigation & GPS >>>
- Supplier: Shenzhen Innosio Technology Co. Ltd.
Share on (62389229182):
Product Overview
Description

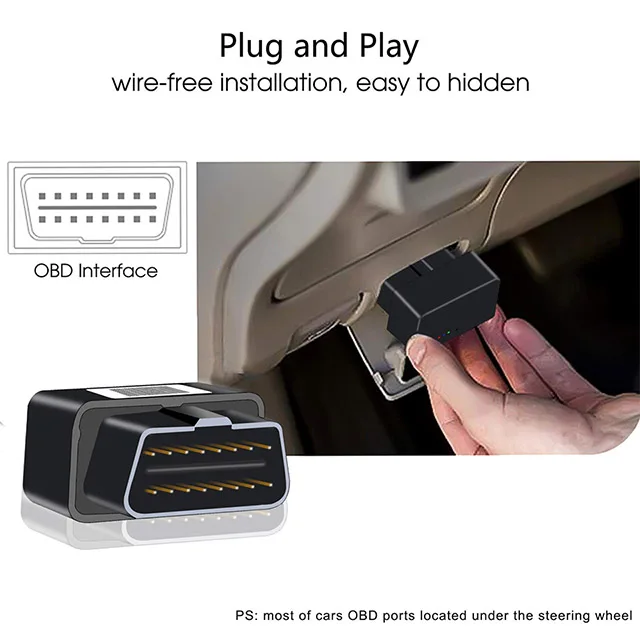

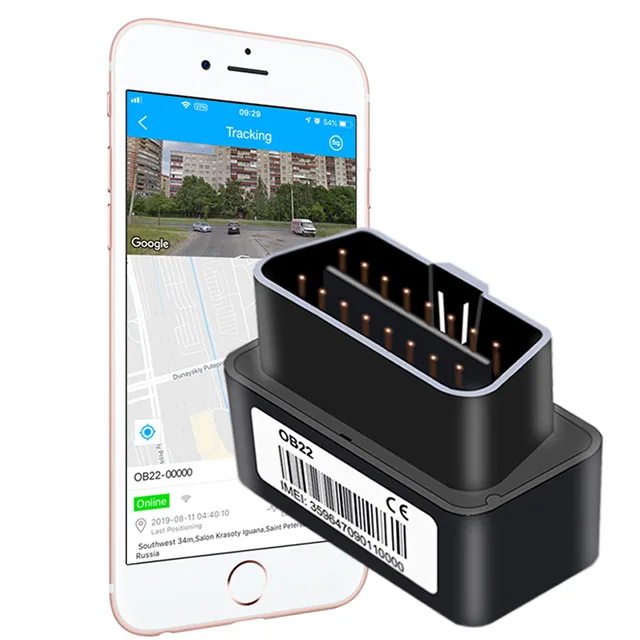

Concox OBD2 plug and play JIMI OB22 car tracking system OBD gps tracker with ACC detection
Model:OB22
Description:
Features:
1.OBD vehicle gps tracker
2.Network: GSM850/900/1800/1900M;
4.Support iOS and Android system
5.voice monitor,two-way communication,offline alert,low power alert,geo-fence alert,etc
6.Position:GPS+LBS
7.google map
Technical Parameter:
GSM Specification | |
| GSM frequency | 850/900/1800/1900 MHz |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm |
| GSM1800/GSM1900:30±3Bm | |
| Max frequency error | ±0.1ppm |
| GPS Specification | |
| GPS chipset | MTK high sensitivity chip |
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Location accuracy | <10 meters |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start≤1sec |
| Avg. cold start≤32sec | |
| Others | |
| Antenna | Bullit-in GPS antenna, GSM quad-band antenna |
| Battery | 50mAh/3.7v lithium-polymer battery |
| Working voltage/current | 9-36VDC/32mA(12VDC) |

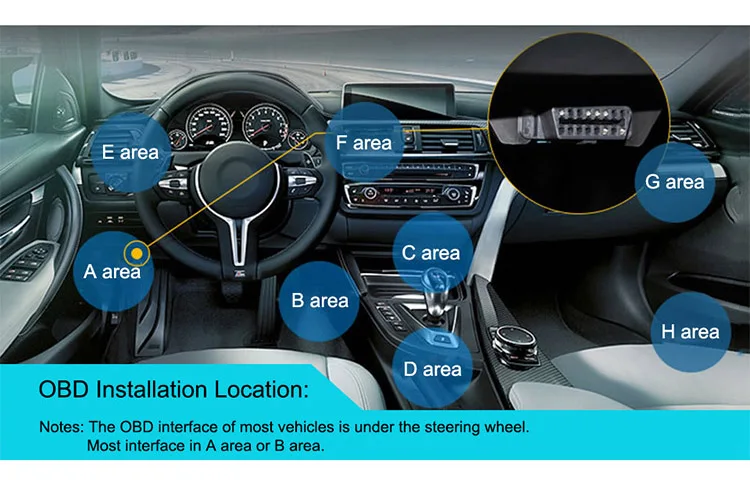

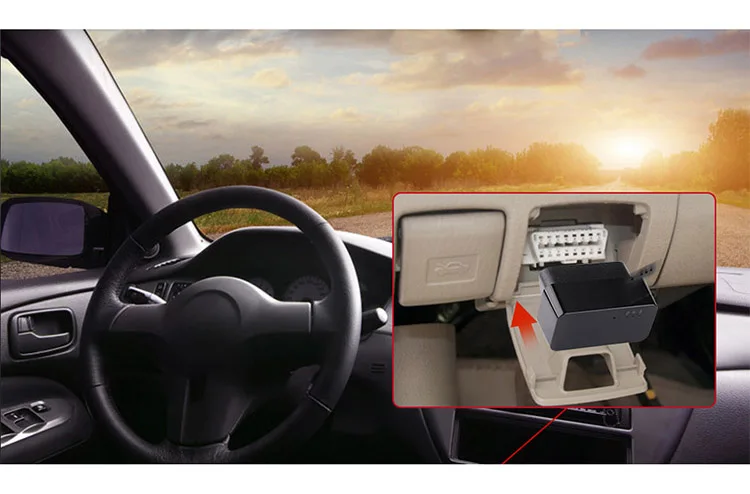

| Connector | OBD standard port |
| Standby current | ≤ 5mA |
| Operating temperature | -20℃~ 70℃ |
| Dimensions | 45.0(L)*22.5(W)*30.0(H)mm |
| Operating humidity | 45.0×22.5×30.0mm |
| Weight | 30g |
| LED indicator | Power, GPS, GSM |
| Voice monitoring range | ≤5meters |
