868MHz 915MHz LoRa32u4 II Temperature Humidity Sensor Kit LoRa Module with Antenna and DHT22 Temperature Sensor for Arduino

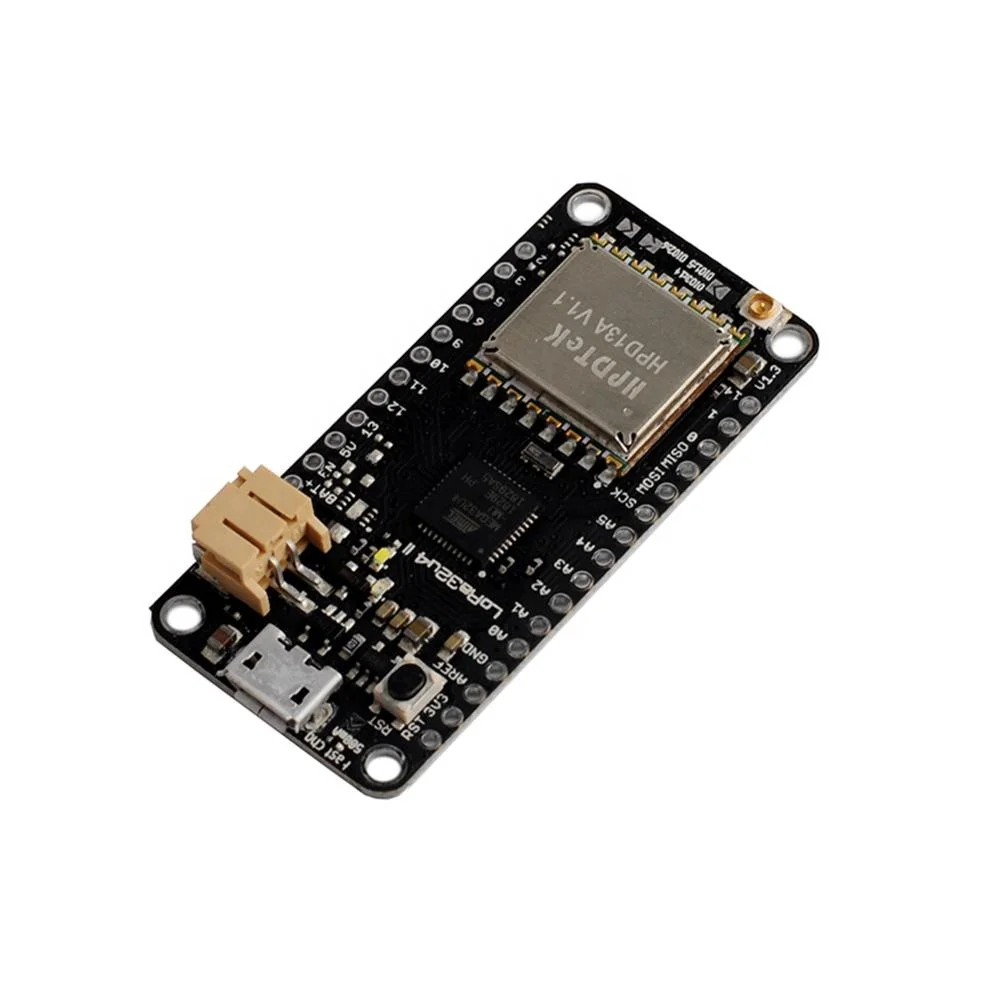

HPD13 wireless module, using high-performance, highly integrated RF transceiver chip SX1276 design. Advanced LoRaTM spread spectrum communication technology to ensure that the module communication distance and anti-jamming capability greatly improved, and also achieved a very low current consumption. In the LoRaTM mode, the HPD13 provides higher reception sensitivity performance, more robust anti-jamming capability, and improved communication distance and reliability compared to the same transmit and receive modules on the market. In normal (G) FSK mode, it also provides industry-specific receiver sensitivity, as well as very high communication rates.

ATmega32u4 @ 8MHz with 3.3V logic/power
3.3V regulator with 500mA peak current output
USB native support, comes with USB bootloader and serial port debugging
Built in 100mA lipoly charger with charging status indicator LED
Reset button

HPD13:
Receive current: 10 ~ 14mA
Interface Type: SPI
Operating temperature: -40 ° C to + 85 ° C
Digital RSSI function
Automatic frequency correction
Automatic gain control
Radio wake-up function
Low voltage detection and temperature sensor
Fast wakeup with frequency hopping
Highly configurable packet handlers

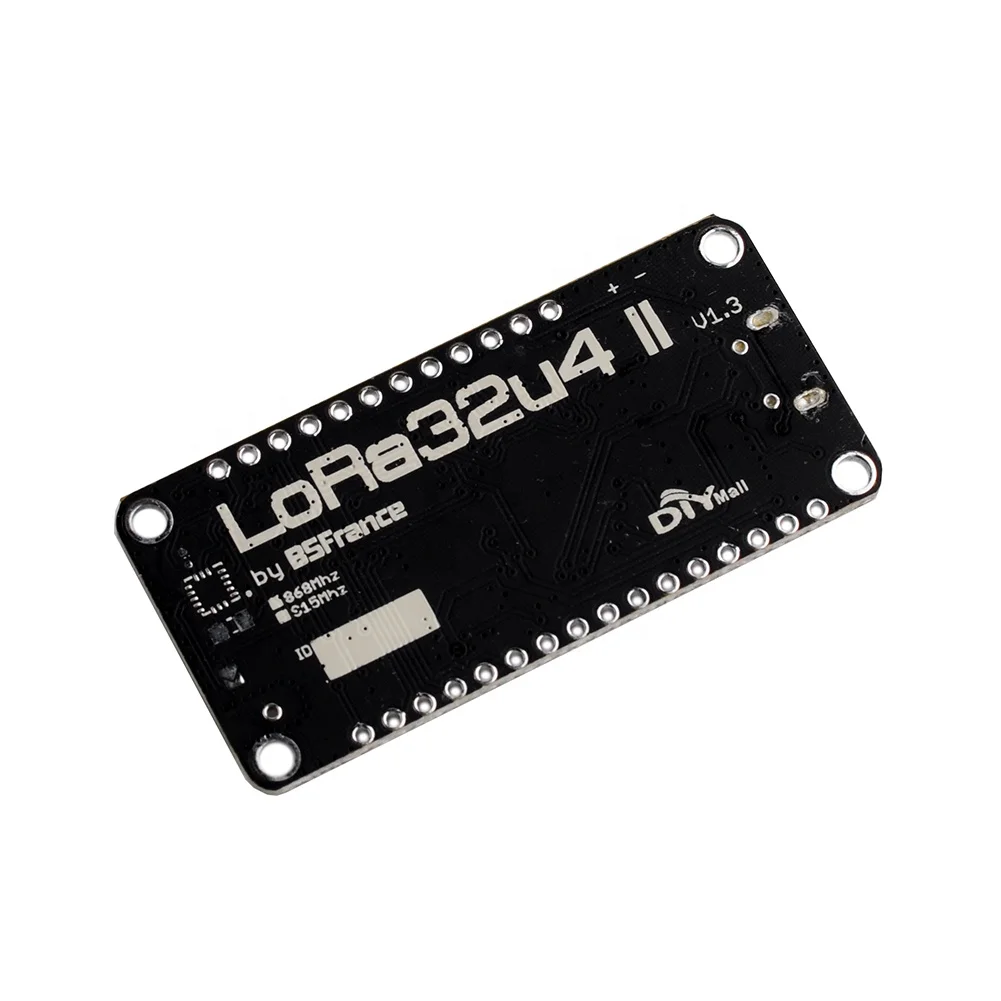

LoRa32u4II revision 1.3 improvements :
1. LOW POWER
1.1. The battery monitoring circuit is now active and enabled by the previously unused pin PB0 (not broken-out on headers), it must be enabled (high) to allow battery monitoring.
1.2. The battery charger is now controlled, it must be enabled (high) by PB0 to allow battery charging.
1.3. The LDO has been replaced for an ultra low IQ LDO (0.5uA).
1.4. Overall sleep current has been lowered from 260.2uA to 183.8uA (tested with Atmega32u4 in watchdog sleep mode @ 8MHz and LoRa circuit in sleep mode).

2. USAGE
2.1. LoRa DIO1 is now connected by default to Atmega32u4 pin 5 (PC6) allowing direct use of LMIC and other LoRaWAN libraries without soldering, it is still possible to disable this link by opening the DIO1 solder jumper on topside.
2.2. LoRa DIO2 and DIO3 are now routing to Atmega32u4 pin 6 (PD7) and 14 (PD5), solder jumpers are open by default (these DIO pins are rarely used).
2.3. Atmega32u4 pins 0 (PD2),1 (PD3) for UART and 2 (PD1), 3 (PD0) for I2C are now free for use.
2.4. LoRa DIO pins solder jumpers have been moved on topside for better accessibility.
2.5. Pull-up resistors (4.7K) have been added on the I2C bus.
2.6. The antenna uFL connector has been moved on topside to ease access.


2DBi IPEX to SMA Antenna 868MHz 915MHz U.FL to Female SMA I-PX Extension Pigtail Cable for Lora32u4 II Lora Module Lora Module SX1276

Description:
Frequency range 824M-960MHz
Gain: 3dbi ± 0.7dbi
Standing wave ratio: <= 2
Impedance: 50ohm
Connector Model: IPX13
Length: 12CM
Size: 35MM x 12MM


UL1007-26AWG Electronic Wire JST-PH2.0MM-2P Small Plug Cable Terminal Connector Plug for Lora Module

Electronic wire: UL1007-26AWG standard line 7 / 0.16MM
80 degrees 300V
Outside diameter: 1.3MM
Using Terminal Model: JST-PH2.0MM spacing -2P
Color arrangement: The first hole is black line = 96MM
The second hole is red line = 88MM
Tail Popi: 2MM green on the tin

DHT22 AM2302 Digital Temperature And Humidity Sensor Module Replace SHT11 SHT15 for Arduino

Type:AM2302.
Accuracy resolution:0.1.
Humidity range:0-100%RH.
Temperature range:-40~80℃.
Humidity measurement precision:±2%RH.
Temperature measurement precision:±0.5℃.
4-pin package.
Ultra-low power.
Long distance signal transmission.
Relative humidity and temperature measurement.

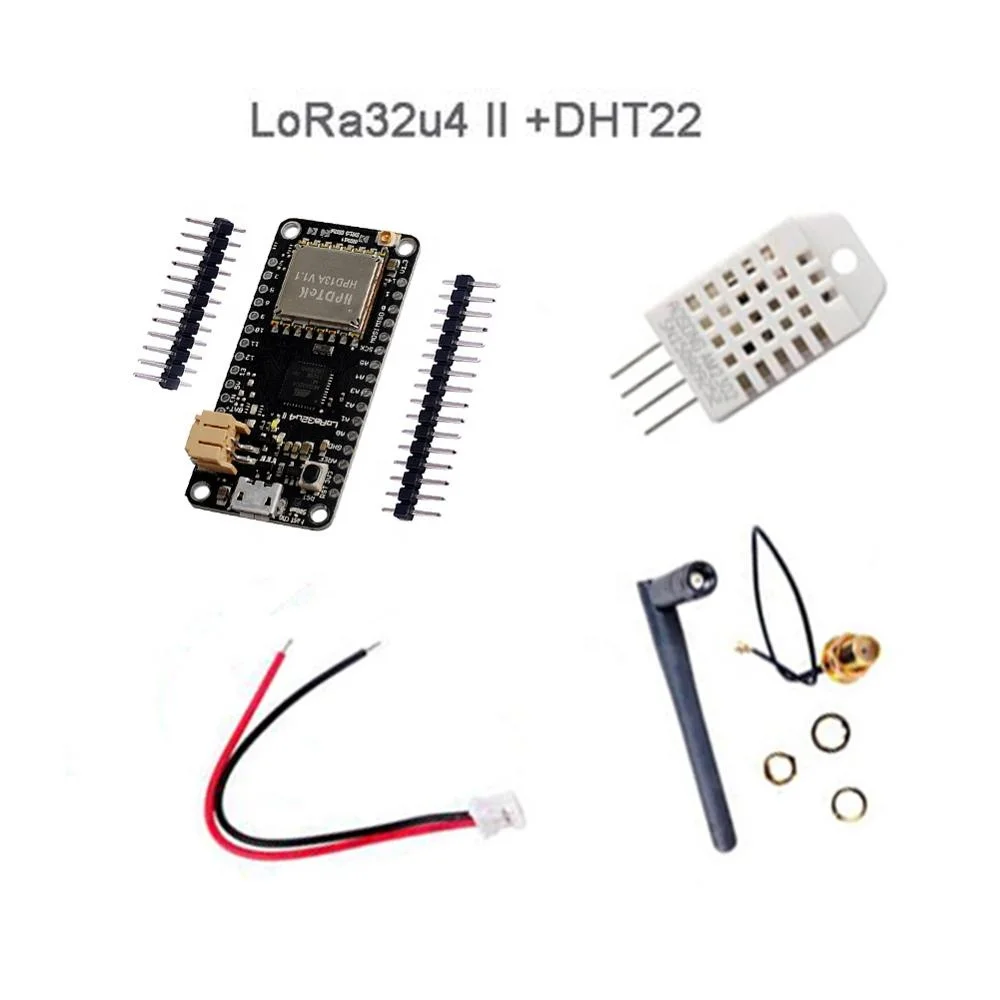

Package Included:
1 X LoRa32U4 II Lora development board
1 X LoRa Antenna 868mhz 915mhz with IPEX to SMA pigtail wire
1 X JST-PH2.0MM-2P Cable for Lora Module
1 X DHT22 AM2302 Temperature and Humidity Sensor
