Product Overview
Description
Product Description

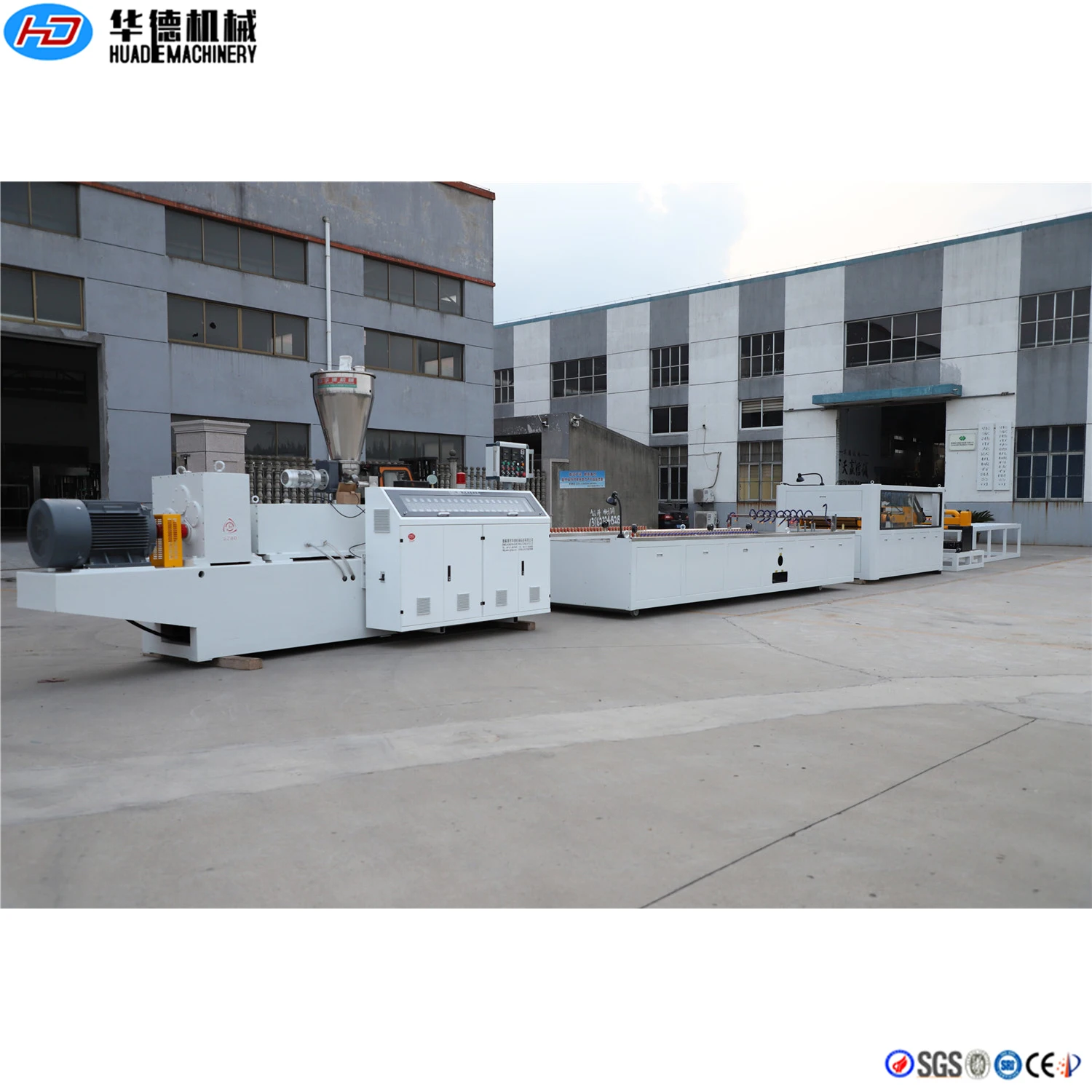

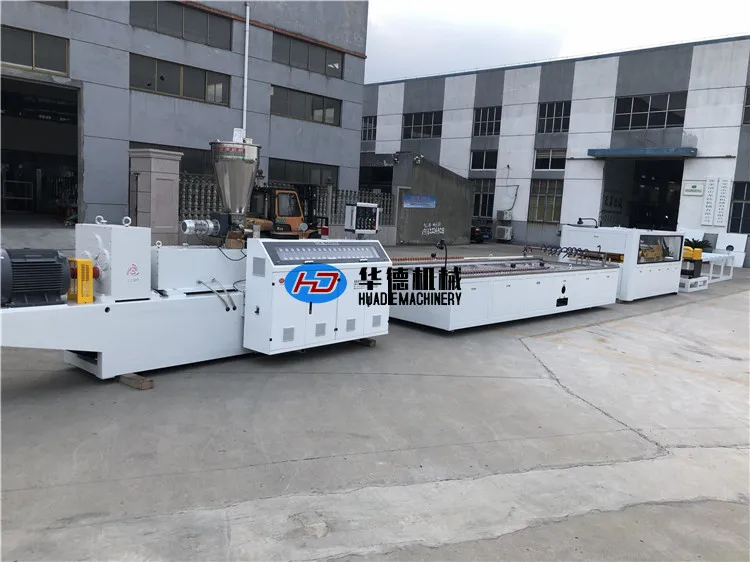

PVC/WPC Extrusion Line
This line applies the conical twin screw extruder with imported inverter, which provides wide adjusting range and precise
temperature control.
The downstream equipment includes calibration table, hauler, cutter and stacker.
The calibration table is equipped with strong forced cooling system so that it can provide perfect calibrating effect.
The caterpillar hauler is equipped with precision gear motor and inverter, which possesses reasonable structure, strong and stable
hauling force.
The cutter is equipped with PLC control system which helps to set length and provide accurate automatic cutting.
The stacker is covered with rubber grip blocks to prevent products from damage.
temperature control.
The downstream equipment includes calibration table, hauler, cutter and stacker.
The calibration table is equipped with strong forced cooling system so that it can provide perfect calibrating effect.
The caterpillar hauler is equipped with precision gear motor and inverter, which possesses reasonable structure, strong and stable
hauling force.
The cutter is equipped with PLC control system which helps to set length and provide accurate automatic cutting.
The stacker is covered with rubber grip blocks to prevent products from damage.
Features
Highly productivity
Constant high output
Easy to operate
Outstanding,uniform product quality
Cost-effective and flexible production
High automation
Constant high output
Easy to operate
Outstanding,uniform product quality
Cost-effective and flexible production
High automation
Specification
NO. | Width | extruder model | capacity | line length |
1 | 800mm | SJZ80/156 | 300-350kg/h | 28 |
2 | 1000mm | SJZ92/188 | 400-600kg/h | 31 |
Details Images

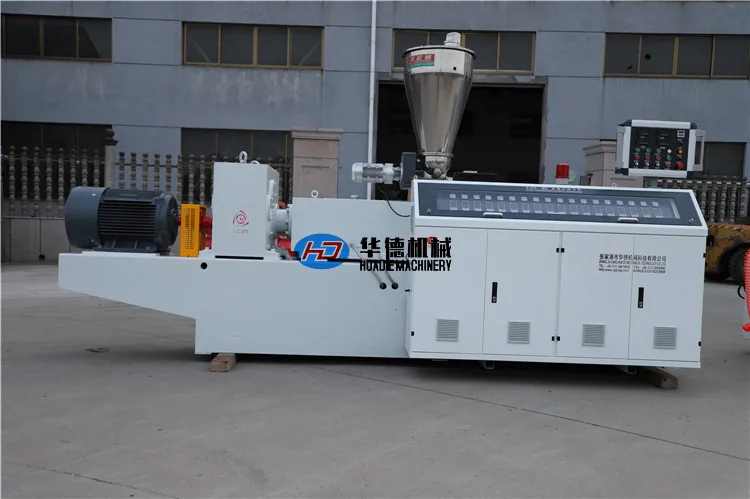

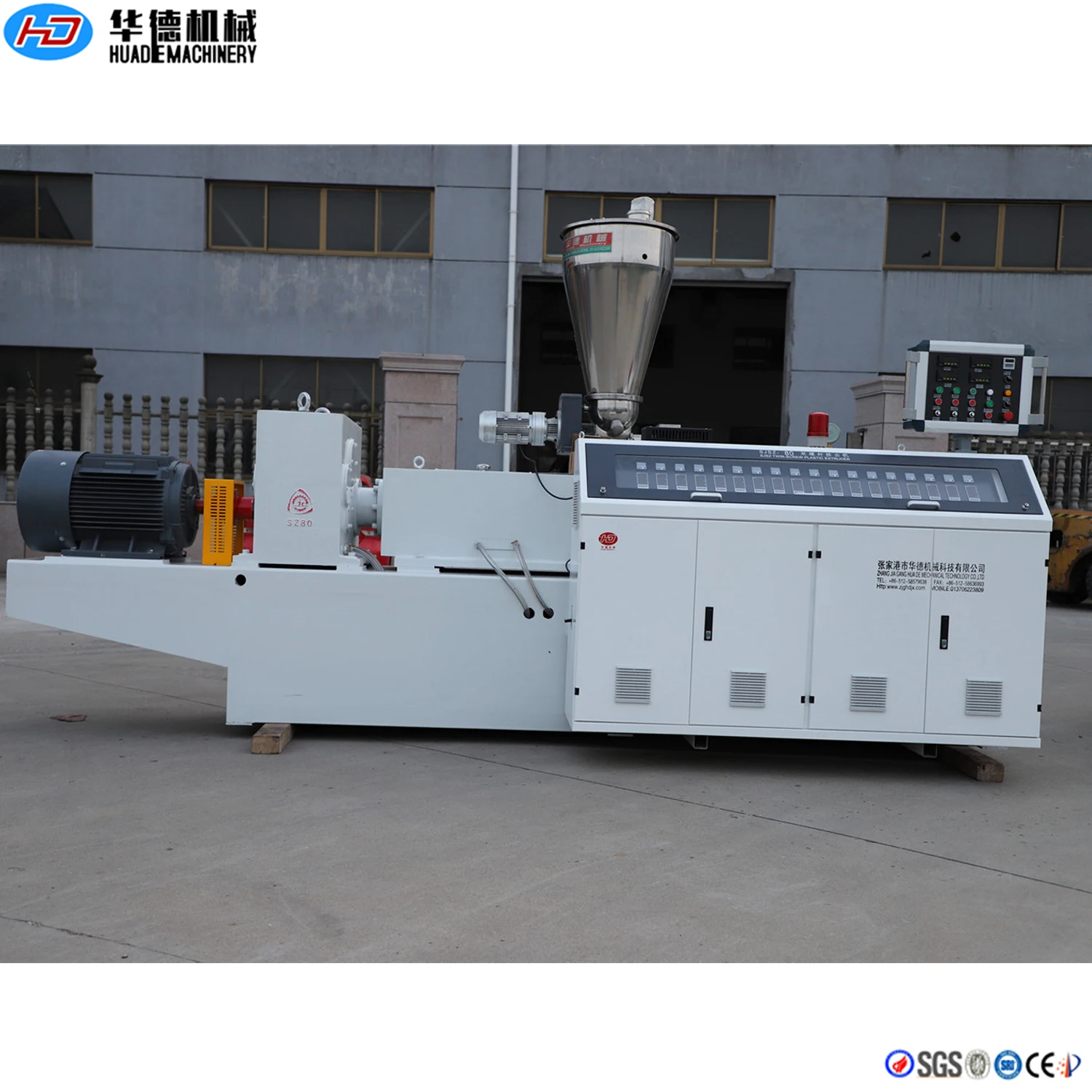

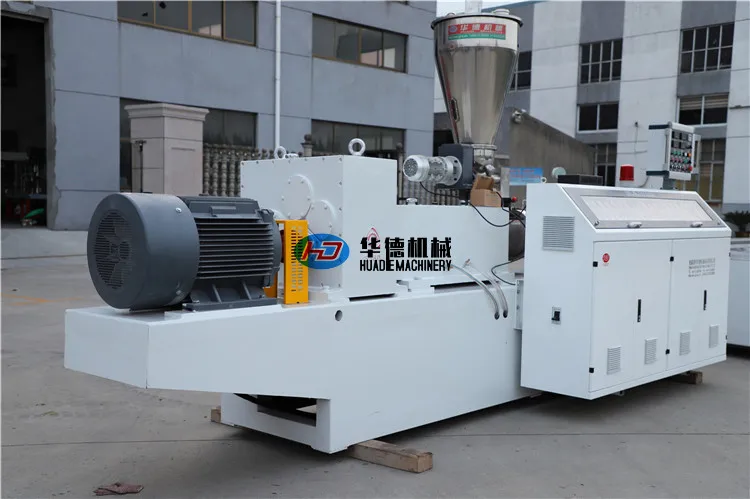

SJZ80/156 Twin Screw Extruder
300-350Kg/h
PID temperature controlled

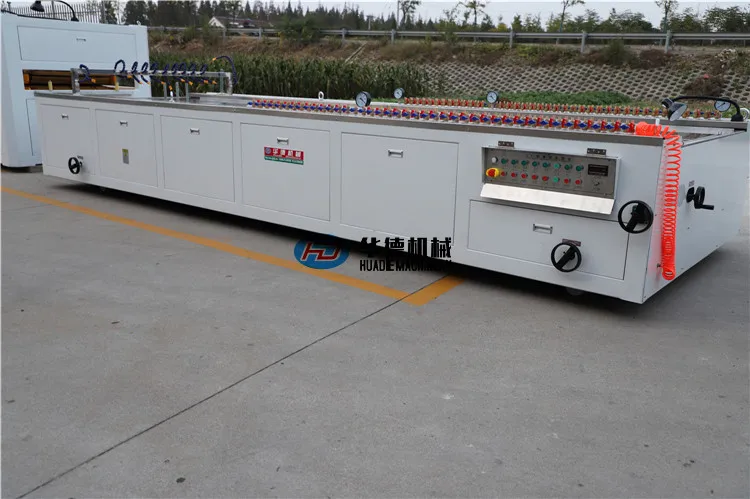

Vacuum Calibration Table
The calibration table is equipped with strong forced cooling system so that it can provide perfect calibrating effect.
Durable stainless steel material make
Three dimensionall adjustable calibration table structure
Durable stainless steel material make
Three dimensionall adjustable calibration table structure

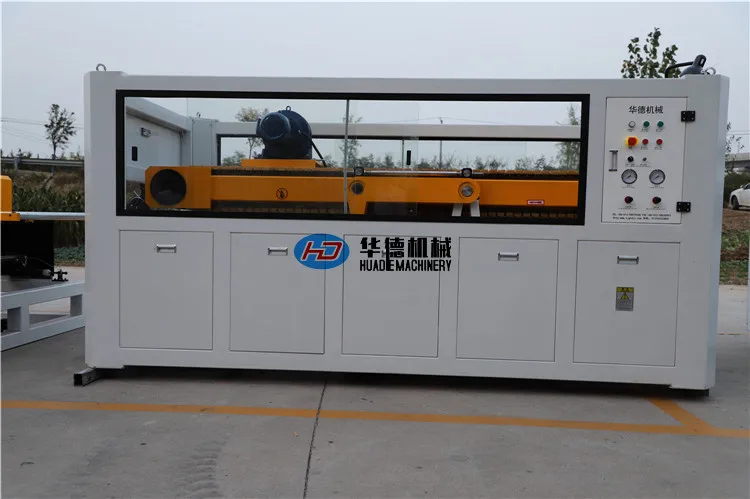

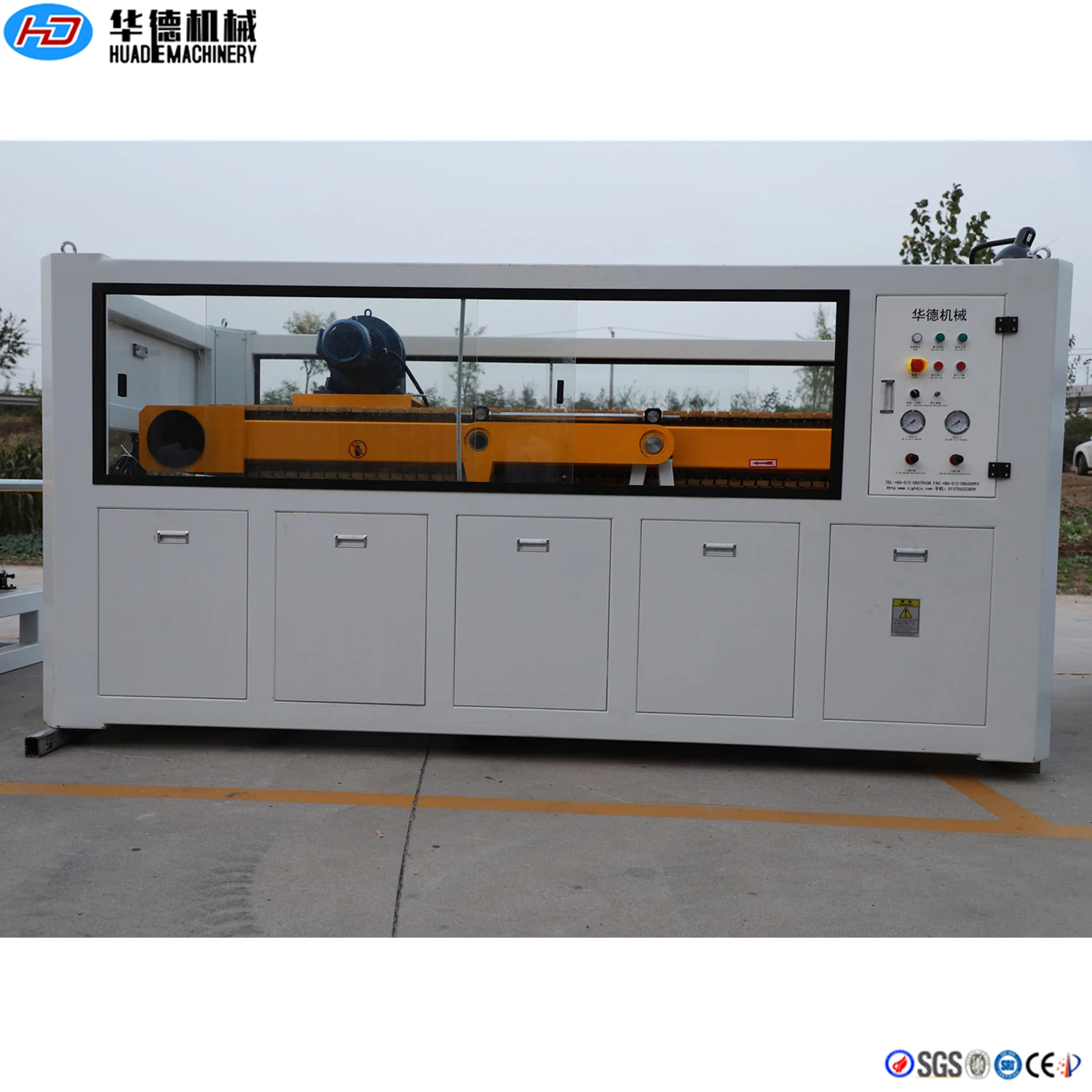

2 Caterpillar Haul Off
The 2 caterpillar haul off is equipped with precision gear motor and inverter, which possesses reasonable structure, strong and stable hauling force.
Fast change type of silcone pads with aluminium support
Each caterpillar is driven independently by inverter.
Fast change type of silcone pads with aluminium support
Each caterpillar is driven independently by inverter.

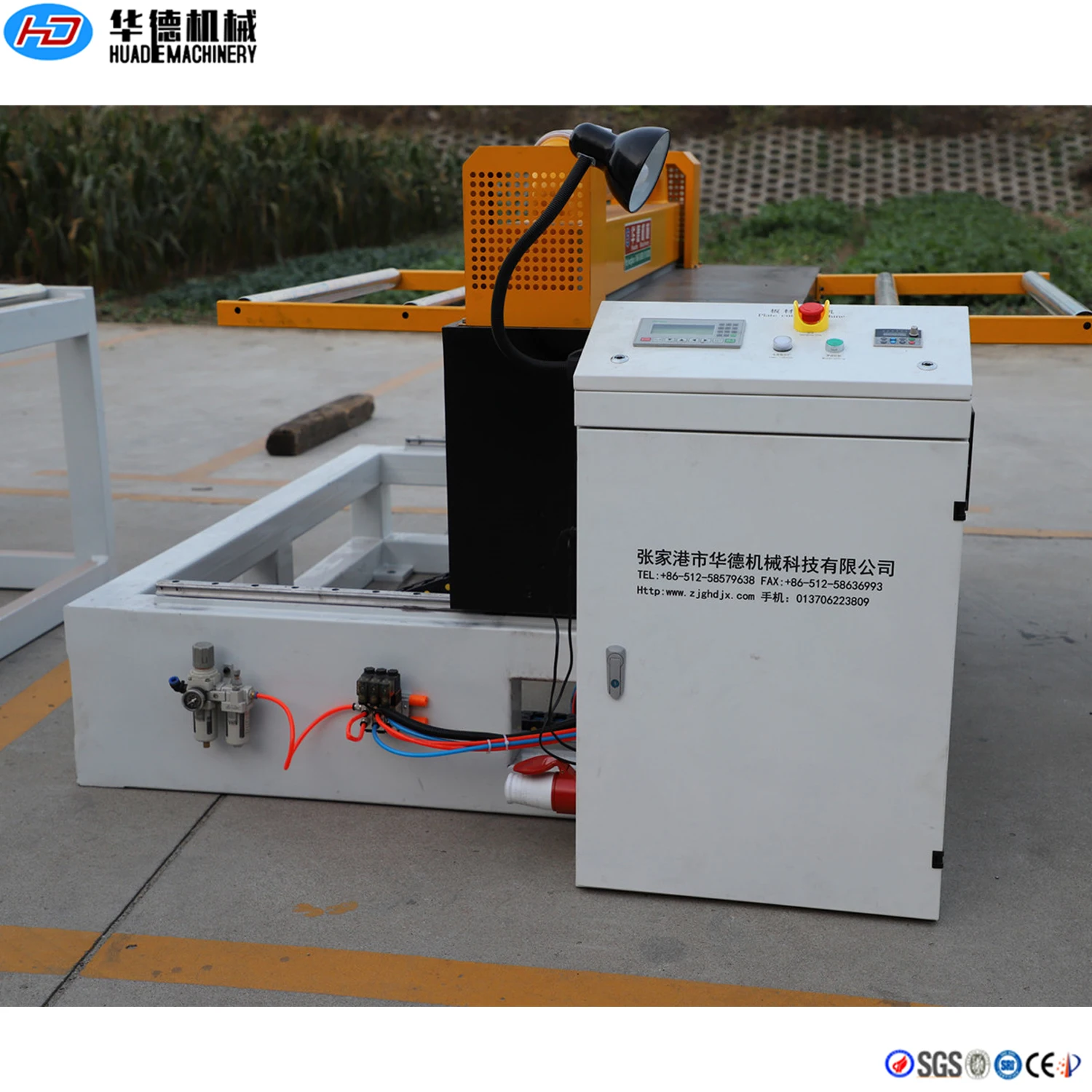

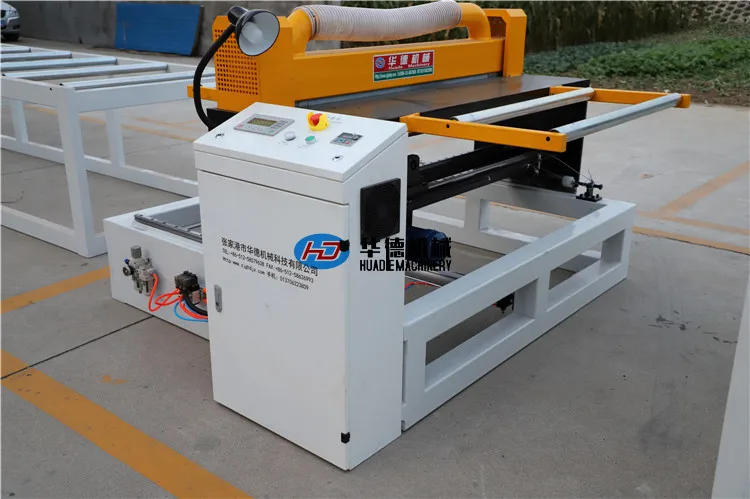

Travel Saw Cutter
The cutter is equipped with PLC control system which helps to set length and provide accurate automatic cutting.
Swarfless cut structure ,good synchronization,precise length control,high quality cutting.
Swarfless cut structure ,good synchronization,precise length control,high quality cutting.
High speed extrusion with high capacity and lower power consumption
Barrier design screw with asymmetric slotted barrel design.
PID simple automatic temperature control systems
Screw and barrel material：38CrMoAlA，nitriding treatedadopt original famous electric components with high steady running quality .
Eg: RKC or Omron temperature controller、ABB speed regulator、low-voltage breaker adopts Schneider or Siemens
﹡Gearbox adopt high torque, low noise, hard gear tooth face gear box
﹡Self protective system:
* current of motor overload automatic stop protection
* screw displacement automatic stop protection
* Lubrication oil starvation automatic alarm device
Barrier design screw with asymmetric slotted barrel design.
PID simple automatic temperature control systems
Screw and barrel material：38CrMoAlA，nitriding treatedadopt original famous electric components with high steady running quality .
Eg: RKC or Omron temperature controller、ABB speed regulator、low-voltage breaker adopts Schneider or Siemens
﹡Gearbox adopt high torque, low noise, hard gear tooth face gear box
﹡Self protective system:
* current of motor overload automatic stop protection
* screw displacement automatic stop protection
* Lubrication oil starvation automatic alarm device

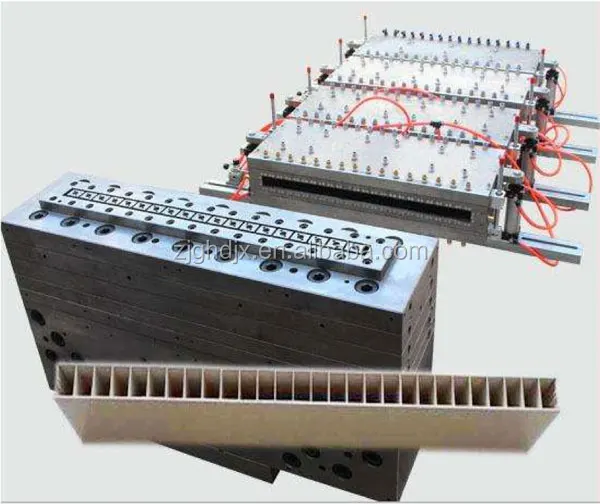

Die Head
1. clothes-rack channel design, which can minish ablation during extrusion and Inside and outside is chromeplated.
2. Adjustable upper die lip which can be changed with vertical restrictor bar control, in order to satisfy different thickness
2. Adjustable upper die lip which can be changed with vertical restrictor bar control, in order to satisfy different thickness

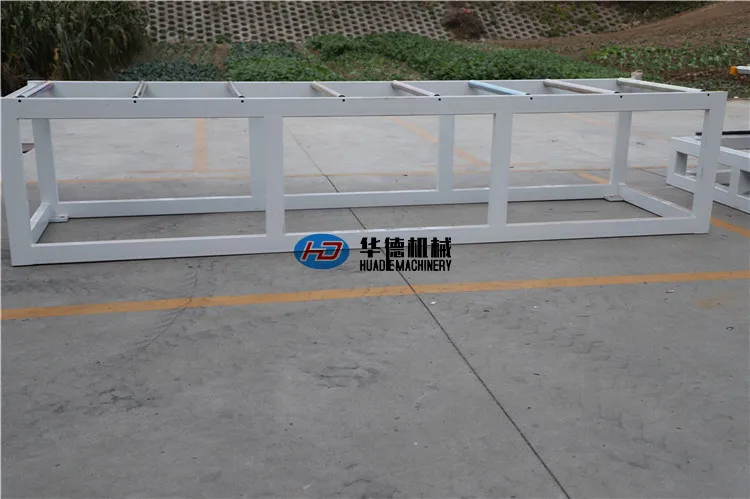

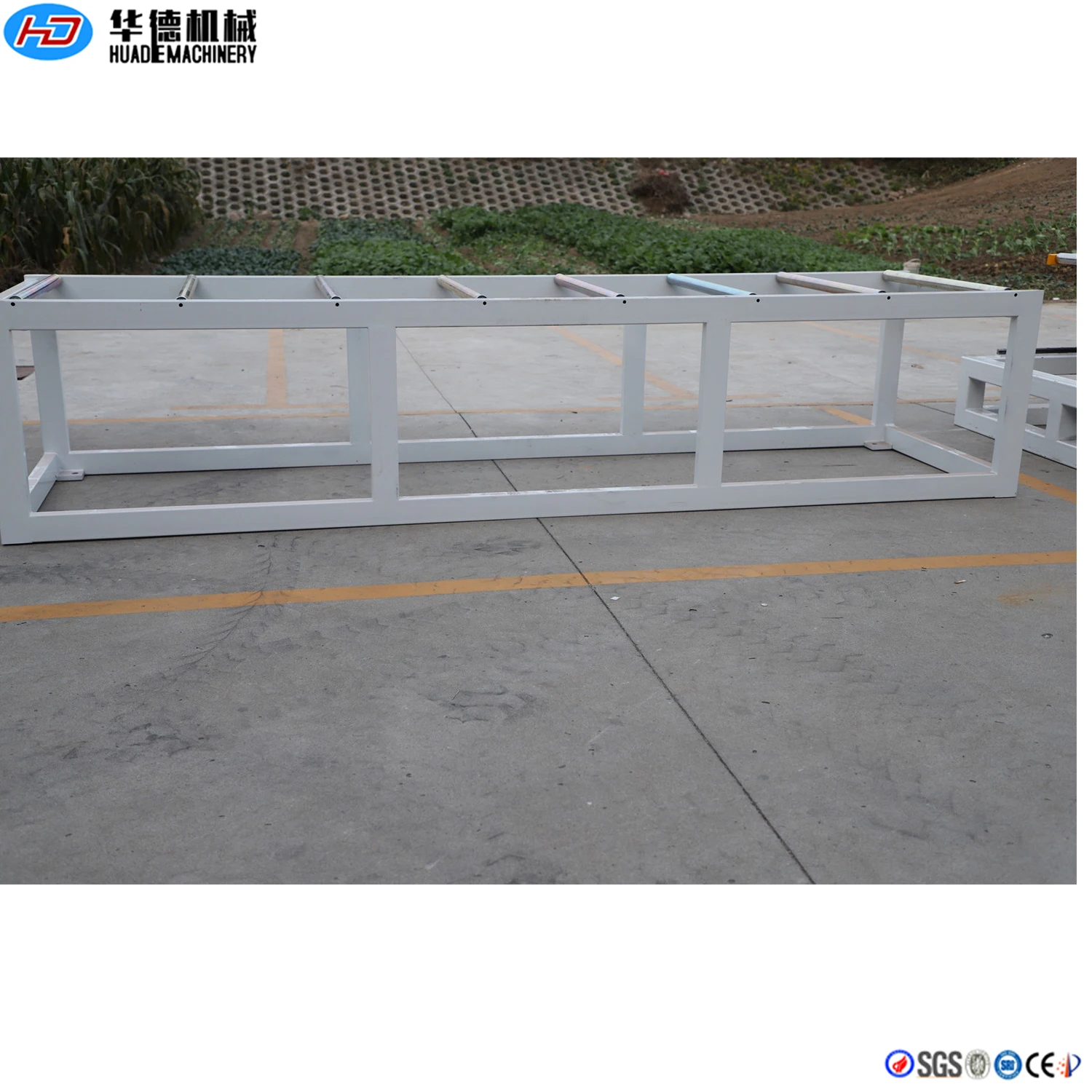

Stacker
Length 6m
Rolling roller for moving board
