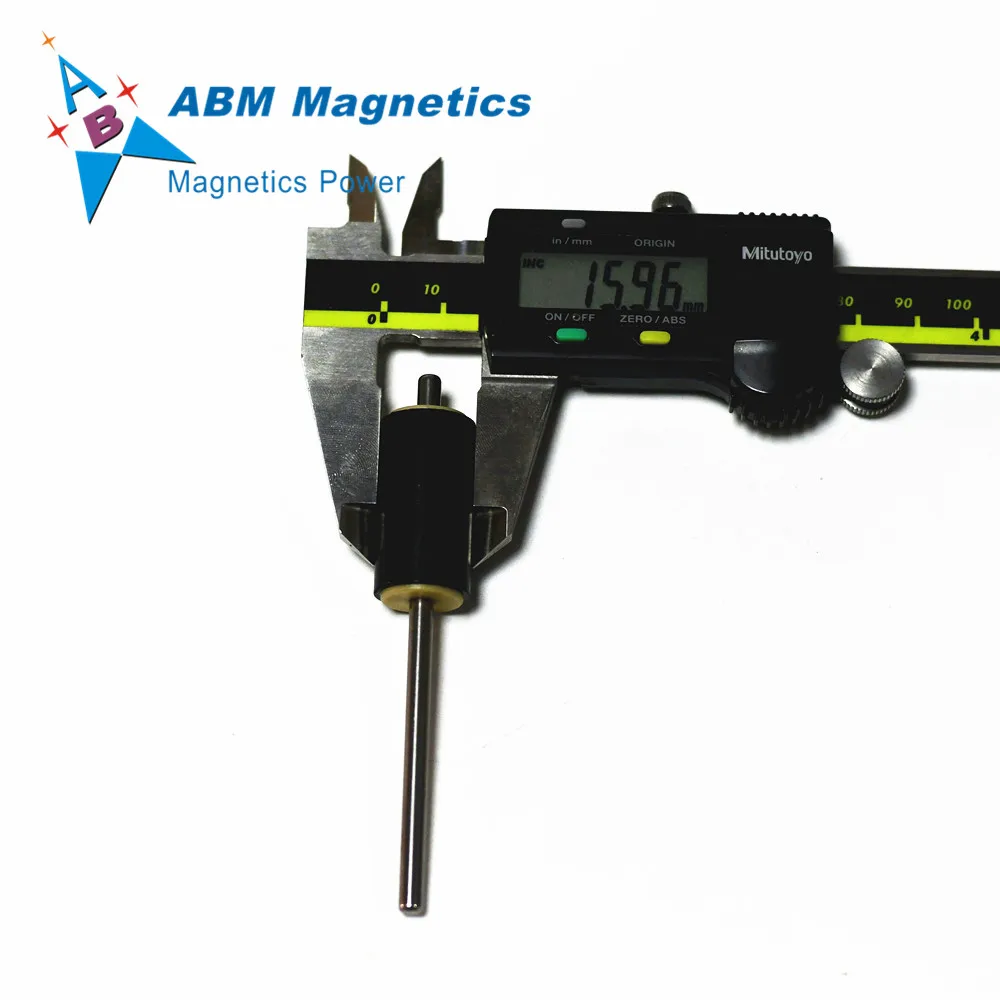

Compression Bonded ndfeb neo 15 degrees oblique magnetized water oil pump Motor injection ferrite magnet
- Category: >>>
- Supplier: Abm Magnetics Co. Ltd.
Share on (62389337562):
Product Overview
Description
Product Description
1、Injection bonded magnet：injection bonded Ferrite & Neodymium(NdFeB）
Ferrite powder+Binder（plastic)：PA12/PA6/PPS+injection molding。
Neodymium(NdFeB）Powder+Binder（plastic）：PA12/PA6/PPS+injection Molding。
2、Injection bonded magnet Advantage：
Ferrite powder+Binder（plastic)：PA12/PA6/PPS+injection molding。
Neodymium(NdFeB）Powder+Binder（plastic）：PA12/PA6/PPS+injection Molding。
2、Injection bonded magnet Advantage：
1) High dimensional accuracy, good consistency, no need for subsequent processing, stable performance
2) Flexible magnetized Patterns (Radial, Axial, multi-poles on OD or ID and any special magnetized Pattern)
3) Strong corrosion resistance, no need for surface coating protection
4) Can produce a variety of special complex shapes (such as: steps, damping groove, hole, locating pin, etc.)
5) The magnet and other metal inlays (metal shaft, metal shell and plastic parts, etc.) are formed in one time, which is not easy to crack and fracture
6)Working Temperature：25 degree C---180 degree C without demagnetization
3、Application：oil/water pump，sensor，DC motor，DC fan，alterntive Frequence air condition，instrument and so on。
3、Application：oil/water pump，sensor，DC motor，DC fan，alterntive Frequence air condition，instrument and so on。
Application | Water oil pump rotor magnet |
Size | Custom Made |
Magnetic performance requirement | Gauss level>2200Gs |

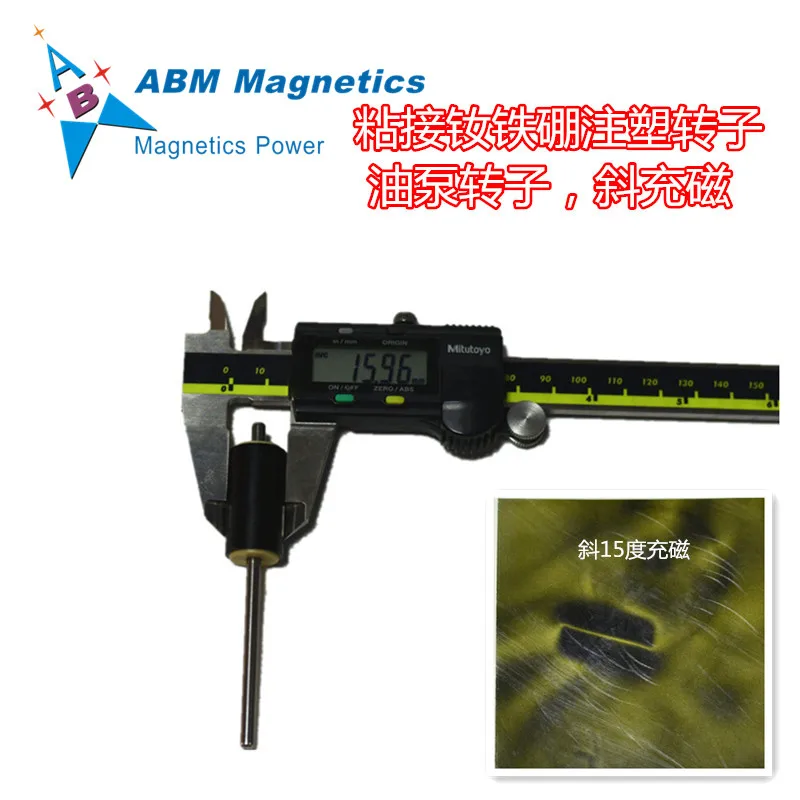

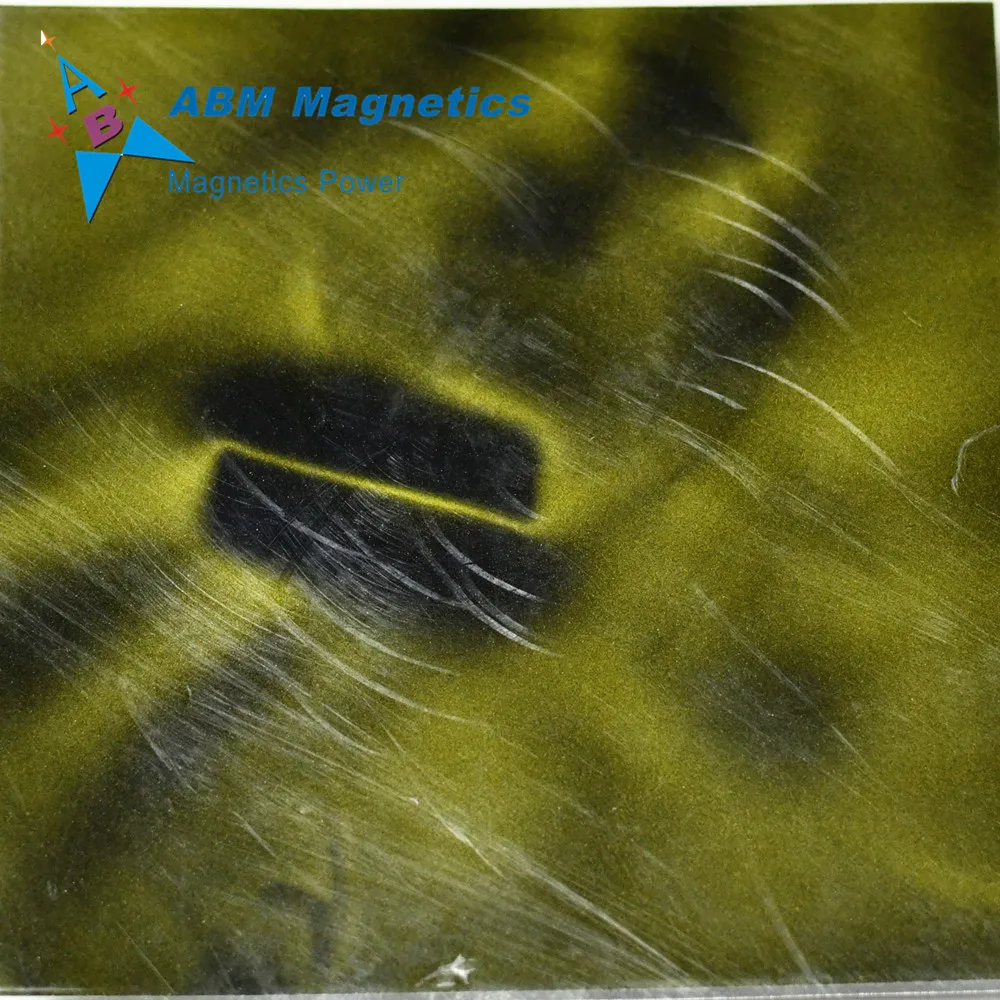

Magnetized | 15 degree oblique 4 poles OD |
Parameter | Balance: <15mg Concentricity: <0.05mm |

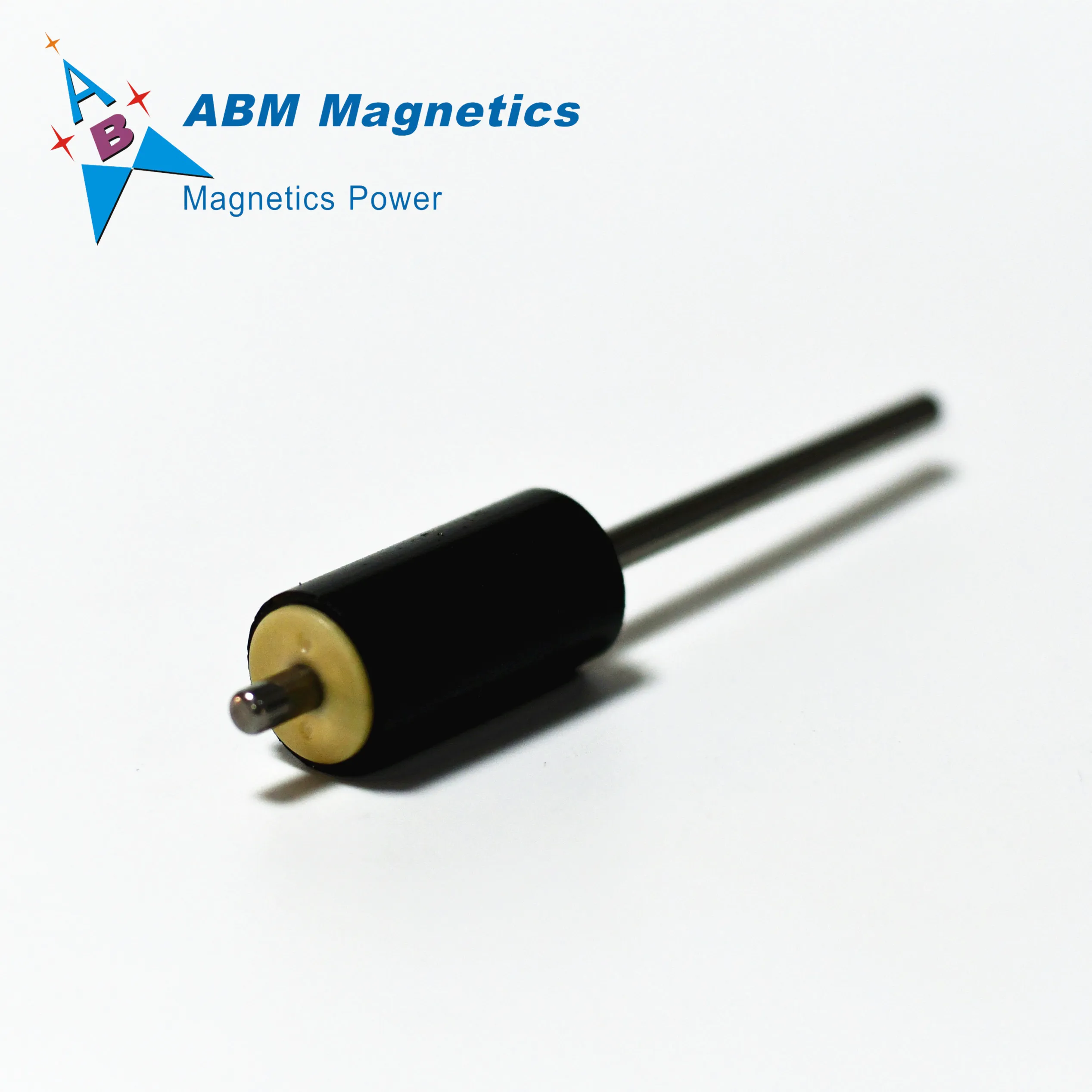

Structure | Bonded Neodymium Magnet +Steel sharft +INJECTION |
Related Products
Packing&Shipping

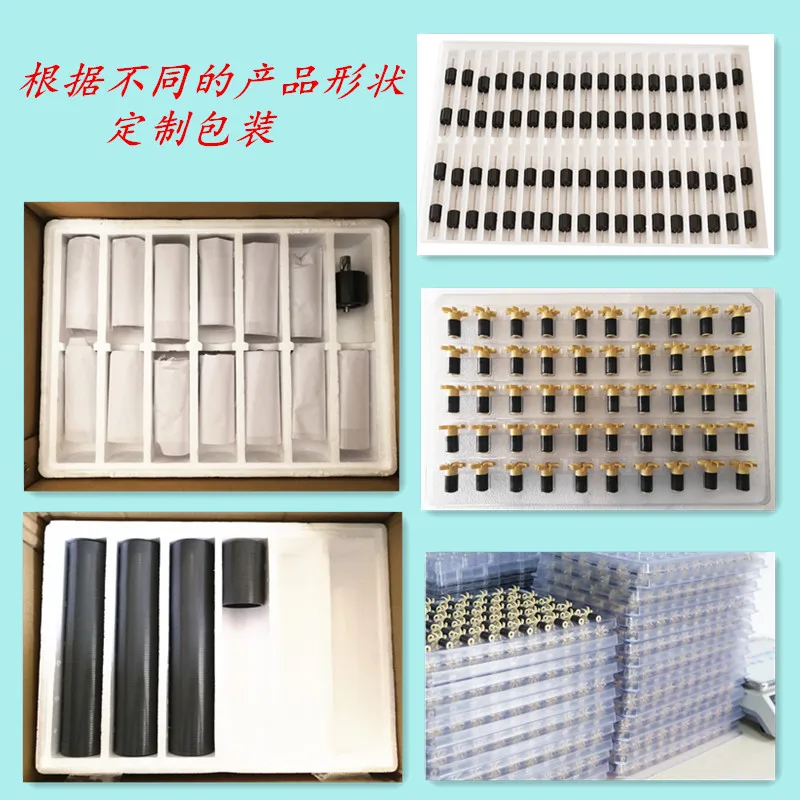

1.Design detaied packing based on part's character.
2.<15kg/carton
\t\t\t\t\t\t\t\t\tAbout us-ABM \t\t\t\t\t\t\t
>> ABM Magnetics focusing on the NdFeB magnets design and manufacturing over 20 years. We focus on effective quality assurance system to ensure best quality.
>> ABM can supply a variety of different size, shape and grade magnets to customer, such as magnet disc, magnet block, magnet ring, arc magnet, bread magnet, cup magnet, magnet ball, magnet bar, magnetic hook, pot magnet,cylindrical magnet.
>>ABM often attended many exhibitions which forcusing on the Motor, Electric Machinery & Magnetic Materials design and manufacturing. In the exposition scene, many customers are very interesting in our magnets, especially in our design and manufacturing capability.
\t\t\t\t\t\t\t\t\tCertification Shows \t\t\t\t\t\t\t
Providing complete stimulation and testing in order to ensure products' reliabality.
\t\t\t\t\t\t\t\t\tRatings & Reviews \t\t\t\t\t\t\t

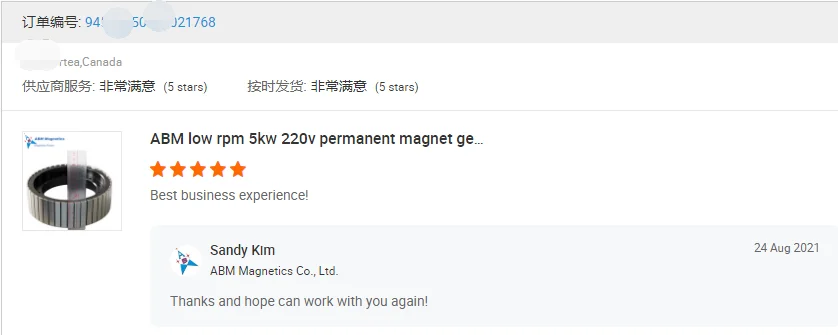

ABM focus on providing best quality magnet to every customer and we also receive lots of 5 stars reviews from customer all over the world.
