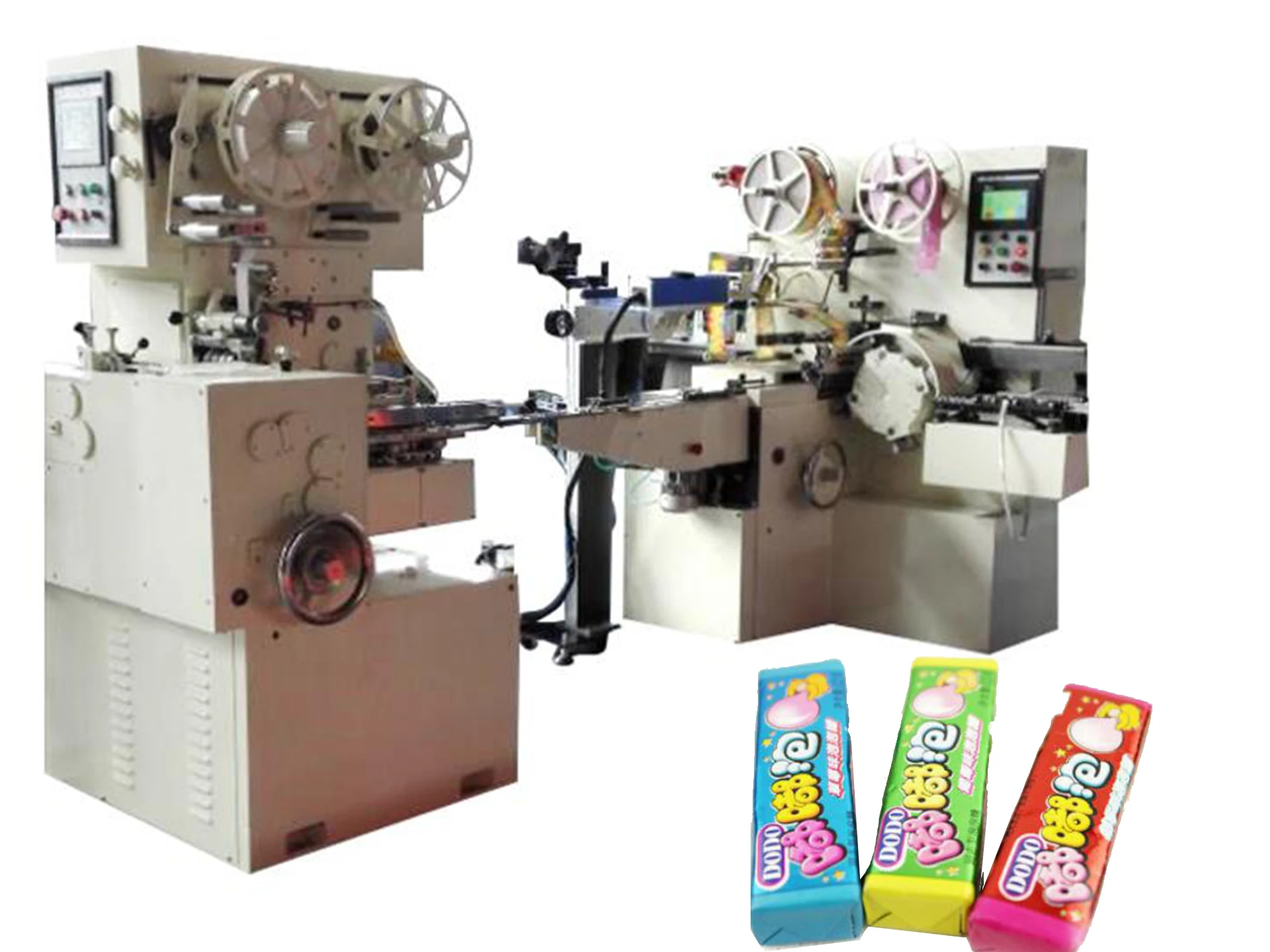

Bubble gum cut and wrap and stick packing machine

The Cut & Wrap Candy machine  + Candy Stick Pack Machine are used for bubble gums, toffees, sugus to cut and wrap in single piece and then multi-pieces to be packed in stick.

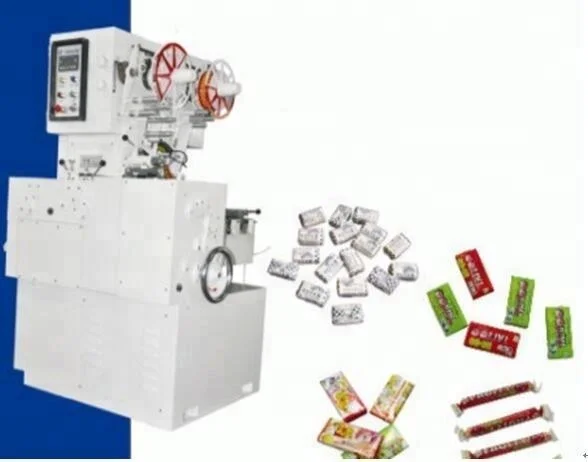

 A. Cut and wrap candy machine :

       Cut & side fold ,same as bazooka bubble gum

       Cut & back fold, same as sugus

       Cut & double twist wrap

   Features :

    - No candy, no paper.

    -  Auto stop while candy blocks

     -Packaging material auto positioning.

     -  Packing speed displayed and auto counted.

     -Trouble , if any, displayed & machine auto stops.

    -  Double wrapper function (  inner wax paper).

  -Parts can be easily and quickly open and fixed for maintenance and cleaning.

       - Heat sealing temperature auto adjustable

    Configuration:

1)      Total Power: 4KW.

2)      Motor: SEW , Power;2.2KW.

3)      Inverter  Schneider Model;ATV31222N4.,1 set

4)      Contactor: Schneider

5)      Display screen : Schneider : N400.

6)      Paper moving motor: Omron MYZN-J;

7)      Eye-mark relay :Omron ;

8)      Eye-mark: Banner;

9)      Temp extension: Schneider  TW3LT

-Wrapping speed :    500 pcs/min ,depending on cutting size.

-Total power:         3.50kw

-Candy size :       17 -70mm

-Dimension  :       1320*1210*1820mm

-Weight   :          1250kg

Optional Part :  gum counting device ( when pack bazooka gum into carton, the function of auto counting

of gum to the carton)

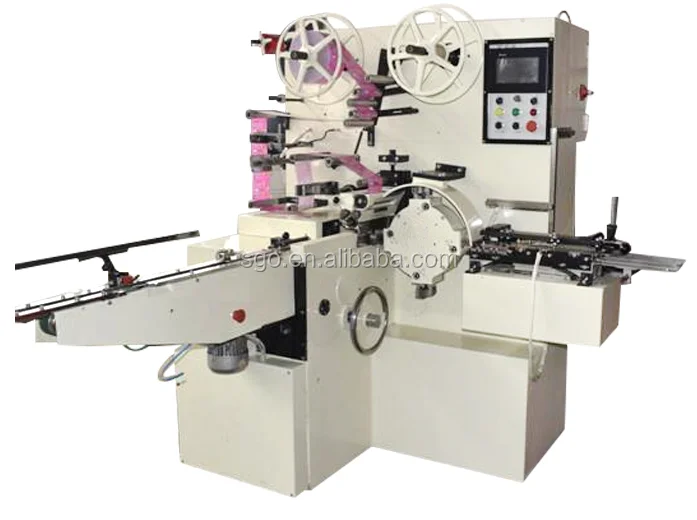

B) Multi -Pieces Stick pack machine:

Features:

a) Packaging materials auto positioning.

b) Heat sealing temperature adjustable.

c)  No candy, machine auto stops.

d)  Speed adjustable

Configuration:

10)  Total Power: 4KW.

11)  Motor: SEW , Power;2.2KW.

12)  Inverter  Schneider : ATV31222N4.,1 set

13)  Contactor: Schneider

14)  Display screen : Schneider : N400.

15)  Paper moving motor: Omron

16)  Eye-mark relay :Omron

17)  Eye-mark: Banner

18)  Temp extension: Schneider

Basic technical data:

Speed : 100packs/min( 3-5pcs/pack)

Candy size: L=18 – 22mm, W =18-20mm, T=9- 12mm,

Wrapping materials wax paper: 50 – 80GSM

Temperature: 20~30ºC

Moisture : ≤55%

Dimension: 1820X1120X1730mm

Weight : 1300kg

We are specialized in:

--Bubble gum whole plant machines with one-stop services ;

--Chewing gum whole plant machines with one-stop services ;

--Ball bubble gum whole plant machines with one-stop services

For more details , please contact wechat / whatsapp: 0086 138 183 90785

1. Lead time : 70days upon down payment;

2. 30% TT with order and 70% TT before shipment or irrevocable L/C at sight.

3. Packed in standard export wooden box  .

Why Choose Us?

1. The cut and wrap candy machines( cut & twist wrap, cut & fold wrap,cut & pillow wrap) for
     soft caramels, toffees, milk candy or chewy candy are European standard quality
     machines , speed can be as high as500-1,000pcs /min,depending on product cutting
     length;

2. The cut and wrap candy machines are competitive in prices;

3.  Shorter delivery time;

4.  Commissioning service and after sales service at factory are more responsive and
      less expenses ;

5.   spare parts service much less costly and quicker delivery.
