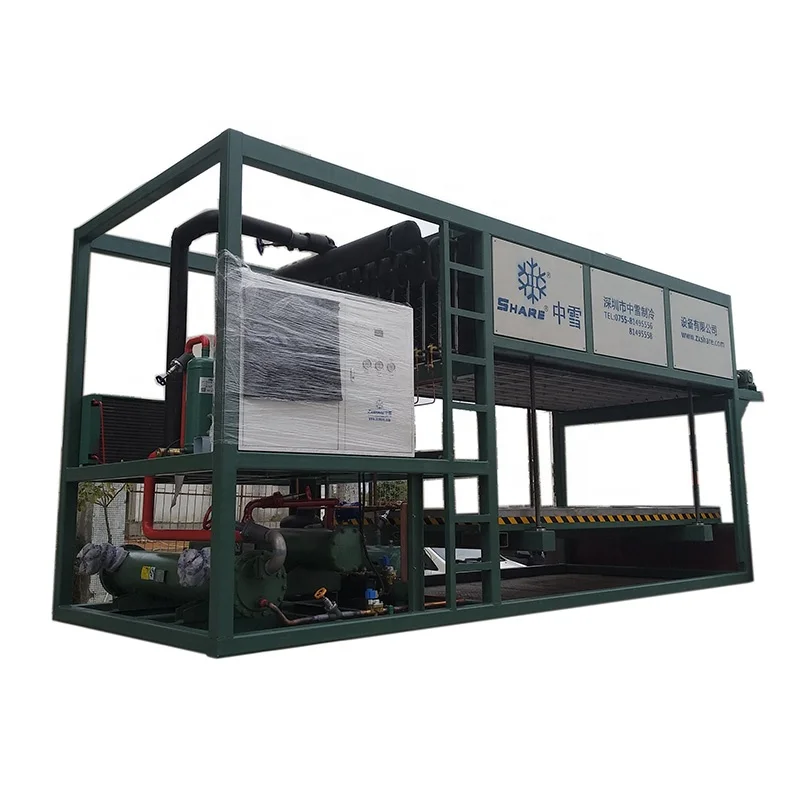

Система автоматического управления на 10 тонн, машина для производства блоков льда с прямым охлаждением/машина для производства блоков льда

Product Overview

Description

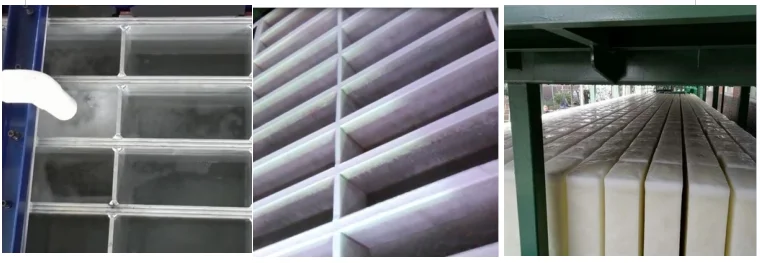

1. Add water into the ice moulds.

2. Turn on the ice block machine

3. Turn off the ice block machine, ice making time different from ice weight and thickness.

4. Wait minutes, ice blocks will be fully frozen with the remained coldness

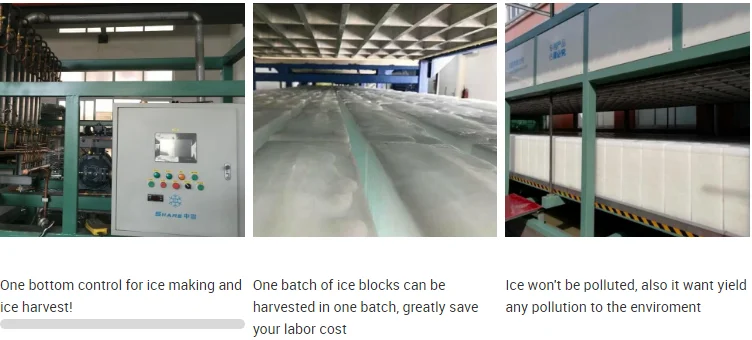

5. Press the ice harvest button, hot gas will into the aluminum ice moulds, ice block will be separated from the ice moulds, then  release the ice platform, all ice blocks dropping down on the platform;

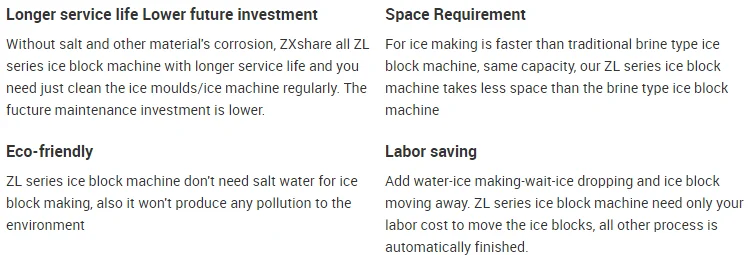

 Faster ice Making /Lower power consumption                  Clean ice Block Making





Model list:

Block Ice Machine
Model	Daily Output	Ice Weight	Total Power	Compressor	Cooling Type	Dimension	Weight
ZB1.0T-R4A	1.0T/24h	10/15/20/25Kg	6.4kW	Copeland	Air cooling	2050*1000*800mm	800Kg
ZB3.0T-R4A	3.0T/24h	10/15/20/25Kg	14.3kW	Bitzer	Water cooled	2473*1557*720mm	1400Kg
ZB5.0T-R2W	5.0T/24h	10/15/20/25Kg	25.9kW	Bitzer	Water cooled	4735*1580*1130mm	2650Kg
ZB8.0T-R2W	8.0T/24h	10/15/20/25Kg	41.5kW	Bitzer	Water cooled	5160*1820*1400mm	4000kg
ZB10.0T-R2W	10.0T/24h	20/25/50/100Kg	48.2kW	Hanbell	Water cooled	6280*2000*1600mm	4650Kg
ZB15.0T-R2W	15.0T/24h	20/25/50/100Kg	53.3kW	Hanbell	Water cooled	9800*2000*1500mm	5000Kg
ZB20.0T-R2W	20.0T/24h	20/25/50/100Kg	69kW	Hanbell	Water cooled	12600*1940*1500mm	5500Kg
ZB25.0T-R2W	25.0T/24h	20/25/50/100Kg	97.8kW	Hanbell	Water cooled	13500*2800*1600mm	6000Kg
ZB30.0T-R2W	30.0T/24h	20/25/50/100Kg	123kW	Hanbell	Water cooled	14600*3000*1600mm	6500Kg
ZB40.0T-R2W	40.0T/24h	20/25/50/100Kg	166kW	Hanbell	Water cooled	19500*3800*1600mm	7500Kg
ZB50.0T-R2W	50.0T/24h	20/25/50/100Kg	182kW	Hanbell	Water cooled	13300*6200*1560mm	8000Kg



Please send inquiry with the details below:

• The daily output you want, your voltage, ambient temperature and water temperature

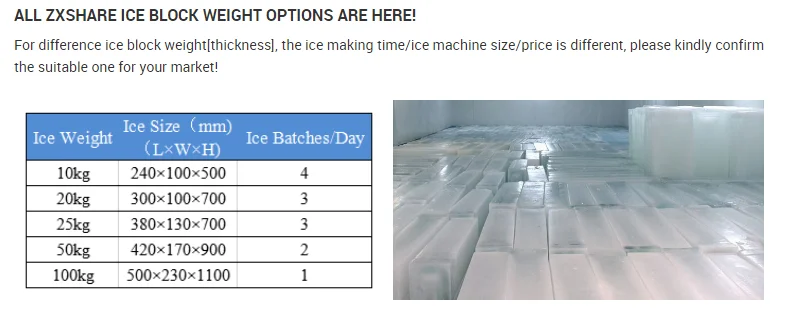

• For block ice machine, the ice weight per piece you want, 10/15/20/25/50/100kg



For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.

For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.



3, What if I buy your ice machine, but I cannot find the solution for the problem?

All ZXSHARE ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, ZXSHARE will send the parts for free, even send the technician over if situation needed. When beyond the warranty, ZXSHARE will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
