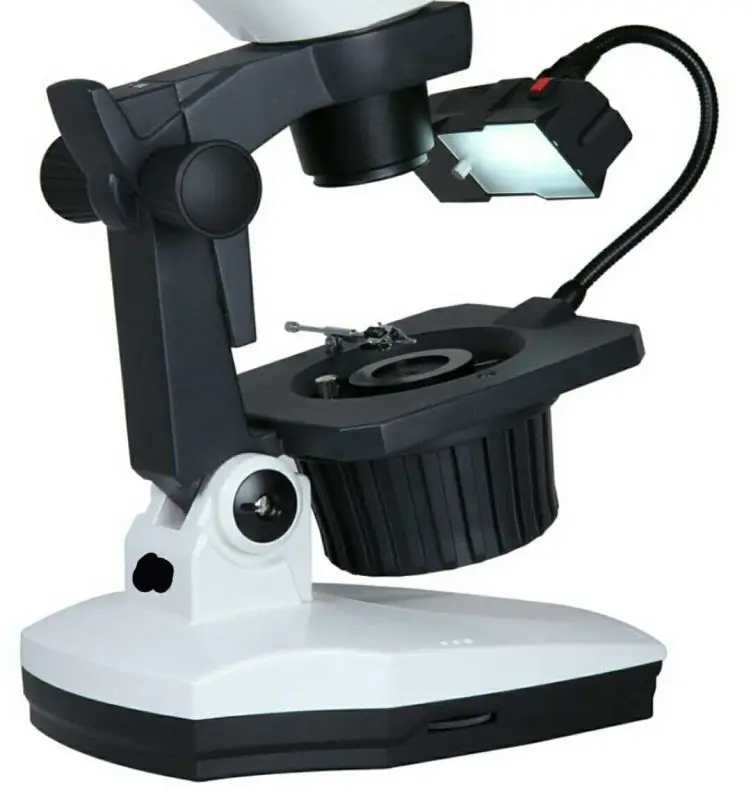

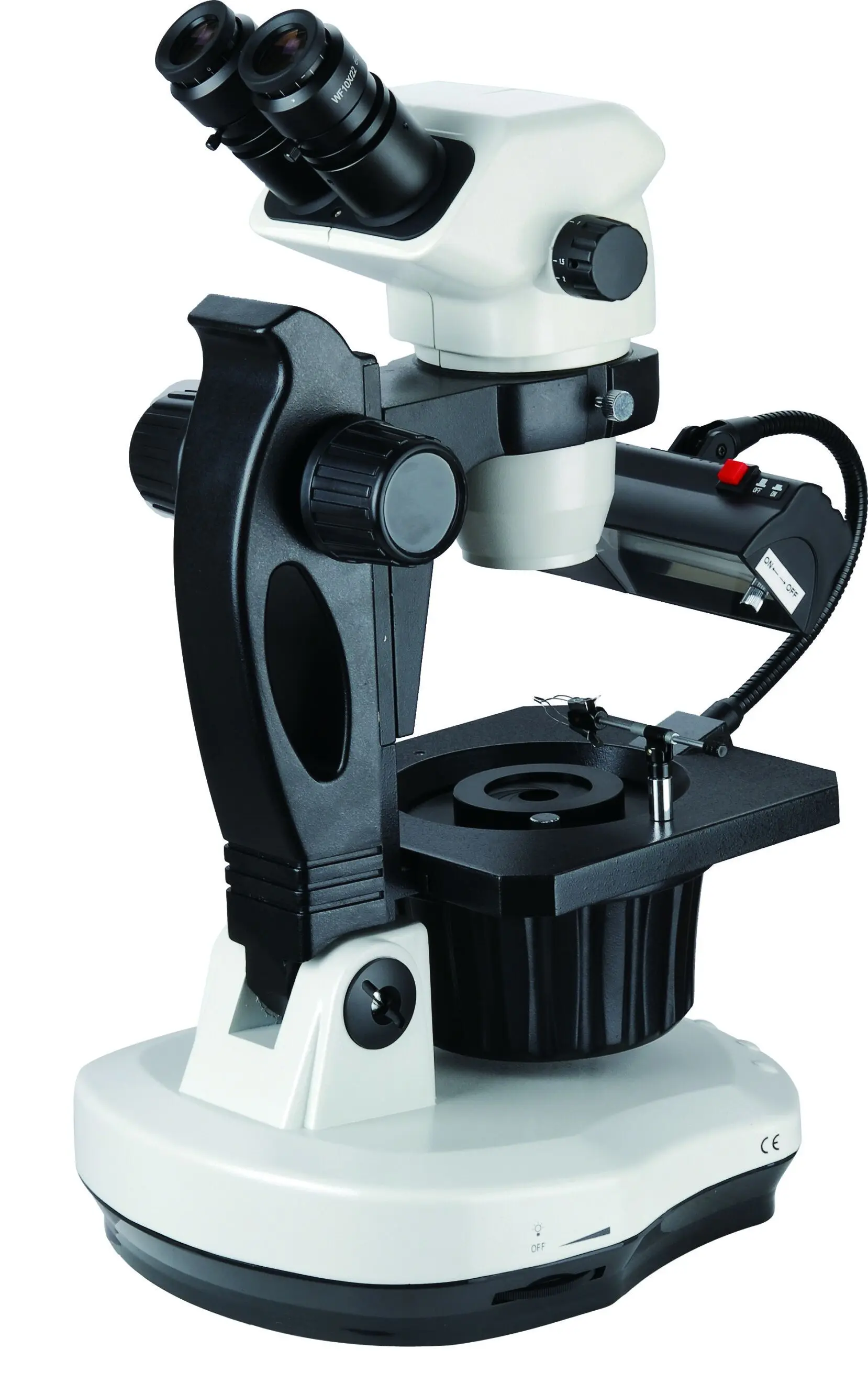

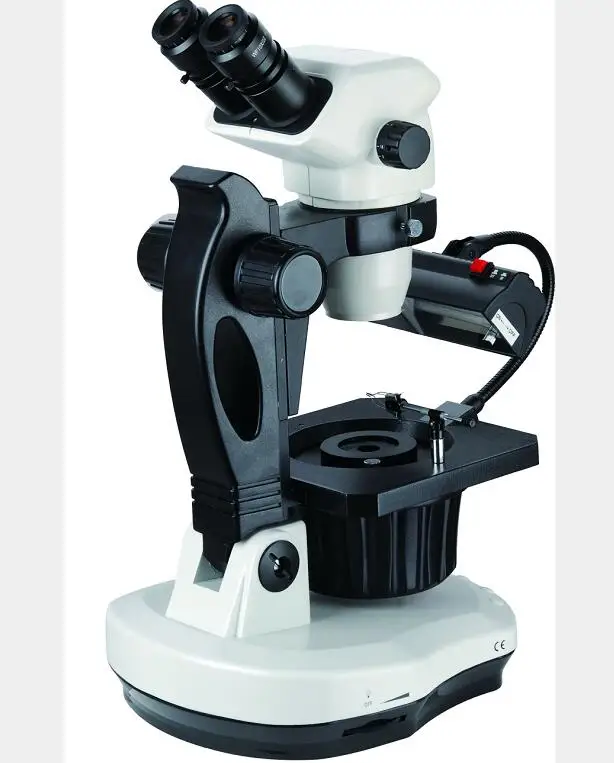

NP GM45 7X 45X Advanced Jewel Gem Stereo Zoom Microscope Jewelry Inspection Tools

Product Overview

Description

Features:



• A high quality professional 7X-45X binocular jewelry/gem microscope with rotatable darkfield stage


• A right microscope for distinguishing genuine & imitation gems and judging production origin


• Comfortable Ergonomic design


• High resolution sharp images with both bright and dark field illumination


• Large rotatable round stage with built-in darkfield condenser, 3D gem clamp and graduations


• Adjustable stand for easy and comfortable observation


• Possible to measure gem angles


• Advanced halogen system providing rich spectrum, high-temperature color, and close-to-daylight illumination


• Flexible gooseneck-supported rectangular incident (top) fluorescent lamp


• Bright halogen bottom light with dimmer for best darkfield illumination


• Built-in darkfield condenser with iris


• 3D flexible gem clamp


• 45 degree inclined 360 degree rotatable Binocular head


• Binocular port for adding photo or video capability


• Large zoom magnification range


• High resolution optics with great flatness and contrast


• Sharp stereo erect images over a wide field view


• Crystal clear original true color images


• Eye tube with adjustable diopter


• Accurate alignment ensuring a fatigue-free viewing


• Full optical glass elements


• Precise ground glass lenses


• All metal mechanical components


• Adjustable interpupillary distance


• Rubber eye-guards included


• Manufactured under restrict ISO 9001 quality control system


• Two (2) year manufacturer warranty for microscope



 Specifications:



• Head: 45 degree inclined 360 degree swiveling binocular


• Eyepiece: 30mm widefield WF10X/20


• Objective: 0.7-4.5X


• Zoom Range: 13:1


• Field of View: 2-1/2" (65mm)


• Working Distance: 8" (200mm)


• Interpupillary Distance: 2-3/16" - 2-15/16" (55mm-75mm)


• Stand: gemology stand, inclinable up to 38 degrees


• Iris Diaphragm: 2 - 41mm


• Focal Range: 4-3/8" (110mm)


• Stereo Angle: 12.4 degree


• Diopter Adjustment: +/-5dp


• Top Illumination: 7W fluorescent


• Bottom Illumination: 30W halogen


• Power Supply: AC 110V 60Hz


• Accessories: dust cover, eye-guards and clips


• Shipping Weight: 50 lbs





Packing List:



• One Binocular Stereo Zoom Microscope Head


• One gemology microscope Frame with Stage, Base and Darkfield Illumination House


• One Pair of Super Widefield WH10X/20 Eyepieces


• One Rectangular Fluorescent Lamp


• One 3D Gem Clamp (tweezers)


• One Dust Cover


• User's Manual
