continuous sawdust coconut shell charcoal powder making machine price wood charcoal carbonization furnace

Raw materials

Any Carbon-containing organic materials can be as raw materials , such as sawdust, rice hulls, sawdust, bamboo, palm shells, peanut shells, coconut shells, stalks, stalks, ( raw materials size < 15mm ) . The raw materials In the furnace under high temperature conditions for dry distillation, carbonize without oxygen, high efficiency

Main Feature

1 during the carbonize process, it will have Combustion gases such as carbon monoxide, methane, hydrogen, etc,which can be recycled , purified and circulated burning as heating source of the whole line machine

2 so that the whole set of equipment will not pollute the environment when working, but also provide its own heating use energy .which is a high efficiency equipment

Heating Source

biomass fuel as heating   or    natural gas heating

Work Principle

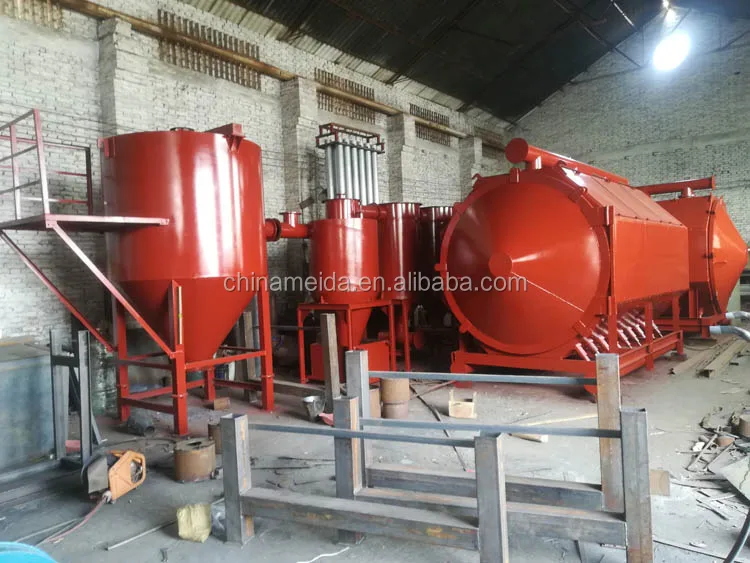

1 this whole line includes biomass gas furnace, flue gas purifier, flue gas condenser, fan, self-adapter burner, horizontal carbonization furnace, etc.

  Continuous self ignite coconut sawdust wood charcoal carbonization furnace wood charcoal

2 This machine is used - dry carbonization method. The combustion gases such as carbon monoxide, methane, hydrogen, etc. produced by the carbonization process are fully utilized, and the pure combustible gas is obtained by separating the wood tar and wood vinegar from the flue gas purification system. After burning fully by self-equipped burner, to supply the main parts’ heating need(temperature control in 600 degrees)

  Continuous self ignite coconut sawdust wood charcoal carbonization furnace wood charcoal

3 outlet with a separate combustible gas recovery pipeline, carbonization of the material at high temperature carbonization, decomposition of carbon monoxide, methane, hydrogen and other combustible gases, through the recovery of the pipeline, flue gas purification system, burner heating cylinder, to cycle heating

4 The initial carbonization ignition is provided by the biomass gas furnace

Charcoal powder’s function

Industrial circle :  explosive , rubber’s additive ,  metallurgy, chemical engineering, medicine, cosmetic, environmental protection

Agricultural circle :  improve ground temperature , improve soil , keep soil moisture , relivers for fertilizer,

Daily Life :  hot pot fuel ,  dehumidizer  , ink , mosquito incense,  water purifier etc

Capacity

Model WTJ-800,  capacity is 300-600kg/hour

Model WTJ-1000,  capacity is 500-700kg/hour

Model WTJ-1200,  capacity is 700-900kg/hour

Parts name

Parts photo

Explanation

Biomass gas furnace

A: this is main parts of the biomass gas furnace , which is the main heating source of the whole line .

( add any biomass materials into this stove to get heating gas )

B : this parts is to discharge the waste after biomass materials burn out

Biomass gas furnace

C:flue gas purifier  remove dust from the gas

D:Flue gas condenser

Biomass gas furnace

E :  flue gas purification system(to separating the wood tar and wood vinegar from the gas to get pure gas )

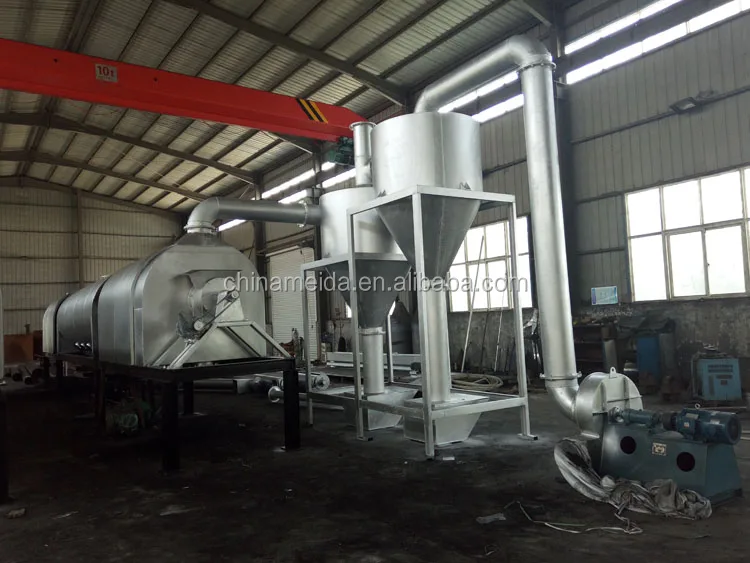

horizontal carbonize furnace

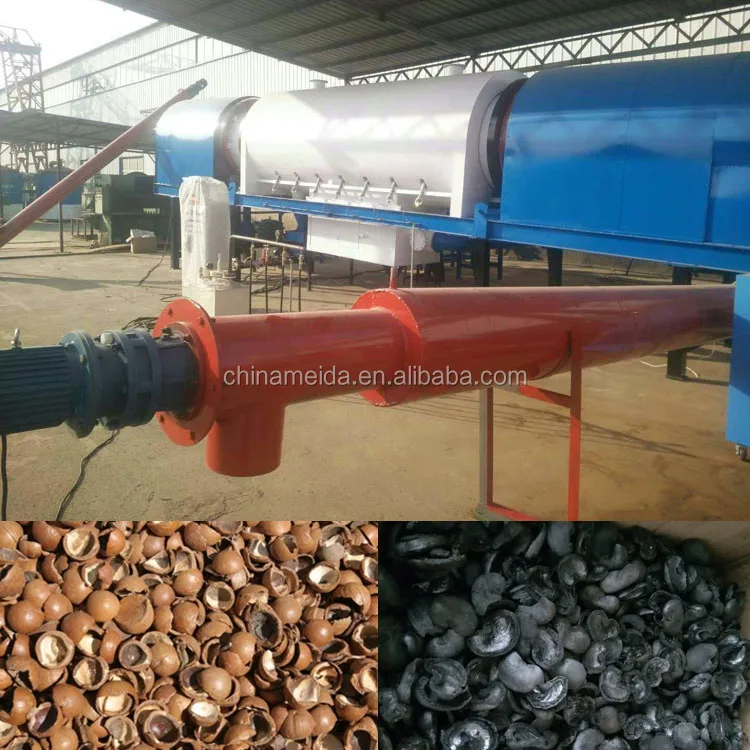

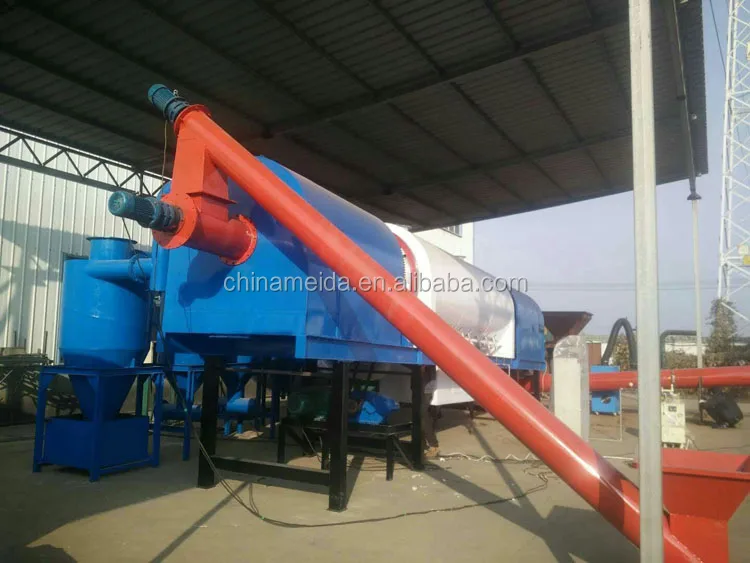

1 this is conveyor parts to sent raw materials to machine continuously

2 this is main parts of the horizontal carbonize furnace,which inside keep turning to produce charcoal powder continuously

3 this is self-adapter burner (after pure gas come from the biomass gas furnace , light the pure gas here in this part to give main machine heating )

Each side 8 self-adapter burner ,so total 16 self-adapter burner

4 this is electric control cabinet

If customer do not want use biomass gas as heating source, this machine can also use natural gas as heating source, you can see between the arrow there are a line switch, after connect the natural gas with this machine, control the switch can let machine work to get final charcoal powder too

horizontal carbonize furnace

4 this is electric control cabinet

horizontal carbonize furnace

The charcoal powder come out from here

horizontal carbonize furnace

This is a conveyor ,parts A  can be connect with the charcoal powder discharge gate ,then the charcoal powder can be come out from the part B

Final charcoal powder

This is the final charcoal powder made by this continuous charcoal powder carbonize line
