Factory Direct Sales 1000ml 1Liter Laboratory Mini High Pressure PTFE Lined Hydrothermal Synthesis Reactor

Product Overview

Description

Factory Direct Sales 1000ml 1Liter Laboratory Mini High Pressure PTFE Lined Hydrothermal Synthesis Reactor

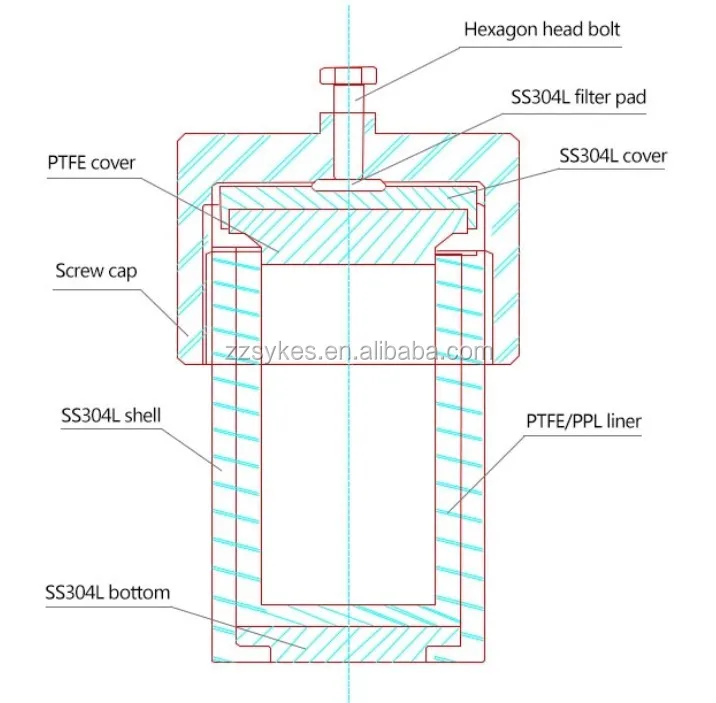

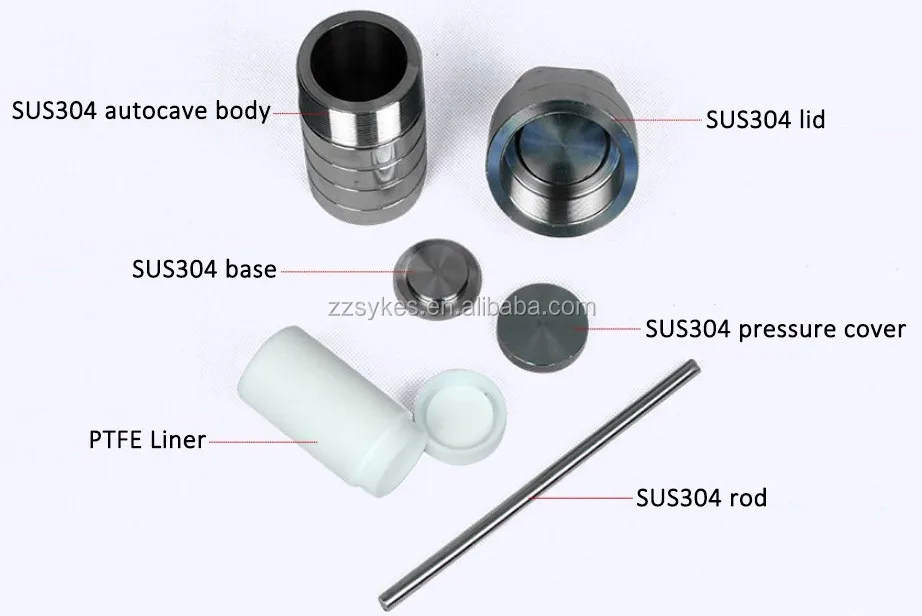

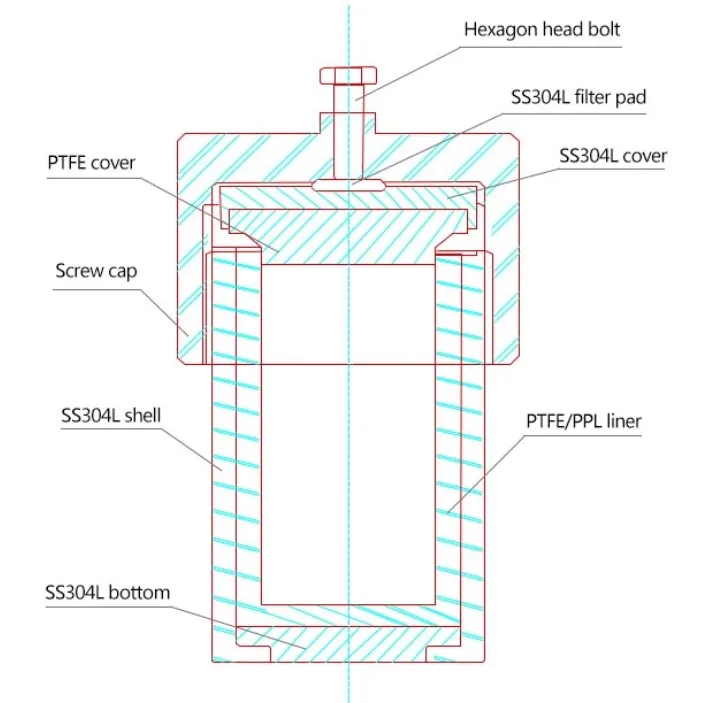

Hydrothermal synthesis reactor is used to make new synthetic chemicals under a certain temperature and pressure. It consists two parts ------ outer SUS304 shell and inner PPL/ PTFE liner.



Hydrothermal synthesis reactor is also called polymerization reactor, high pressure digestion tank, hydrothermal reaction vessel, pressure solution, digestion tank.





Hydrothermal synthesis reactor is widely used in new materials, energy, environmental engineering and other fields of scientific research and experiments. It is a small commonly used reactor used in teaching and scientific research.





1. Good corrosion resistance, no overflow of harmful substances, reduce pollution and safe use;

2. After temperature rise and pressure increase, samples that are difficult to dissolve under normal conditions and those containing volatile elements can be rapidly and nondestructively dissolved;

3. Beautiful appearance, reasonable structure, simple operation, short analysis time and reliable data;

4. With PTFE liner, double layer care, acid and alkali resistance, etc.;

5. It can replace platinum crucible to solve the problem of sample solution for trace element analysis in high purity alumina.







Product		Hydrothermal Synthesis Reactor
Machine	Capacity ( ml )	5	10	15	25	50	100	150	200	500	1000
	Diameter ( mm )	40	16	50	56	67	77	95	100	120	190
	Height ( mm )	63	77	85	115	145	155	175	195	240	250
	Thickness ( mm )	6	5	5	7	8	8	8	10	10	10
Inner liner	Capacity ( ml )	5	10	15	25	50	100	150	200	500	1000
	Diameter ( mm )	26	26	30	33	40	49	56	63	84	135
	Height ( mm )	50	59	60	64	86	98	118	135	157	125
	Thickness ( mm )	4.2	4.5	4.5	4.5	5	5	6.8	8	8	10
Outer shell	Capacity ( ml )	5	10	15	25	50	100	150	200	500	1000
	Diameter ( mm )	40	46	50	56	67	77	95	100	120	190
	Height ( mm )	63	77	85	115	145	155	175	195	240	250
	Thickness ( mm )	6	5	5	7	8	8	8	10	10	10
Max. pressure		3MPa
Shell material		SUS304

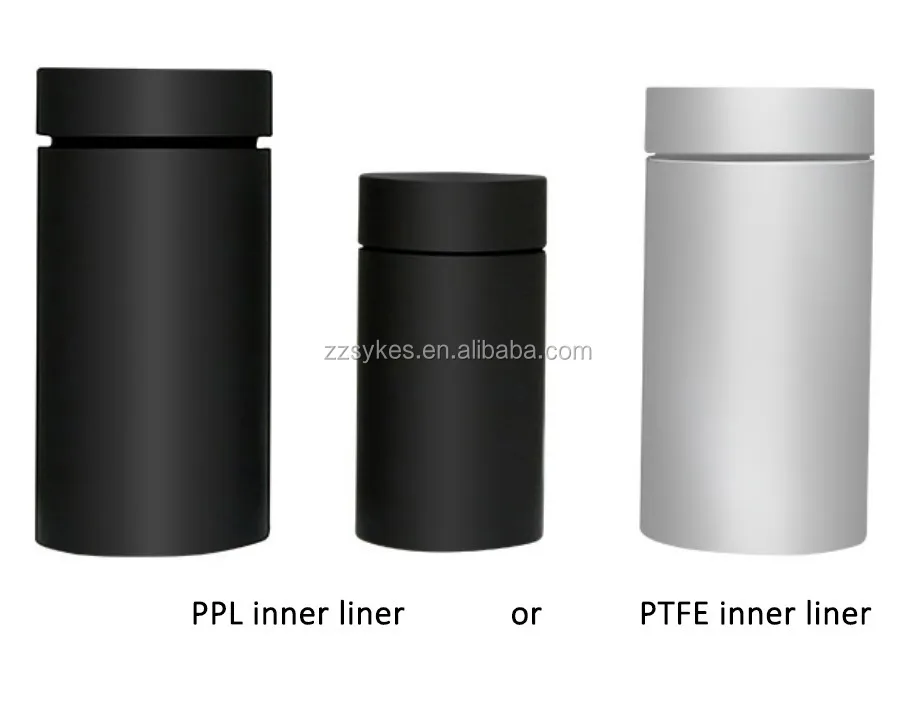

Inner liner material		PPL or PTFE optional
Temperature heating and cooling speed		≤5℃/min
Notes		Safety temperature PTFE 180℃/ PPL 280℃, max. pressure ≤3MPa
