Precise Manual Goniometer Stage Dovetail Platform Optical Sliding Table PT SD4025

Product Overview

Description

PDV has many differentspecifications manual translation(linear) stage, including manual stage, linear stage,   translation stage ,manual translation stage, Z axis lifting platform,Lab Jack,High-Load Vertical Stages, 360 degree rotation stage,Rotary Stage,Angle adjustment stage and so on

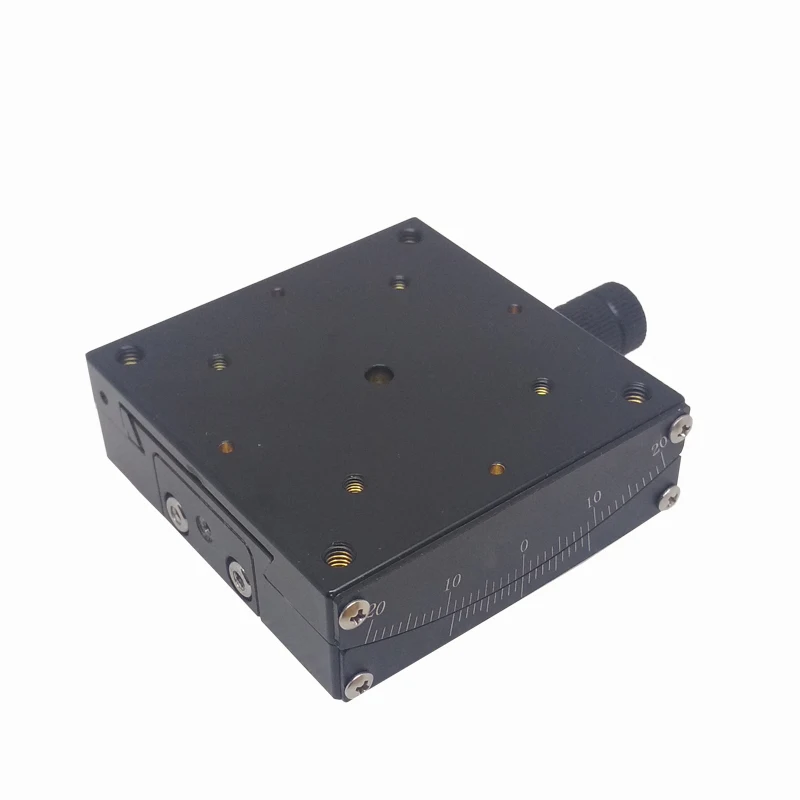

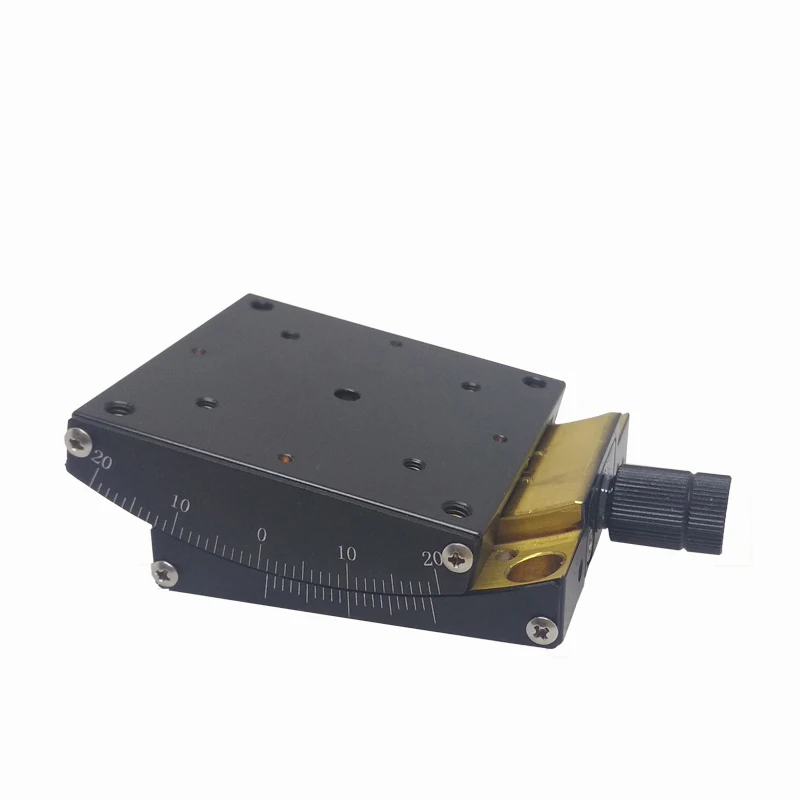

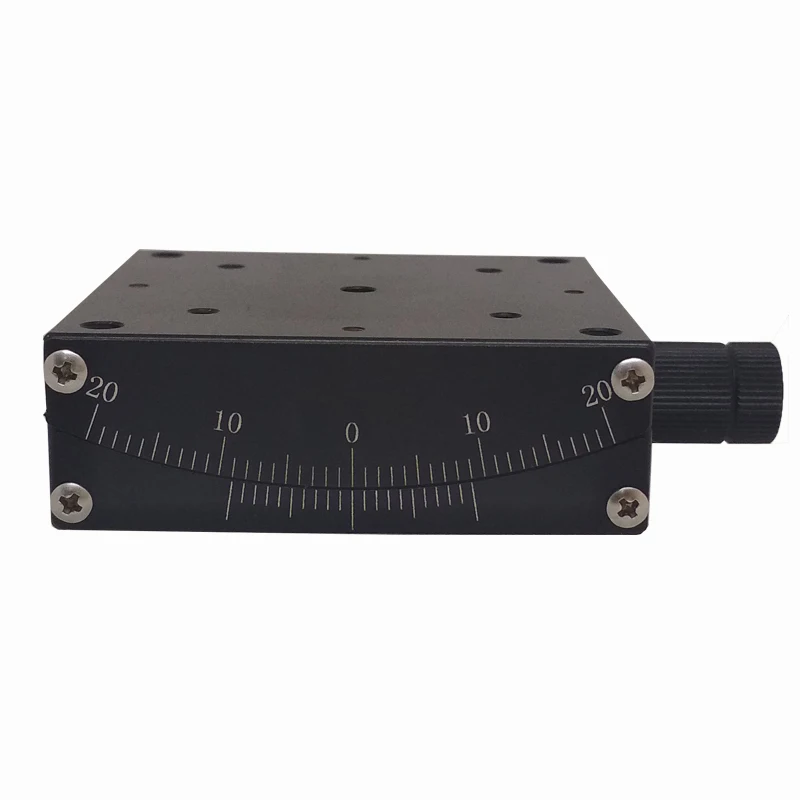

PT-SD4025
Model Number : PT-SD4025
Turntable Diameter mm : 40×40
Height of rotation center : 25±0.1
adjust angle: ±20°
The amount of stage movement for 1 revolution of the knob: ≈2.2°
Load Capacity(KG): 3
Weight: 0.18
Materials: brass
PT-SD4040
Model Number : PT-SD4040
Turntable Diameter mm : 40×40
Height of rotation center : 40±0.1
adjust angle: ±15°
The amount of stage movement for 1 revolution of the knob: ≈1.89°
Load Capacity(KG): 3
Weight: 0.24
Materials: brass
PT-SD4060
Model Number : PT-SD4060
Turntable Diameter mm : 40×40
Height of rotation center : 60±0.1
adjust angle: ±10°
The amount of stage movement for 1 revolution of the knob: ≈1.33°
Load Capacity(KG): 3
Weight: 0.24
Materials: brass

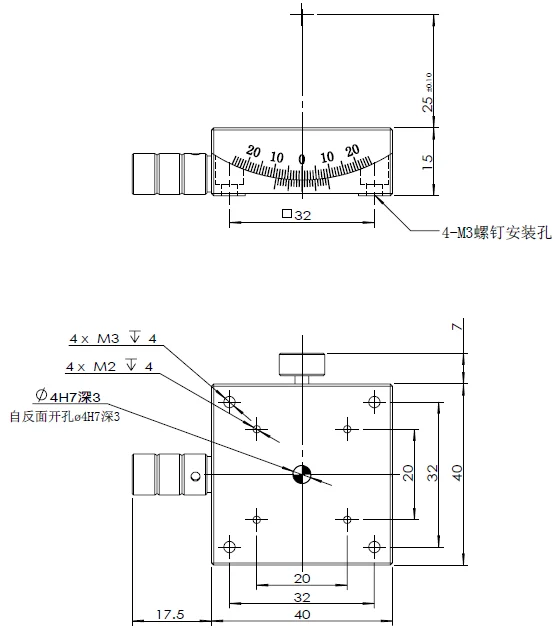

PT-SD4025

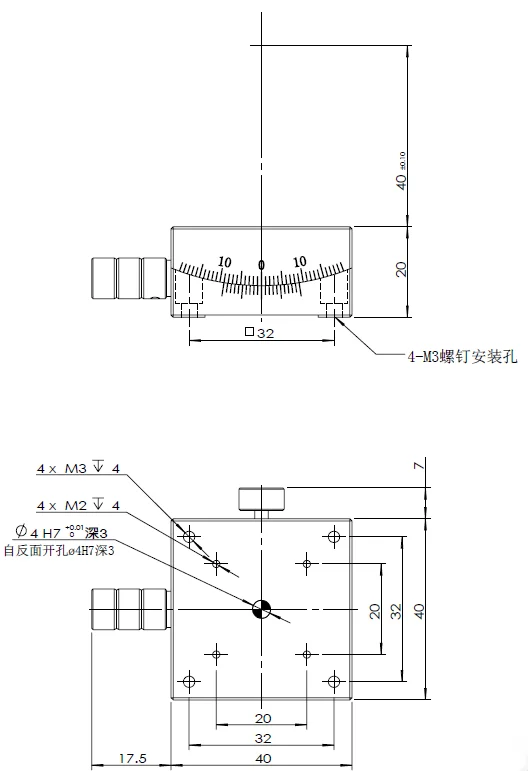

PT-SD4040

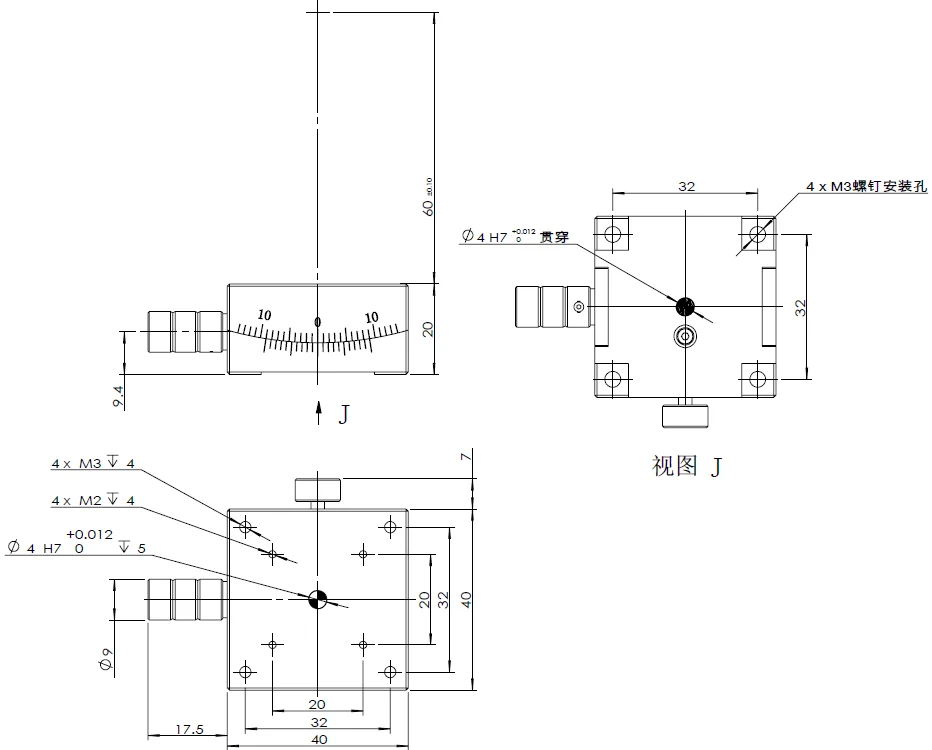

PT-SD4060
