RNB Series non insalution end terminal lug naked cable terminal ring
- Category: Terminals >>>
- Supplier: Yueqing,Hrya,Electric,Technology,Co.,Ltd.
Share on:
Product Overview
Description

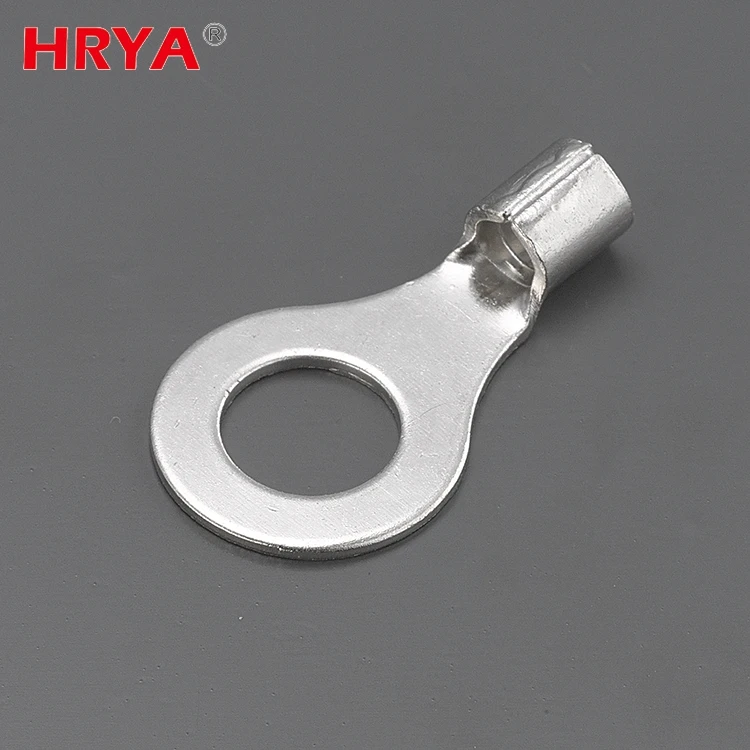

RNB Series non-insalution end terminal lug naked cable terminal ring
Banner
Product Description
Sample Is Free, We Are Manufacturers.
Terminal Material: copper
Brezed sean
Plating:Tin
| ITEM NO. | USA Screw | Screw dia d2(mm) | Dimension(mm) | Wire range AWG/mm² | ||||||
| W | F | L | E | D | d | T | ||||
| RNB5.5-3.5 | #6 | 3.7 | 7.5 | 5.9 | 15.7 | 6.8 | 5.6 | 3.4 | 1.0 | 12-10AWG 4-6mm² 48A
|
| RNB5.5-4S | #8 | 4.3 | 7.2 | 5.9 | 15.7 | |||||
| RNB5.5-4L | #8 | 4.3 | 9.5 | 8.3 | 19.8 | |||||
| RNB5.5-5 | #10 | 5.3 | 9.5 | 8.3 | 19.8 | |||||
| RNB5.5-6 | 1/4 | 6.4 | 13.0 | 13.0 | 25.8 | |||||
| RNB5.5-8 | 5/16 | 8.4 | 13.7 | 13.7 | 28.0 | |||||
| RNB5.5-10 | 3/8 | 10.5 | 13.7 | 13.7 | 28.0 | |||||
| RNB5.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 32.4 | |||||
| RNB8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 | 1.2 |
8AWG 6-10mm² 62A |
| RNBS8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 | |||||
| RNBM8-5 | #10 | 5.3 | 12.0 | 23.8 | 9.3 | |||||
| RNBL8-5 | #10 | 5.3 | 15.0 | 29.8 | 13.8 | |||||
| RNBS8-6 | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 | |||||
| RNBL8-6 | 1/4 | 6.4 | 15.0 | 29.8 | 13.8 | |||||
| RNB8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 | |||||
| RNB8-10 | 3/8 | 10.5 | 15.0 | 29.8 | 13.8 | |||||
| RNB8-12 | 1/2 | 13.0 | 20.0 | 33.5 | 15.0 | |||||
| RNB14-4 | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 10.5 | 9.0 | 5.8 | 1.4 | 6AWG 10-16mm² 882A |
| RNB14-5 | #10 | 5.3 | 12.0 | 29.8 | 13.3 | |||||
| RNBS14/6 | 1/4 | 6.4 | 12.30 | 29.8 | 13.3 | |||||
| RNBL14-5 | 1/4 | 6.4 | 16 | 32.8 | 13.3 | |||||
| RNB14-8 | 5/16 | 8.4 | 16 | 32.8 | 14.5 | |||||
| RNB14-10 | 3/8 | 10.5 | 16 | 32.8 | 14.5 | |||||
| RNB14-10 | 1/2 | 13.0 | 22.0 | 41.0 | 19.5 | |||||
Main products
Company Information
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company?A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.Q2: How does your factory do regarding quality control?A2: All the products will be 100% checked before the shipment.Q3: When can I get the price?A3:Usually we quote within 24 hours after we get your inquiry.Q4: How could I get a sample?A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.Q5: What is the price of shipping?A5: Depending upon the port of delivery, prices varies.
