Product Overview
Description
MC solar charge controller mppt 40a Solar regulator for rv solar system ML2440
Product Description
Parameter | Value | |||||
Model | MC2420N10 | MC2430N10 | MC2440N10 | MC2450N10 | ||
System voltage | 12V/24V Auto | |||||
No-load loss | <10mA | |||||
Battery voltage | 9 to 32 | |||||
Max. solar input voltage | 100V (25°C), 90V (-25°C) | |||||
Max. power point voltage range | Battery voltage +2V to 72V | |||||
Rated charging current | 20A | 30A | 40A | 50A | ||
Max. capacitive load capacity | 10000uF | |||||
Max. photovoltaic system input power | 260W/ 12V 520W/ 24V | 400W/ 12V 800W/ 24V | 550W/ 12V 1100W/ 24V | 650W/ 12V 1300W/ 24V | ||
Conversion efficiency | ≤ 98% | |||||
MPPT tracking efficiency | > 99% | |||||
Temperature compensation factor | -3.0mv/ °C/ 2V (default) | |||||
Operating temperature | -35°C to +45℃ | |||||
Protection degree | IP32 | |||||
Weight | 650g | 830g | 1040g | 1335g | ||
Communication method | TTL Serial communication | |||||
Altitude | ≤ 3000m | |||||
Product dimensions | 150*106*62mm | 150*106*68 | 183*127*66 | 183*127*70 | ||
• PowerCatcher maximum power point tracking technology allows the controller to track the maximum power point of solar panels even in a complex environment. Compared with the traditional MPPT tracking technology, it boasts faster response speed and higher tracking efficiency.
• A built-in maximum power point tracking (MPPT) algorithm can significantly increase energy utilization efficiency of the photovoltaic system, which is about 15% to 20% higher than traditional PWM charging.
• It provides an active charging voltage regulation feature. At battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output the rated charging voltage value.
• MPPT tracking efficiency is up to 99.9%.
• Due to an advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.
• Available in multiple battery types and support charging procedures of various types of batteries such as lithium battery, colloidal battery, sealed battery, vented battery, lithium battery, etc.
• A current-limited charging mode is available. When the power of solar panel is too large and the charging current is higher than the rated valve, the controller automatically reduces the charging power
so that the solar panel can operate at the rated charging current.
• Support automatic identification of lead-acid battery voltage.

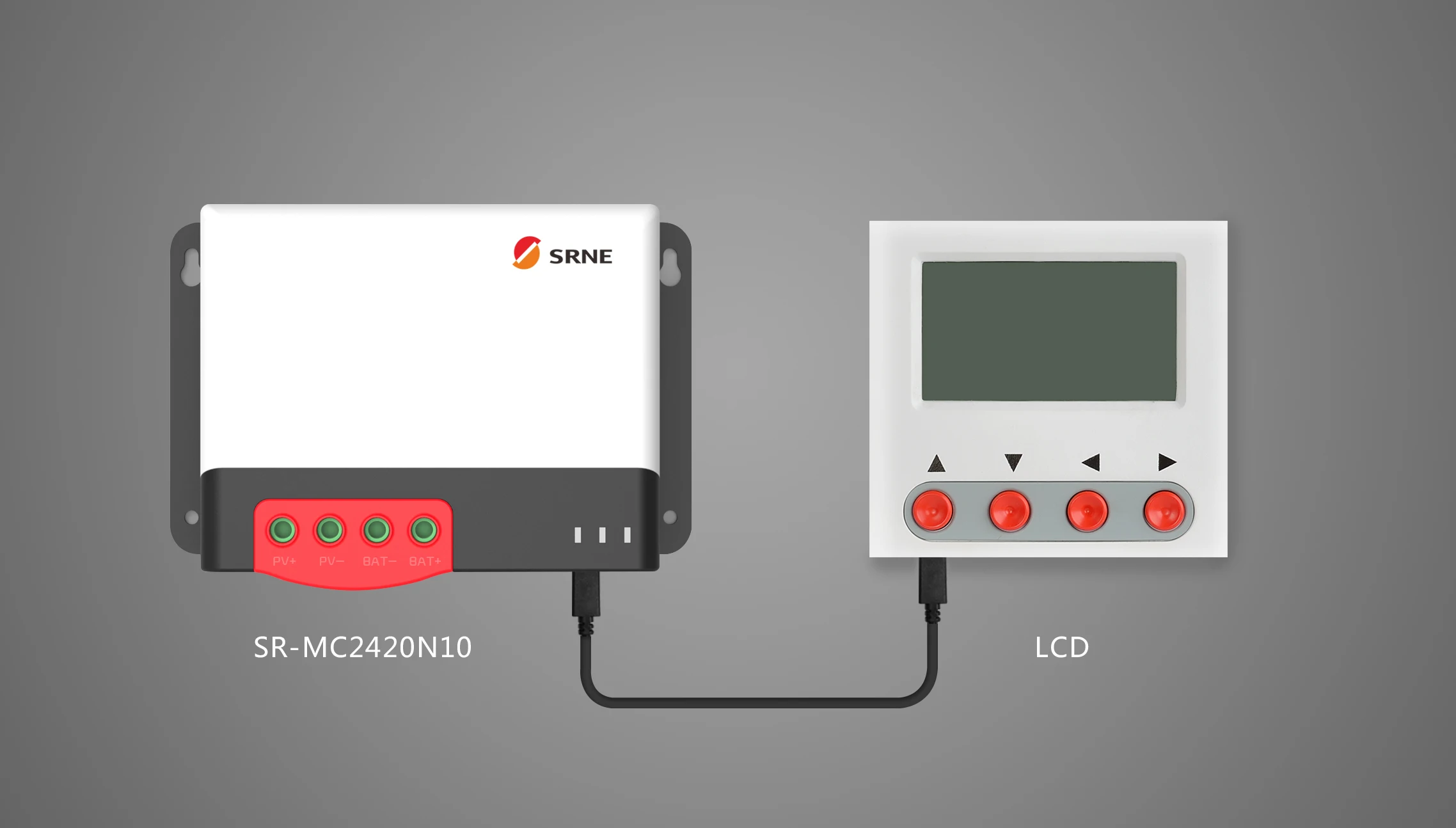

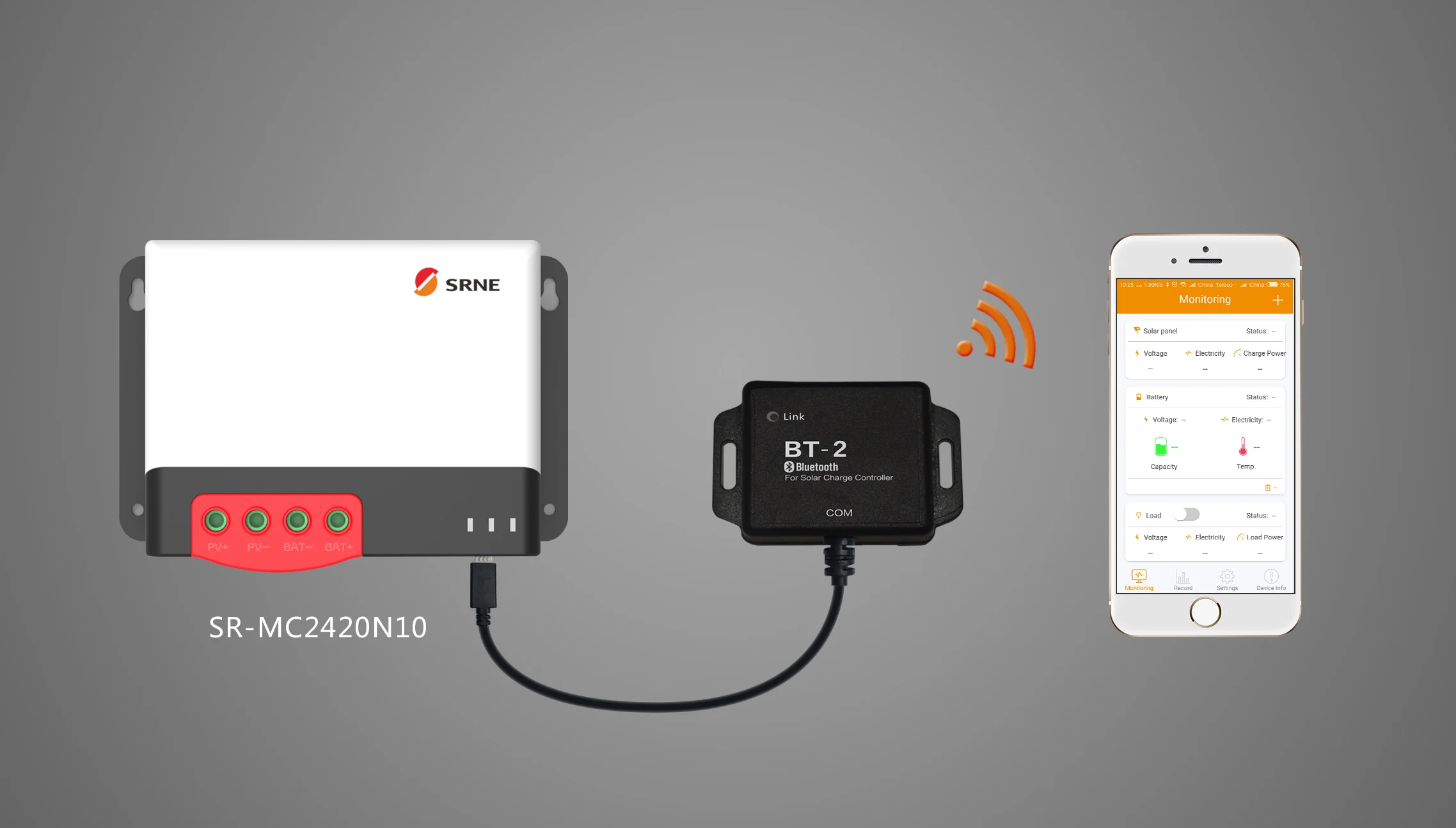

• External LCD screen or Bluetooth module can be connected for viewing of equipment operating data and status, and modification of controller parameters is supported.
• Support standard Modbus protocol to meet communication needs in different occasions.
• Built-in over-temperature protection mechanism ensures that when temperature exceeds the set value of the device, the charging current decreases linearly with the temperature, thereby reducing the temperature rise of controller and avoiding high temperature damage.
• Temperature compensation and automatic adjustment of charge and discharge parameters help to improve battery life.
• Solar panel short circuit protection, battery open circuit protection and TVS lightening protection etc.
• A built-in maximum power point tracking (MPPT) algorithm can significantly increase energy utilization efficiency of the photovoltaic system, which is about 15% to 20% higher than traditional PWM charging.
• It provides an active charging voltage regulation feature. At battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output the rated charging voltage value.
• MPPT tracking efficiency is up to 99.9%.
• Due to an advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.
• Available in multiple battery types and support charging procedures of various types of batteries such as lithium battery, colloidal battery, sealed battery, vented battery, lithium battery, etc.
• A current-limited charging mode is available. When the power of solar panel is too large and the charging current is higher than the rated valve, the controller automatically reduces the charging power
so that the solar panel can operate at the rated charging current.
• Support automatic identification of lead-acid battery voltage.
• External LCD screen or Bluetooth module can be connected for viewing of equipment operating data and status, and modification of controller parameters is supported.
• Support standard Modbus protocol to meet communication needs in different occasions.
• Built-in over-temperature protection mechanism ensures that when temperature exceeds the set value of the device, the charging current decreases linearly with the temperature, thereby reducing the temperature rise of controller and avoiding high temperature damage.
• Temperature compensation and automatic adjustment of charge and discharge parameters help to improve battery life.
• Solar panel short circuit protection, battery open circuit protection and TVS lightening protection etc.
