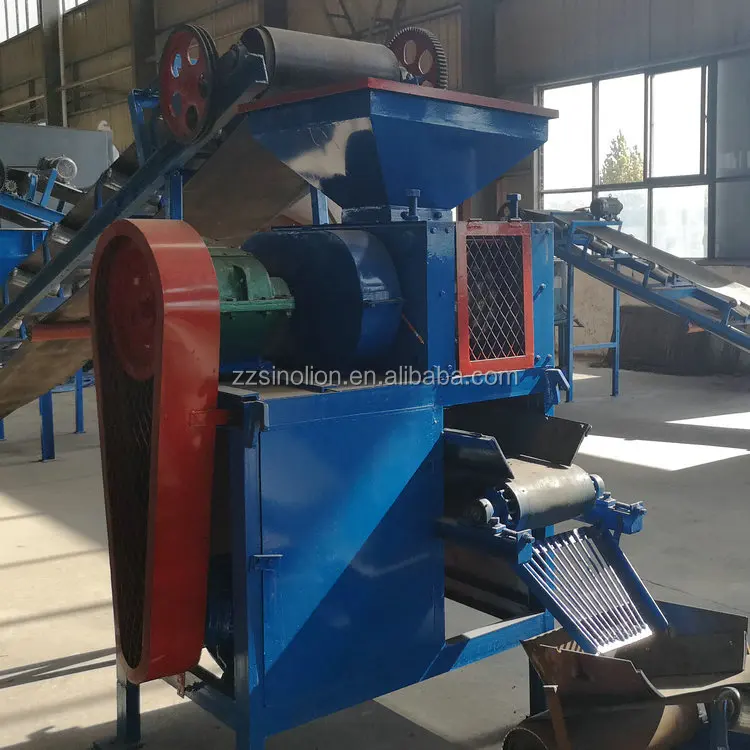

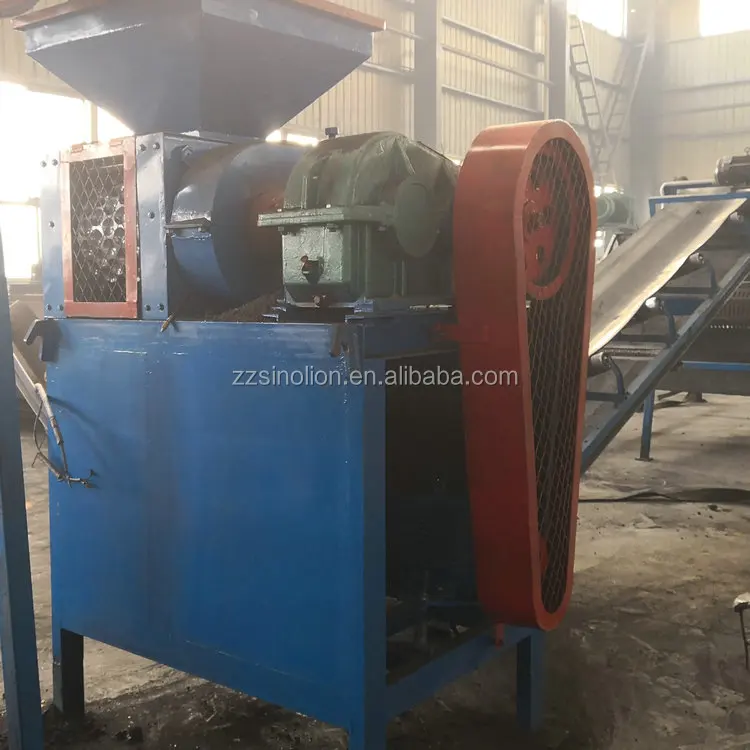

high quality roller briquette press machine factory sale
- Category: Briquette Machines >>>
- Supplier: Zhengzhou Sinolion Machinery Co. Ltd.
Share on (62389728790):
Product Overview
Description
Product Description
Brief introduction of roller briquette press machine
The roller briquette press machine is widely used in industries such as refractories, power plants, metallurgy, chemical industry, energy, transportation, and heating, etc. The shaped products made by coke briquette machine factory is energy-saving, environmentally friendly, easy to transport, and improves the utilization of waste materials, with good economic and social benefits. Besides, the molded materials produced by the ball pressing machine are energy-saving and environment-friendly and convenient to transport. It improves the utilization rate of waste materials, and have good economic benefits and social benefits.
Working principle of roller briquette press machine:
This series of roller briquette press machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
Features of roller briquette press machine:
1.The final products are smokeless, non toxic, non peculiar and environmental protection.
2.Strong and stable structure, easy, operation and maintain easily.
3.high density, high strength & high hardness because the reasonable design.
4.Final product size 25-70mm and shape can be round,pillow & square shape.
5.Roller material can be 65Mn, 9Cr2Mo, alloy Steel, high-chromium alloy and so on.
6.The final briquettes are energy saving, easy to transport and higher utilization of waste.
Main technical parameter of roller briquette press machine:
Model | Reducer | Roller Size (mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) |
XM290 | ZQ350 | 290*200 | 12-14 | 5.5 | 0.9-1.0 |
XM360 | ZQ350 | 360*250 | 12-14 | 7.5 | 1.5-2.0 |
XM400 | ZQ400 | 400*250 | 12-14 | 7.5 | 2.5-3.5 |
XM430 | ZQ400 | 430*250 | 12-14 | 11 | 3.5-4.5 |
XM500 | ZQ650 | 500*470 | 10-12 | 37 | 7.5-8.5 |
XM650 | ZQ850 | 650*470 | 9-11 | 45 | 9-10 |
XM750 | ZQ1000 | 750*570 | 9-11 | 90 | 13-14 |
XM850 | ZQ1250 | 850*570 | 8-10 | 110 | 15-17 |
Certifications
Detailed Images
Roller material
The roller adopts 65Mn, high chromealloy, 9Cr2Mo and wear-resistant alloy material(patent technology).

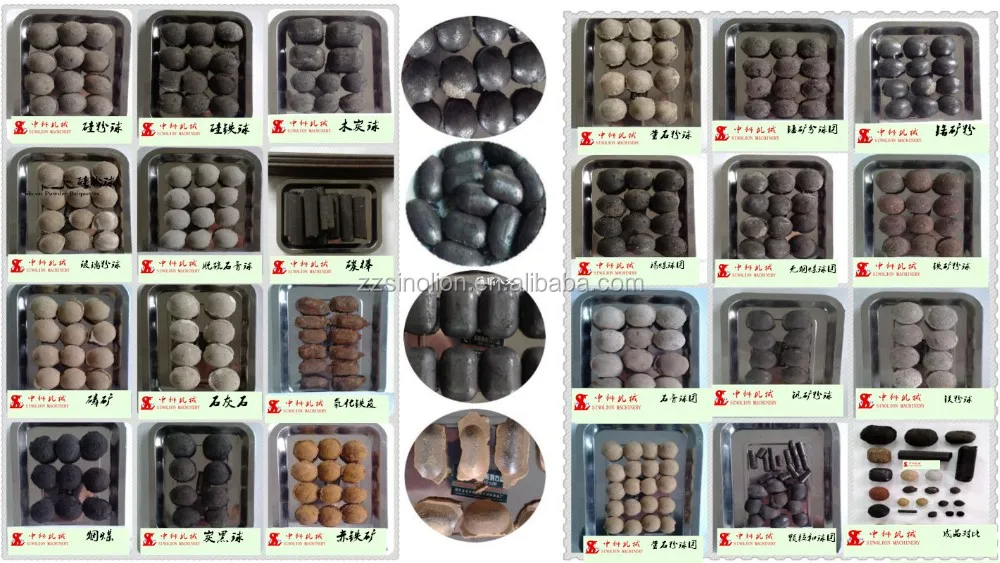

Raw material
Coal, coal powder, coal dust, coal breeze, coal fines
