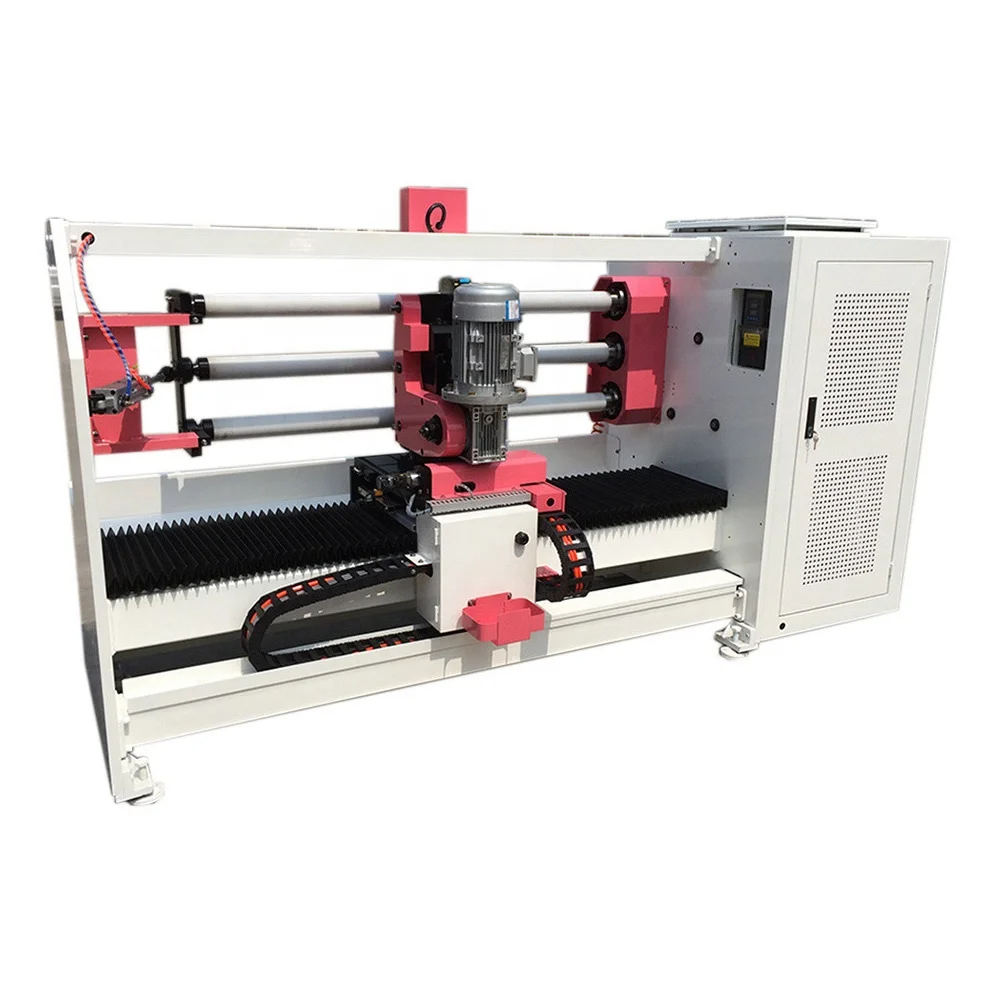

Auto machinery making reflective tape electric tape roll cutting machine
- Category: >>>
- Supplier: Shijiazhuang Goodi Trade Co. Ltd.
Share on (62389752404):
Product Overview
Description
Product Application
Suitable for cutting all kinds of tape,such as BOPP tape , masking tape,PE foam tape,kraft tape,double side tape,medical tape,PVC tape etc.
SPECIFICATIONS FOR Electrical packing tape making machine for sale | ||||||
Main motor | AC-5HP+Shinlin Inverter | |||||
Size control | 1KW Servo motor+ PLC | |||||
PLC control system | Mitsubish | |||||
Failure detection | Automatic detection system | |||||
Moving system | High precision linear slide rail, high precision ball screw | |||||
Cutting control | Hydraulic system + PLC | |||||
Round knife cool and clean | Automatic water spray cooling with carpet cleaning | |||||
Main cutting shaft | 1.5” steel shaft with PE shaft sleeve | |||||

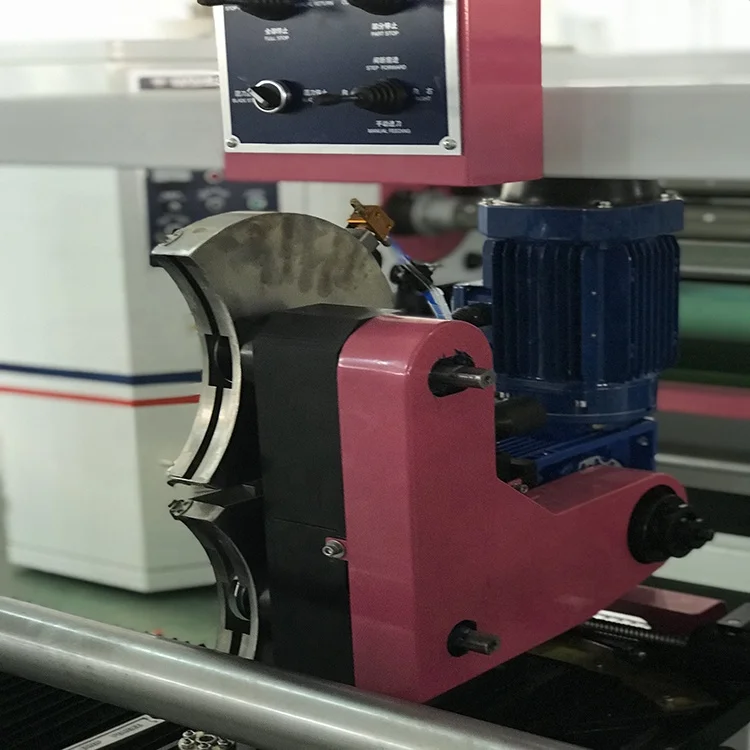

Cutting round knife | Φ180mm, imported from Taiwan | |||||
Main shaft bracket | Moving with the knife holder | |||||
Main Features
1. Automatic control of PLC system with LCD touch screen control panel , 20 modes for size setting each time & auto changing when cutting. Easy function setting, user-friendly interface.
2. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.
3. AC motors for cutting blade and cutting shaft with inverters speed changing .
4.Positioning system for cutting: servo motor to control more accurate position.
5.Sliding system,high precision liner sliding track and ball screw.
6. Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness.
