Product Overview

Description

oily crop seeds  flax seed LIN linen seed hemp seed flour mill machine  fruit vegetables and spices  food powder pulverizer

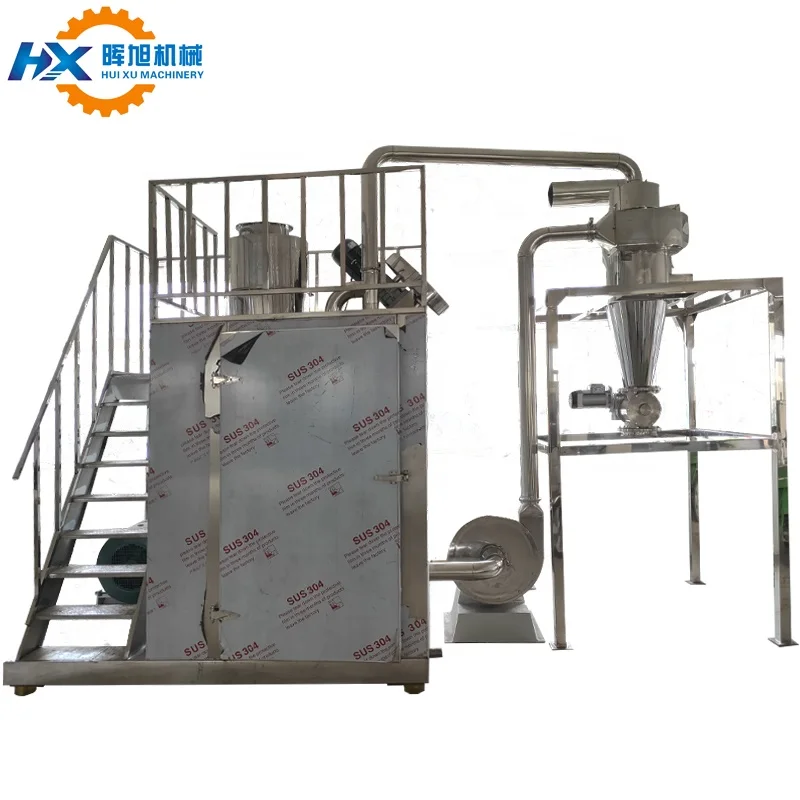

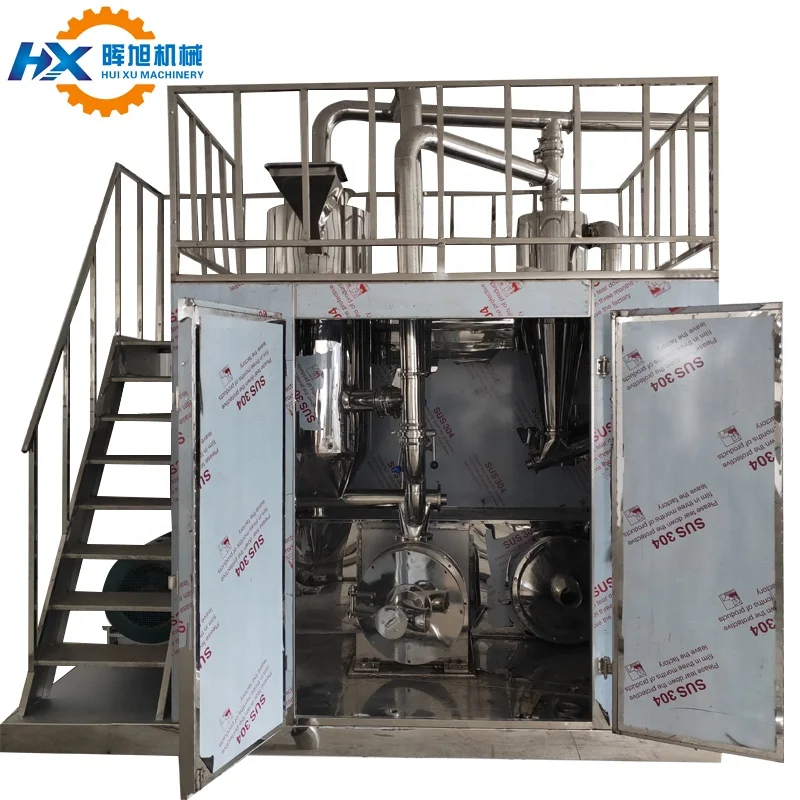

Standard Models of HX-450 type Low  series pulverizer machine :

Diameter of crusher	423mm
Power of crusher	30/45/55/75kw
Fan power	7.5Kw
Input power	3Kw
Output power	1.5Kw
Refrigerant	Liquid nitrogen
working temperature	0°C~196°C(adjustable)
mesh of crusher	food/medicine	40~300
	Polymer materials	40~200
yield	food/medicine	200~1000kg/h
	Polymer materials	100~1000kg/h
Outline size	3500*2000*2800mm
Machine weight	3000kg



Working principle:

Low temperature pulverizer system with liquid nitrogen as the cold source, the crushed material through

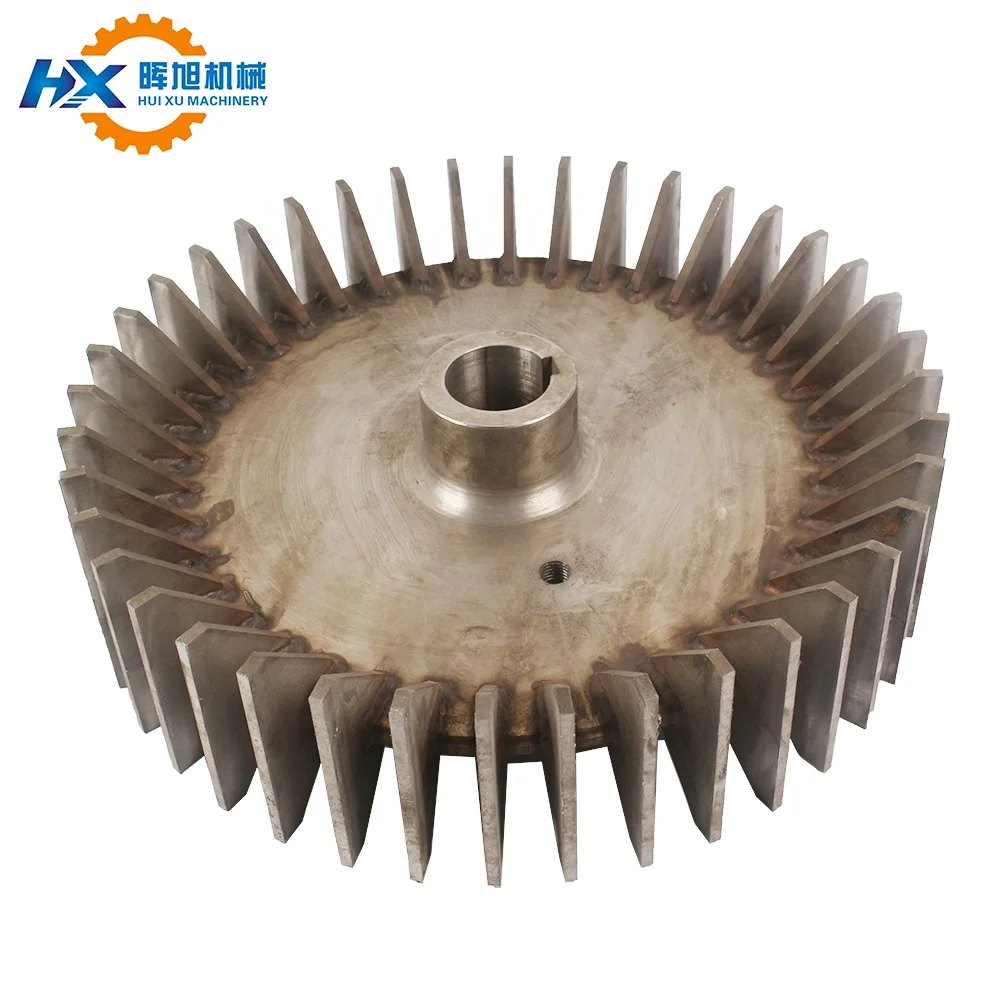

cooling embrittlement at low temperature easy to smash after entering the pulverizer cavity through the high-speed rotation of the impeller, the material and the leaf tooth plate, comprehensive effect between the material and the material are repeated impact, shear, collision, friction and so on, to reach the crushing effect. The crushed material is classified and collected by air classifier, and the material which does not reach the fineness requirement is returned to the silo to continue to smash, and most of the cold air is returned to the material bin for recycling.

Characteristic:

In the pulverizing system, the cold source forms a closed cycle system, which makes full use of energy and saves energy. The temperature of the cold source for grinding can be reduced to 196 degrees below zero. According to the brittle point temperature of the material, the temperature can be controlled in the grinding process, and the best grinding temperature can be selected, so as to reduce the energy consumption. The grinding fineness can reach 10-700 meshes, and even reach micron fineness. In addition, liquid nitrogen is used as grinding medium to achieve ultra-low temperature comminution, which can achieve the comprehensive effect of explosion proof and oxidation resistance of materials.

Application:

All kinds of oily food containing sugar, chemical, petrochemical, machinery, shipbuilding, machinery, automobile industry, electronic industry, clothing, printing, coating, resin, engineering plastics, rubber, footwear, thermoplastic materials, heat Sol, nylon, polyester, polyethylene, polypropylene, thermoplastic elastomer, nylon TPU, TPEE PA11, PA1010, PA12, PA6, PA66, PA610 nylon copolymer, polyester, PTFE, EVA, food industry, Chinese medicinal products such as superfine grinding.

Other product link:

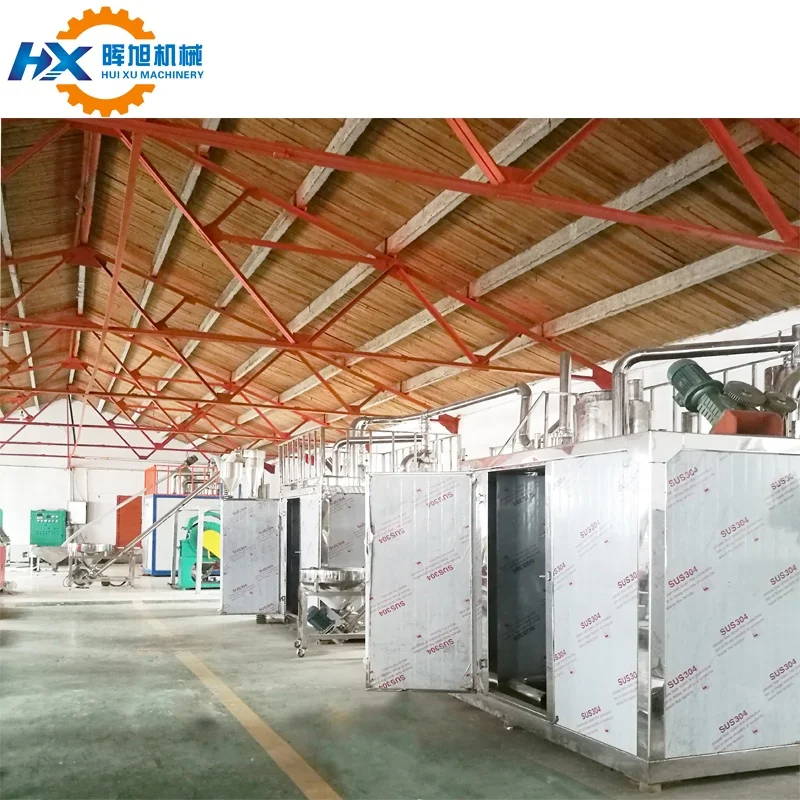

About our factory:





Jiangyin Huixu Powder Machinery Manufacturing Co.,Ltd

Located in the Zhutang Town of Jiangyin city,Jiangsu province.The company has a professional technical team and strong technical force.Our company's productions mainly include six major categories sush as pulverizer ,mixer,dryer,sifter,granulator and so on.Productions are widely used in food, medicine, chemical industry. Our company always take the "quality first" as the purpose.

Warmly welcome foreign friends to our company for visiting and guidance.





Packing and Shipping:



Remark	small machine  LCL freight	big machine  FCL frieght
Packing	The normal package is wooden box(Size: L*W*H) or pack it according to customers special request.	Fix the machine inside container with steel wires  Machine won't move inside the container.
Shipping	FOB Shanghai Sea Port or according to customer request



Certificates:





FAQ:

A. Detail requirements

 When you want to send enquiry to us ,please  answer below questions first

 1.show me your material with the characteristics and sizes

 2. tell me the fineness you want ( size :mesh or mm  both is ok)

 3. tell me your ideal capacity kg/h



B. Technical service

1, We calculate the capacity and recommend the best models.

2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.

3, We supply the spare parts and technical support in & after the warranty time.

4, We supply the training course to your workers at our factory if you need.



C. After-sales service

1, Technical support for your installation, operation and maintenance.

2, One year’s warranty, and you can pay for extended warranty.

3, Spare parts and technical support at most economic prices after the warranty.
