Waste Plastic Recycling Pelletizer Pp Recycling Granulator Film Pelletizing Machine

Share on:

Price in USD:Details


Product Overview


Waste Plastic Recycling Pelletizer Pp Recycling Granulator Film Pelletizing Machine

Product Parameters

Equipment ModelSE-150
Screw Diameter
Screw Length To Diameter Ratio20~32
Main Motor Power
Screen ChangerHydraulic screen changer
Typical Operating Capacity

Product Description

1. High-precision gearbox, high bearing capacity, smooth transmission, low noise.
2. New barrel and screw design, better melting, low-temperature melting and higher yields.
3. Screw and barrel gas are nitrogenized, resistant corrosion and wear.

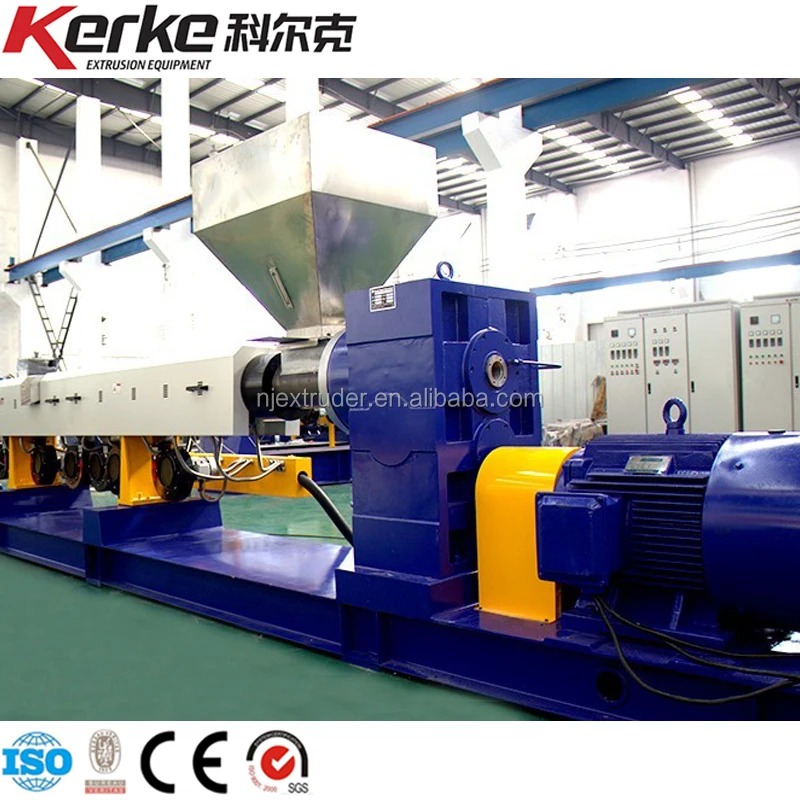

Single screw extruder has the advantage of simple process, high output, stable operation, low cost, high bearing capacity, long operating life and is easy to clean and maintain. Assort with related auxiliary equipments (including die head) can produce granules. Widely used in various plastic products ,such as films, tubes, plates, panels and granules.

Material Process


PP/PE high efficiency single screw film recycling granulation production line

(water-ring hot-face pelletizing)


1. This production line introduces Japanese technology, can directly put after crushing, cleaning thin-film PE/PP etc into single screw extrusion line for granulation. It wont destroy the structure and physical property of the raw material molecule, and it's much more energy-saving than traditional pellet feeding method.

2. The single-screw extrusion line adopts large L/D ratio screw, with special venting equipment and can effectively wipe off the water content and get high output.

3. Production line apply water-ring hot-cutting, granules are uniform and beautiful.


1. Standard single screw extruder, equipped with double vacuum pump, viscosity loss is almost zero.

2. Convenient hydraulic screen-changing filtering

3. Continuous under-water pelletizing

4. Using internally generated surplus heat for linear crystallized avoiding overheating delay.

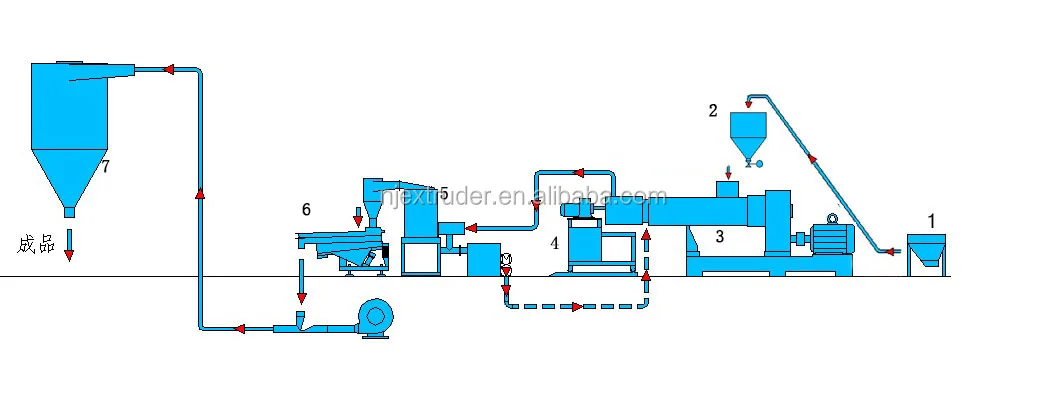

Machine configuration:

1.Single screw extruder

2.Water-ring hot face die head

3.Thermal pelletizer

4.Centrifugal dewaterer

5.Vibrating sieve

6.Product silo


High-efficiency single-screw film/flakes material recycling granulation production line

(water-cooling strands pelletizing)

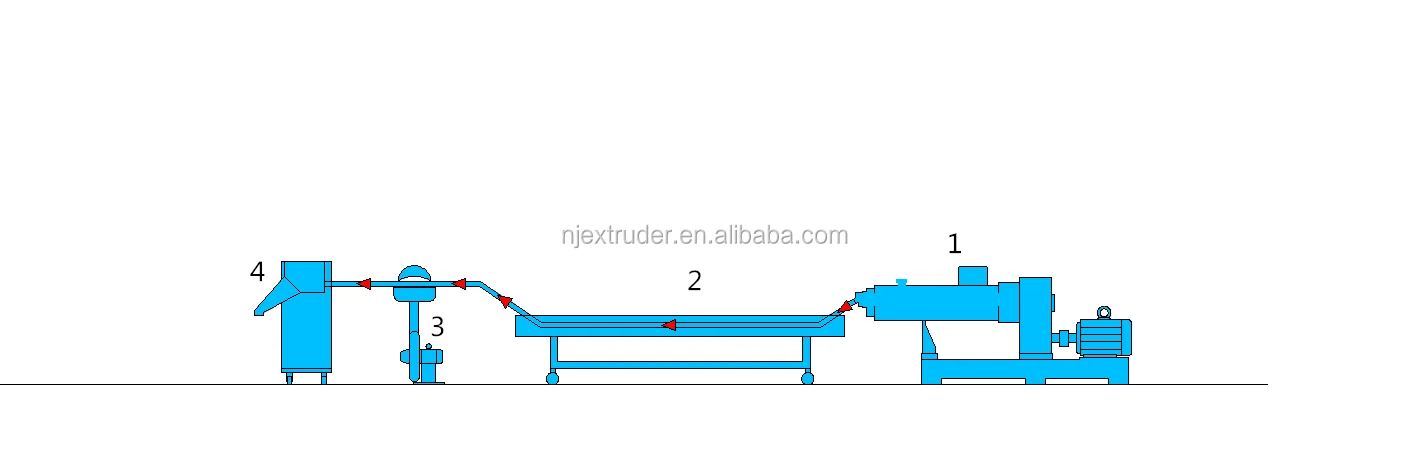

Machine configuration:

1.Single screw extruder

2.Water-cooling strands die head

3.Water tank

4.Air Knife (Dryer)
