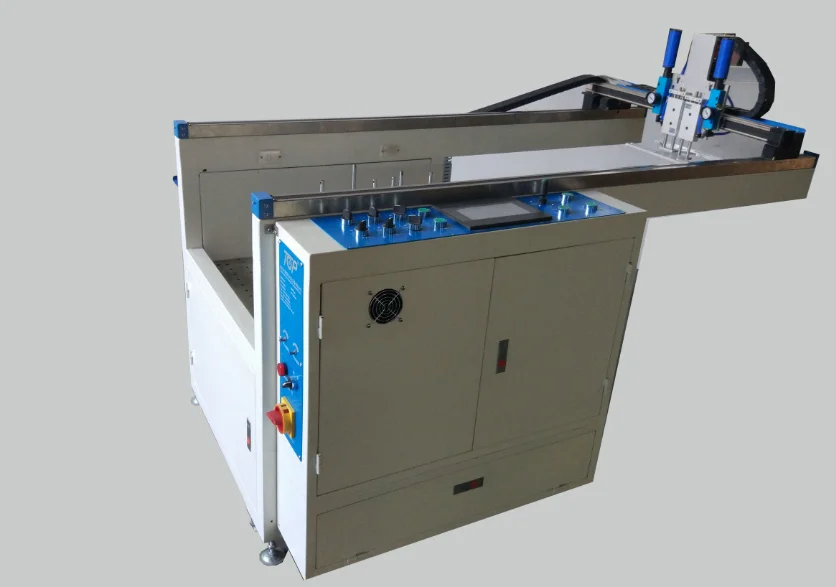

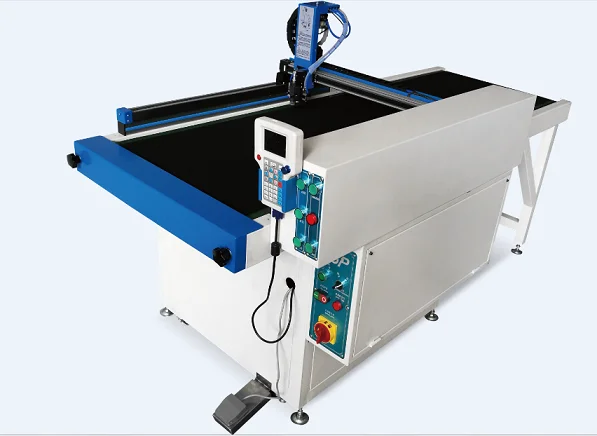

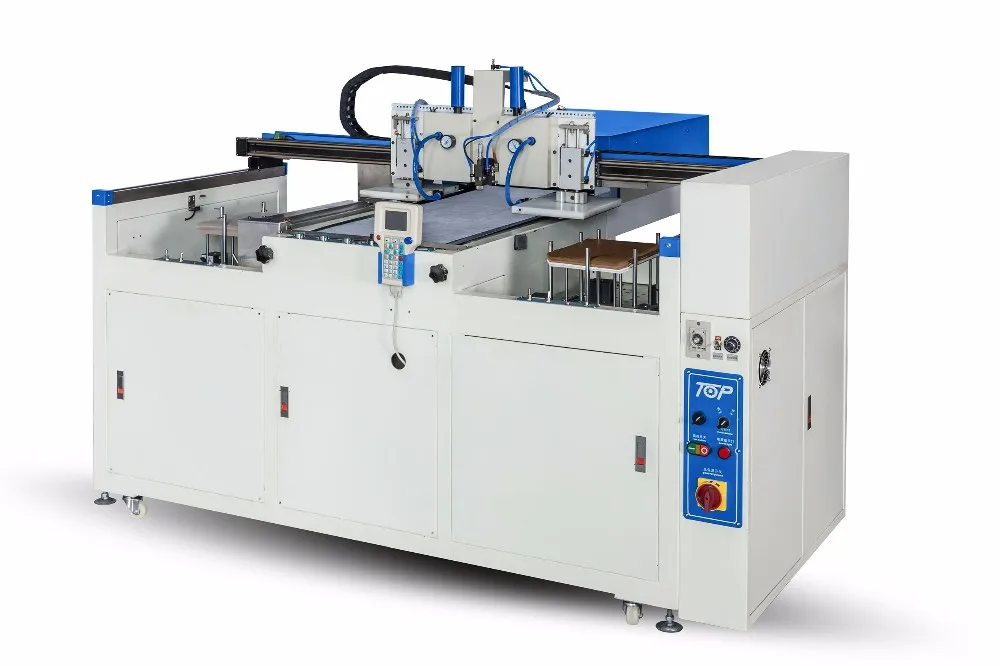

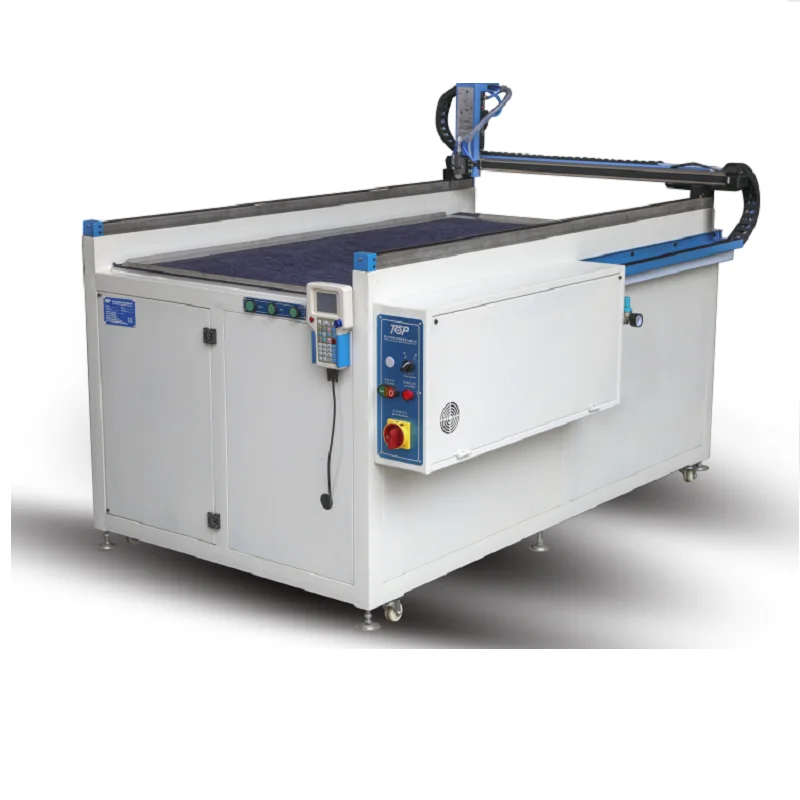

Product Applicationvisual positional automatic shoe sewing mark drawing machine
This machine is used for drawing/ inking sewing mark for shoes. It is visual positional,can catch the material even placed in random. Placing, working and collecting in one conveyor belt, can save a lot of work.
1.Easy to operate, you can draw the design by mouse in the machine,or creat your design by CAD/CORELDRAW,transfer into DXF then upload into the machine .
2.different size or design can be reganized and marked in the same time,
3.High speed, placing , working and collecting in the same time, 10 times than to manual. If add auto feeding machine and conveyor, one person can operate several machines.
4.The material fixed by vacuum, to guarantee the accuracy.
5.Visual position, no need to make dies.
6.Can use many kinds of ink.
Specifications
model
TOPD3680
dimension
3000*1100*2200MM
voltage
single 220V（AC）
power
1.8kw
axis
X,Y,Z 3axis
stroke
X ：800mm
Y：600mm
Z ：40mm
working speed
0-2000mm/s
positioning accuracy
±0.1
pressure
5-8kg
ink selection
High temperature disappear ink,water disappears ink,UV ink,non-fading ink,deferred ink,silver refill ink
suction
1.5kw
standard configuration
Tool bag,Ultrasonic cleaning machine,ink sealed tank(2L),Pressure regulator tank
N.W
600kg
computer
industrial computer
marking head
head made in Italy
quick-wear parts
nozzle、needle
consumables
ink
line type
dotted link、solid line、spot
Selective configuration
conveyor，auto feeding machine，oven
Detailed Images

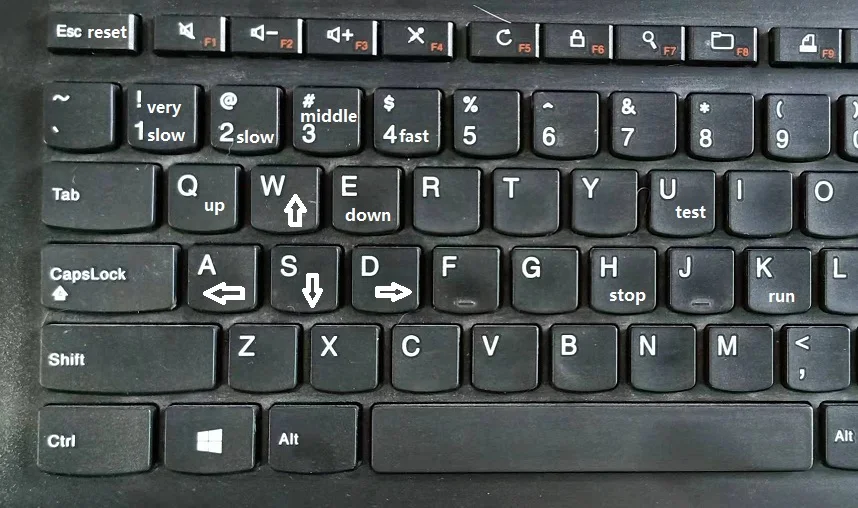

keyboard function :

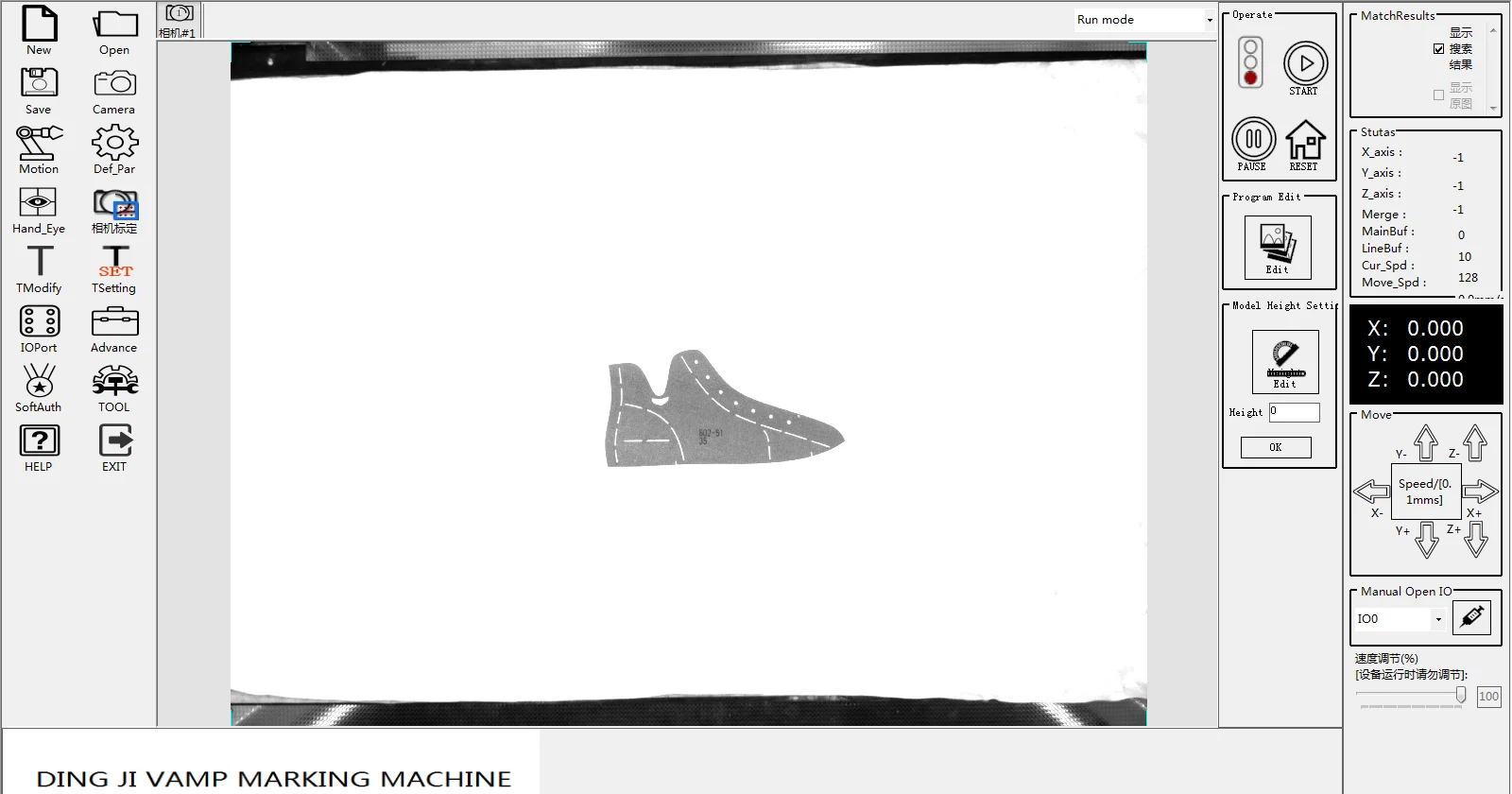

visual position:
1.you can just place the material in random,the camera can catch it and mark.
2.different designs can work in the same time.

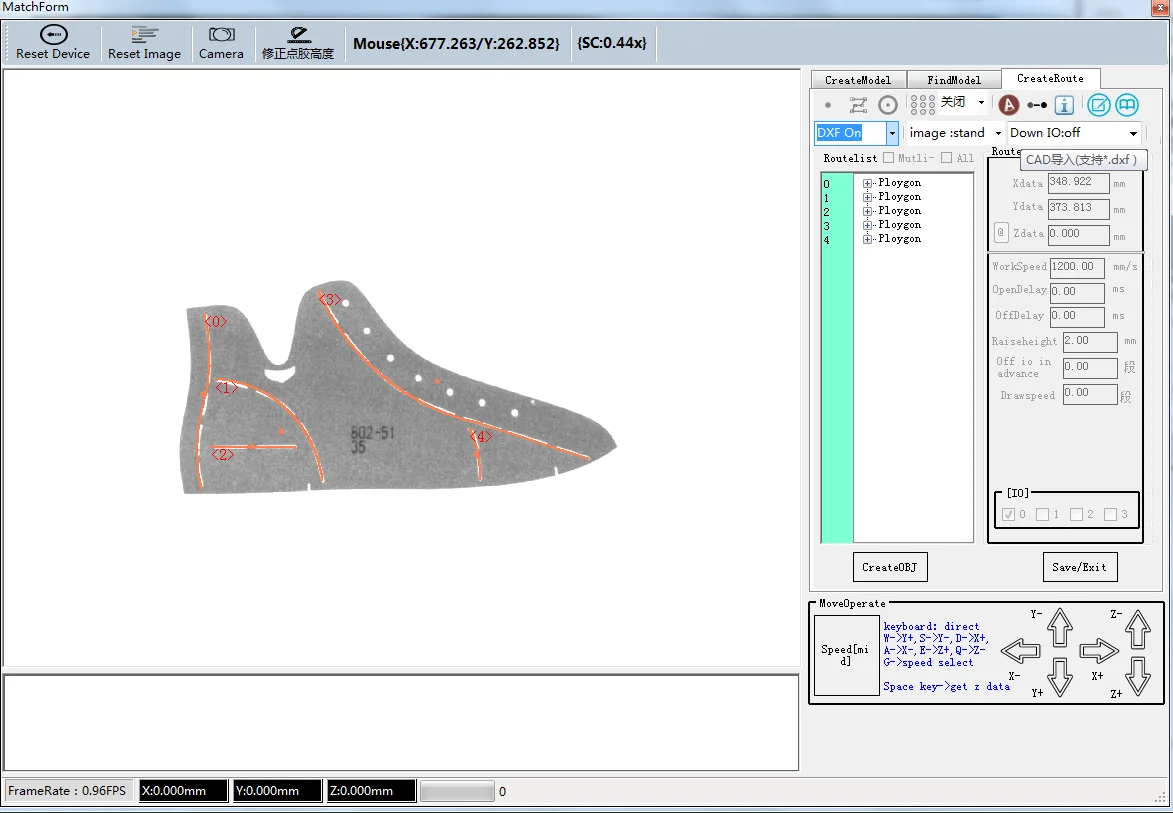

make programme:
1.draw the line by a mouse in the machine.
2.You can also input your design in to this machine in DXF format.

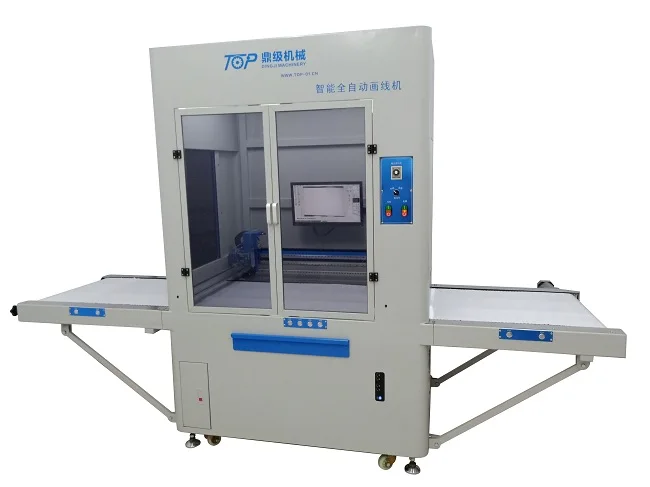

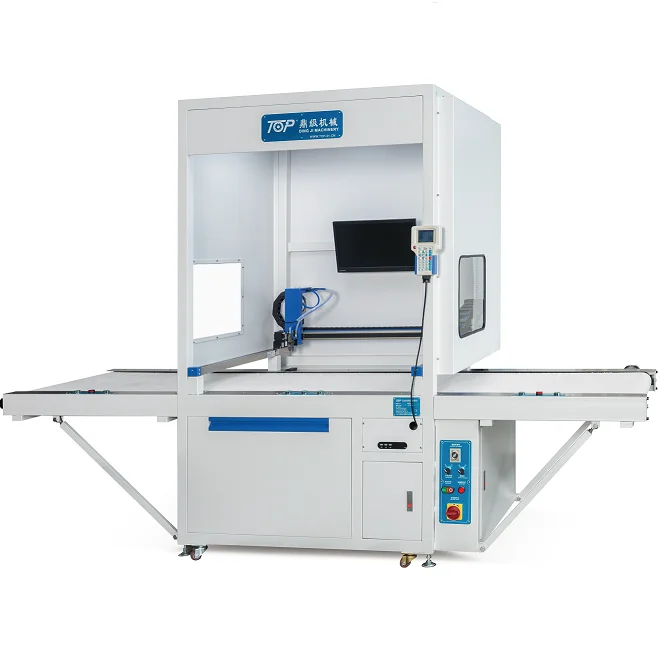

conveyor :
1.Feeding,working,and collecting with conveyor,you can save a lot of time.
vacuum table:
1.The table is with holes to get through air.
2.There is a blower under the table to make vacuum.
3Place a breathable non-woven fiber to keep the table clean.
Slideway with belt to seal:
1.The slidway is under the belt,can keep it clean.
