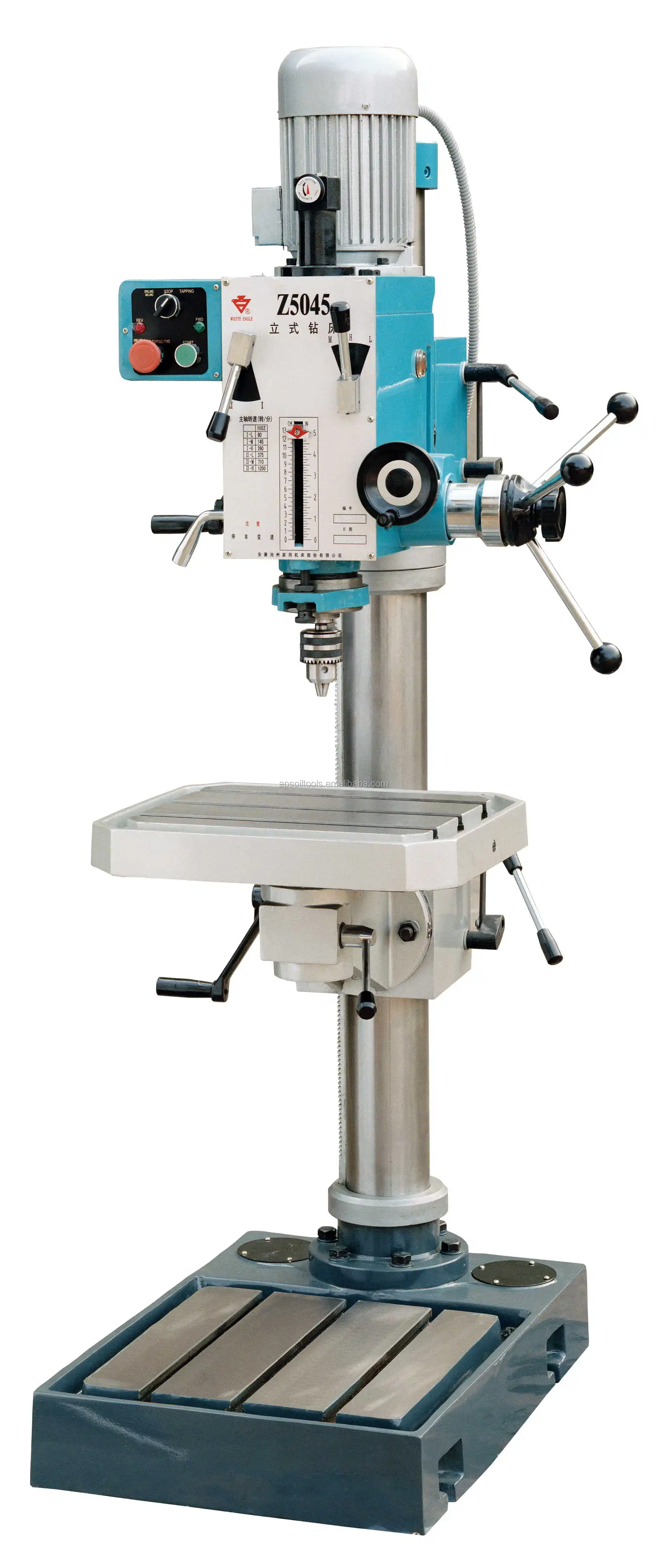

Vertical Drilling Machine Z5045
Main Applications and Features
This machine tool is a kind of universal machine tool which is mainly applicable for drilling as well as for hold slash, spot facing, chamfering, reaming, tapping, boring.
Headstock can be moved up and down, and rotated 360º around the vertical column, middle worktable can be done as above , Headstock and middle worktable can be leaned ±90º .
Move headstock and work table by worm gear, easily operate. Depth of dill is ensured by scale fixed on sleeve and Setting nut.
In order to easily change tools the automatic tool-stripping device is mounted in the spindle.
Main technical specification and date
No. |
| Model | |||||
Z5032 | Z5040 | Z5045 | |||||
2.1 | Max. drilling capacity | 32mm | 40mm | 45mm | |||
2.2 | Taper of spindle hole | Morse No.3 | Morse No.4 | Morse No.4 | |||
2.3 | Max. travel of spindle | 130mm | |||||
2.4 | Distance between the center of spindle and the surface of the vertical column | 283mm | |||||
2.5 | Maximum distance between the spindle nose and the surface of working table | 725mm | |||||
2.6 | Maximum distance between the spindle nose and the base surface | 1125mm | |||||
2.7 | Maximum travel of the supporting block of working table
| 600mm | |||||
2.8 | Maximum travel of spindle box | 250 mm | |||||
2.9 | Dimensions of working table | 380 mm×300mm | |||||
2.10 | Steps of spindle | 6 | |||||
2.11 | Speed of spindle ( r/min ) | 50Hz:80;145;260;375;710;1250 | |||||
60Hz:95;175;310;450;850;1500 | |||||||
2.12 | Dimensions of the base surface | 417 mm×416mm | |||||
2.15 | Motor | Power (KW) | 0.75 | 1.1 | 1.5 | ||
Voltage (V) | 220/380 | ||||||
Speed (r/min) | 1400 | ||||||
2.16 | Overall dimensions (L×W×H) | 737 mm×600 mm×1680mm | |||||
2.17 | Net Weight/Gross weight (Kg) | 430/480 | 432/482 | 435/485 | |||
