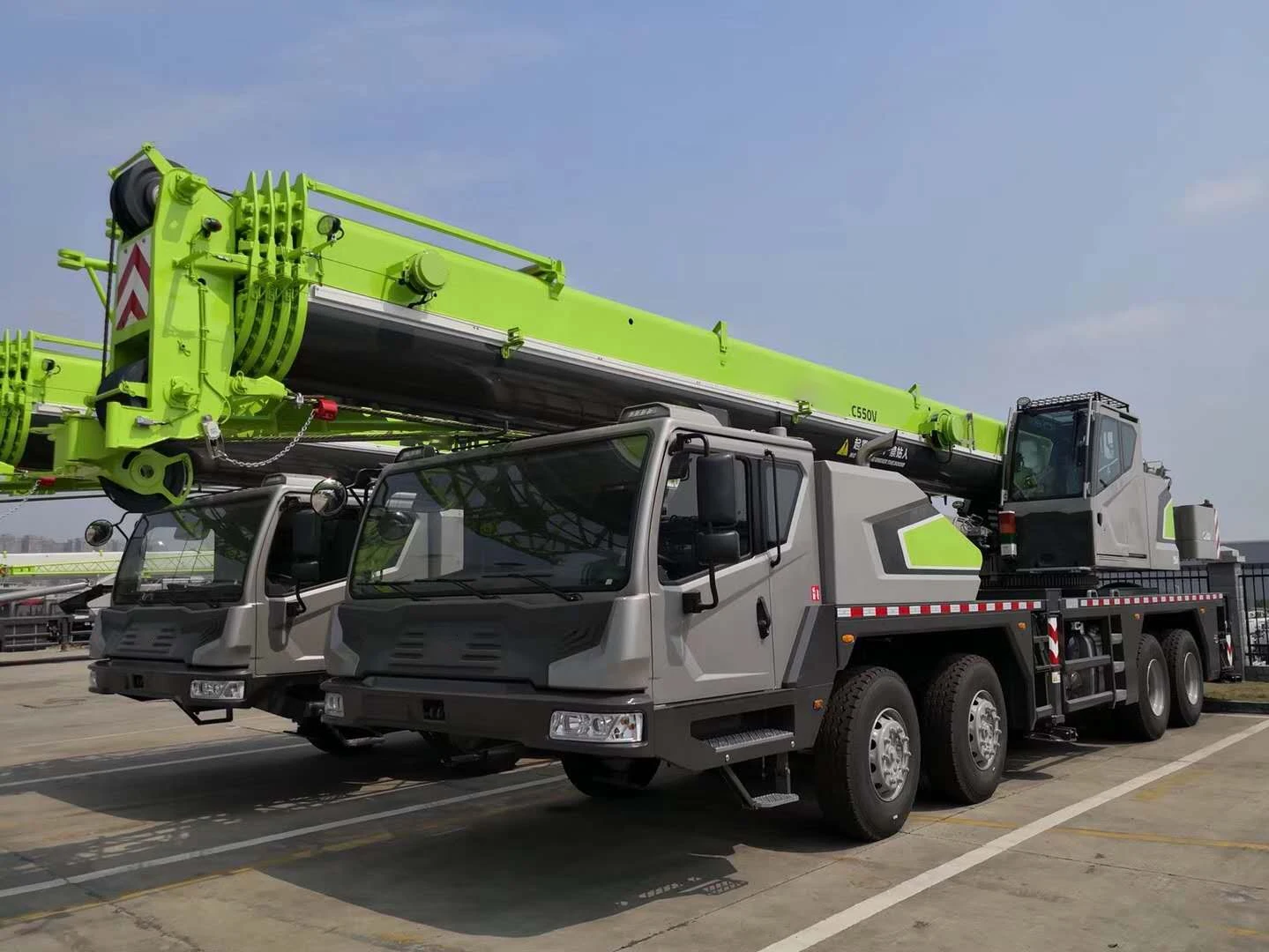

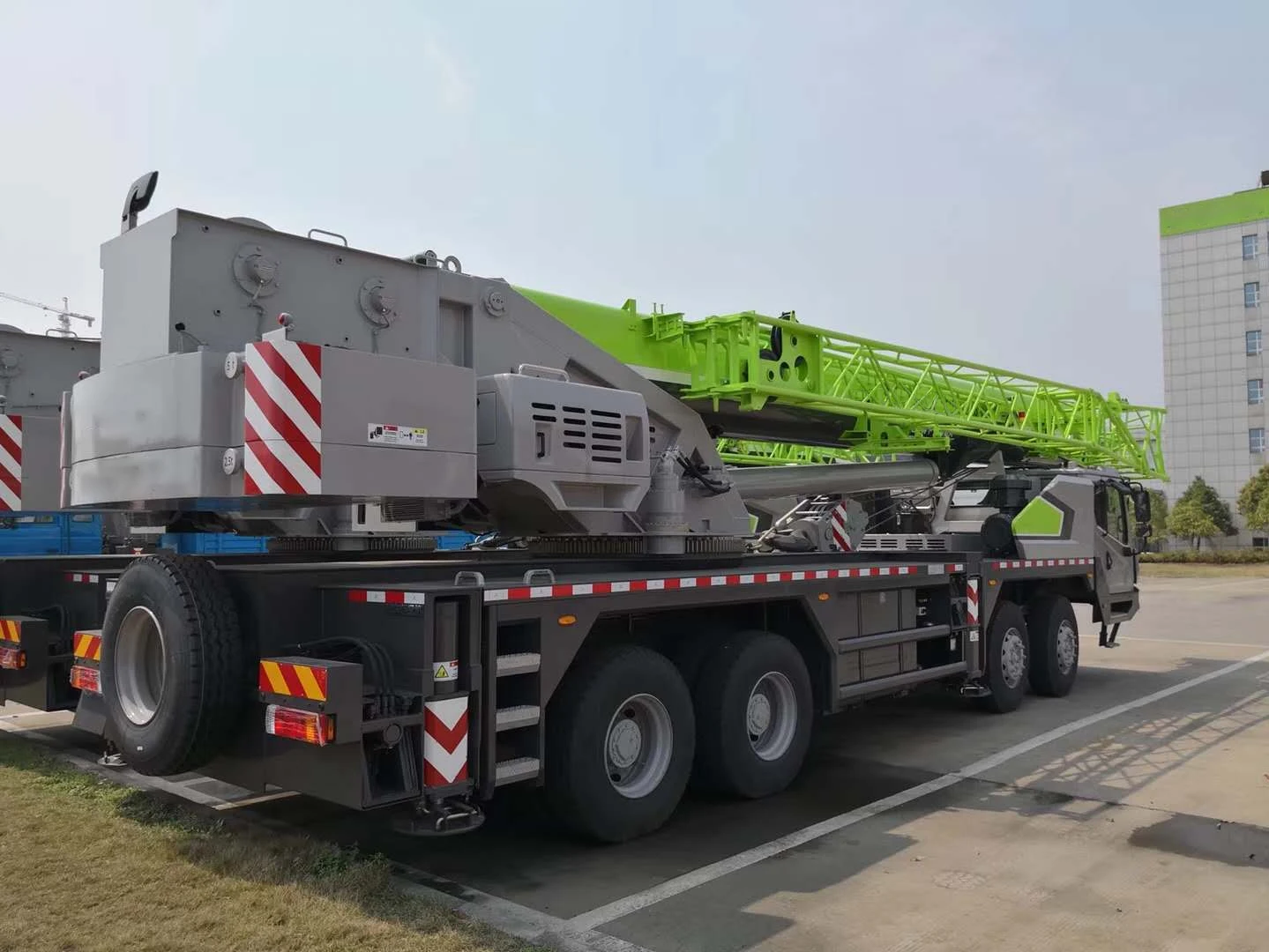

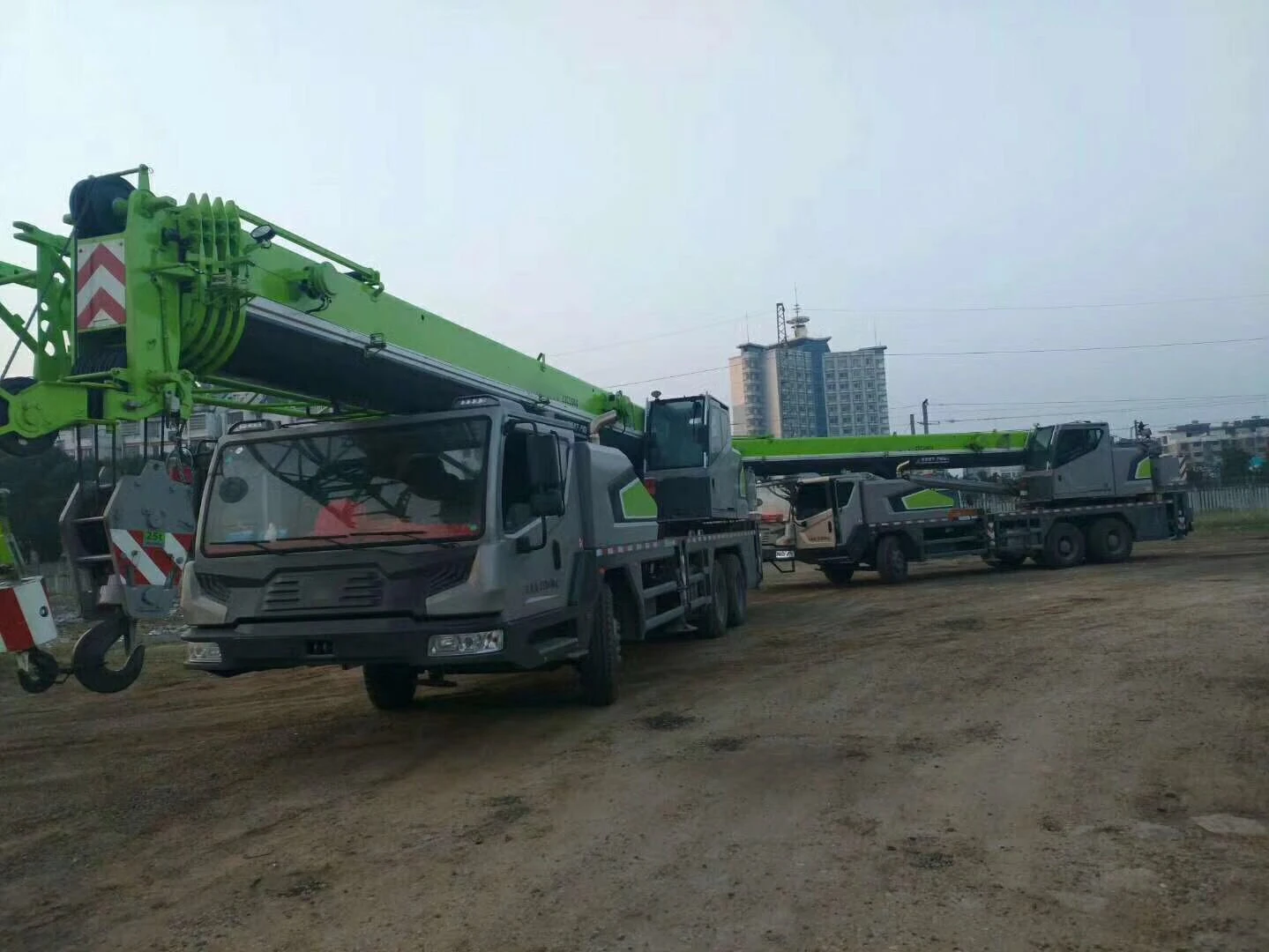

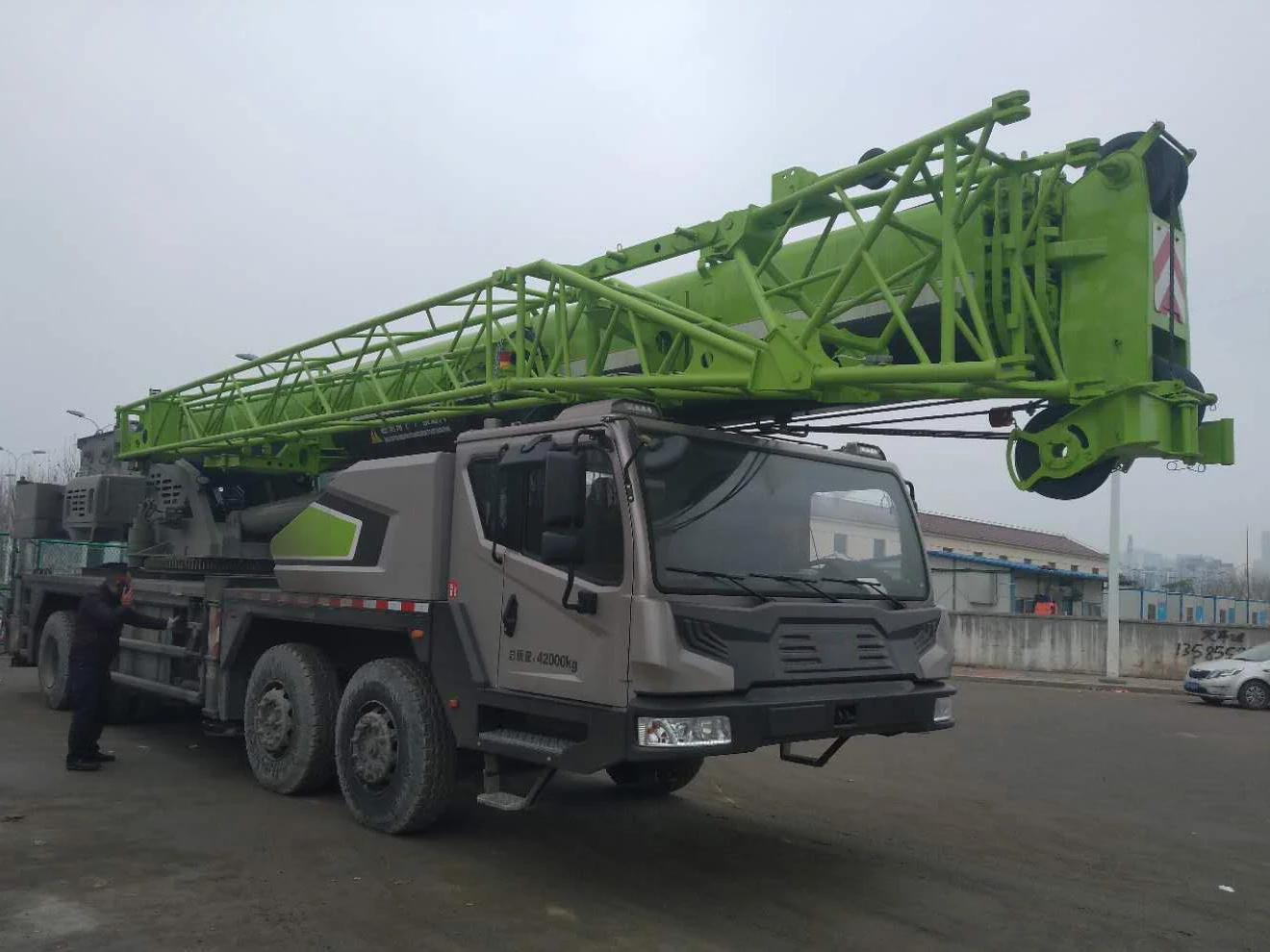

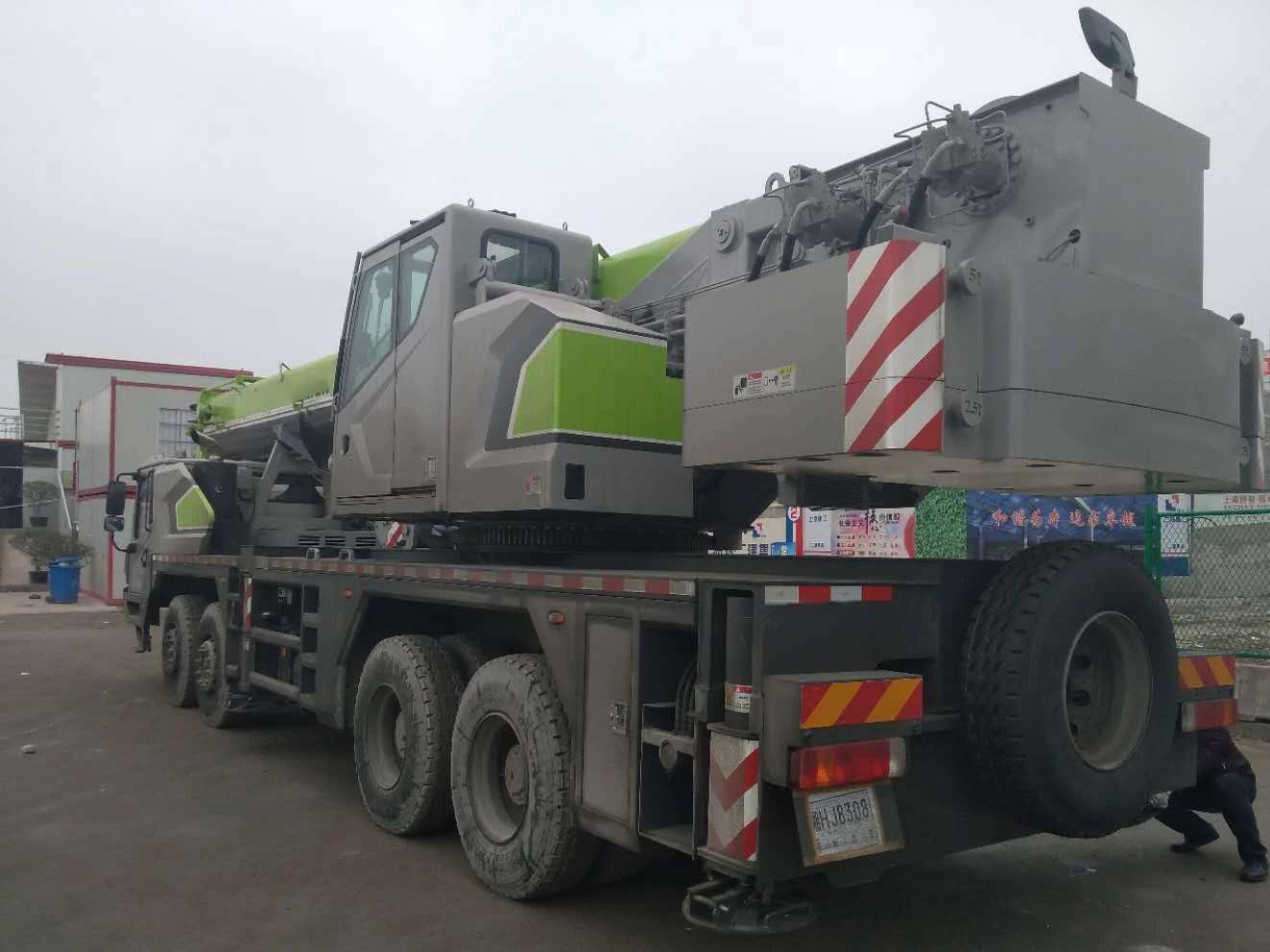

Chinese brand Sinomada 55 ton Telescope hydraulic Truck Crane ZTC550V532 with max lifting height boom for sale

Share on (62390122055):


Price:$80,000.00 - $100,000.00

Quantity:


Product Overview

Description




















































Sinomada 55ton Truck Crane  ZTC550R532 for Sale









TECHNICAL DATA



Working Performance



  1. Max. rated lifting capacity: 25,000kg at 3m radius

  2. Max. load moment of basic boom: 960 kN.m

  3. Max. load moment of Max. length main boom: 598 kN.m at 9m radius

  4. Max. lifting height of basic boom: 11.8m

  5. Max. lifting height of main boom: 44m

  6. Max. lifting height of jib: 60m


* The deflection of boom and jib is not deducted.

Dimensions



  1. Overall dimensions (L X W X H): 13,530×2,600×3,700mm

  2. Longitudinal distance between outriggers: 5.95m

  3. Transversal distance between outriggers: outriggers completely extended: 7.3m; with outriggers intermediately extended: 4.8m

  4. Main boom length: 11.2 - 44m

  5. Main boom angle: -2 - 80°

  6. Jib length: 9.6m, 16m

  7. Offset: 0°, 15°, 30°



Mass



  1. Deadweight in driving condition: 39,000kg

  2. Complete vehicle kerb mass: 38,805 kg

  3. Load on front axles: 13,000kg

  4. Load on rear axles: 26,000kg



Overall view (unit: Metric mm)

Working speeds



  1. Max. hoist rope speed (Main winch) :135m/min at 4th layer

  2. Max. hoist rope speed (Auxiliary winch): 120m/min at 2nd layer

  3. Boom derricking up time: 45s

  4. Boom telescoping out time: 95s

  5. Slewing speed:0-2.2 r/min



Driving



  1. Max. driving speed: 74km/h

  2. Max. gradeability: 40%

  3. Min. turning diameter: 24m

  4. Min. ground clearance : 260mm

  5. Oil consumption per hundred kilometer: 40L









STANDARD EQUIPMENT



Chassis



  1. Engine: WEICHAI WP10.336 Diesel engine, EURO III(rated power: 247Kw)

  2. Transmission: FAST brand 10 gear box with 9 forward gears and 1 reverse gear.

  3. 4-axle chassis, 8 × 4 Front 2 axles are steering and last 2 axles are driving.

  4. Tires :Total 12 tires with one spare tire.(12R22.5-18PR)

  5. Braking system: Service brake, parking brake and emergency brake.



Upperstructure



  1. Boom: 5-section U-shaped main boom (11.2 m - 44.0 m)

  2. Jib: two section lattice jib (9.5 m, 16m)

  3. Hook: 55tons main hook + 4 tons auxiliary hook

  4. 7 tons counterweight(5.5T fixed counterweight and 1.5T auxiliary couterweight)

  5. Full-width cab configuring air conditioning (cool & heating)

  6. Pilot-operated proportional joysticks and hydraulic proportional control system.


*Product specifications are subject to change without notice or obligation. Refer to sales for confirmation before you place a firm order.
Certifications



  1. Comply with GB3847-2005 / GB17691-2005 (China National Stage III)












OPTIONS



  1. Camera

  2. Anemometer

  3. Length sensor

  4. Reverse radar system
