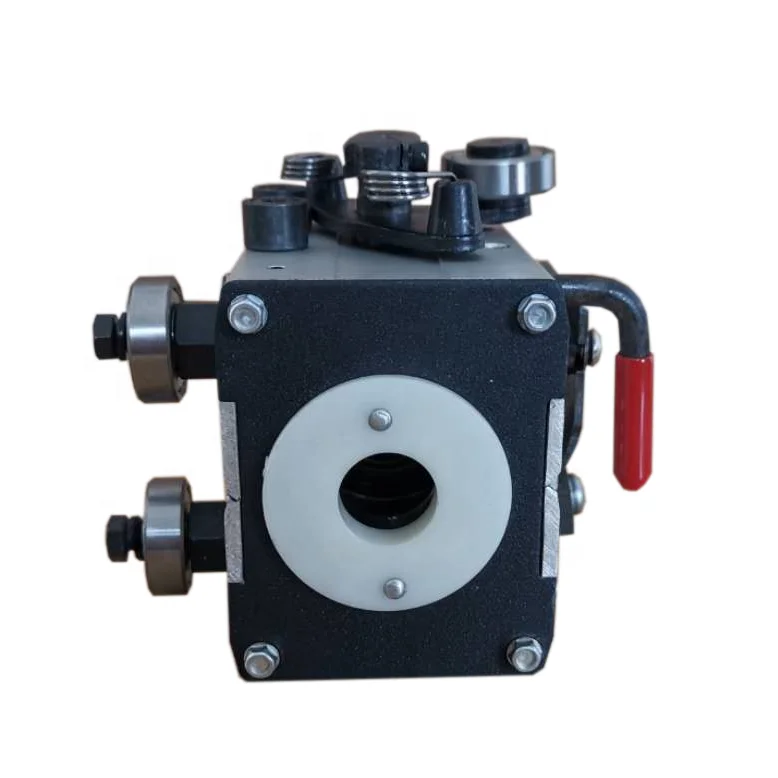

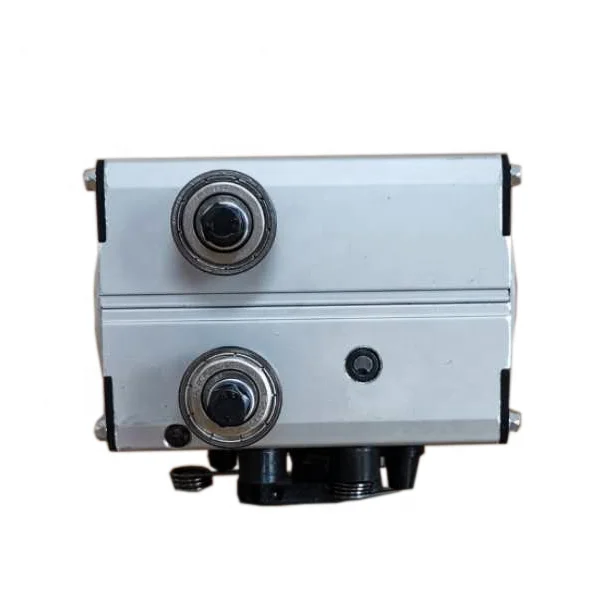

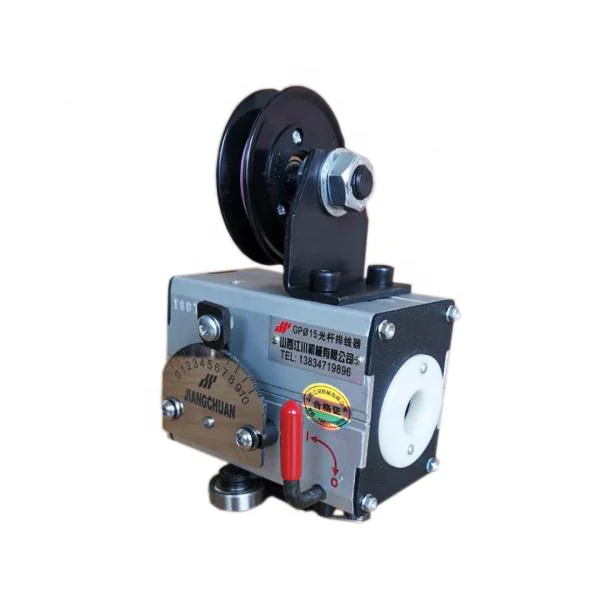

gp15a rolling ring drive wire take up machine traverse drive unit

GPA, GPB, GPC Series Rolling Ring Drive
GPA Series: Rolling ring drives Type A Series just have one Rolling Ring linear drive , which are divided into eight types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.

GPB Series: Rolling ring drives Type B Series have One Rolling Ring linear drive with Guide Rollers or Guide Wheel , which are divided into six types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.

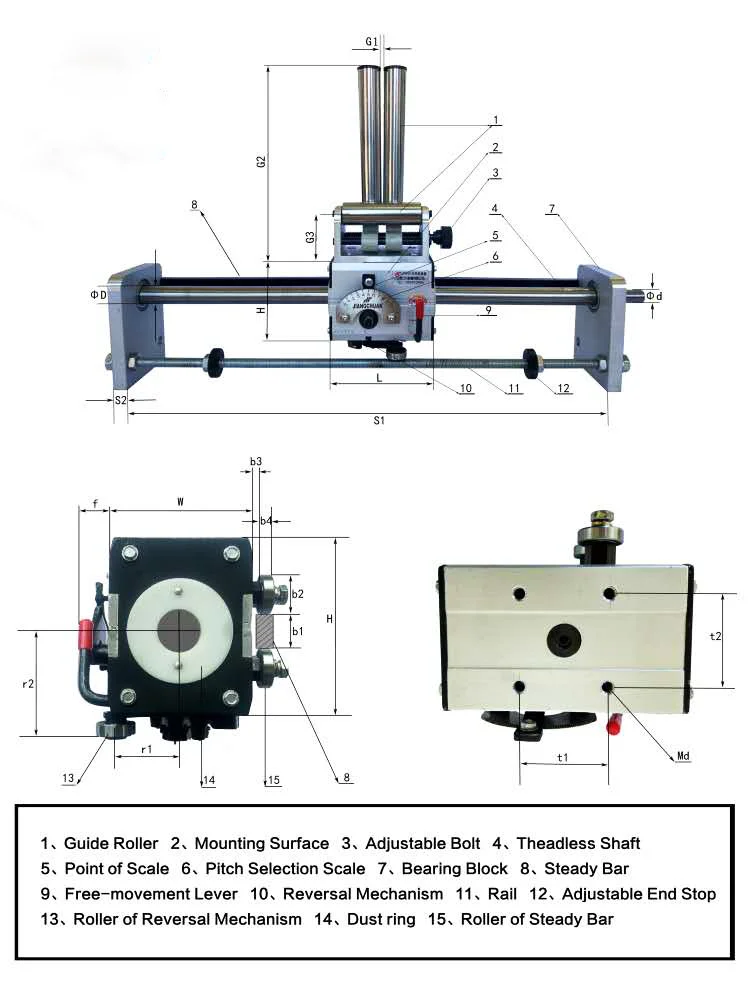

GPC Series: Rolling ring drives Type C Series have One Rolling Ring linear drive with accessories, such as shaft,guide roller,bearing block,steady bar,etc , which are divided into eight types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.

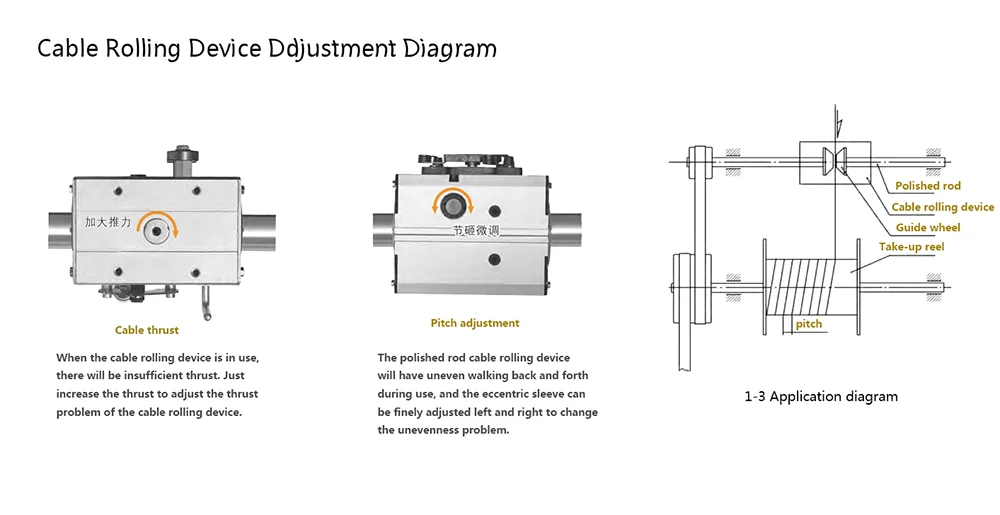

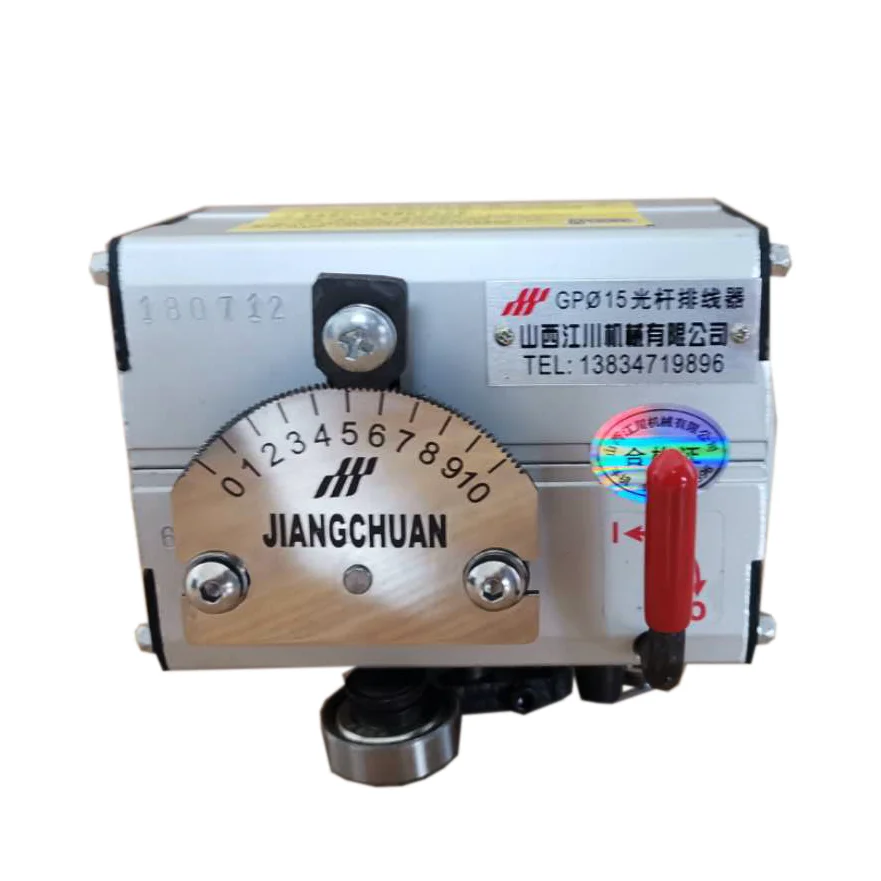

1.Infinitely adjustable-speed

Don't need to change the polished rod rotation speed, the spool to the polished rod speed must be, as long as the handles on the toggle dial position, can adjust discharge line reciprocating movement on the polished rod speed and achieve accurate adjustment line with the needs of the pitch, can be set from 0 to coarse pitch.

2.Instantaneous commutation

It is not necessary to change the rotation direction of the optical rod. When the reversing arm collision wheel hits the commutation block, the stripper will walk in the opposite direction immediately.

3.Release function

There is no need to polished rod stops, you only need to release the handle according to the arrow pointing to rotate 90 °, row line can stop automatically move, and use hands to move on the polished rod.

4.high speed operation

The speed of light rod can reach 1000 RPM or so, which can meet the operation requirements of high speed line arrangement and frequent commutation.

Uesd in Wire Spool Winding Machine
