APSOLAR 1000W 2000W 3000W Pure Sine Wave Inverter With Toroidal Transformer
- Category: >>>
- Supplier: Dongguan Amplec Electronic Co. Ltd.
Share on (62390268662):
Product Overview
Description
Product Description
AMPLEC Solar Inverter 1000 Watts Pure Sine Wave Inverter With Battery Charger are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the power range of inverters give you a 230V power supply wherever you need
This power inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters UK/ USA/EU output socket giving you a stable power supply for running your electrical appliances.
UPS AC charger function allow you a interrupting power supply through battery to AC electricity constantly , charging current 3A-15A optional for various kinds of battery

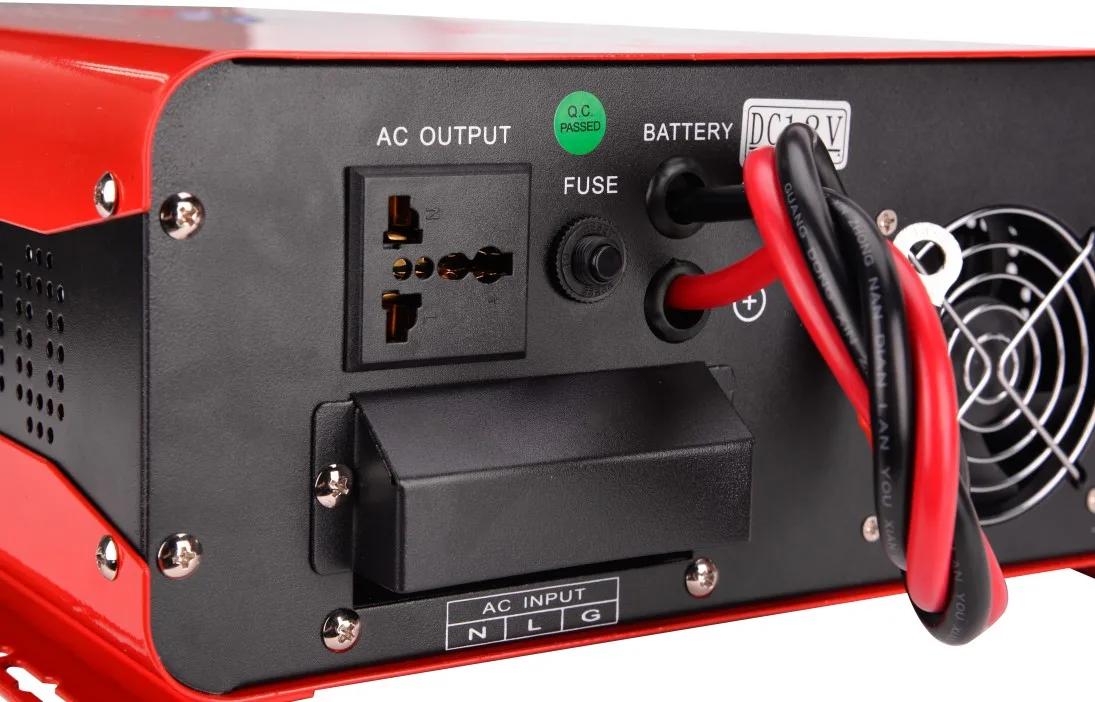

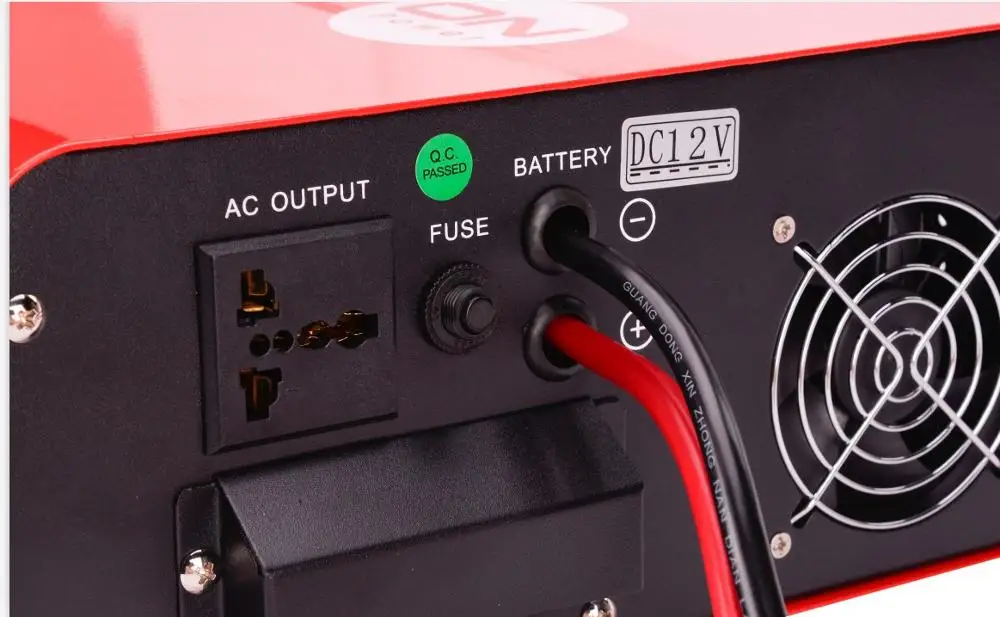

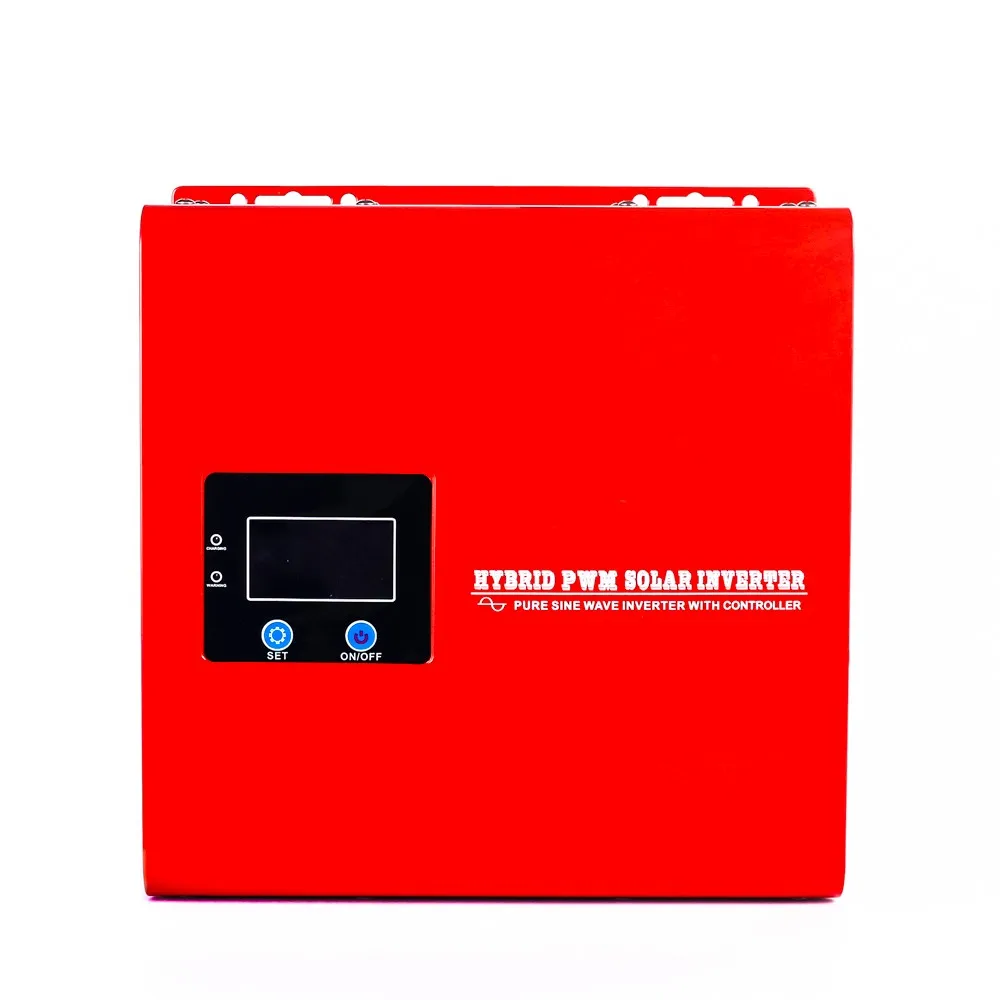

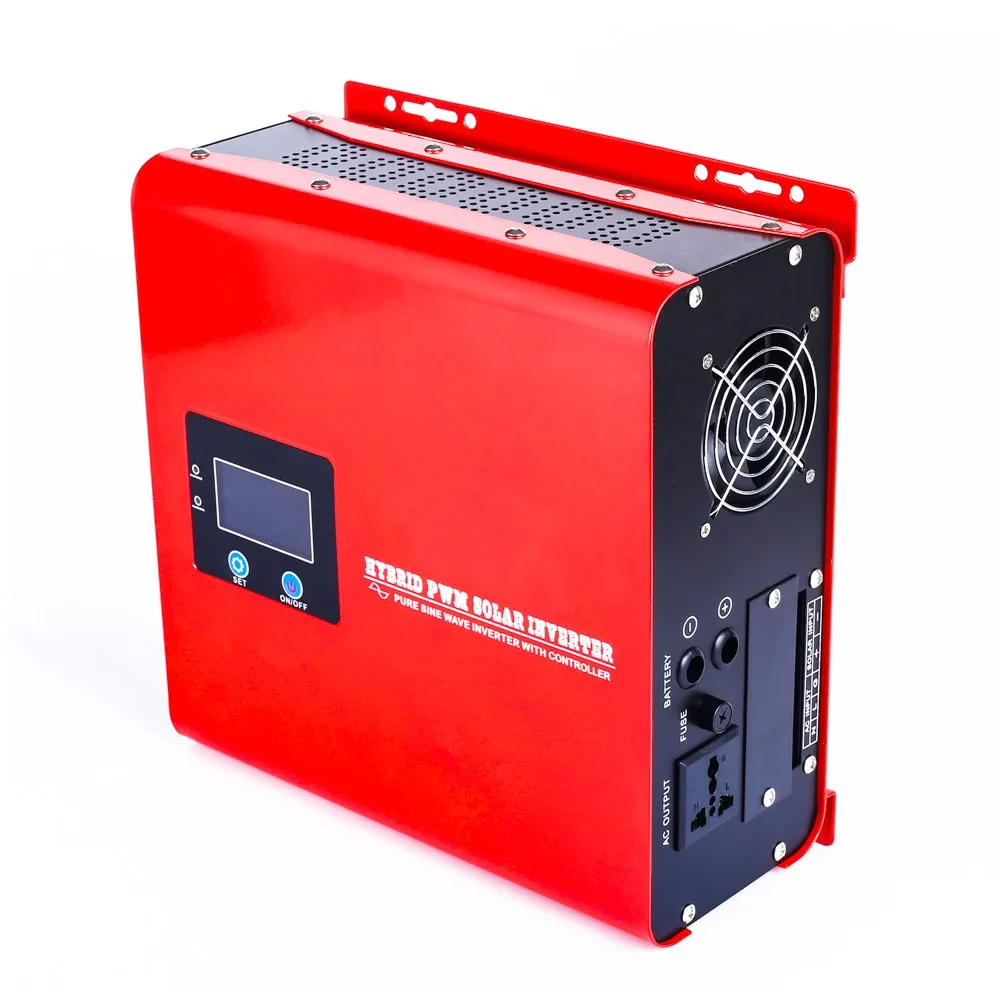

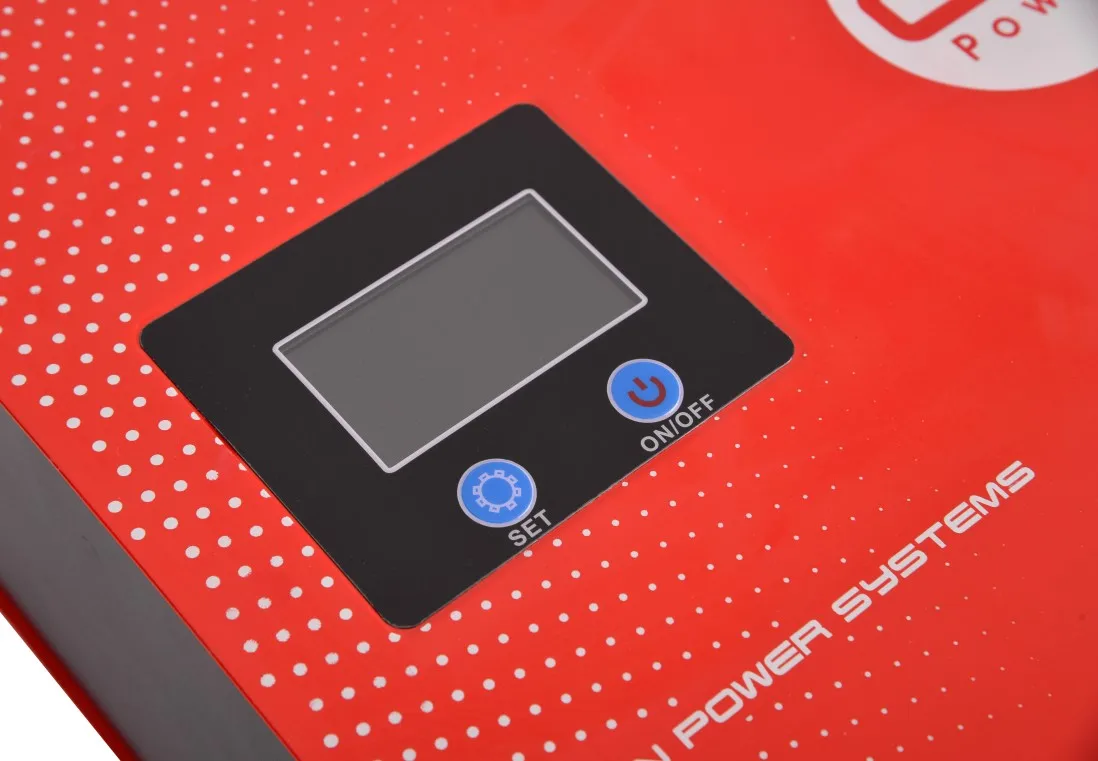

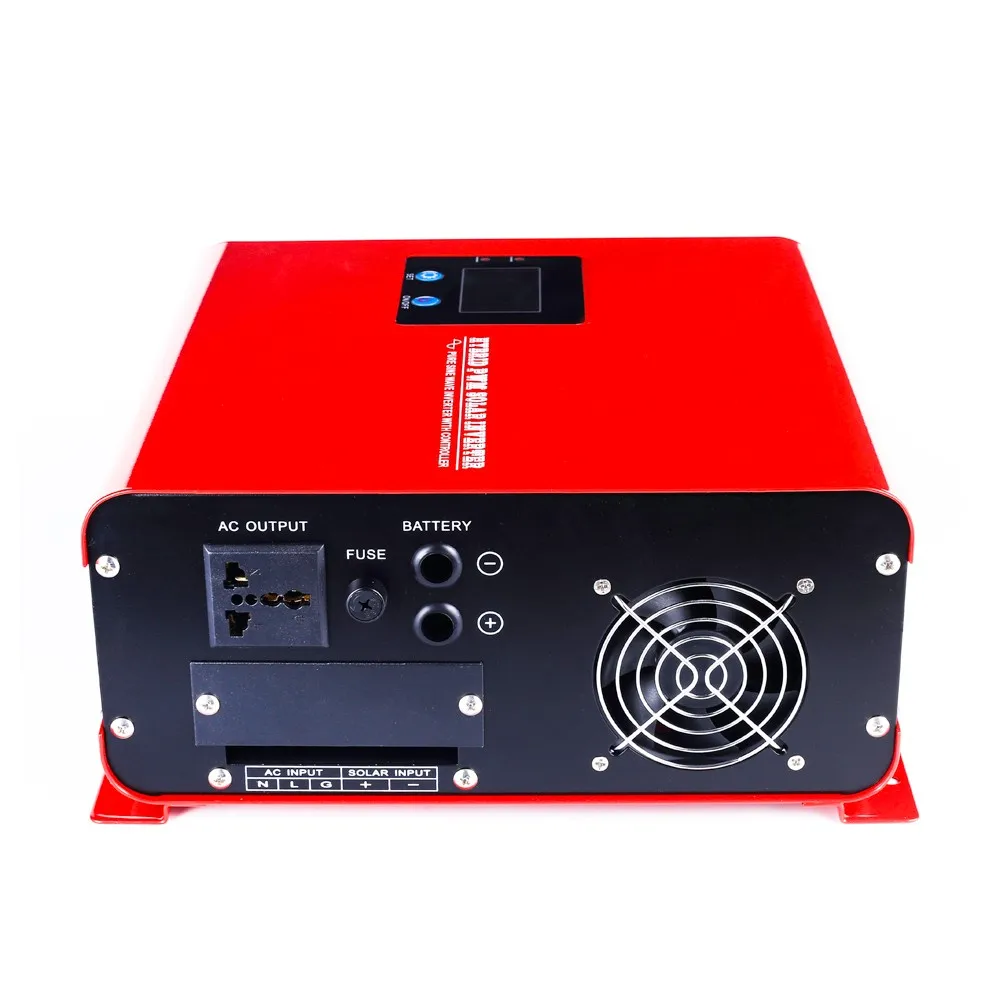

Detailed Images
Specifications
Model | 300W | 500W | 700W | 1000W | 1200W | 1500W | ||||||
Rated capacity | 300W | 500W | 700W | 1000W | 1200W | 1500W | ||||||
Peak Power | 600W | 1000W | 1400W | 2000W | 2400W | 3000W | ||||||
battery voltage | 12V/24VDC | 12V/24VDC | 12V/24VDC | 12V/24VDC | 12V/24VDC | 24VDC | ||||||
Input | ||||||||||||
DC input voltage range | 12VDC:10.5-15VDC 24VDC:21-30VDC | |||||||||||
Mains input voltage range | AC220V:145-275VAC | |||||||||||
Mains input frequency range | 45-65HZ | |||||||||||
Battery low voltage alarm | 12VDC:10.5V 24VDC:21V | |||||||||||
Battery low voltage protection | 12VDC:10V 24VDC:20V | |||||||||||
Battery over voltage protection | 12VDC:16.7V 24VDC:33.4V | |||||||||||
Battery over voltage alarm | 12VDC:15V 24VDC:30V | |||||||||||
Over power protection | 110% more than rated capacity | |||||||||||
Temperature protection | ≥85℃ alarm ≥90℃ machine shut off | |||||||||||
Output Efficiency | ≥85% | |||||||||||
Output voltage (battery mode) | 220VAC±2% | |||||||||||
Output frequency (battery mode) | 50/60HZ±1% | |||||||||||
Output wave form | pure sine wave | |||||||||||
Output voltage range (mains mode) | Stabilization output:220VAC±10% | |||||||||||
Output voltage range (mains mode) | Tracking automatically | |||||||||||
Transfer time | ≤8ms | |||||||||||
Display | LCD | |||||||||||
Thermal method | Cooling fan in intelligent control | |||||||||||
≤42℃ fan rotates slowly to ≥45℃ fan rotates fast | ||||||||||||
Working mode | P1-p3 | |||||||||||
inverter alarm setting | when setted to be inverter alarm ON,alarms every 2s-5s;when setted to be inverter alarm OFF,alarms every 3s-5s,it will not alarm | |||||||||||
Charging current | 0A-15A | |||||||||||
Comnunication | Rs232 | |||||||||||
Packing & Delivery
Size | 287*298*135mm | ||||||||||
Packing Size | 340*330*185mm | ||||||||||
N.W | 5.5KG | 6KG | 7KG | 9.5KG | 10.5KG | 11.5KG | |||||
G.W | 6KG | 6.5KG | 7.5KG | 10KG | 11KG | 12KG | |||||
