Tobee Effluent Handling
$12,600

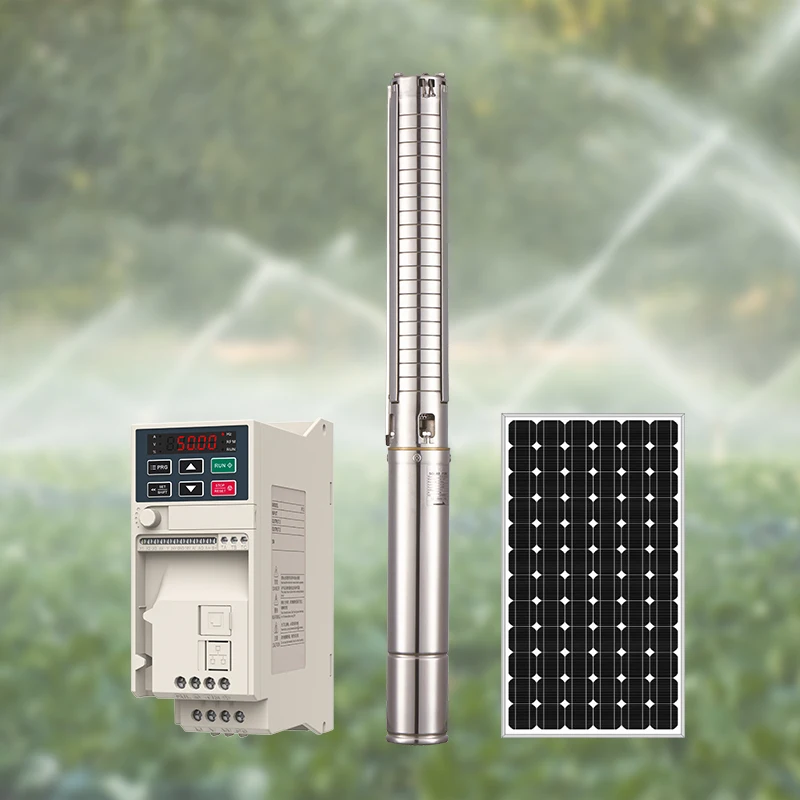

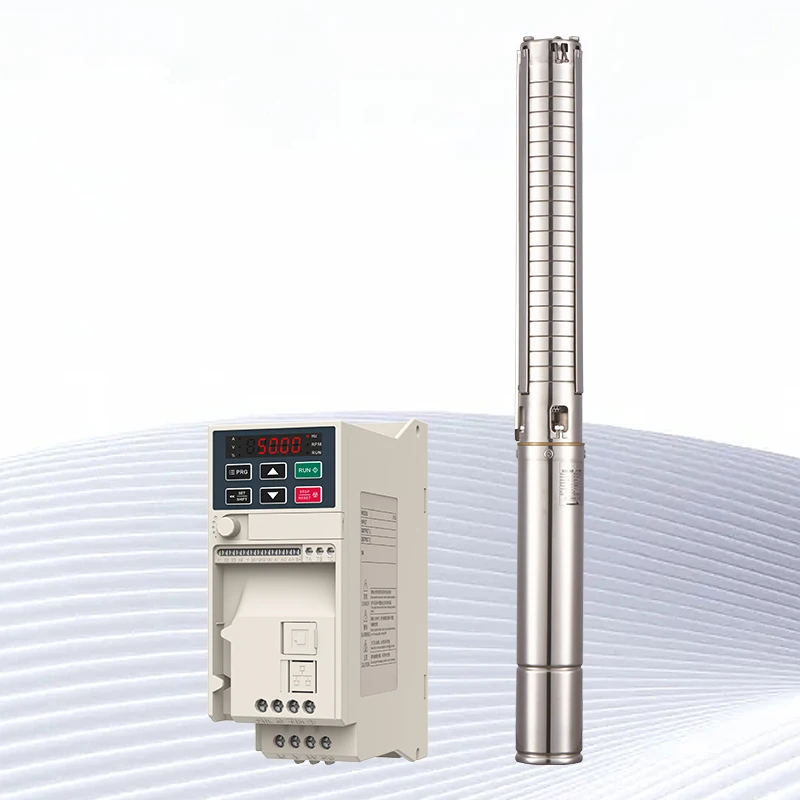

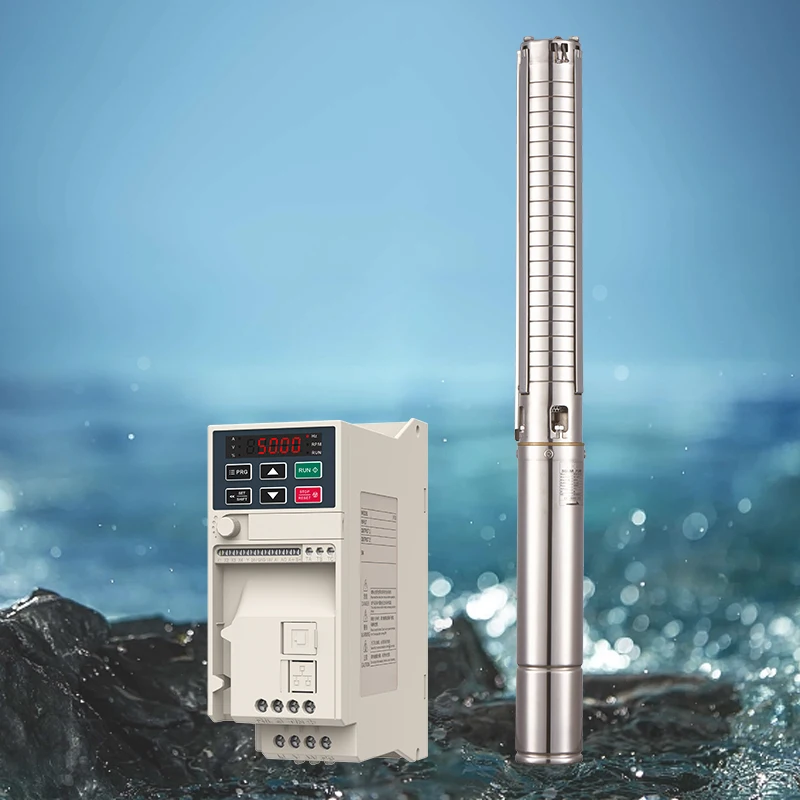

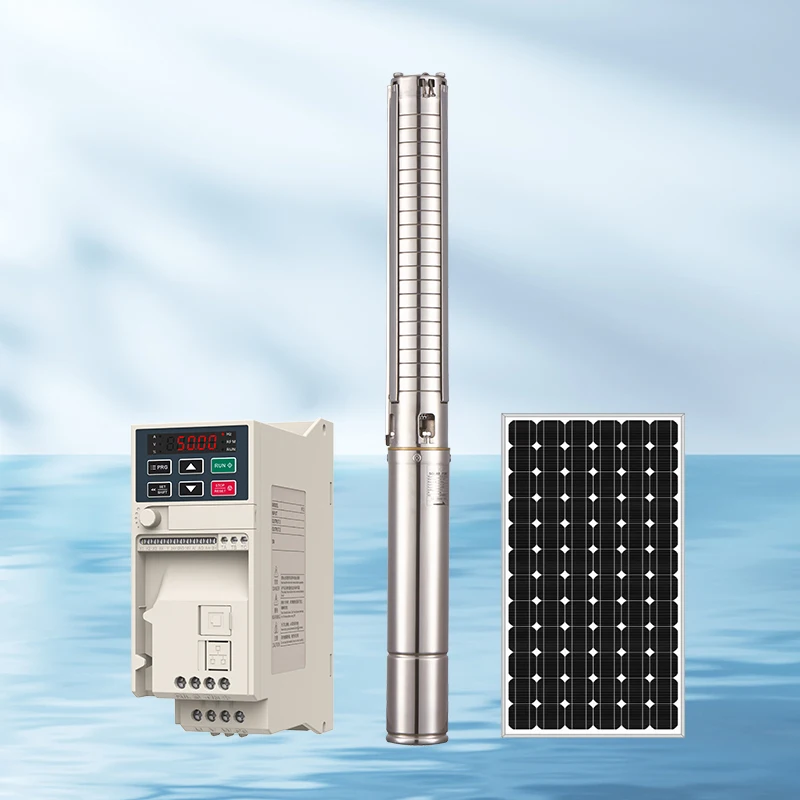

deep well pump centrifugal solar panel with inverter for 2hp motor pump solar water gardenpump system agriculture
- Category: >>>
- Supplier: Hangzhou Qinjie Electromechanical Co. Ltd.
Share on (62390273165):
Product Overview
Description
Product Introduction

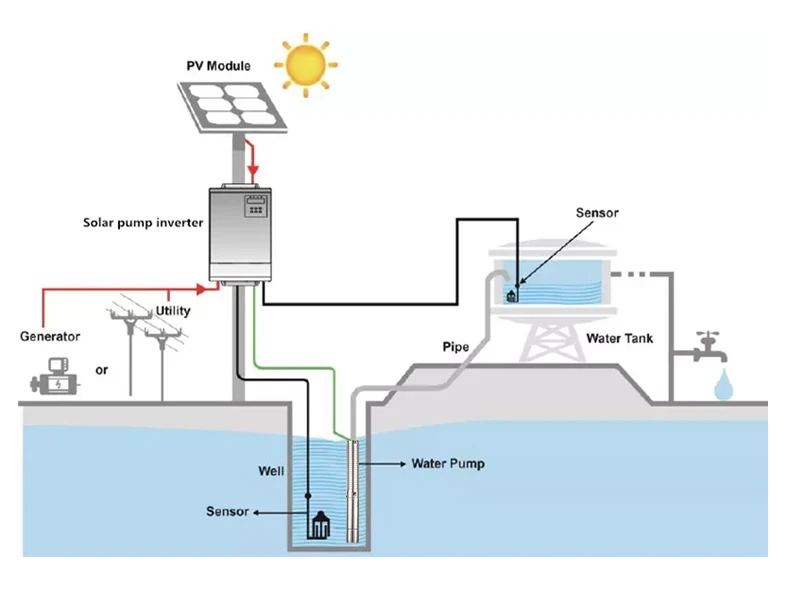

The solar pump system is mainly composed of solar panel, solar pump inverter, water pump, PV combiner box, mounting bracket,cables , water level sensor and other necessary accessories. The photovoltaic generation technology is used to solve the problem of power supply and water supply on the spot. T It is widely used in photovoltaic agricultural irrigation, irrigation station reconstruction,household water supply and desert greening,where there is no electricity or insufficient electricity supply

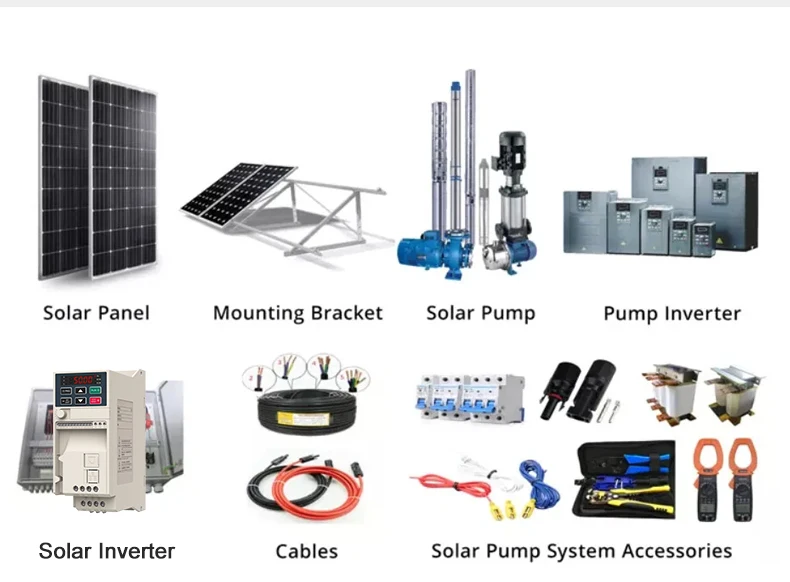

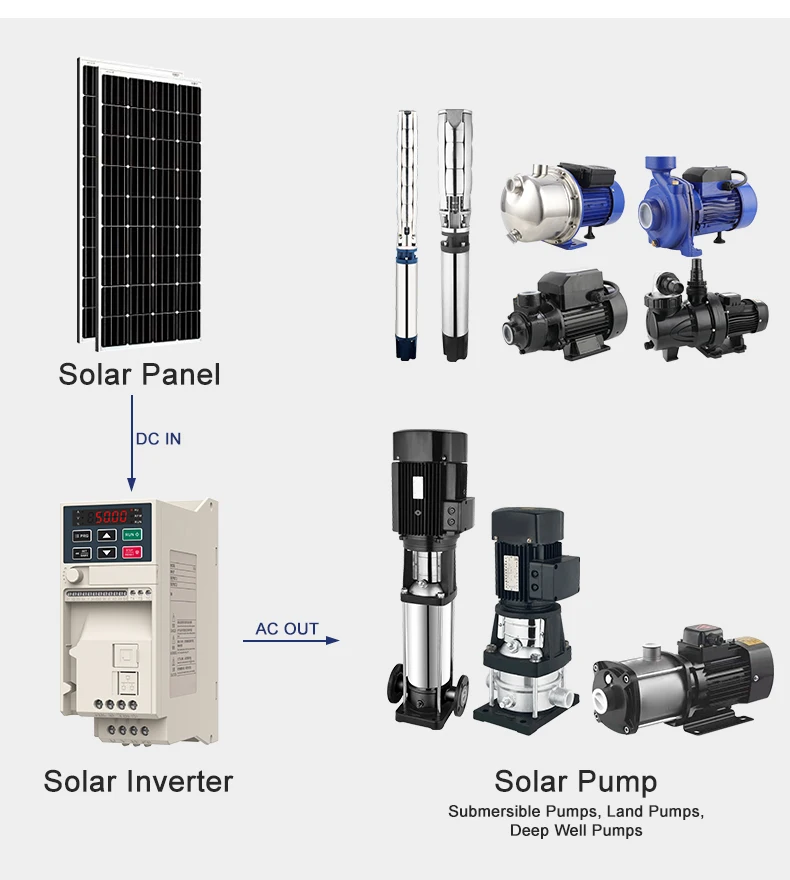

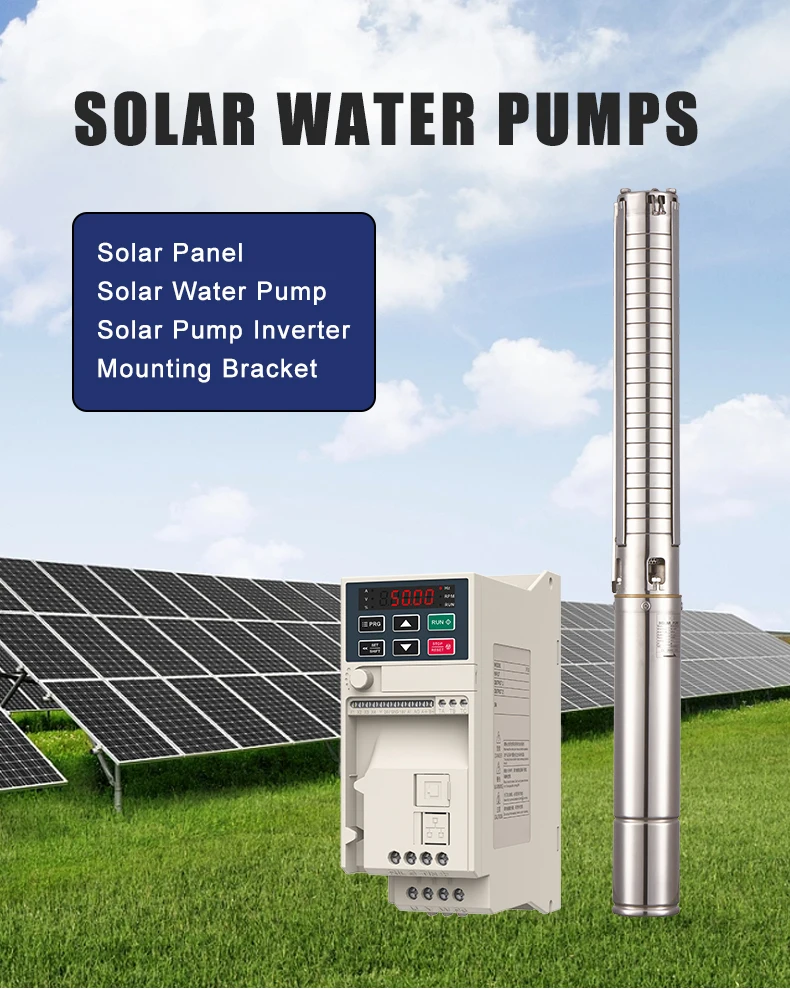

System Components
Pump Models
Model | Pump Power (KW) | Flow Rated/Max (m³/h) | Head Rated/Max (m) | Outlet Dia. (inch) | Pump Dia. (inch) | Voltage (V) | Solar panel Suggestion |
3FLA2-70-1.1 | 1.1 | 2/3.8 | 70/120 | 1 | 3 | AC220/DC300 | 9PCS*200W |
4FLA2-80-1.1 | 1.1 | 2/3.4 | 80/125 | 1.25 | 4 | AC220/DC300 | 9PCS*200W |
4FLA7-60-2.2 | 2.2 | 7/10 | 60/80 | 1.5'' | 4'' | AC 380/DC 540 | 16PCS*200W |
4FLA3-180-3 | 3 | 3/5 | 180/280 | 1.25'' | 4'' | AC 380/DC 540 | 15PCS*350W |
4FLA4-180-4 | 4 | 4/6.8 | 180/240 | 1.25'' | 4'' | AC 380/DC 540 | 17PCS*350W |
6FLA25-30-3 | 3 | 25/40 | 30/45 | 3'' | 6'' | AC 380/DC 540 | 15PCS*350W |
6FLA60-14-3 | 3 | 60/85 | 14/22 | 3'' | 6'' | AC 380/DC 540 | 15PCS*350W |
For more models, please consult the salesperson

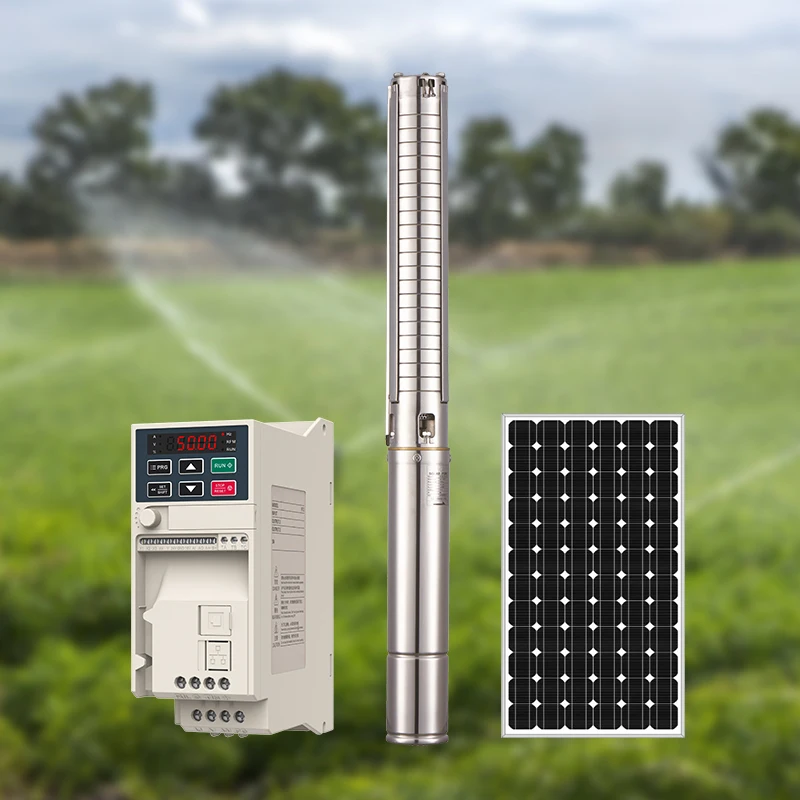

Usage Scenario
Real Picture

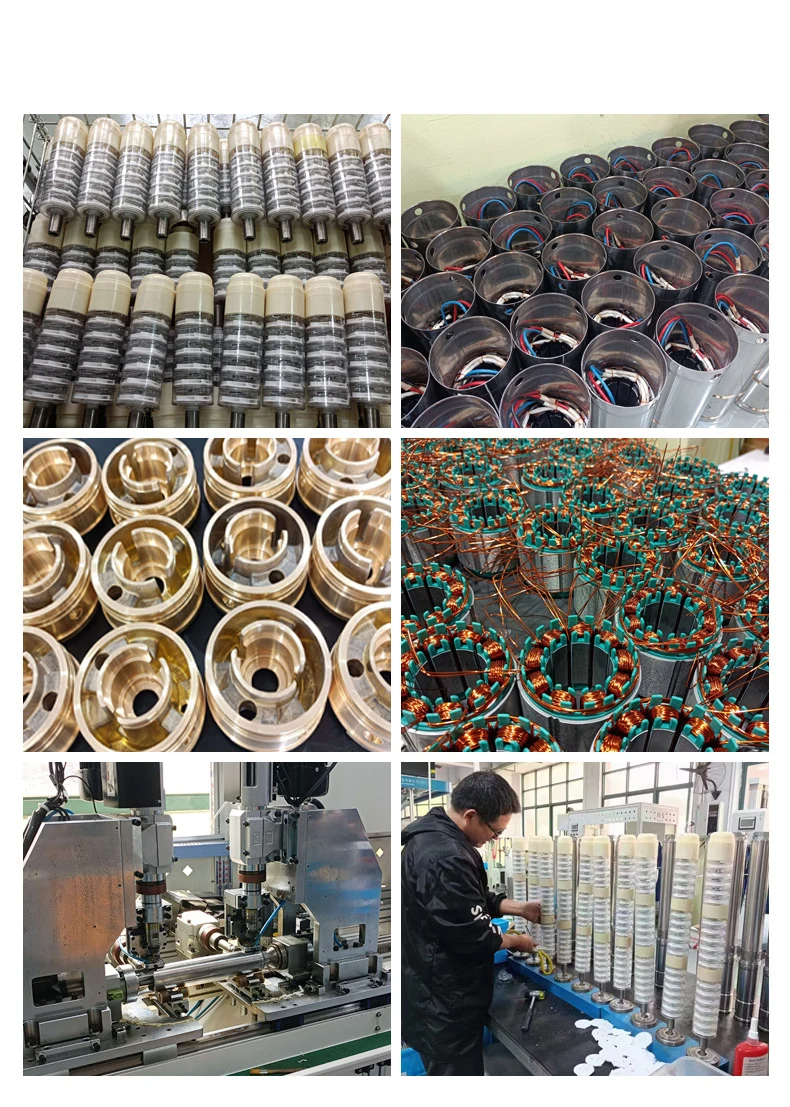

Stock Parts

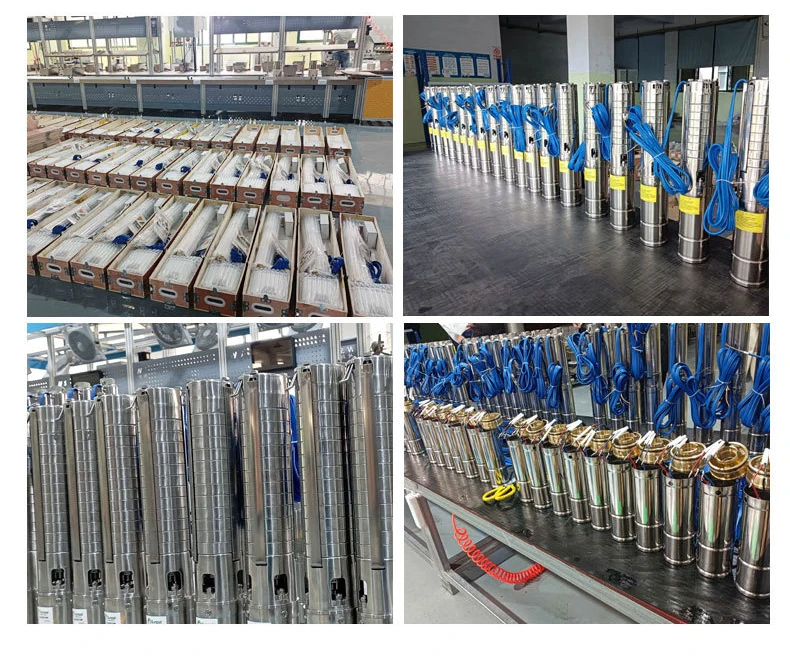

Production Equipment
