Product Overview

Description



SIMCOM SIM800F SMT Type  GSM/GPRS Module  SMT Type supply Hardware design datasheet Instruction manual Firmware



Feel free to contact us if you need any AT Command Newest Firmware datasheet hardware design windows drivers Linux Android drivers documents and so on

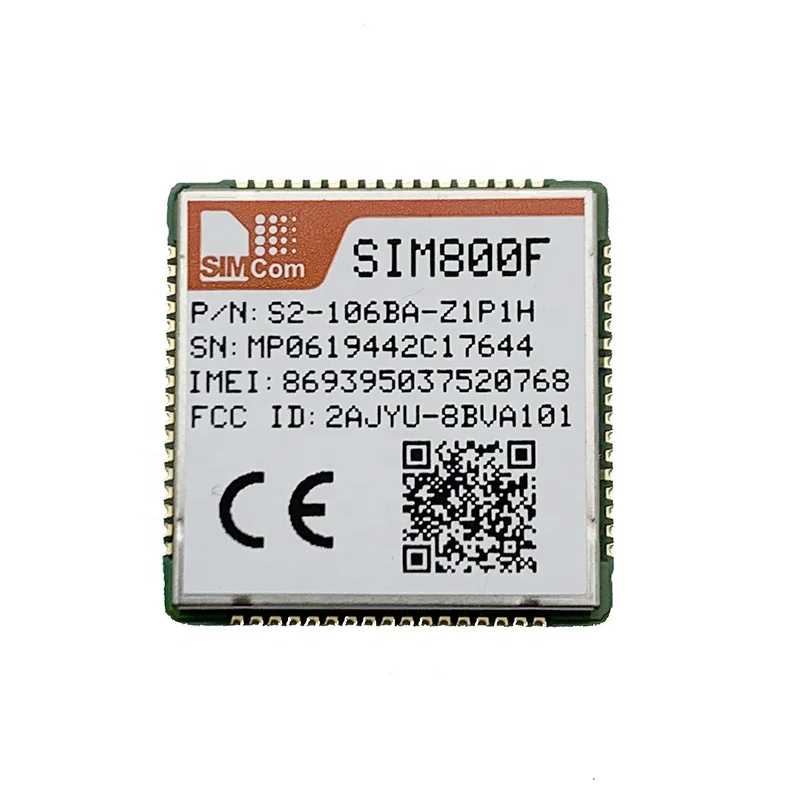

SIM800F

GSM/GPRS Module



SIM800F is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.

SIM800F supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 24*24*3mm, it can smoothly fit into slim and compact demands of customer design.

General features

•Quad-band 850/900/1800/1900MHz

•GPRS multi-slot class 12/10

•GPRS mobile station class B

•Compliant to GSM phase 2/2+

–Class 4 (2 W @850/900MHz)

–Class 1 (1 W @1800/1900MHz)

•Dimensions: 24*24*3mm

•Weight: 3.1g

•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)

•Supply voltage range 3.4 ~ 4.4V

•Low power consumption

•Operation temperature:-40℃ ~ 85℃



Specifications for GPRS Data

•GPRS class 12: max. 85.6 kbps (downlink/uplink)

•PBCCH support

•Coding schemes CS 1, 2, 3, 4

•PPP-stack

•USSD

Specifications for SMS via GSM/GPRS

•Point to point MO and MT

•SMS cell broadcast

•Text and PDU mode



Software features

•0710 MUX protocol

•Embedded TCP/UDP protocol

•FTP/HTTP

•MMS

•POP3/SMTP

•DTMF

•Jamming Detection

•Audio Record

•SSL

•TTS_CN (optional)



•Bluetooth 3.0 (optional)



Specifications for voice

•Tricodec

–Half rate (HR)

–Full rate (FR)

–Enhanced Full rate (EFR)

•Hands-free operation (Echo suppression)

Interfaces

68 SMT pins including

•Analog audio interface

•RTC backup

•USB interface

•Serial interface

•Interface to external SIM 3V/1.8V

•GPIO

•ADC

•PWM

•I2C

•GSM Antenna pad

•Bluetooth Antenna pad



Compatibility

•AT cellular command interface



Certifications

•ROHS

•REACH

•CE

•GCF
