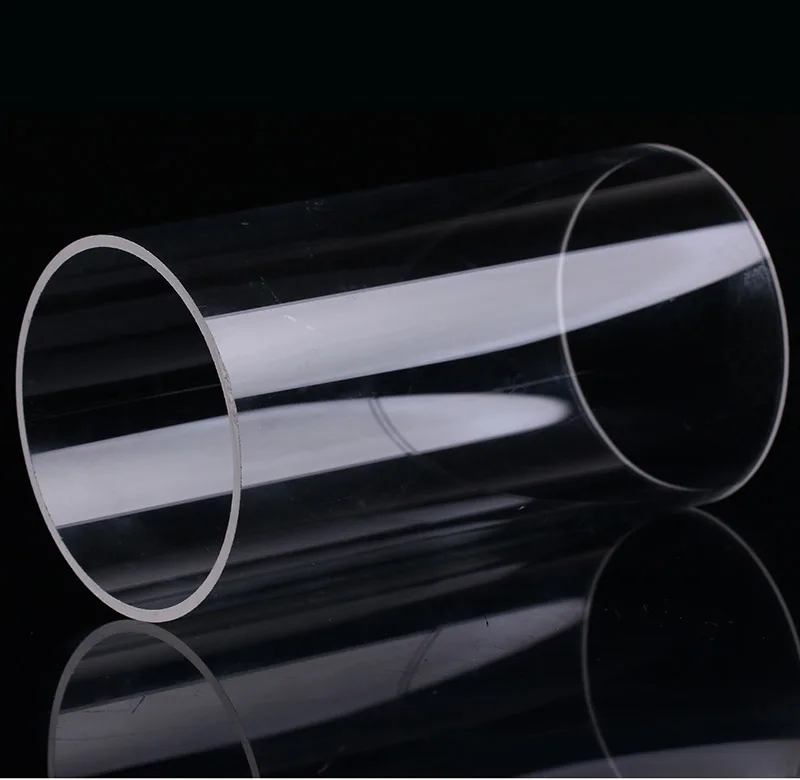

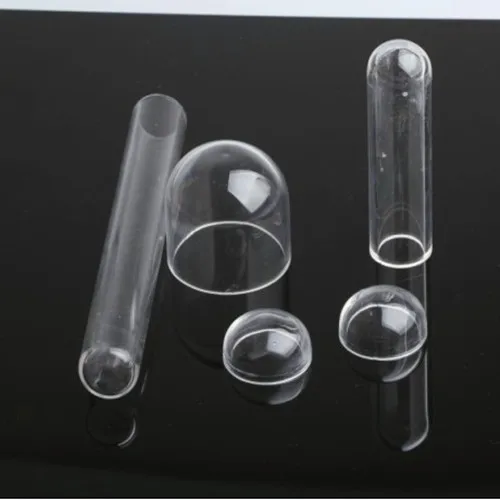

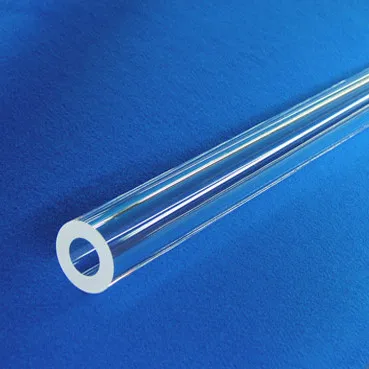

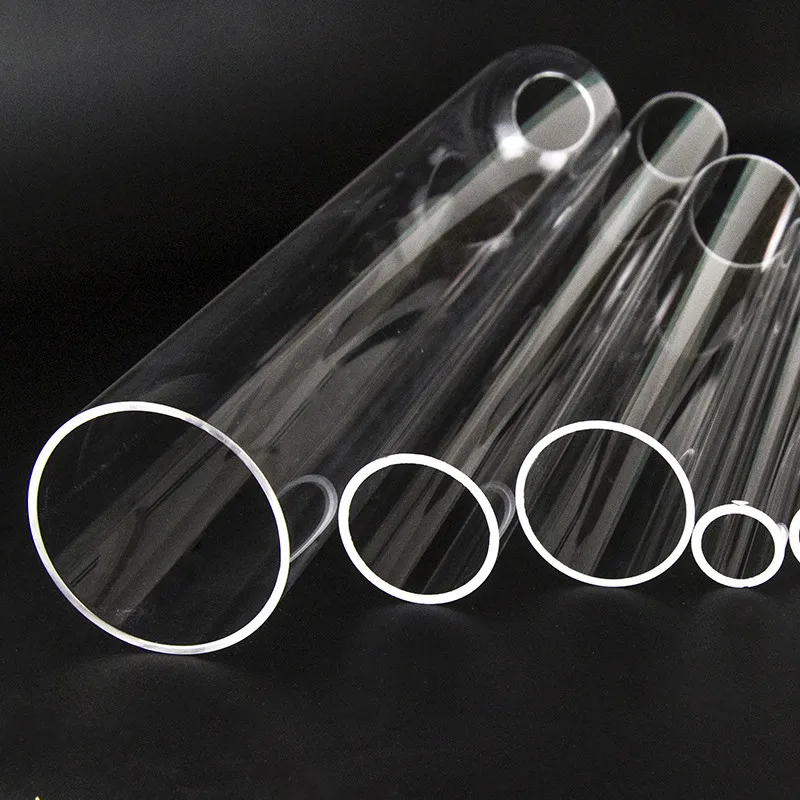

Resistance High Temperature Quartz Glass Pipe Transparent Clear Fused Silica Quartz Tube
We are a manufacturer of Transparent Quartz Tube Furnace. Size&design: Accept customize according to different diameter, thickness,length or sending your drawing. Advantage of Quartz Tube Furnace: 1)High purity :SiO2> 99.99%. 2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ . 3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability 4)Health care and environmental protection. 5)No air bubble and no air line. 6)Excellent electrical insulator.
Chemical composition (unit:ppm)
Al
Fe
K
Na
Li
Ca
Mg
Cu
Mn
Pb
B
Ti
20
1.0
3.5
3.5
1.0
2.0
0.5
0.3
0.5
<0.01
<0.2
2.0
Physical Properties:
SiO2
99.997%
Density
2.2 g/cm3
Degree of hardness moh' scale
6.6 Pa
Melting point
1732°C
Working temperature
1100°C
Max temperature can reach in a short time
1450°C
Acid tolerance
30 times than Ceramics,150 times than stainless steel
Visible light transmittance
above 93%
UV spectral region transmittance
80%
Resistance value
10000 times than ordinary glass
Annealing point
1180°C
Softening point
1630°C
Strain point
1100°C
Product Application
Application:
1. High temperature resistance glass can work under 1200°C continuously, and in short time can even work under 1450°C, its softening point is 1730°C. 2. Quartz glass will not react chemically with acid except hydrofluoric. Acid-stable is 30 times of ceramic and 150 times of stainless steel. Especially chemical stability is incomparable at low temperature. 3. Electric insulation. 4. Excellent thermal shock stability 5.High transmission above 85% 6.Widely used in semiconductor, lighting and electric heating industries.
Factory Display
CHOOSE HIGH QUALITY MATERIAL OF QUARTZ GLASS 99.999%
RINDING, LAPPING, & POLISHING
Strict process of grinding, lapping and polishing .services for a wide range of sizes and shape.
Seller Recommend
WE ACCEPT THE SIZE AND SHAPED CUSTOMIZED. IF NEED FAST INQUIRY PLEASE Click "Send"now !
Packaging & Shipping
Company Information
YOUDI TECH CO.,LTD is an innovative company which focus on infrared heating industrial during the pass 10 years,we offer OEM and ODM solutions to oversea customers with stritly Quality Control System.All the products passed CE/ROHS/ISO certifications.the lamps with long time life 5000-6000hrs.The infrared heaters are wide range using at infrared heater industry . With this technology is helping create energy saving heat efficiency product.In 2015 year increasing to 2 stoves ,4 production lines including quartz tubes produce line, shortwave infrared heat lamps line, carbon fiber lamp line, for assemble IR quartz lamp,daily output with 3,000pcs. YOUDI TECH provides the most simple, pure and effective method to meet customer request.
FAQ
Q:Sample Service
A:Some samples are free of charge, buyer shoulder the fright cost. Contact us for details Within 7 days after you confirm order.
Q:Customized Service
A:We will offer 24 hours reply your inquiry and information in person. We offer OEM services, we can print your logo on your product as your requirements.
Q:After-sale Service
A:Any quality issue, once confirmed, we will compensate our customer.
Q:Can I customize the printing of the packing and print our logo on the ir lamps?
A:Yes.we provide OEM and ODM service.our advantage is customized accordig your request.
Q:Are you a factory or trading company?
A:We are a professional factory.
Q:What's the material of your products?
A:The materail is quartz glass,Heating wire is gold reflector or carbon fiber ,details,Please ask us.
Q:How does your factory do regarding quality control?
A:"Quality is priority."we always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.
