Product Overview

Description



POLY SOLAR CELLS

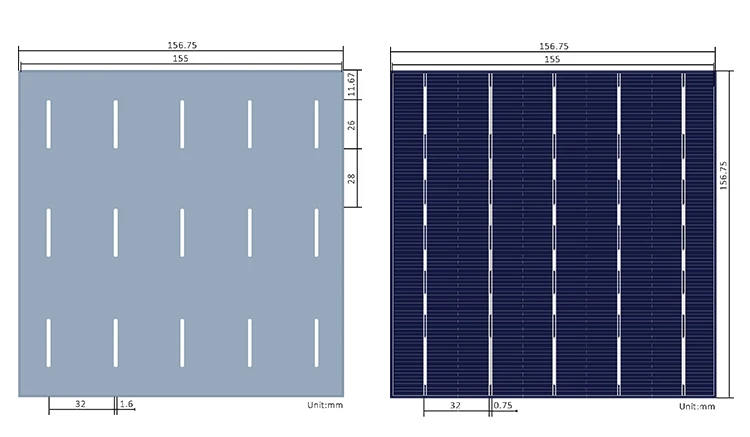

Basic Parameters
Size	157.00mm×157.00±0.25mm
Diameter	220.50±0.7mm
Thickness	200±20µm
Weight	12.5±0.5g
Front	0.68mm silver bus bars
Back	1.8mm wide silver soldering pads
Model Type	AS157P
Temperature Coefficients
Current temperature coefficient		+0.06%/℃
Voltage temperature coefficient		-0.35%/℃
Power temperature coefficient		-0.42%/℃





Electrical arameters(standard test conditions)
Efficiency(%)	Pmpp(W)	Impp(A)	Isc(A)	Umpp(V)	Uoc(V)
19.00%	4.67	8.591	9.07	0.543	0.638
18.80%	4.62	8.552	9.045	0.54	0.635
18.60%	4.57	8.481	8.945	0.539	0.633
18.40%	4.52	8.409	8.886	0.538	0.632
18.20%	4.47	8.374	8.848	0.534	0.629
18.00%	4.42	8.301	8.765	0.533	0.628
17.80%	4.37	8.247	8.725	0.53	0.626





Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
Delivery Time	7-10 working days after receiving payment (should be decided according to quantity)



Q:1. Are you manufacturer or trading company?
A:We are manufacturer with SGS factory audit.

Q:2. What certificates do you have?
A:We have CE, TUV, IEC, and ISO so far.
Q:3. How about your warranty?
A:15-25 years guarantee.
Q:4. Do the panels all include cables and connectors?
A:Yes, all include cables and connectors.
Q:5. Can you produce the solar panels according to our drawing?
A:Yes, we provide both OEM and ODM services.
