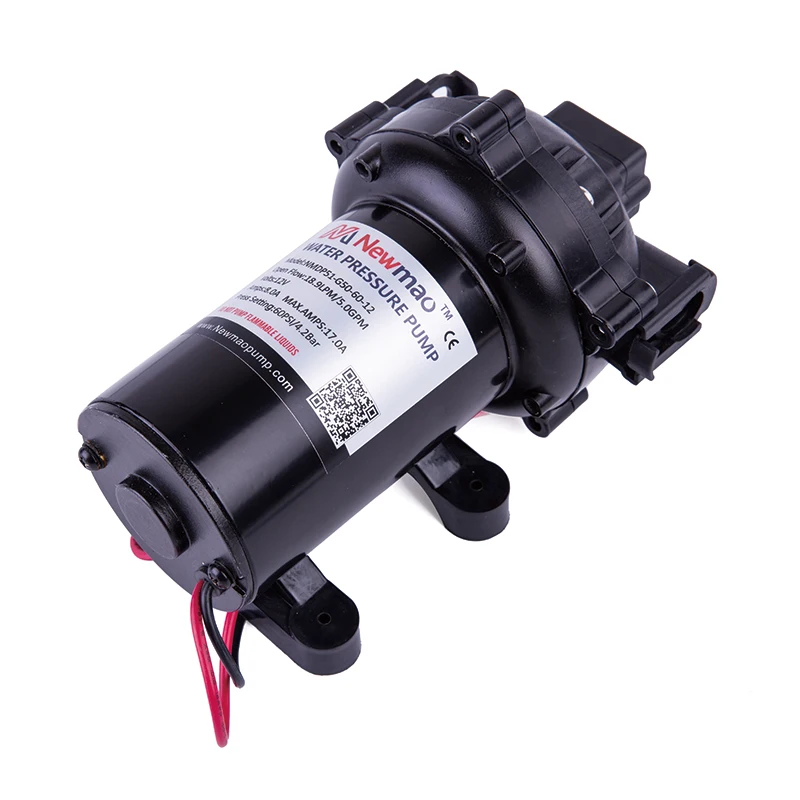

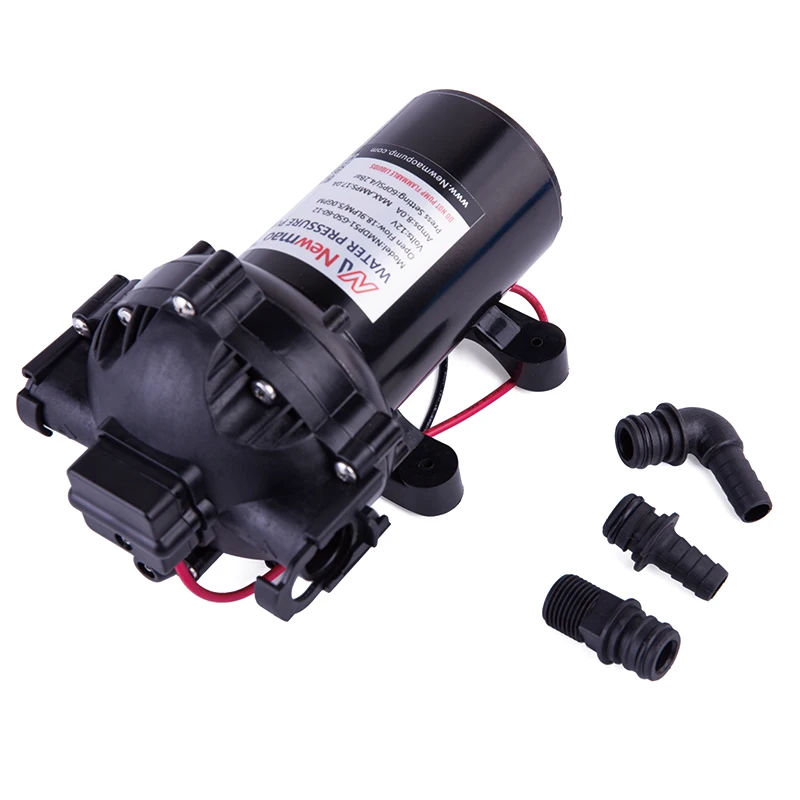

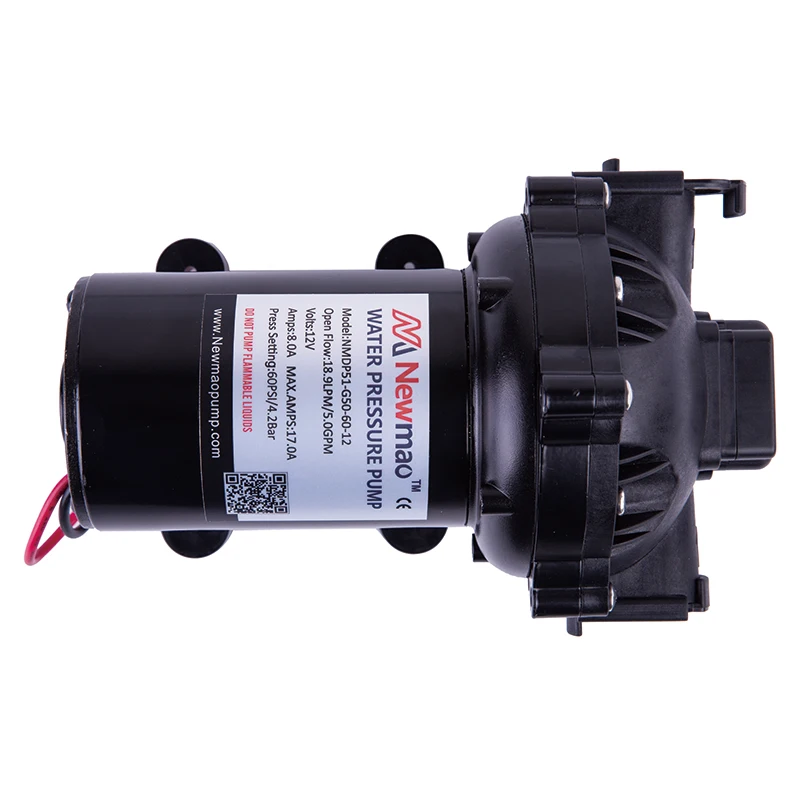

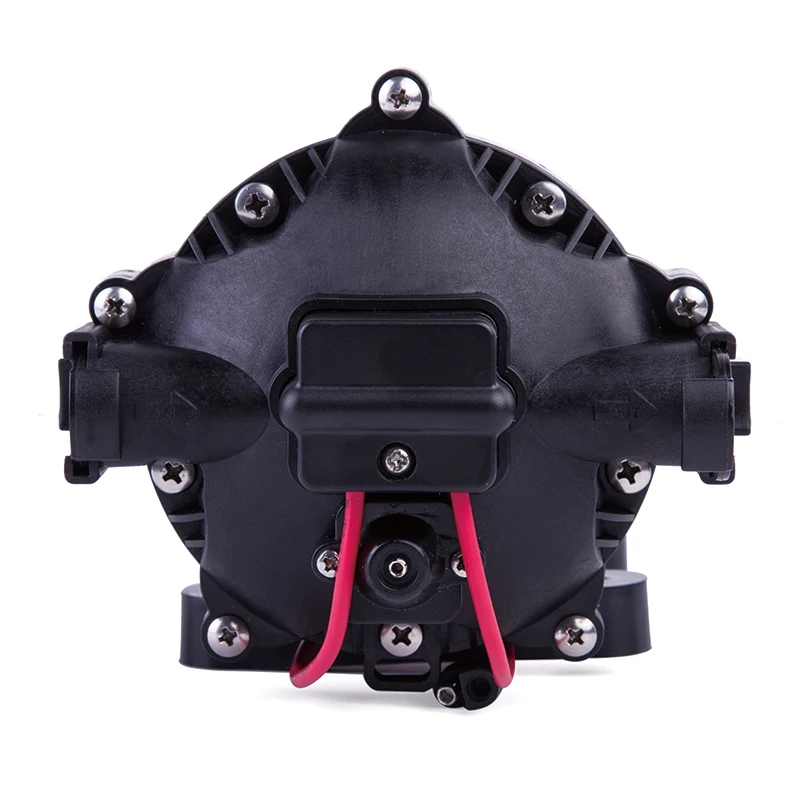

Newmao 51 series 12v washing and clean micro diaphragm pump car washer automatic garden irrigation camping water pump
- Category: >>>
- Supplier: Xiamen Newmao Pump Industry Co. Ltd.
Share on (62390400693):
Product Overview
Description
Typical Applications

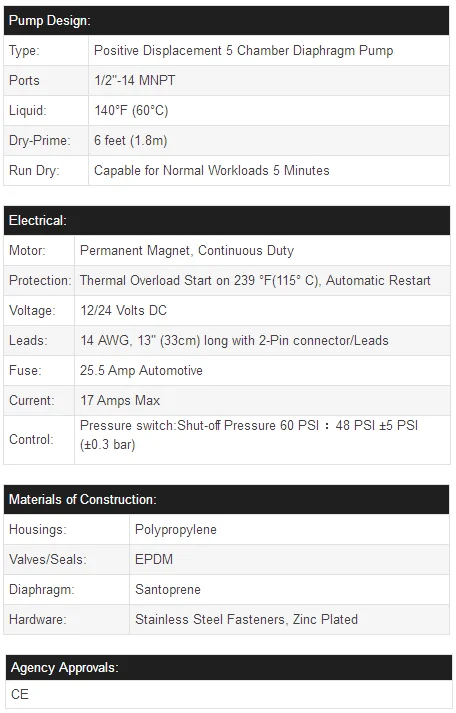

Key Specs
Model | Voltage | Open Flow | Control Type | Max Draw | Shut-off Pressure (PSI/BAR) | Valves | Diaphragm | Ports | Wire Connections |
NMDP51-G30-60-12 | 12V | 3.0 / 11.5 | switch | 10.0A | 60 / 4.2 | EPDM | Santoprene | Quick attach | 2-Pin/Leads |
NMDP51-G30-60-24 | 24V | 3.0 / 11.5 | switch | 5.5A | 60 / 4.2 | EPDM | Santoprene | Quick attach | 2-Pin/Leads |
NMDP51-G40-60-12 | 12V | 4.0 / 15.0 | switch | 13.0A | 60 / 4.2 | EPDM | Santoprene | Quick attach | 2-Pin/Leads |
NMDP51-G40-60-24 | 24V | 4.0 / 15.0 | switch | 7.0A | 60 / 4.2 | EPDM | Santoprene | Quick attach | 2-Pin/Leads |
12V | 5.0 / 18.9 | switch | 17.0A | 60 / 4.2 | EPDM | Santoprene | Quick attach | 2-Pin/Leads | |
NMDP51-G50-60-24 | 24V | 5.0 / 18.9 | switch | 9.0A | 60 / 4.2 | EPDM | Santoprene | Quick attach | 2-Pin/Leads |
Custom Service: Bar-cording, Packaging, Label / Logo, Instruction, Color, etc.

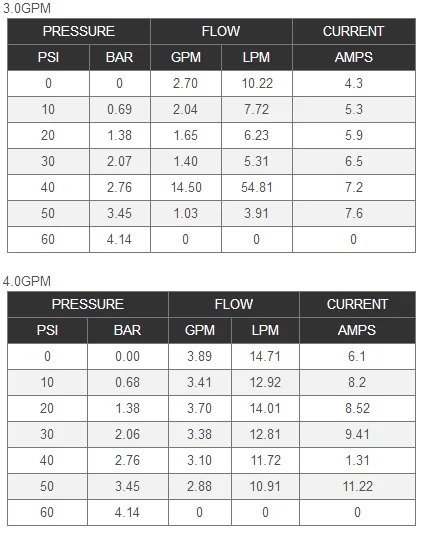

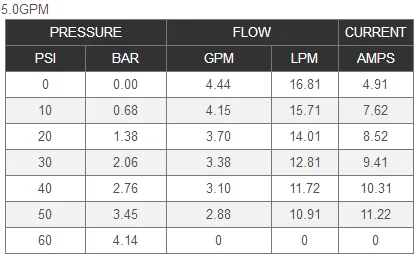

Performance Data

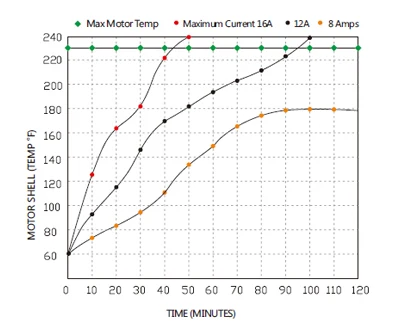

Heat Rise

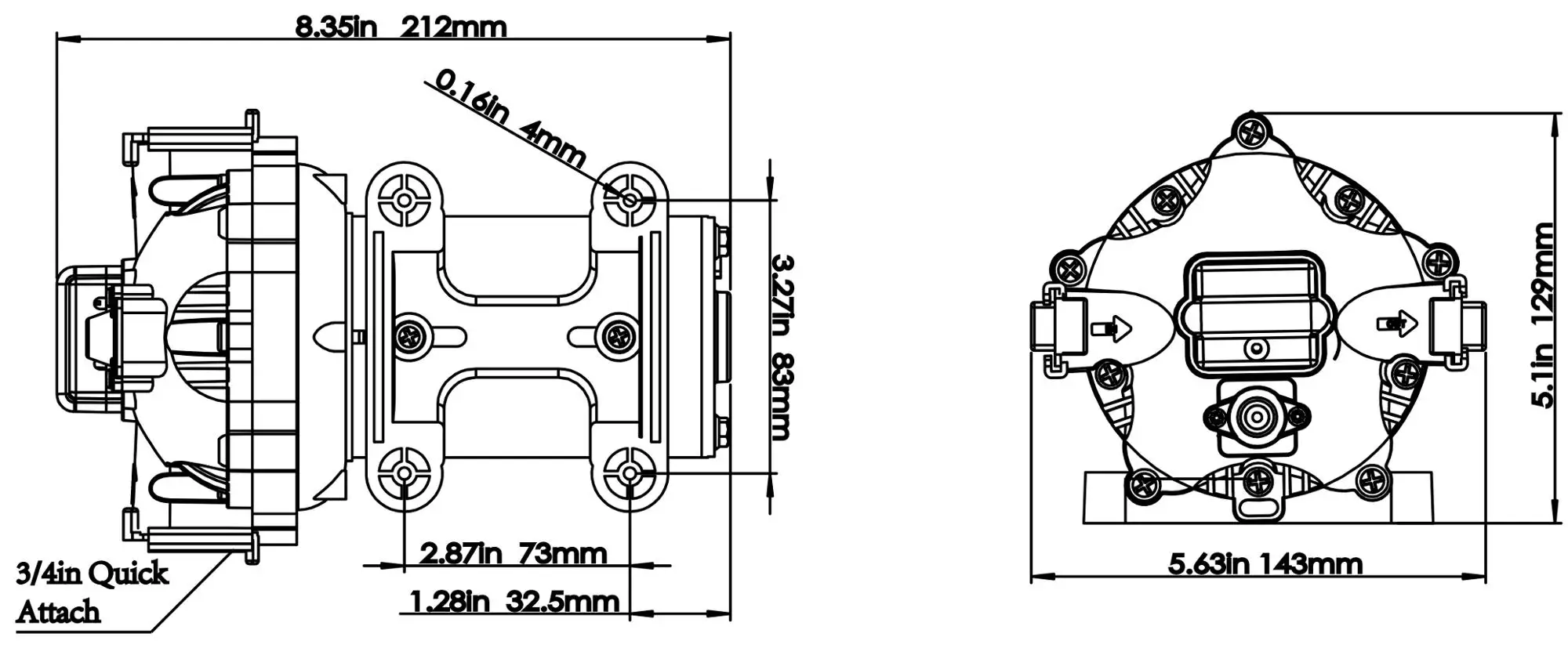

Dimensions
Note: Do NOT use any Newmao pump for petrol gasoline, petroleum products, solvents, thinners or any other flammable liquid with a flash point below 82 C (180 F). This pump requires a round cable. Warranty: 1 Year.

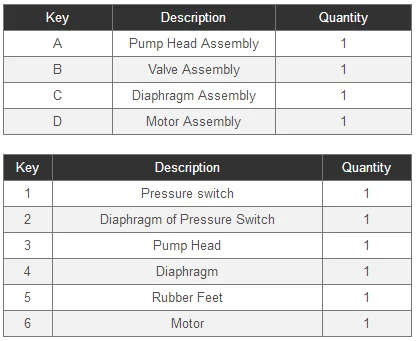

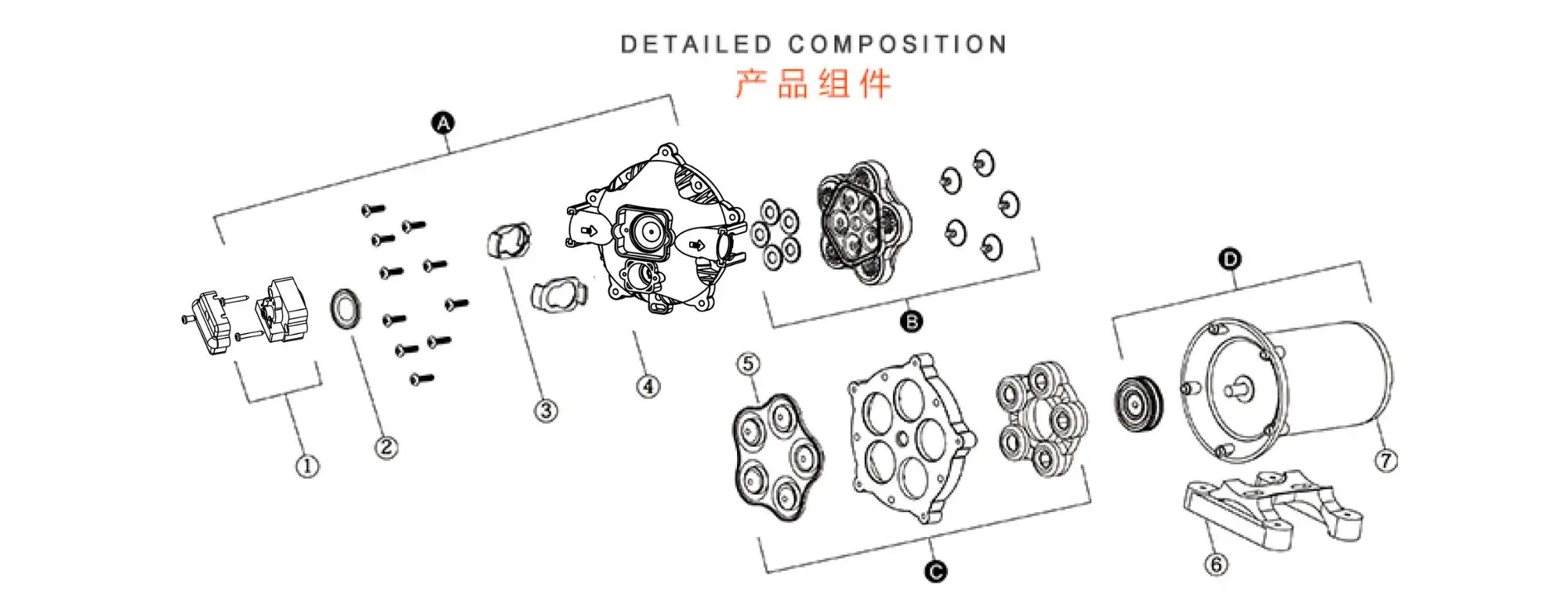

Repair Kits
