Одноразовая формовочная машина для рулонного формования винного бочонка

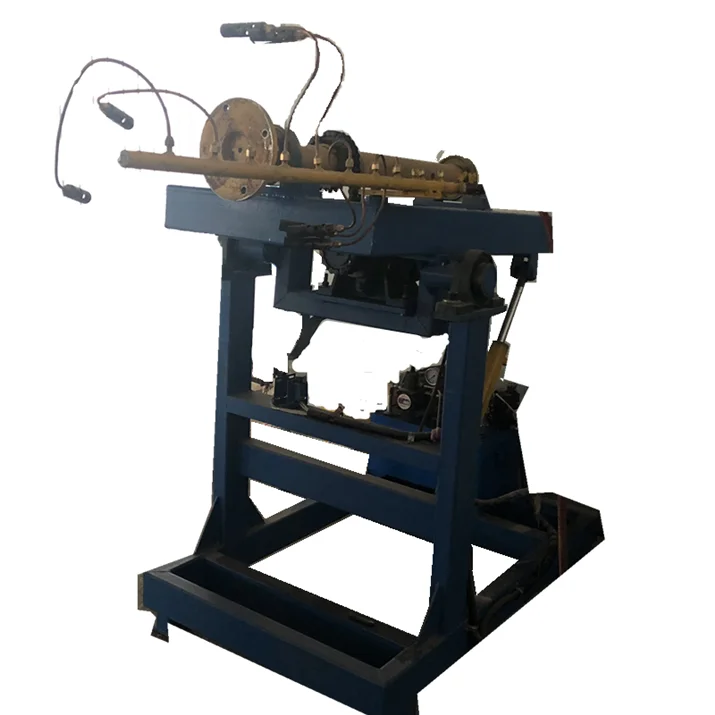

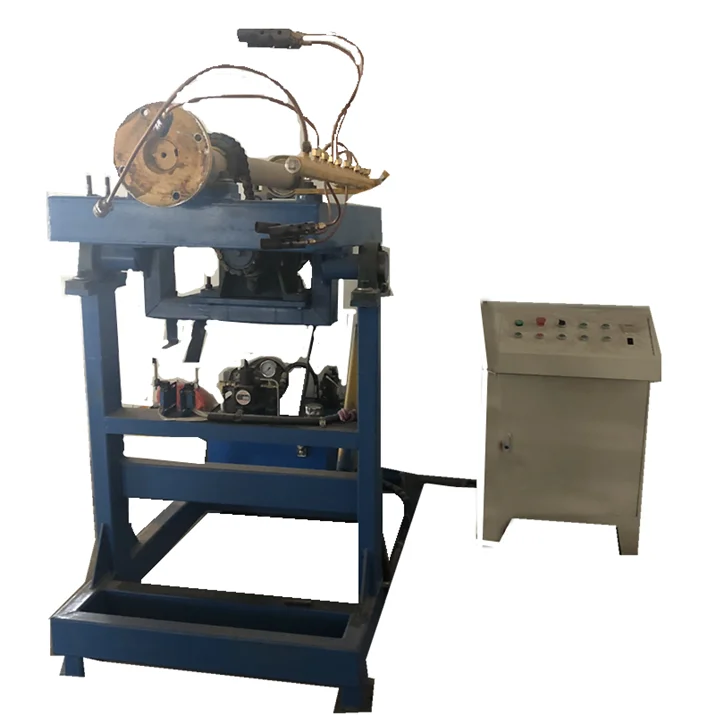

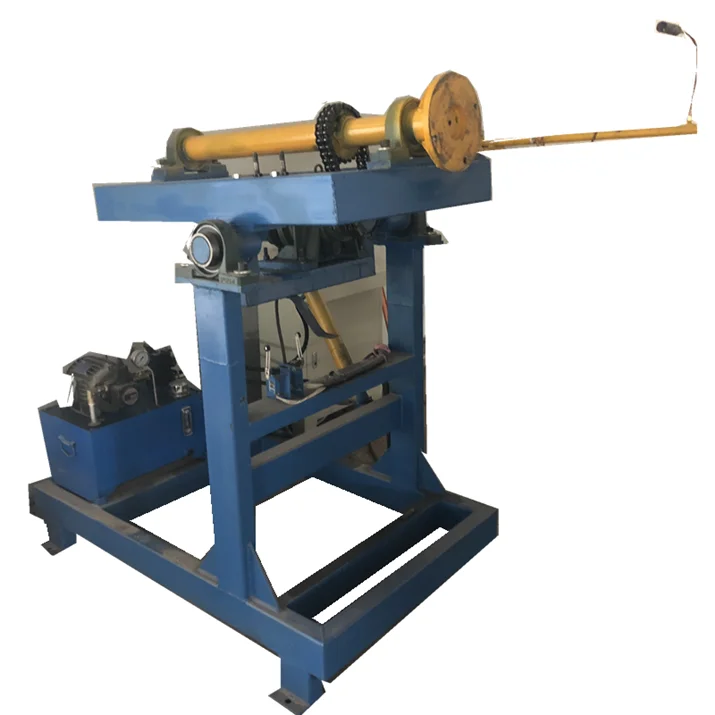

Characteristics of Open-flame Swing Plastic Molding Machine

Open flame rocking forming machinery and equipment is low cost, small area, suitable for large and medium-sized hollow products, easy to operate, easy to maintain, is the ideal equipment for the introduction of rolling molding.

1.a given quantity of plastic material,powder or liquid,islaid in one half of the mould

2.the mould is closed

3.the mould is rotated in the oven revolving on two axes.

4.plastic material melts,forming a coating layer on the mould internal surface.

5.the mould is removed from the oven and cooled off.

6.the mould is opened and the hollow item is extracted

1.Low cost
2.Rotomolding machinery invests less than other plastic molding machines such as injection molding machines
3.Suitable for simultaneous production of multiple types of products
4.The surface of the product is straight and uniform in thickness
5.Suitable for large hollow products

6.products are not subject to high stress,little scraps are generated

Model No

Processing Range: Minimum/Maximum

Installed capacity

control mode

Outline size
(A*B*H)

Transmission power

Hydraulic system power

turn

swing

RC-YB-1200 1T

φ660*740/φ1100*1200(1300)

1.1kw

2.2kw

frequency conversion

throttle valve

2000*1700*2500
