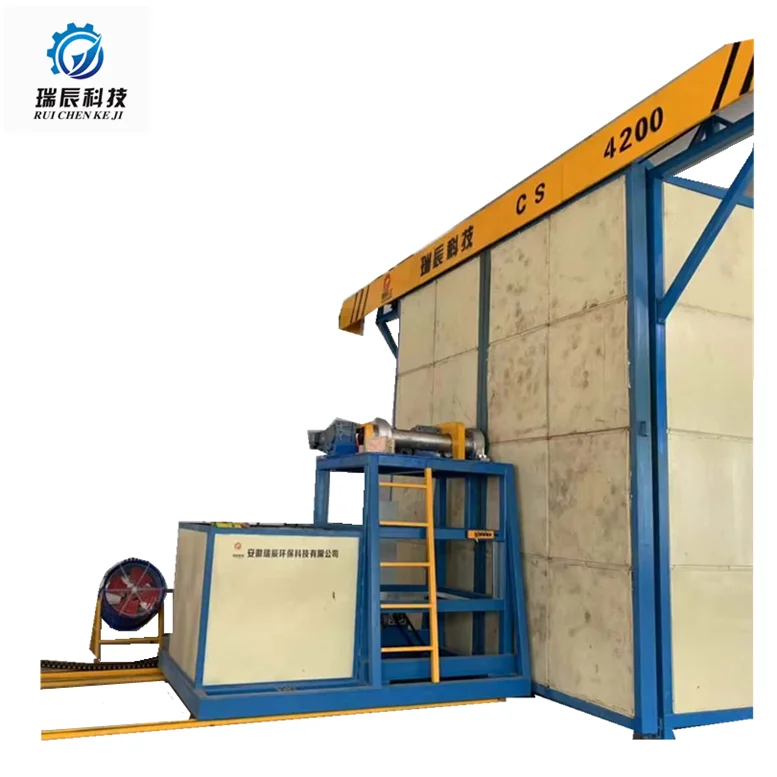

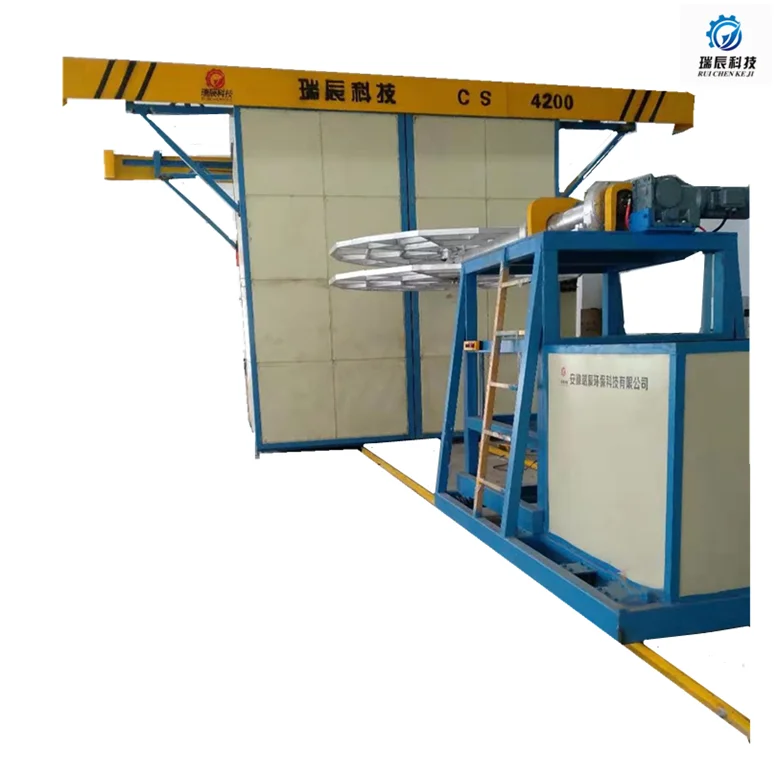

Agricultural engine tank rotary forming machine, Chinese manufacturers sell at low prices

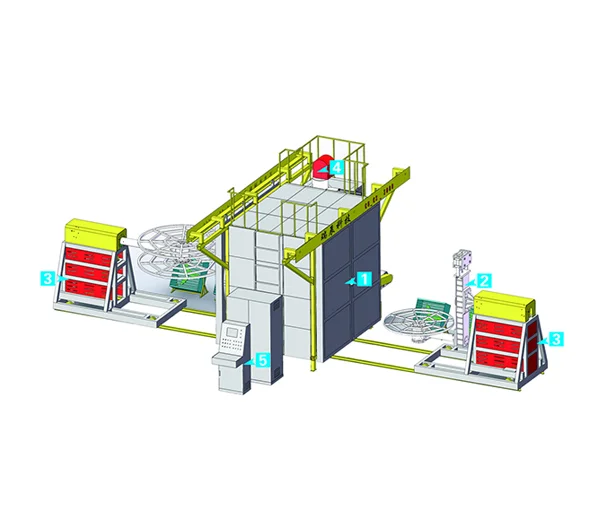

Shuttle Rotary Molding Machine is an economical and practical unit with fixed heating chamber and two shuttle cars moving back and forth. It has the advantages of small area and low price.

1.a given quantity of plastic material,powder or liquid,islaid in one half of the mould

2.the mould is closed

3.the mould is rotated in the oven revolving on two axes.

4.plastic material melts,forming a coating layer on the mould internal surface.

5.the mould is removed from the oven and cooled off.

6.the mould is opened and the hollow item is extracted

1.Low cost
2.Rotomolding machinery invests less than other plastic molding machines such as injection molding machines
3.Suitable for simultaneous production of multiple types of products
4.The surface of the product is straight and uniform in thickness
5.Suitable for large hollow products

6.products are not subject to high stress,little scraps are generated

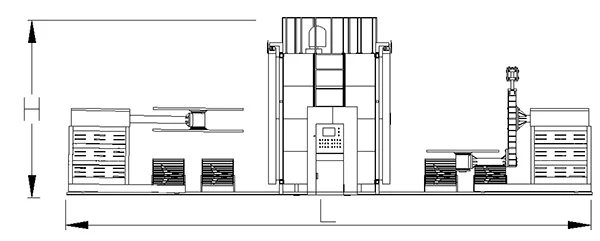

Model No

Floor size

Operating
platform

Biggest tank made

L(m)

W(m)

H(m)

RC-CS-1600

9

4.5

3

×

750L

RC-CS-2000

10.5

5

3.5

×

1000L

RC-CS-2500

12

6

4

×

2500L

RC-CS-3000

13.5

7

4.5

×

4500L

RC-CS-3500

15

8

5

×

7000L

RC-CS-4000

16.5

9

5.5

×

10000L
