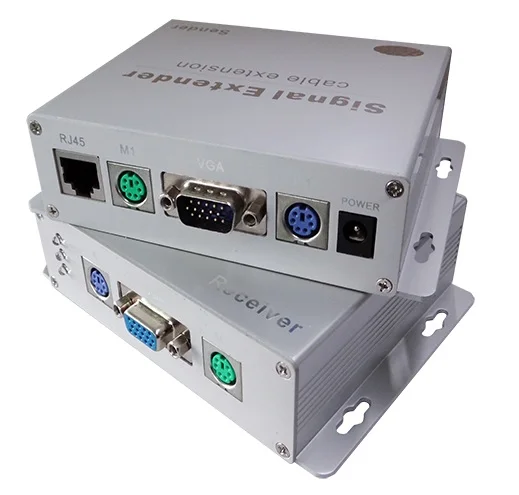

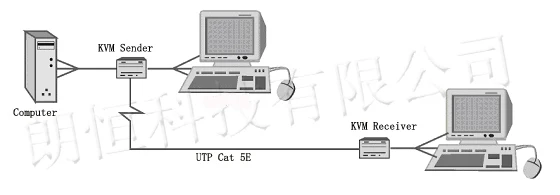

This product includes a Sender and a Receiver It can extend power switch, keyboard, mouse and video ports of the computer max up to 300m through a single CAT5E cable. There is a KVM port on Sender so that user can control local computer. This product can be widely used in computer and monitor field, large screen advertisement, education, bank and industry.
Features and Benefits:
It can extend the power switch of the computer,keyboard,mouse and video port max of 300m

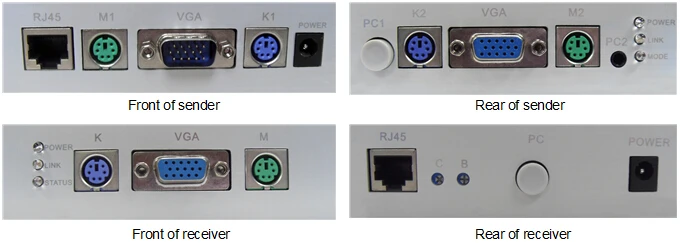

It provides a KVM port on the Sender
It can be switched from remote monitor to local monitor or switched from local monitor to remote monitor by the keystroke on the Sender or SCROLL on the local keyboard
Use the single cable (CAT5,CAT5E,CAT6), the cost is inexpensive
It supports (PS/2 port) keyboard and mouse, it supports (VGA) port monitor
It can remove and insert the local and remote keyboard and mouse
Power on computer use the emulational keyboard and mouse
It supports DOS, Windows, Linux,Unix system
It does not need a driver, it is simple to install
The remote keyboard and mouse display is in real-time
The anti-jamming is strong
The anti-lightning and anti-invasion is strong Cascade operation for increasing the distance
Index of anti-lightning and anti-invasion:withstand air-discharge 15KV, contiguity-discharge 8KV
Support the top resolution 1920x1440@60Hz
paramenter:
Size:
110mmx110mmx30mm
Weight:
0.55KG
input connector:
HD15PIN(VGA)
output connector:
HD15PIN(VGA)
local output:
HD15PIN(VGA)
bandwidth:
300MHz(-3 dB)
0-10MHz +0.1dB
0-130MHz +6dB to -0.8 dB
input level range:
0.5-2.0Vp-p
input level error:
less than 3mV
input impedance:
75Ω
output impedance:
75Ω
echo ullage:
-30dB@5MHz
Max DC compensation:
±5mV-0
SNR:
60dB
Connector standard:
HDB15,Mini-DIN6,RJ45
Video standard:
VGA,SVGA,XGA,SXGA,UXGA,LCD
Cable standard:
CAT5,CAT5E,CAT6 UTP
Power adapter:
DC9-12V/1A
operational temperature:
-25℃~+70℃
deposited temperature:
-40℃~+80℃
relative humidity:
0~95%(non-condensing)
MTBF:
>30000 hours
FAQ
Are you a manufacturer?
Yes. We have own technical team and production line,Our company have over 200 kinds of product for your choice.
Can I get a sample?
Yes.Our MOQ is 1PC.We are pleasure to offer you samples.
