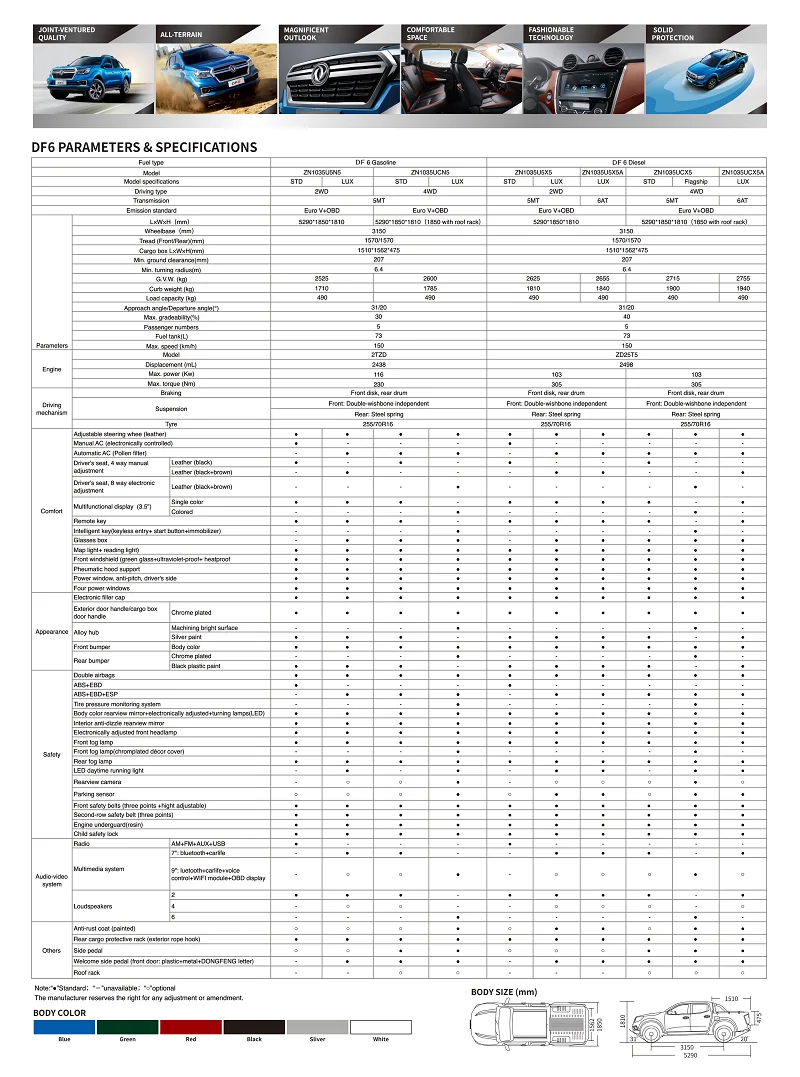

| Fuel type | Diesel | ||||
| Model | ZN1035UCX5 | ZN1035UCX5A | |||
| Model specifications | Y05A | Y05C | Y06B | ||
| Driving type | 4WD | ||||
| Transmission | 5MT | 6AT | |||
| Emission standard | Euro V+OBD | ||||
| Parameters | L×W×H(mm) | 5290*1850*1810(1850 with roof rack) | |||
| Wheelbase(mm) | 3150 | ||||
| Tread (Front/Rear)(mm) | 1570/1570 | ||||
| Cargo box L×W×H(mm) | 1510*1562*475 | ||||
| Min. ground clearance(mm) | 207 | ||||
| Min. turning radius(m) | 6.4 | ||||
| G.V.W. (kg) | 2715 | 2755 | |||
| Curb weight (kg) | 1900 | 1940 | |||
| Load capacity (kg) | 490 | 490 | |||
| Approach angle/Departure angle(°) | 31/20 | ||||
| Max. gradeability(%) | 40 | ||||
| Passenger numbers | 5 | ||||
| Fuel tank(L) | 73 | ||||
| Max. speed (km/h) | 150 | ||||
| Engine | Model | ZD25T5 (nissan) | |||
| Displacement (mL) | 2498 | ||||
| Max. power (Kw) | 103 | ||||
| Max. torque (Nm) | 305 | ||||
| Driving mechanism | Braking | Front disk, rear drum | |||
| Suspension | Front: DoubleXwishbone independent | ||||
| Rear: Steel spring | |||||
| Tyre | 255/70R16 | ||||
| Appearance | Electronic filler cap | √ | √ | √ | |
| Exterior door handle/cargo box door handle | Chrome plated | √ | √ | √ | |
| Alloy hub | Machining bright surface | X | √ | X | |
| Silver paint | √ | X | √ | ||
| Front bumper | Body color | √ | √ | √ | |
| Rear bumper | Chrome plated | X | √ | X | |
| Black plastic paint | √ | X | √ | ||
| Safety | Double airbags | √ | √ | √ | |
| ABS+EBD | X | X | optional | ||
| ABS+EBD+ESP | √ | √ | √ | ||
| Tire pressure monitoring system | X | √ | X | ||
| Body color rearview mirror+electronically adjusted+turning lamps(LED) | √ | √ | √ | ||
| Interior antiXdizzle rearview mirror | √ | √ | √ | ||
| Electronically adjusted front headlamp | √ | √ | √ | ||
| Front fog lamp | √ | √ | √ | ||
| Front fog lamp(chromplated décor cover) | X | √ | X | ||
| Rear fog lamp | √ | √ | √ | ||
| LED daytime running light | X | √ | √ | ||
| Rearview camera | optional | √ | optional | ||
| Parking sensor | optional | √ | √ | ||
| Front safety belts (three points +hight adjustable) | √ | √ | √ | ||
| SecondXrow safety belt (three points) | √ | √ | √ | ||
| Engine underguard(resin) | √ | √ | √ | ||
| Child safety lock | √ | √ | √ | ||





Hunan Fuda Machinery Co.,Ltd, is an experienced automobile company in the market specialized in all kinds of automobile sales and services, it’s one of the biggest automobile distributor & exporter in Hunan province, China.





Q1: What are your main products?
A: Full range commercial vehicles & special purpose vehicles under CBU/CKD/SKD/IKD conditon.
Q2: Why we choose your brand?
A: High quality product, high fuel economy, extremely reliable commercial vehicles with the most competitive price.
Q3: Where can we get the service and spare parts?
A: As an international famous brand, you can get the service & spare parts anywhere.
Q4: What are your trade terms?
A: FOB/CIF/DAF/others.
Q5: What is the delivery time?
A: Usually it takes 30 working days, but some models need longer time.
Q6: What are the accepted payment terms for you?
A: T/T,L/C, OA , cash or others.
Q7: Why do we buy from you?
A: We have more then 15 years of vehicles exporting experience in the market, and can supply you full range of commercial vehicles and passenger vehicles, as well as all the spare parts.
Q8: Do you have overseas after sales service?
A: Yes, we have our assigned after sales service center in many countries, you may consult with us specifically.
