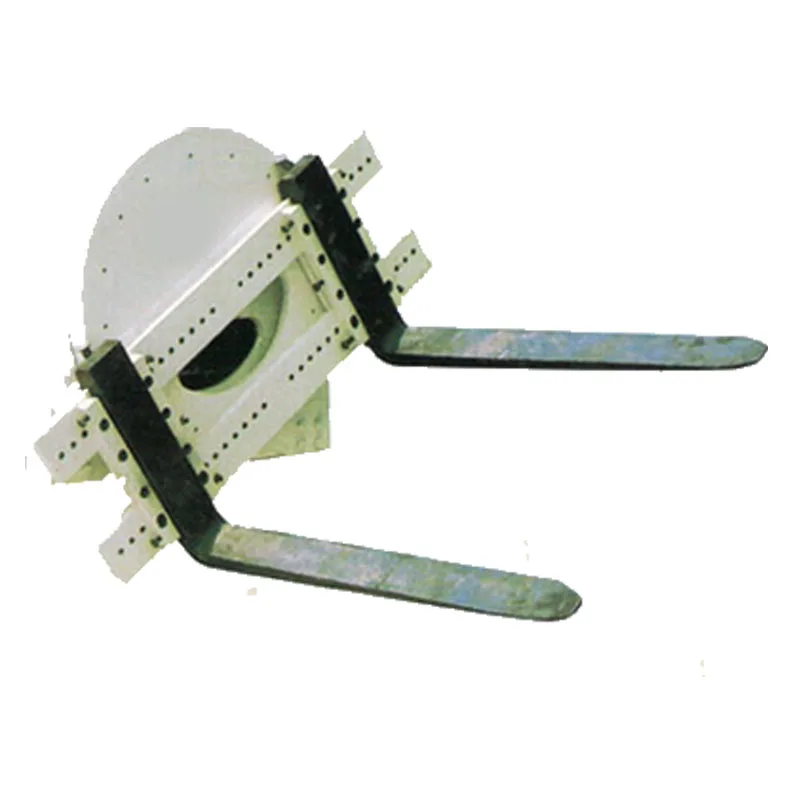

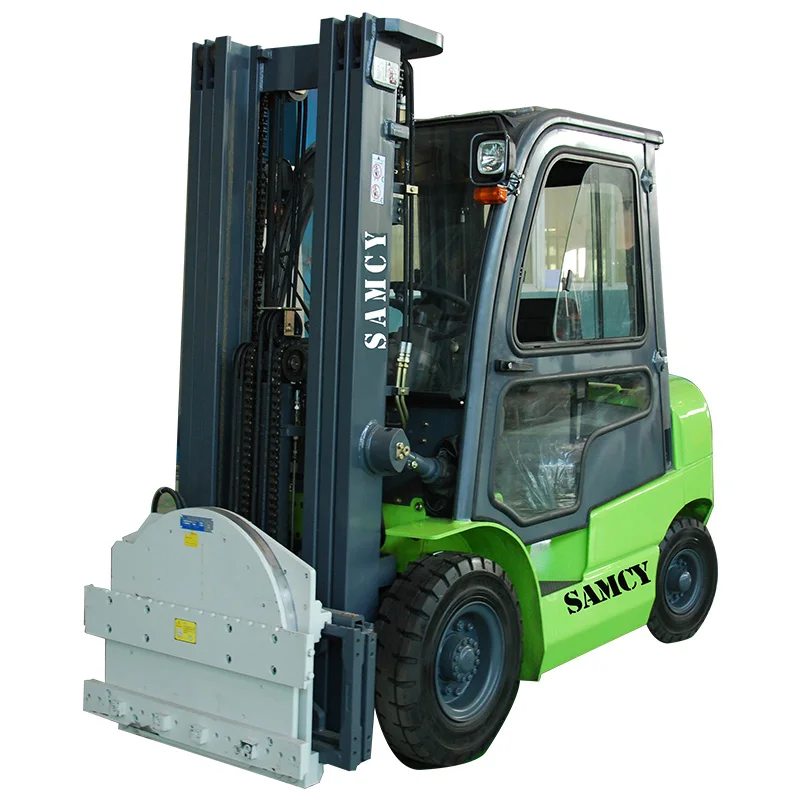

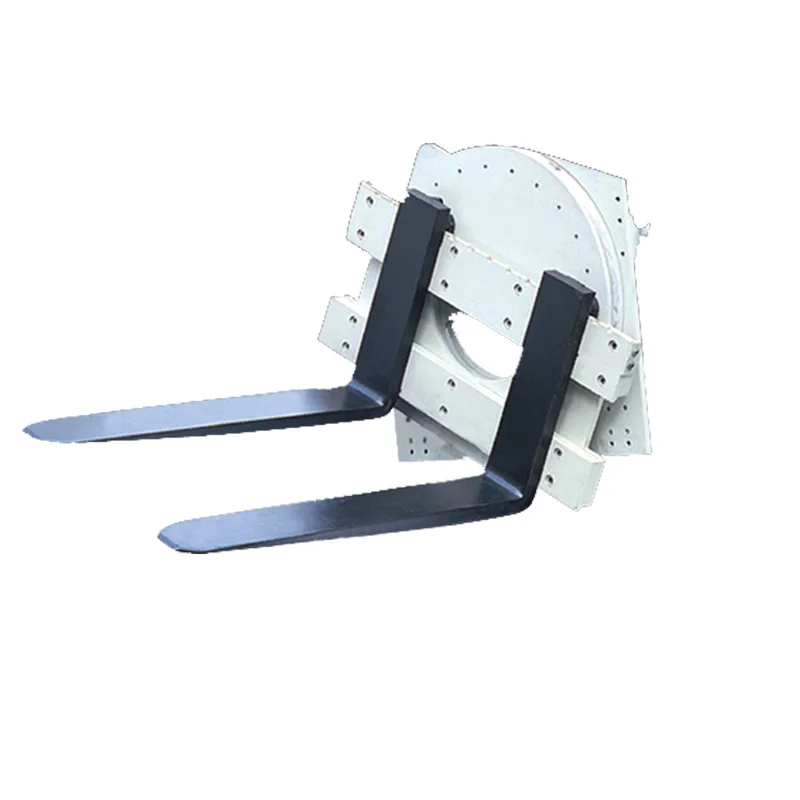

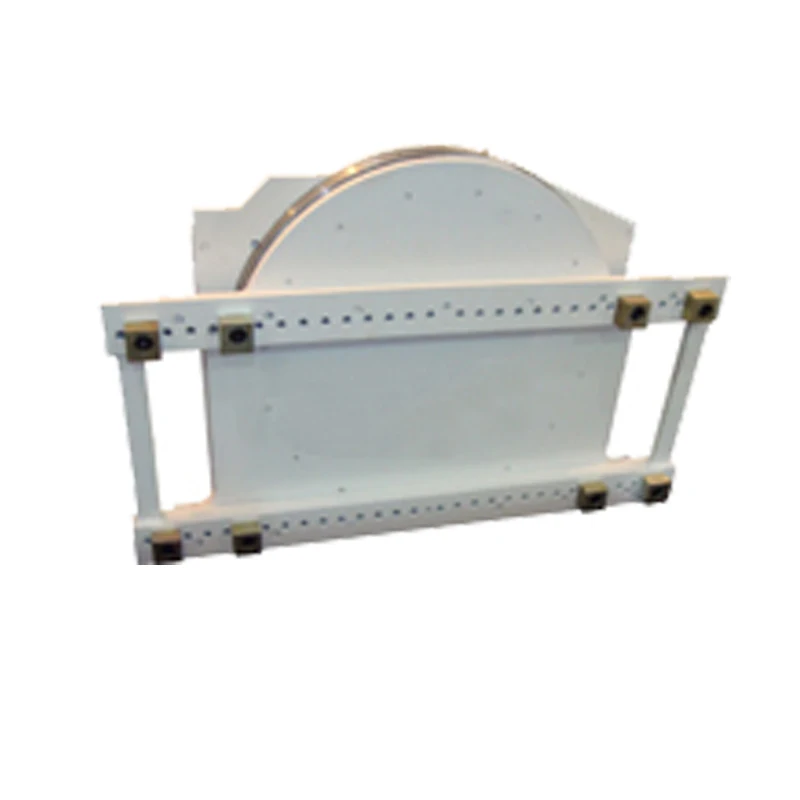

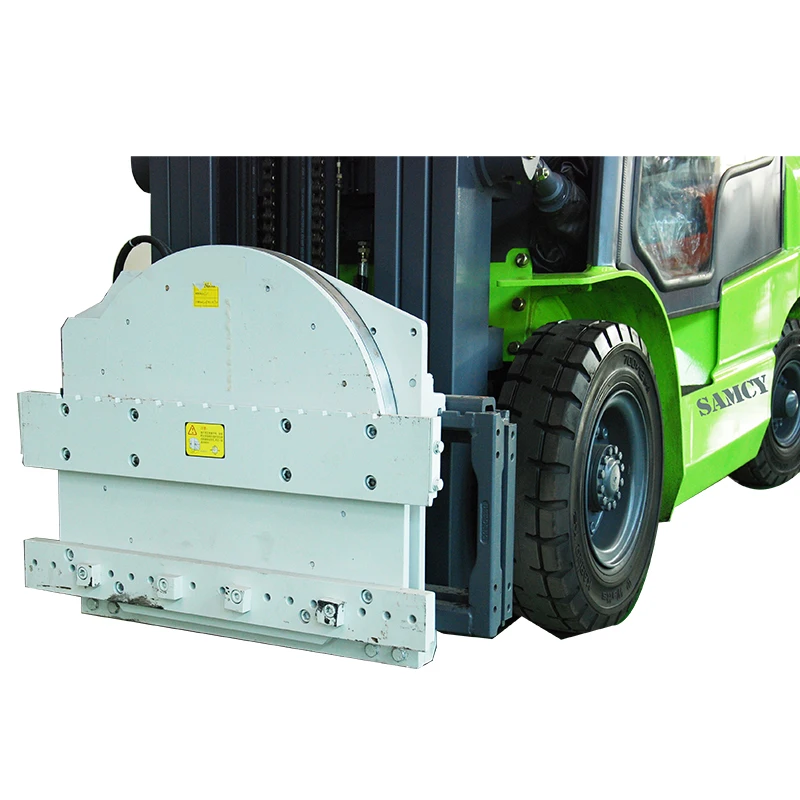

Attachment SAMCY Forklift Rotator
- Category: >>>
- Supplier: Wuxi Samcy Equipment Co. Ltd.
Share on (62390695778):
Product Overview
Description
Applications:
Rotating fork clamps enable a forklift to carry out huge range of materials handling tasks and Sattach offers a very wide range of models from 800kg to 8000kg capacity. From standard pallet handling, to tipping of bins or picking up bales, a rotating fork clamp has many uses.
Features:
- Good visibility
- Forks welded to the clamp for better retained capacity and longer life
- Robust and rugged design
- Class II, III, IV or pin mounting
Options:
- Variety of opening ranges
- Bolt-on forks
- Semi-integral sideshift
- Variety of fork lengths
- Slip on arms for lifting special product such as drums
- Weld on bale arms instead of forks see page C3
- Hose reels, solenoid valves and buttons for easy hydraulic installation
Specifications:
| Capacity@Load Center(kg@mm) | Modes | Mounting Class | Opening Range(mm) | Arm Height(mm) | Arm Length(mm) | Frame Width(mm) | Height(mm) | Weight(kg) | Effective Thickness(mm) | Horizontal Center of Gravity(mm) |
| 1100@600 | CFS20D-001A | II | 435-1555 | 915 | 865 | 620 | 250 | 175 | 163 | |
| 1100@600 | CFS20D-002A | II | 435-1555 | 1065 | 865 | 620 | 259 | 175 | 191 | |
| 1100@600 | CFS20D-003A | II | 435-1555 | 1220 | 865 | 620 | 268 | 175 | 226 | |
| 1600@600 | CFS20D-004A | II | 410-1660 | 915 | 940 | 620 | 295 | 180 | 168 | |
| 1600@600 | CFS20D-005A | 11 | 410-1660 | 1065 | 940 | 620 | 306 | 180 | 198 | |
| 1600@600 | CFS20D-006A | II | 410-1660 | 1220 | 940 | 620 | 328 | 180 | 231 | |
| 2300@600 | CFS30D-001A | II | 465-1810 | 915 | 1015 | 915 | 401 | 208 | 173 | |
| 2300@600 | CFS30D-001B | III | 465-1810 | 915 | 1015 | 915 | 422 | 216 | 168 | |
| 2300@600 | CFS30D-002A | II | 465-1810 | 1065 | 1015 | 915 | 420 | 208 | 203 | |
| 2300@600 | CFS30D-002B | III | 465-1810 | 1065 | 1015 | 915 | 438 | 216 | 201 | |
| 2300@600 | CFS30D-003A | II | 465-1810 | 1220 | 1015 | 915 | 435 | 208 | 226 | |
| 2300@600 | CFS30D-003B | III | 465-1810 | 1220 |
