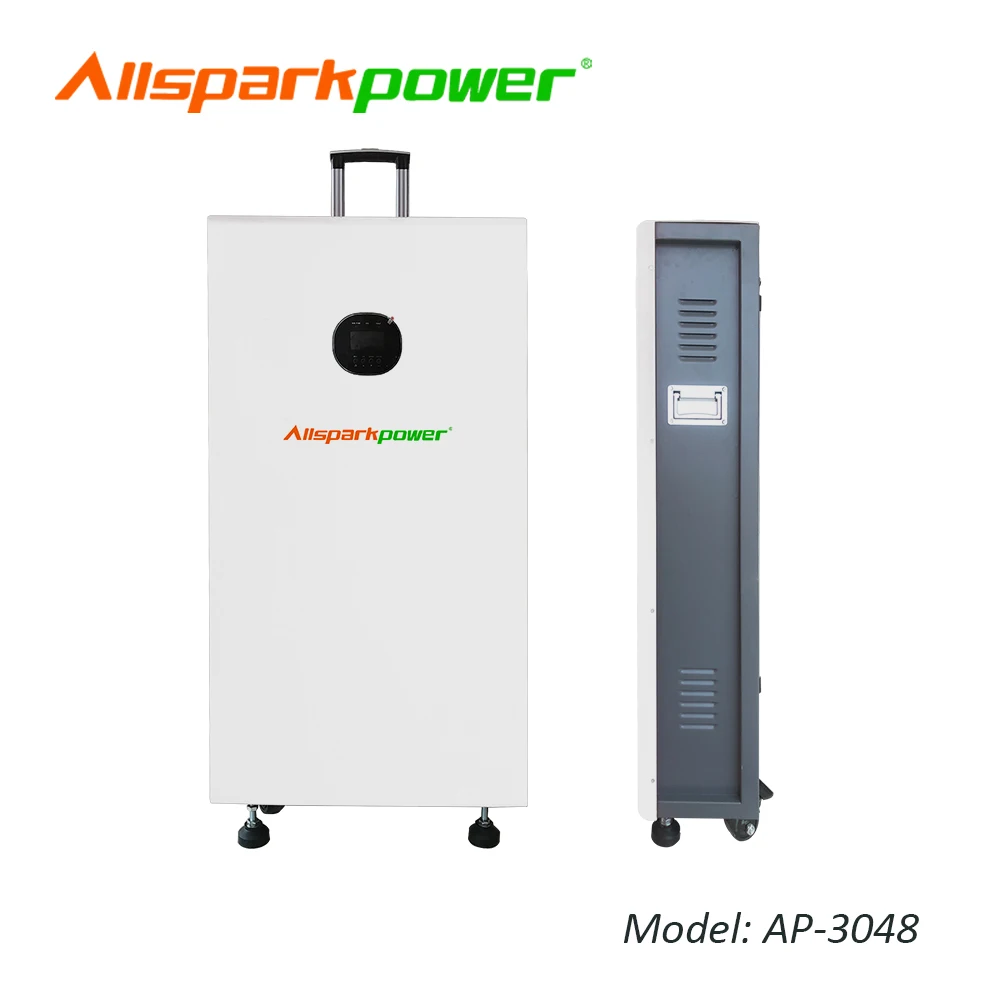

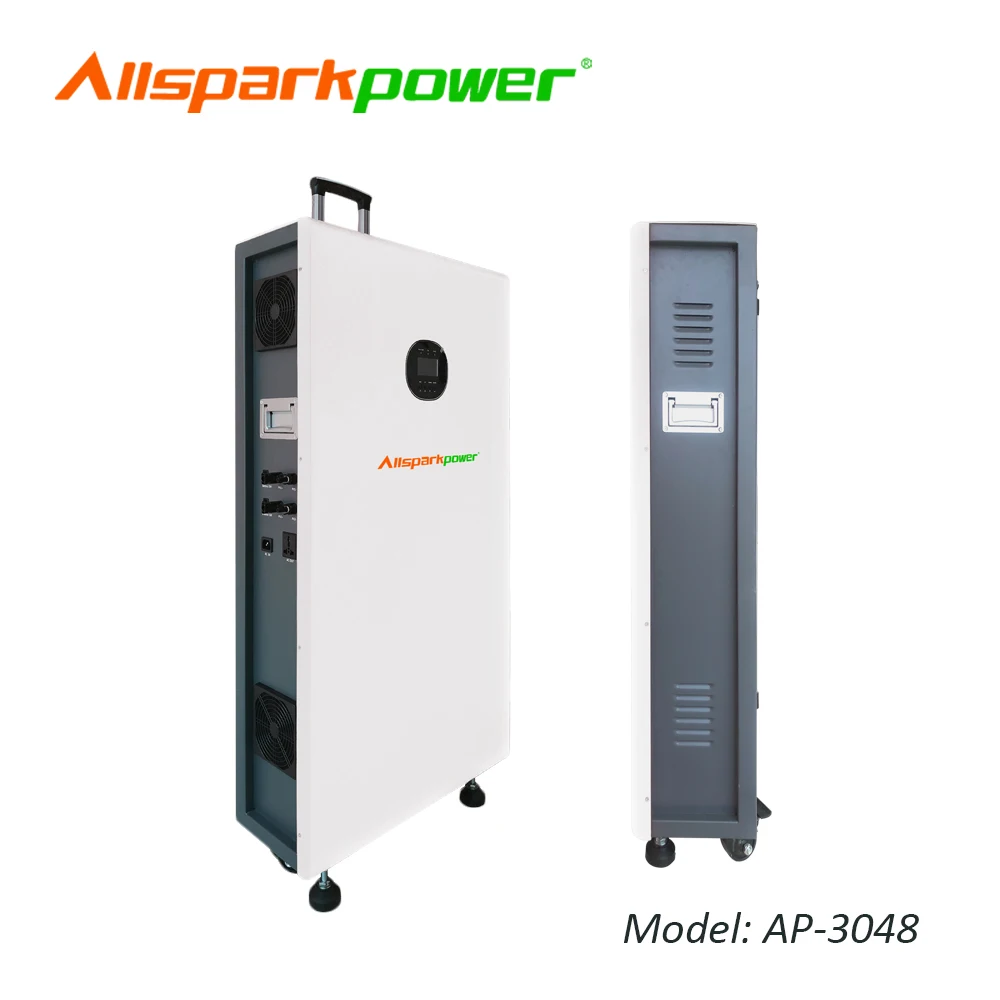

5kwh 8kwh 10kwh solar system Lithium Battery Power Wall Mechanical Design Tesla Replace

Product Overview

Description

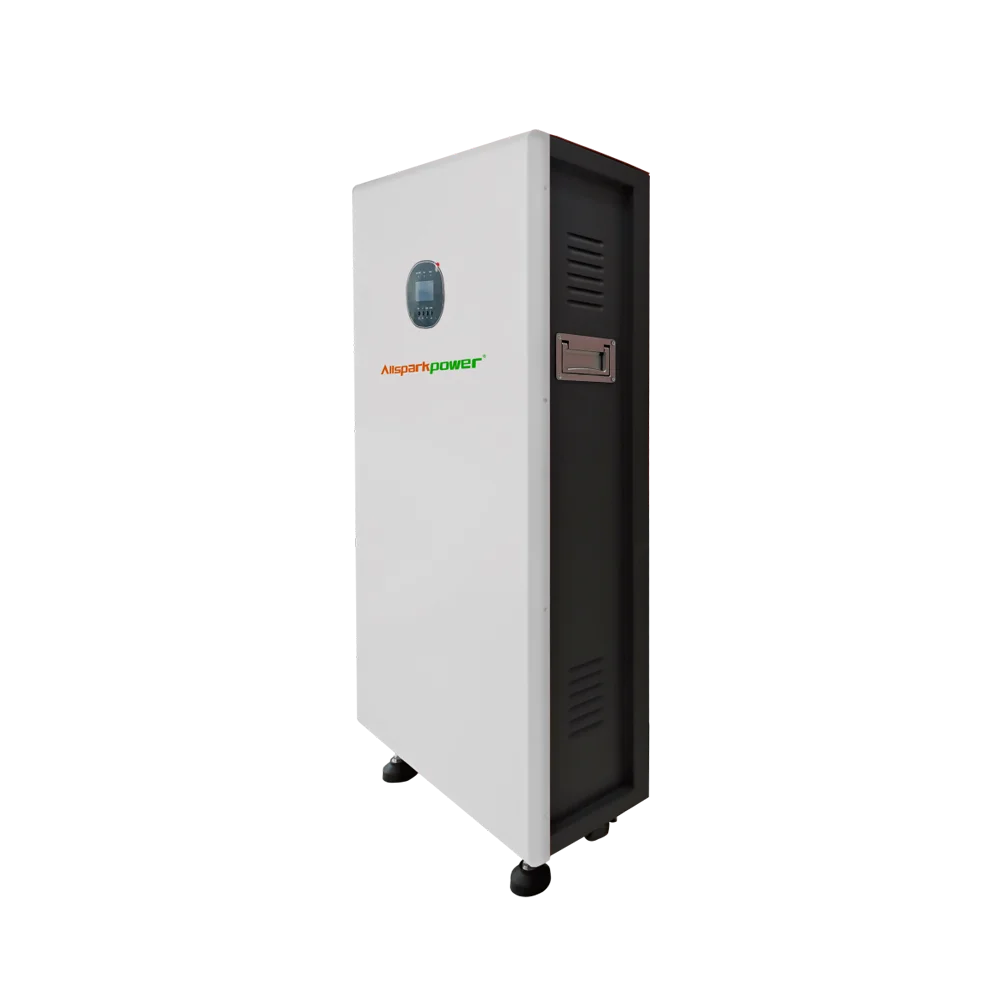

 5kwh 8kwh 10kwh solar system Lithium Battery Power Wall Mechanical Design Tesla Replace

Ø Energy saving

 Reduce your electricity bill, if your utility offers a time-of-use rate plan.

Ø Home energy control

Manage and control your home energy use our mobile App.



Storing Solar Energy or Grid Electricity, 5 kwh Power Storage Capacity For daily and back-up using



Off-Grid Solar Energy System Allspark Power is a home battery that stores solar energy so you can use it on demand and self-power your home to reduce your reliance on grid electricity. With Allspark Power, you are assured of energy security and a clean energy lifestyle.



Off-Grid Solar Energy System Allspark Power automatically provides backup power in the event of grid outage or easily integrates with solar to ensure your home is powered 24/7.



Allspark Power is an integrated system including photovoltaic power generation, energy storage, home energy management and energy efficiency management system.





Allspark Power -1 is a fully-integrated AC battery system for residential use which has an average 5/10kwh daily electricity consumption. Its rechargeable lithium-ion battery pack provides energy storage for solar self-consumption, load shifting and backup power.

Allspark’s electrical interface provides a simple connection to any home or building. Its revolutionary compact design achieves higher energy density and is easy to install and transport, enabling owners to quickly realize the benefits of reliable, clean power.

Model		Allspark Power-1
AC Voltage (Nominal)		208V, 220V, 230V, 277V,100/200V, 120/240V
Feed-in Type		Single & Split-Phase
Storage Ability		4.8kwh
Max Solar input		2.4kwp
Continuous Output Power		3 kw
Peak power		4 kw  (discharge only)
Weight		84 kg
Size(L*W*H)		550*234*1038 mm
Output Voltage		230 vac (charge and discharge)
Imbalance for Single-Phase Loads		100%
Power Factor output Range		+/- 1.0 adjustable
Battery DC voltage		48V
Depth of Discharge		90-100%
Operating Humidity(RH)		Up to 100%, condensing
Operating Temperature		-20℃-50℃ / -4°F~122°F
Storage Temperature		-30℃-60℃ / -22°F~140°F
Maximum Altitude		2000m
Ingress Rating		IP 65
Noise Level @1m		<40 dBA at 30℃
Certificates		CE, MSDS, UN38.3 ISO:9001
Mounting Options		Floor or wall mount
Warranty		10 years
Packaging		Export Carton
MOQ		1





Applications:

1. Home Energy Storage

2. Outdoor Camping

3. Outdoor Party

4. Outdoor Room

5. Electro car Charging

6. Motor Home Power Supply

7. Mobile power station: 300 sets mobile charging at the same time. 500 sets mobile at least One day can charge at least

8. Outdoor Rescue

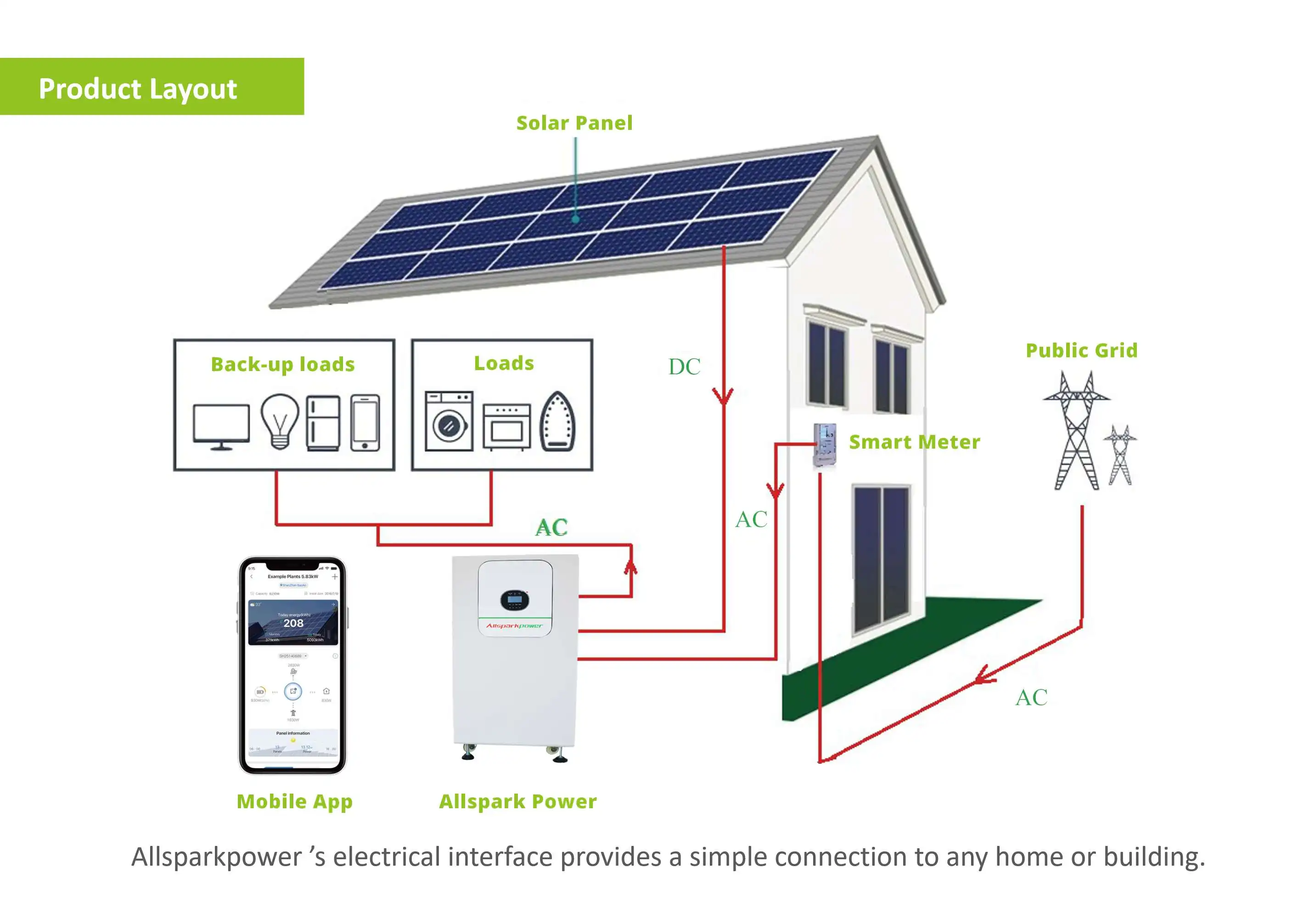

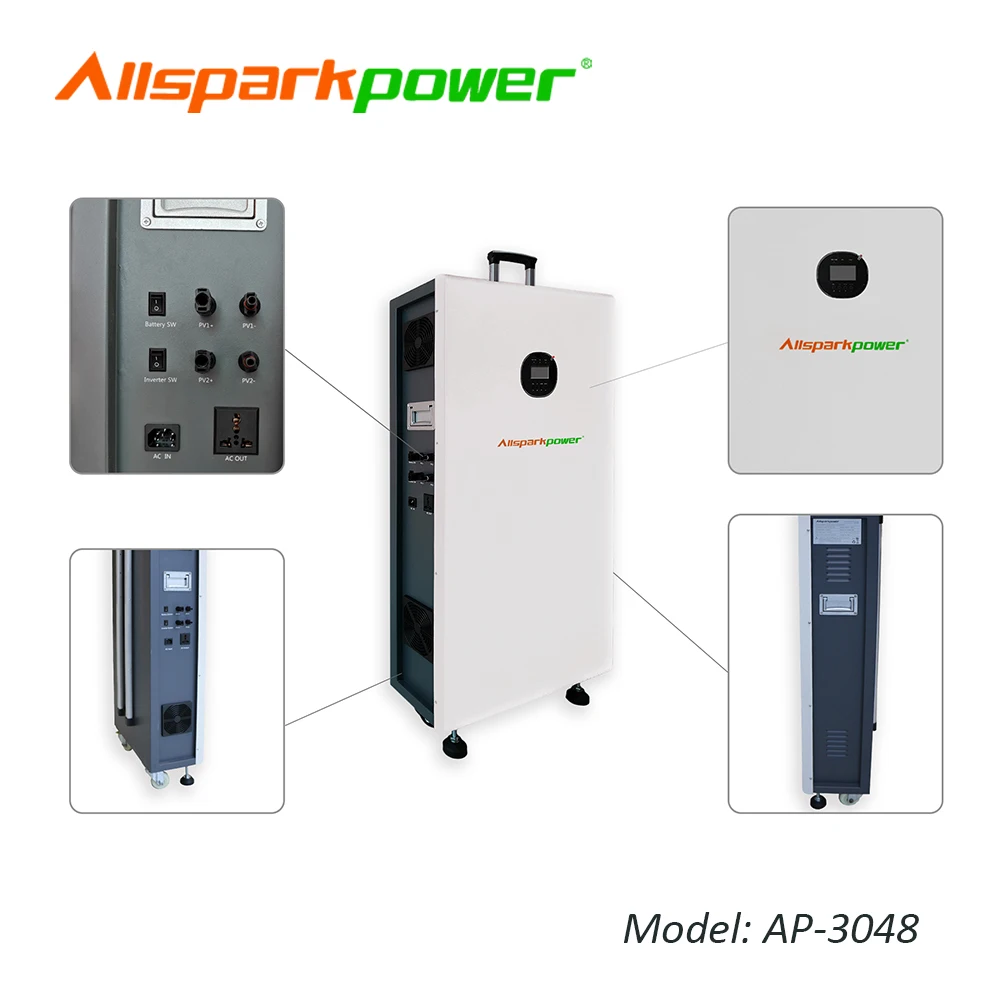

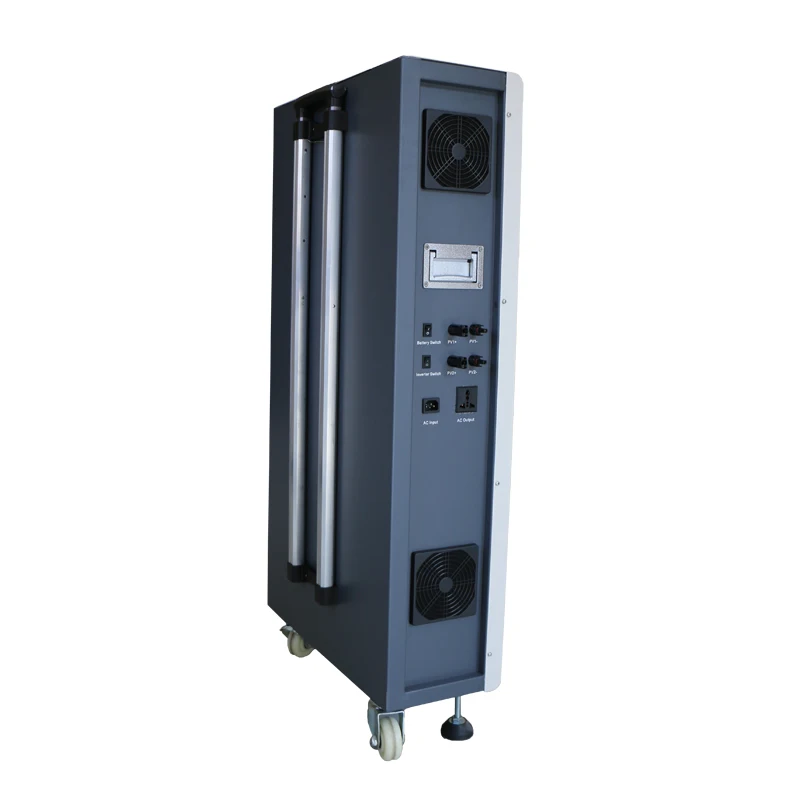

Allspark Power Interface











Why choose us

1. Rich experienced.

Our company has over 15years experience in solar powered system. if you have problem, we can solve it by the fastest speed.



2. Advanced technology.

We have the most advanced R&D team to make sure each product are in best performance, including home solar powered system,solar street light, solar garden light, led street light etc.



3. Quality

10 years Warranty



4. Competitive Price and safe payment

Base on the same quality, we can guarantee you the best price in China.



5. Delivery time.

We guarantee the delivery time as the contract without delay.



6. After-sale service.

We have experienced after-sale service team. We promise to give you a satisfied answer within 24h.
