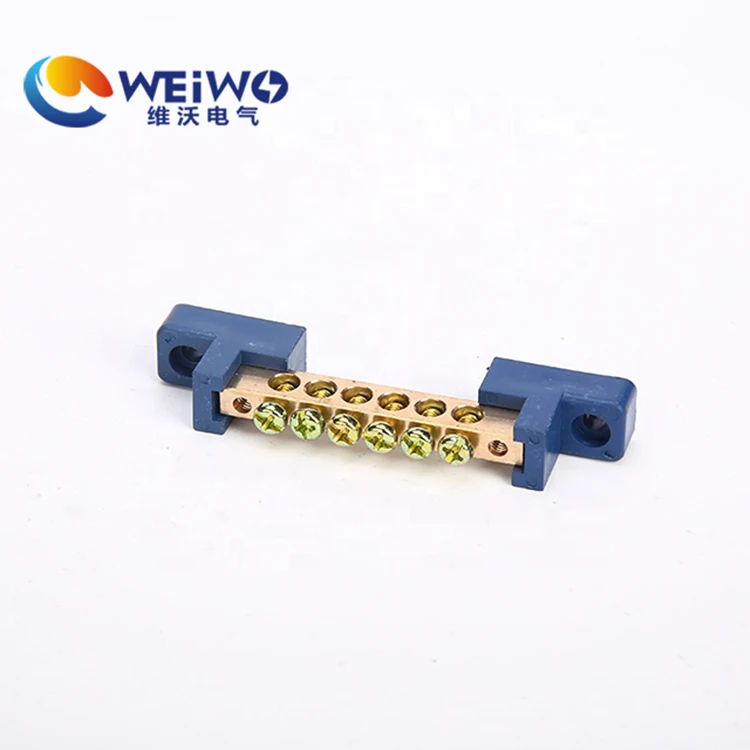

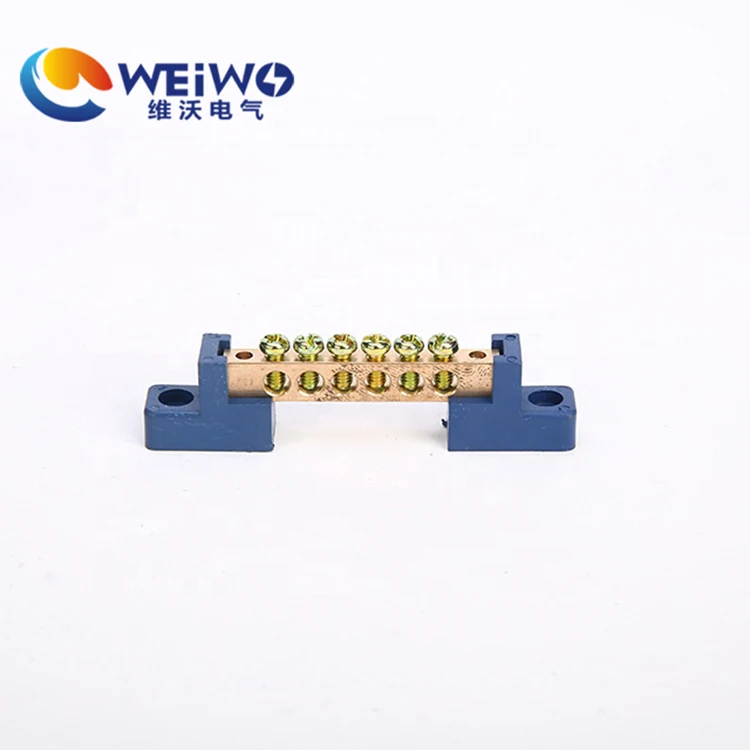

6ways terminal block earth bar with cover contacts

Product Overview

Description

6ways terminal block earth bar with cover contacts



Material



• PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature:  -30°C to 110°C

• ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C

• Brass, screw:  iron plated zinc

• Voltage:  250V-450V

• Color:  according sample picture or customized



Specifications

Way	Spec.	L	L1	L2	H	W	Φ	Screw Size	Plastic Setting
	W*h	mm
6	6*9	53.5	85	72.5	22	12.5	5	M4*7	ABS.PE
7	6*9	60	91.5	79	22	12.5	5	M4*7	ABS.PE
8	6*9	66.5	98	85.5	22	12.5	5	M4*7	ABS.PE
10	6*9	79.5	111	98.5	22	12.5	5	M4*7	ABS.PE
12	6*9	92.5	124	111.5	22	12.5	5	M4*7	ABS.PE

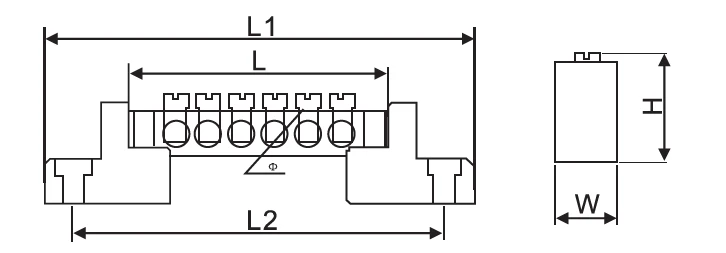

Drawing:



Package:







Certificates:



Exhibition :



1) High precision



2) Excellent inoxidability



3) Great ingredient accuracy and high intensity



4) High corrosion resistance



5) Our own mold workshop and injection molding workshop



6) OEM Service



7) Prompt Delivery



8) Small Order Accept



9) Tolerance: ± 0.3mm



10) Free sample



11) Certificate: CE&RoHS&Others



Payment Term:
