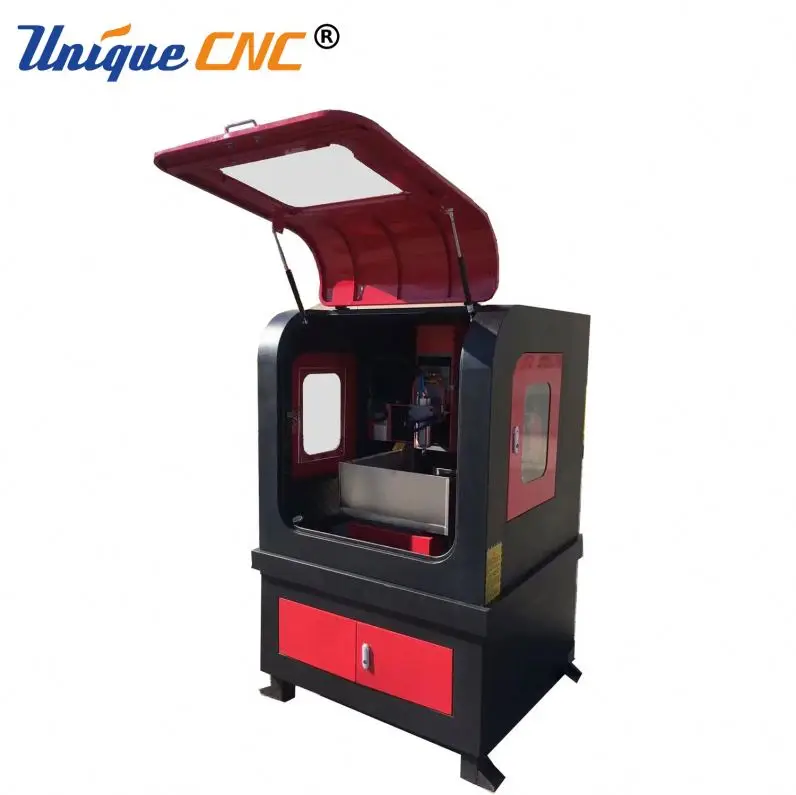

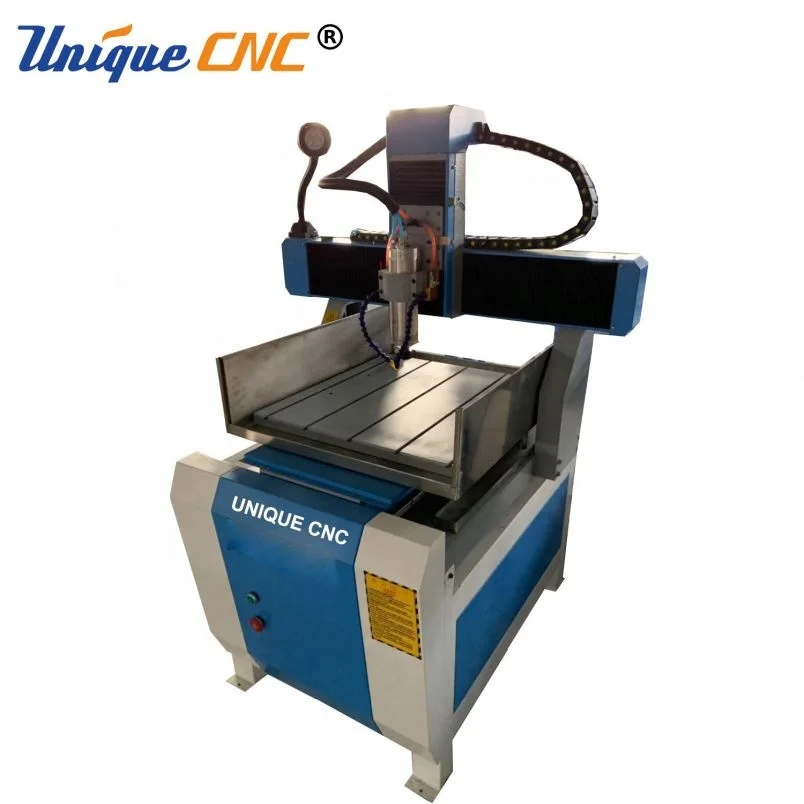

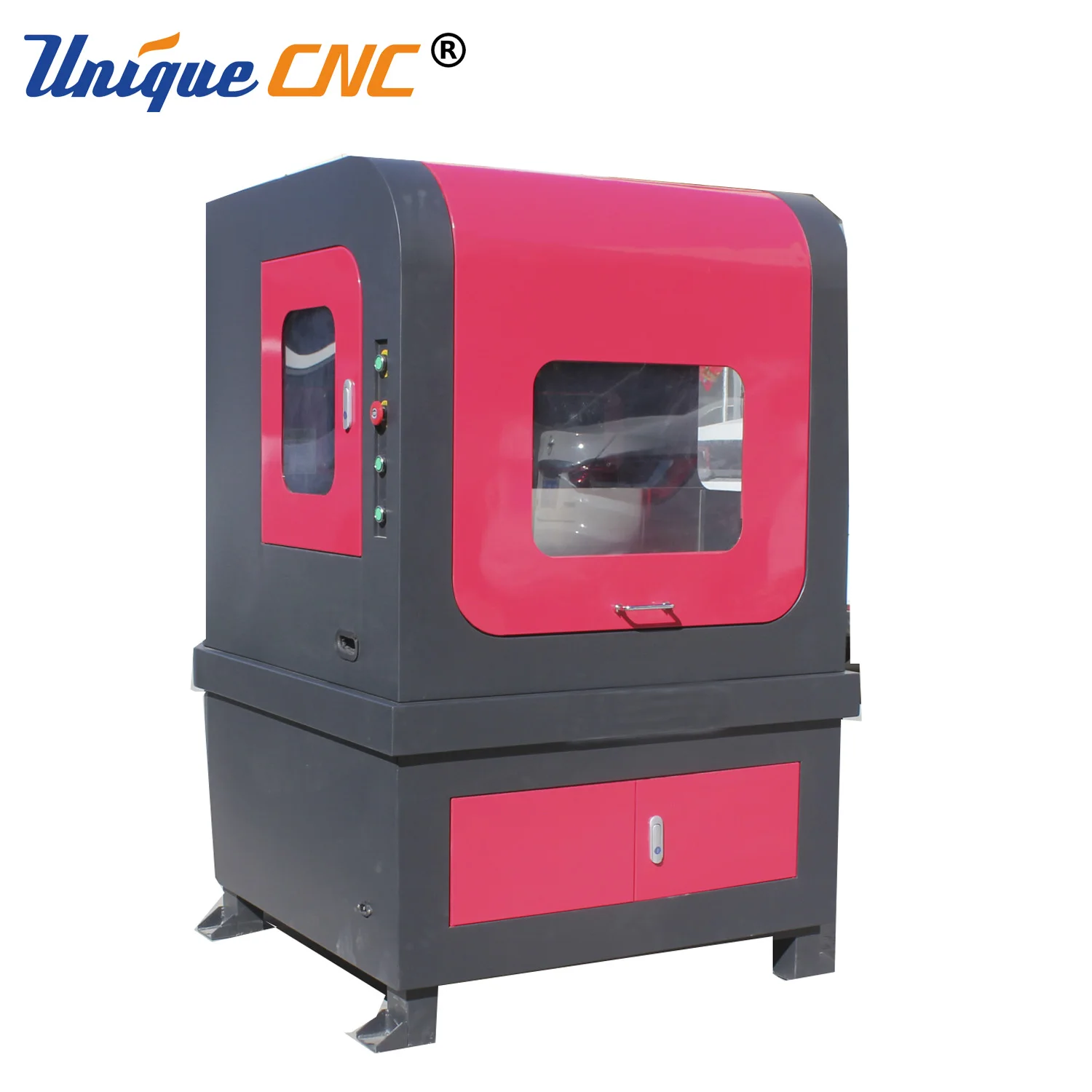

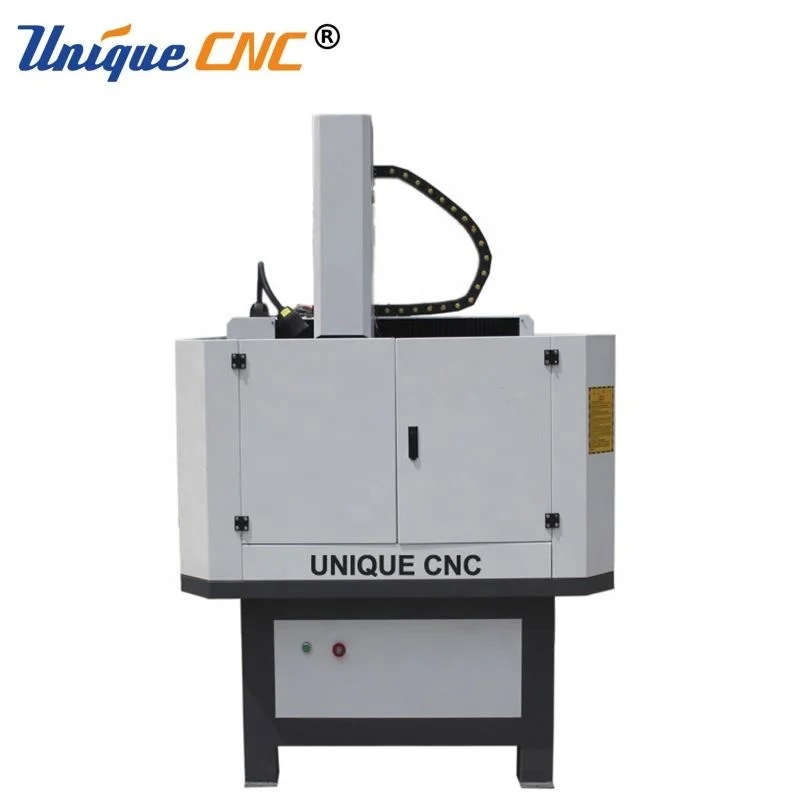

Semi closed heavy duty steel structure mould metal cnc router 3 axis cnc milling machine 4040 6060

Product Overview

Description

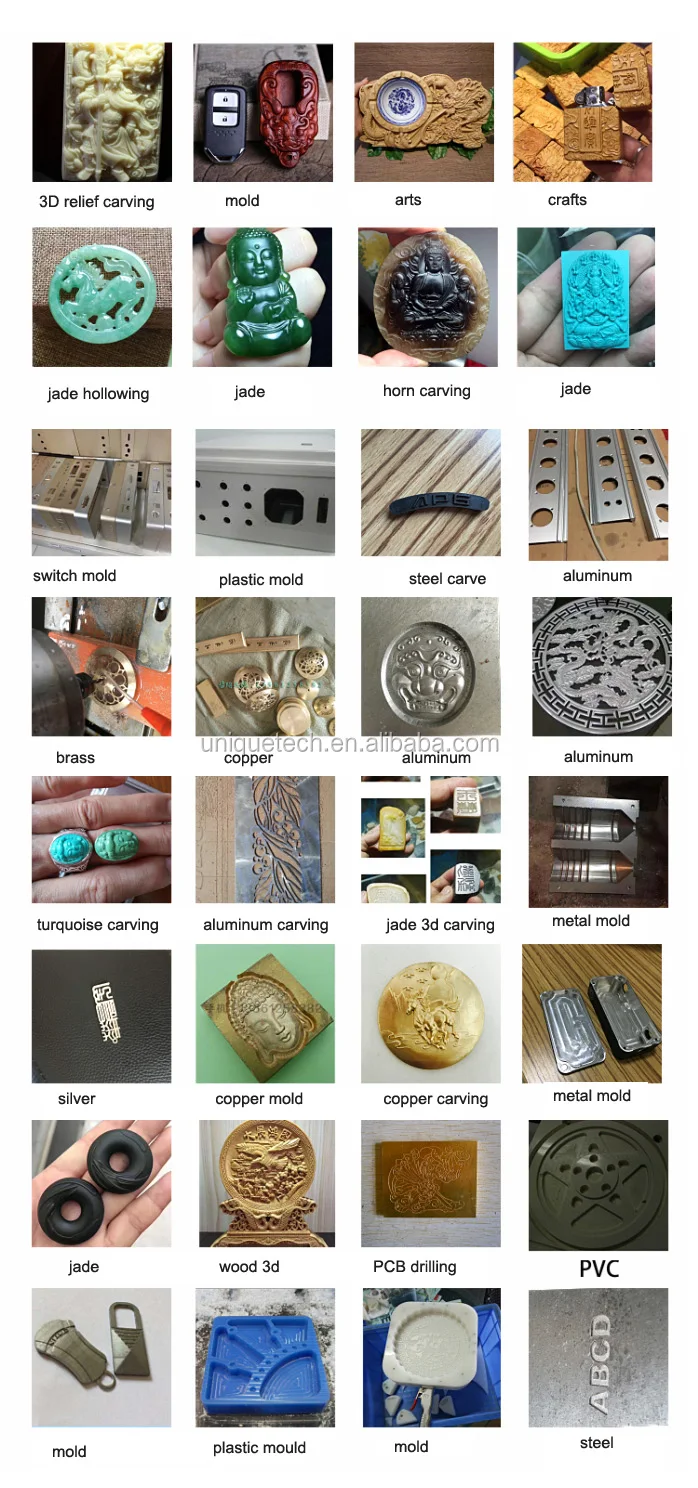

Application of China factory mini cnc metal router machine cnc milling machine price:

1.Metal 3D carving: aluminum,copper,brass,steel,sliver,etc.
2.Non-metal 3D carving: wood,acrylic,plastic,PVC,PCB,jade,stone,crystal,glass,etc.
3.Die and mold making.



Main features of China factory mini cnc metal router machine cnc milling machine price:

1. Professional spindle for metal processing.
2. Cast iron structure,heavy duty and stable.
3. X,Y and Z are all transmit by high precision ballscrews.
4. Taiwan made linear square guide rails for X,Y and Z.

5. Tool cooling system



Parameters of China factory mini cnc metal router machine cnc milling machine price:

No.	Description	Parameter
1	Model No.	U-R4040 metal mold cnc milling machine
2	X,Y,Z Area	400x400x200mm (200mm is feeding height, Z working area is 180mm).
3	Table Surface	T-slot table
4	Frame	Cast steel structure
5	X,Y,Z structure	Ballscrews
6	Spindle	2.2KW/3.2KW,water cooling, 3000-24000rpm, professional metal processing spindle
7	Inverter	3.7KW
8	Driving system	Leadshine brand hybride servo
9	Max.moving speed	6m/min
10	Max. Working Speed	3.6/min
11	Control system	Ncstudio/DSP/Mach3
12	Command language	G code
13	Working Voltage	AC220V/380V
14	Software Compatibility	Various CAM softwares
15	Tool cooling system	Yes
16	Lubricate system	Yes
17	Running Environment  Temperature	0-60 Centigrade
18	Relative Humidity	30% - 75%
19	Packing Size	1200x1200x1900mm
20	N.W.	500kg
21	G.W.	600KG

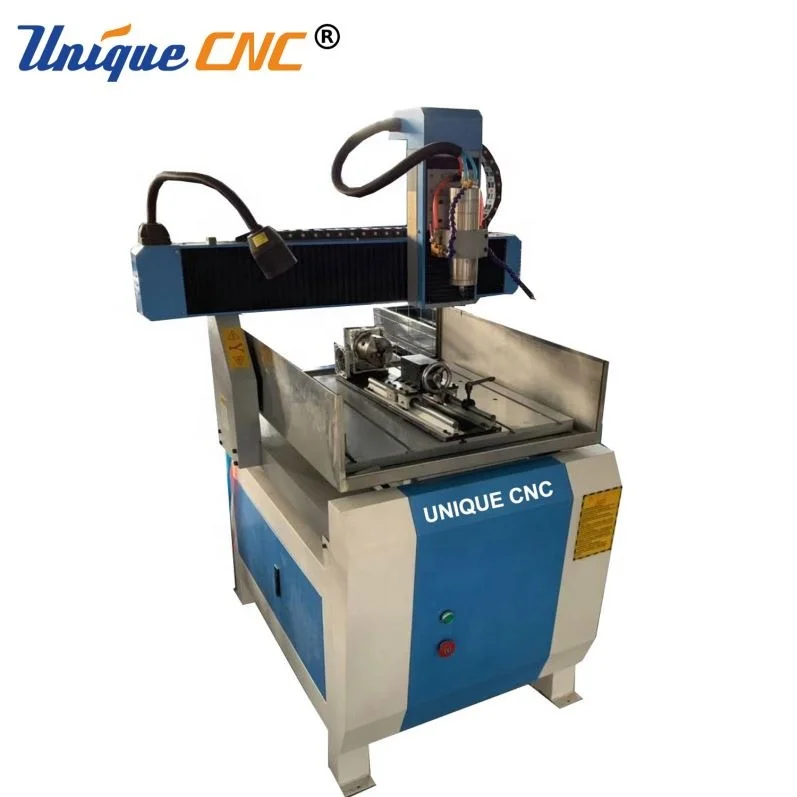

22	Optional parts/function	Rotary attachemnt for columns carving 2/3/4 heads, can process 2/3/4 products at a time



You may consider the following aspects when need a metal mold 3D carving cnc router:



 Service:
1. 6 months for the spindle, 2 years warranty for other parts.
2. Our engineers can go to your factory for install and training the machine.

3. 7*24 hours online service by whatspp,wechat,skype,teamviewer or by other way.
