Compress Rod Machine For Wood Sawdust And Biomass Briquetting

Product Overview

Description

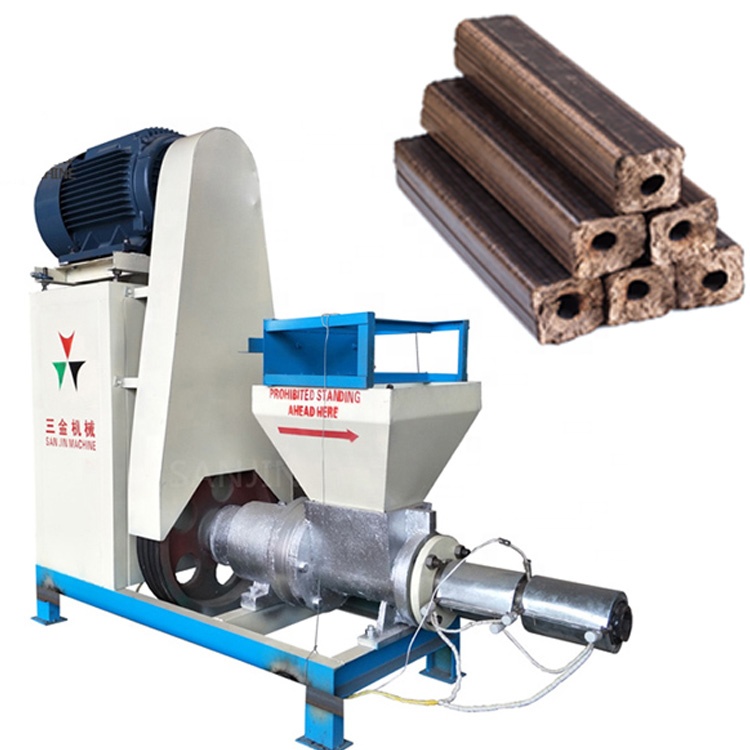

Factory direct supply wood sawdust block press machine

 Product Information

This machine is the main equipment to make stick  solid fuel with such wood materials as bits of wood, rice shells or peanuts shell not contain any additives etc. The raw material ( contain 8~12%) water dried by the dryer will be formed into fuel under high temperature and pressure.

Model	Power	Capacity	Weight	Material Humidity
50-9	18.5kw	120-220kg/h	550kg	8-12%
50-10	22kw	260-320kg/h	700kg	8-12%
50-C	22kw	350-420kg/h	750kg	8-12%
70-9	18.5kw	280-340kg/h	780kg	8-12%
80-9	18.5kw	380-450kg/h	980kg	8-12%

 Working Principle of Rice Husk Sawdust Briquette Making Machine

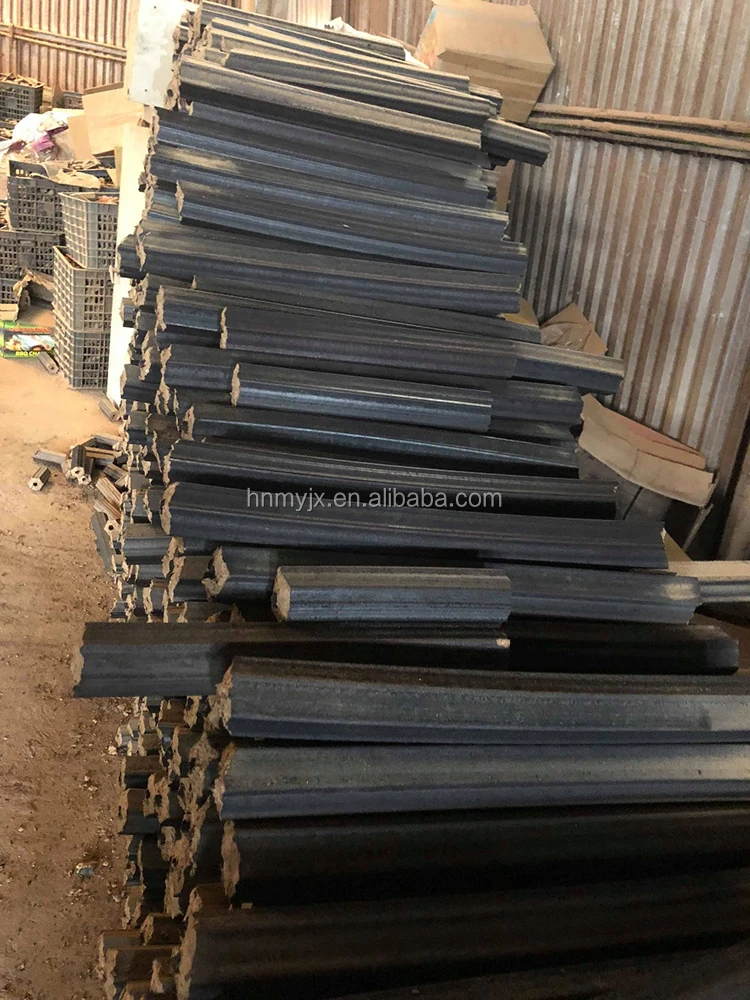

Woring Principle of Wood Sawdust Briquettes Machine is using screw propeller's high pressure and heating ring's high temperature, compress and extrude loose biomass into high density and small  volume wood briquettes.

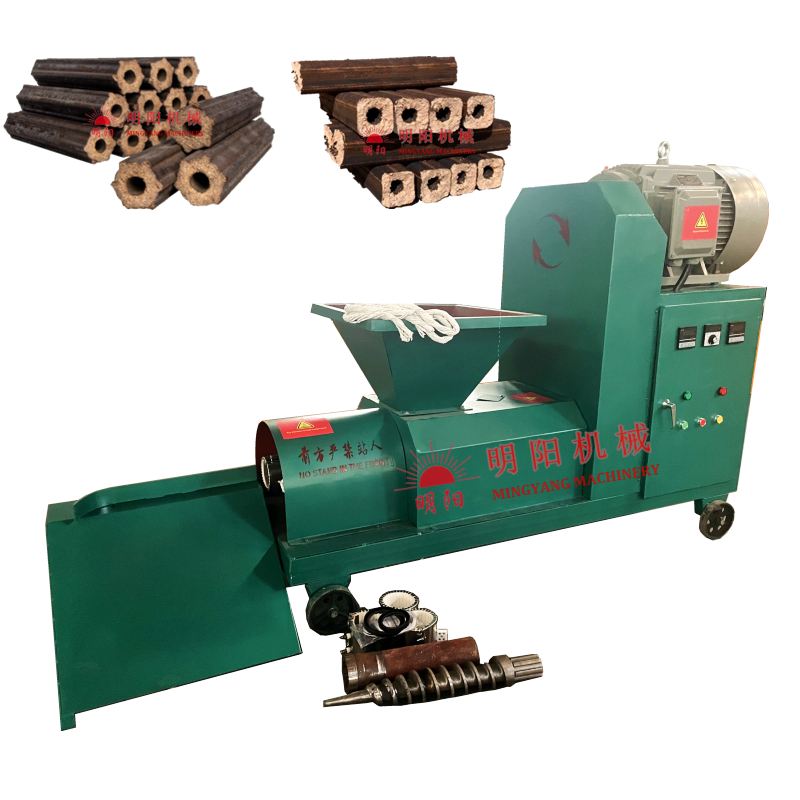

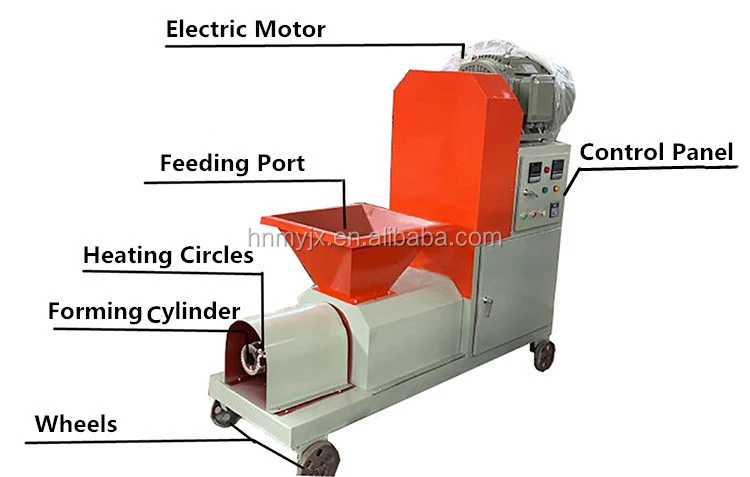

Main Parts of Briquette Machine

Forming of Tube: special casting steel, inner barrel boron treatment,continuously use for more than 5 months.
Accessories: with a large factory of  welding  rod joint development of this special mechanism of carbon electrode welding process simple ,hardness up to more than 75 degrees ,and solved the crack resistance, don’t need preheat and weld directly.

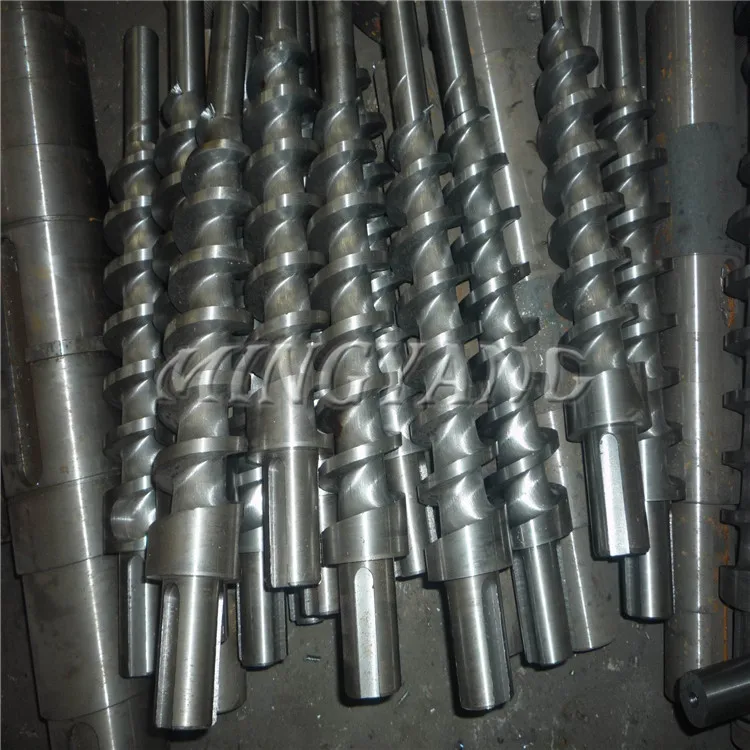

Propeller: advanced design,high speed of producing rod ,high density,high resistance to wear,one welding time can work continuously for more than 30 hours.



The Raw Material of Briquette Machine

Almost any biomass can be briquetted,then carbonized Briquetting plants set so far are using Saw Dust, Bamboo dust, Bagasse, Cotton Stalk, Coffee husk, Groundnut Shell, Mustard Husk/Stalk, Pine Needles, Rice Husk, Sugar Mill Waste, Jute waste, Coir pith and other wastes & residues like Castor Shell, Red Gram Stalk, Tobacco stem, Tea Waste, Sander Dust, Tree Bark, Wild Grasses & Shrubs and Sander dust.These material can also be briquetted individually or in combination without using any binder.



Company Profile

   Gongyi Xiaoyi MingYang Machinery Plant which was founded in 1988,  is a manufacture of new energy-saving environmental protection equipment.

   In the twenty years of development, our factory brings together elte of this field, and use professional technics to build the equipment. "Ming Yang Machinery" from a single charcoal machine and equipment to production equipment series, with three series of more than 30 machinery products. Have exported to britain, Russia, Sweden, Malaysia, Indonesia,Vietnam and other countries, more than 30 countries and regions.

    Manufacturing quality products for industy, and create value for society!

    Gongyi MingYang Machinery warmly welcome new and regular customers to visit and guidance.
