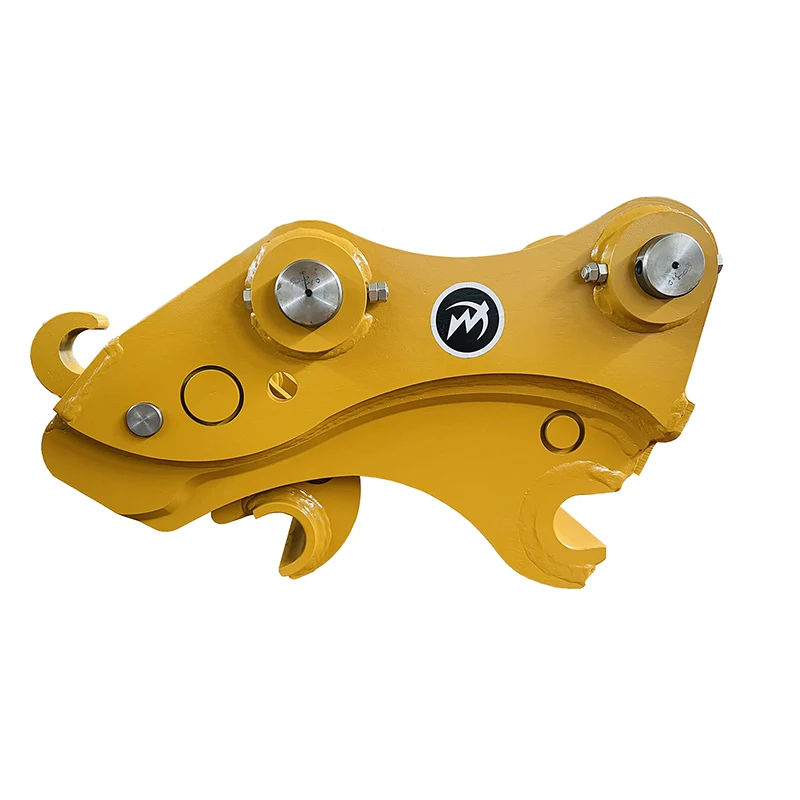

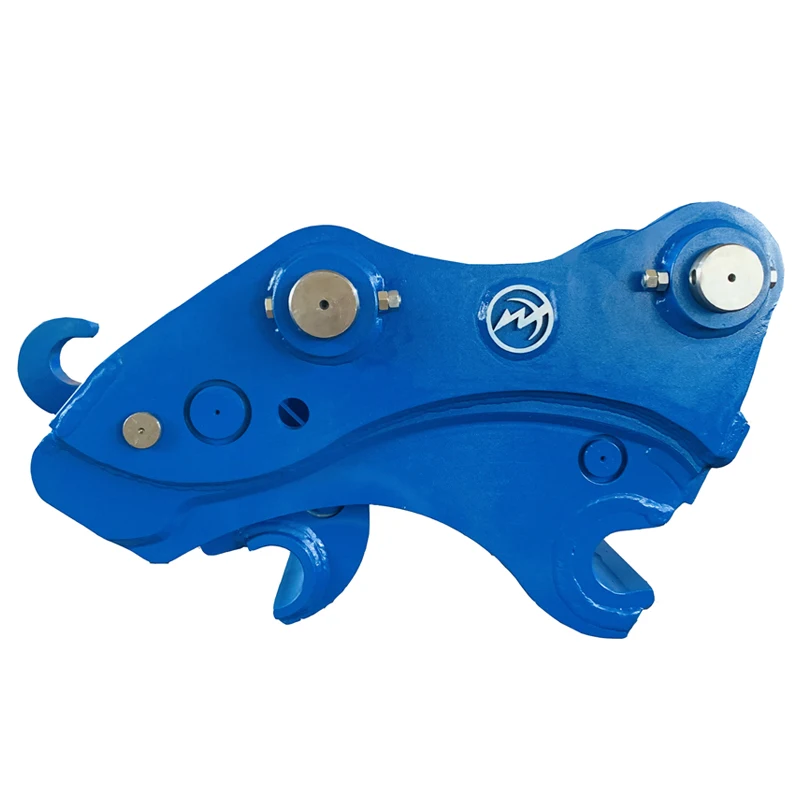

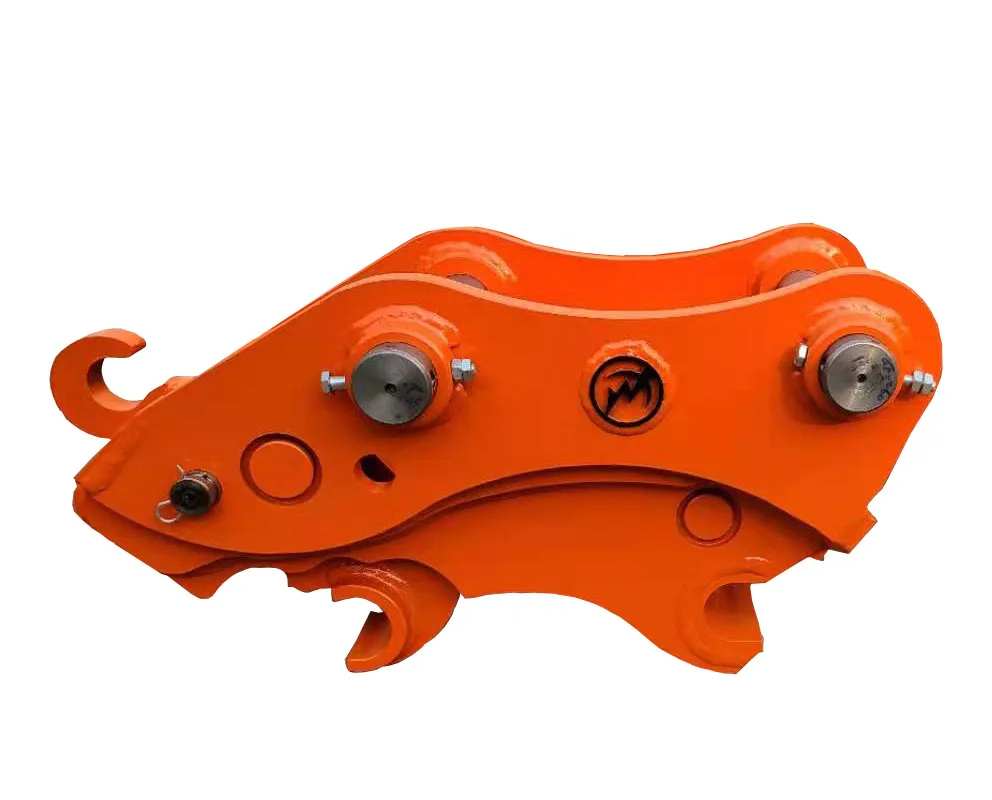

Weixiang, гидравлический быстроразъемный соединитель, Быстроразъемное соединение для экскаватора 1,5 30 тонн
- Category: Quick Hitch >>>
- Supplier: Yantai Weixiang Building Engineering Machinery Equipment Co. Ltd.
Share on (62390897198):
Product Overview
Description

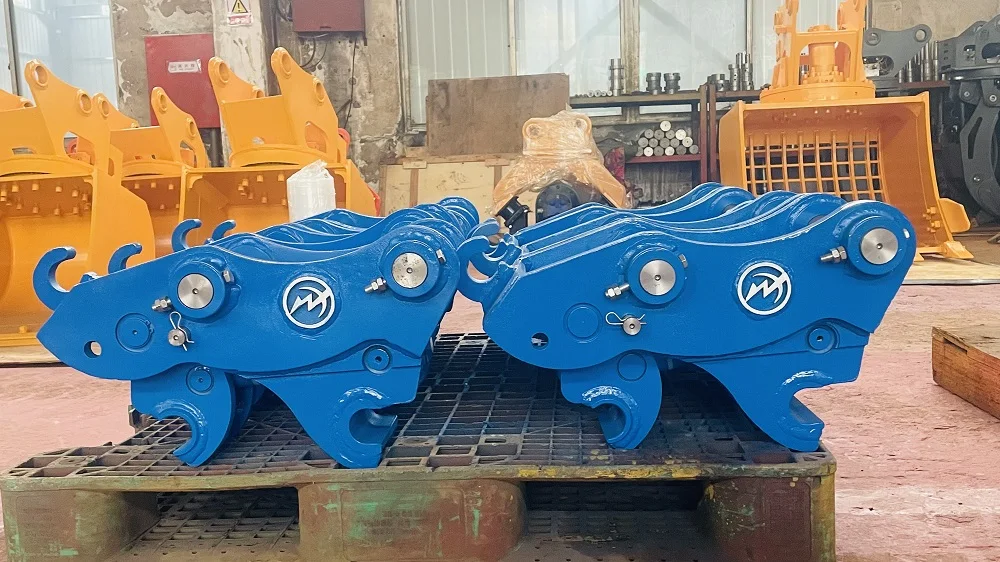

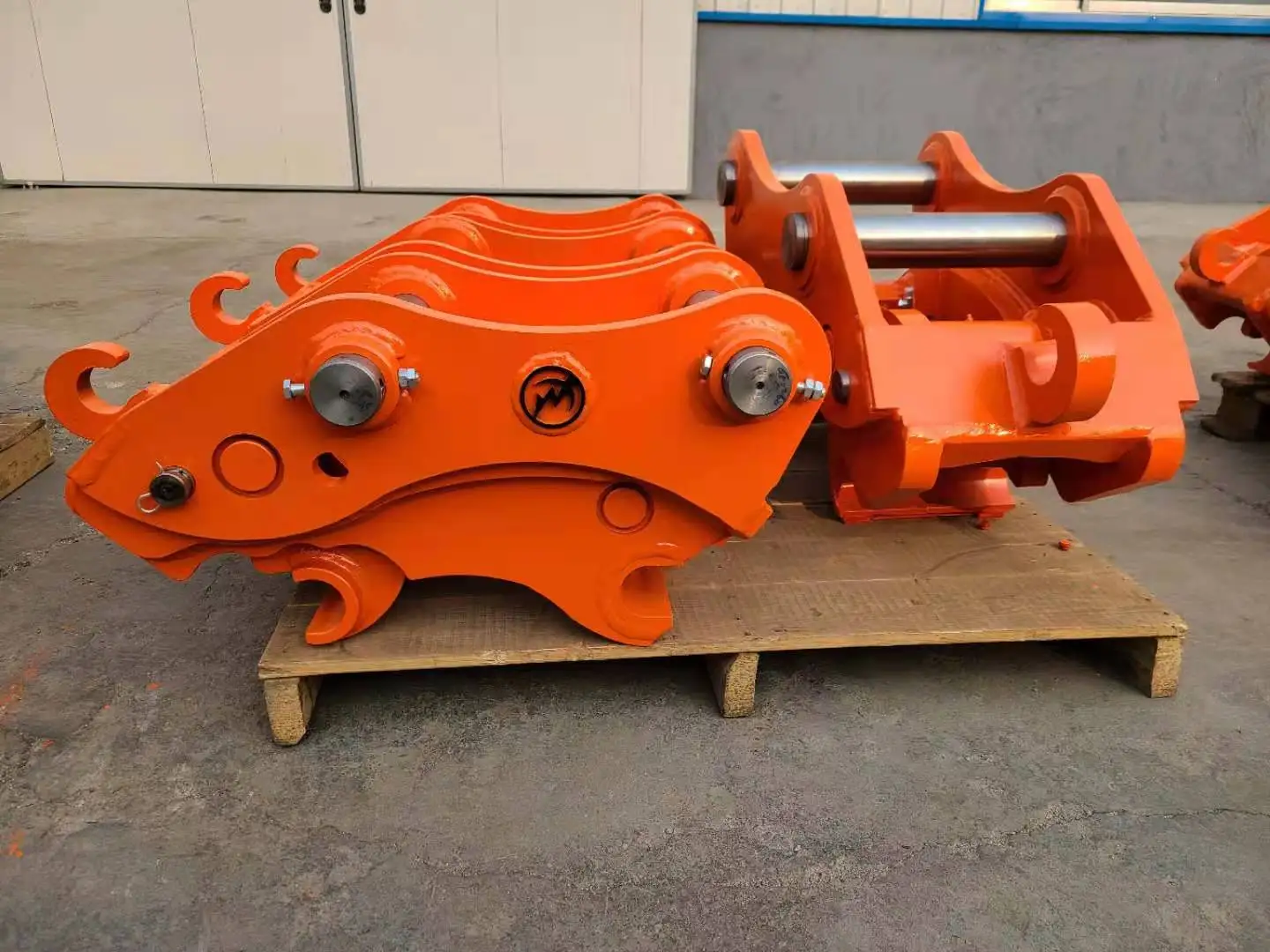

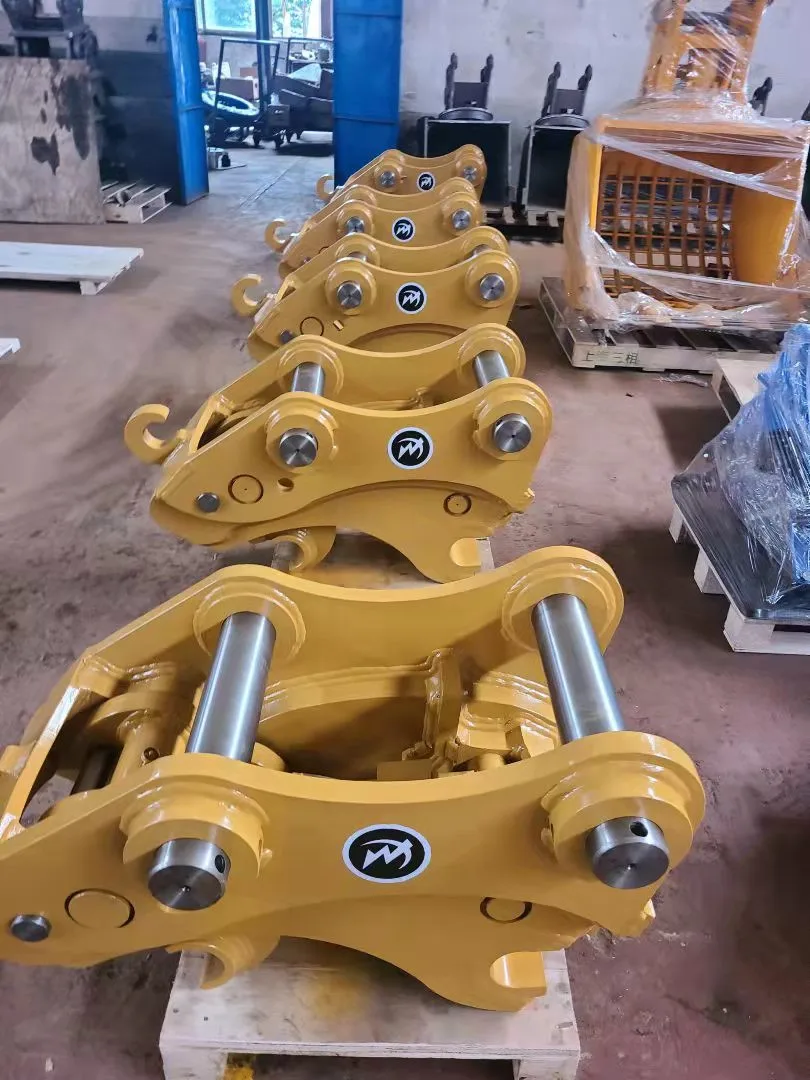

Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
We can supply three type: hydraulic type, Double lock type and Mechanical type.
We can supply three type: hydraulic type, Double lock type and Mechanical type.

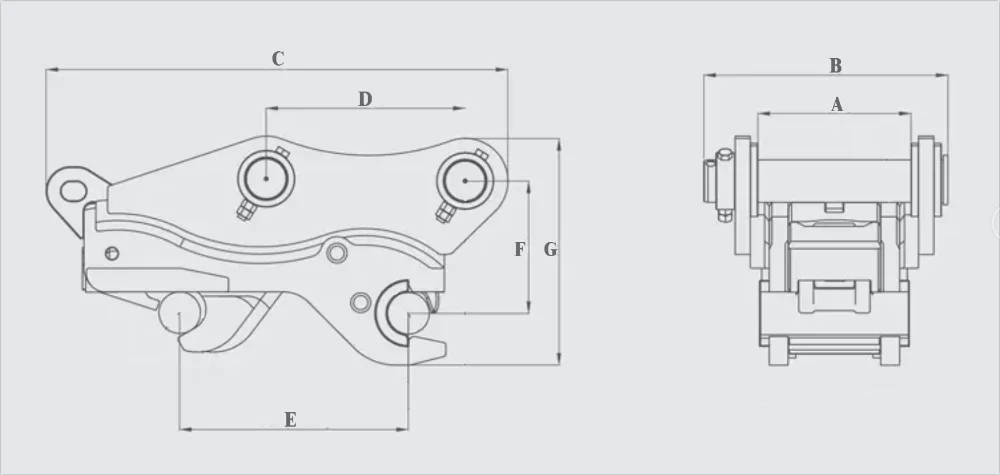

Item/Model/Uinit | Unit | WXmini | WXQH02 | WXQH04 | WXQH06 | WXQH08 | WXQH10 |
Overall lenght | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 |
Overall height | mm | 246 | 307 | 310 | 388 | 492 | 574 |
Overall width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 574 |
Pin to Pin Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 |
Forearm Open width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 |
Cylinder movement distance | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 |
Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 |
Weight | kg | 25 | 50-70 | 60-80 | 120-130 | 280-290 | 420-430 |
Operating pressure | kg/c㎡ | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
Oil flow | L/min | 10-20 | 20-40 | 30-50 | 60-80 | 80-100 | 100-140 |
Suitable excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-16 | 17-23 | 25-35 |
Yantai Weixiang Building Engineering Machinery Equipment Co., Ltd is a leading manufacturer for excavator attachments in China,
established in 2009, we supply one stop solution, such as hydraulic breaker, quick hitch, log/stone/steel grapple, hydraulic
compactor, excavator pulverizer, shear, ripper, bucket, earth auger, rake, thumb, etc.
All products’ quality are strictly under control from processing to delivery, by continuous innovation and improvement, our
products have been exported to many countries and regions all over the world.
"Quality and Innovation " is our commitment, you are welcome to work together, we will keep on improving the products to better
serve the world market.
established in 2009, we supply one stop solution, such as hydraulic breaker, quick hitch, log/stone/steel grapple, hydraulic
compactor, excavator pulverizer, shear, ripper, bucket, earth auger, rake, thumb, etc.
All products’ quality are strictly under control from processing to delivery, by continuous innovation and improvement, our
products have been exported to many countries and regions all over the world.
"Quality and Innovation " is our commitment, you are welcome to work together, we will keep on improving the products to better
serve the world market.
