Raycus JPT fiber laser engraving EZCAD software 20w 30w 60w mopa fiber laser marking machine for gold jewellery marking
- Category: >>>
- Supplier: Wuhan Optical Valley Laser Equipments Co. Ltd.
Share on (62390899806):
Product Overview
Description
Raycus JPT fiber laser engraving EZCAD software 20w 30w 60w mopa fiber laser marking machine for gold jewellery marking
Features:
1. Marking Area: 110*110mm, 175*175mm, 200*200mm, 300*300mm.However, larger working area can be realized by equipped with electric xy moving platform 300*400mm, 300*500mm etc.
2. Best Marking Effect: Owning to the orignal Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especailly good for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 - 100,000hours.
5. No consumables, just electricity.
6. No need to adjust the laser path.
7. Free Maintenance.
8. Easy operation: Machine is installed well.We will supply the installation training video for our dear customers to install laser marking machine.
Product Description
Technical data:
| Product Name | Laser Marking Machine | Cooling Mode | Air Cooling |
| Model | OV SF-20/30/50/100 | Max Marking Speed | 7000mm/s |
| Laser Source | Raycus/JPT | Mininum Line Width | 0.015mm |
| Power | 20/30/50/60/100W | Mininum Character | 0.2mm |
| Laser Wavelength | 1064um | Pulse Frequence | 30 KHz - 100 KHz |
| Filed Lens Brans | wavelength | Operation Environment | 5℃~45℃ , clean or dust-free / dustless |
| Marking Area | 110*110mm-300*300mm | Power Supply | AC110V /220V +10% / 50HZ or 60HZ |
| Control Card | JCZ Brand EZCAD | Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) |
Sample Show

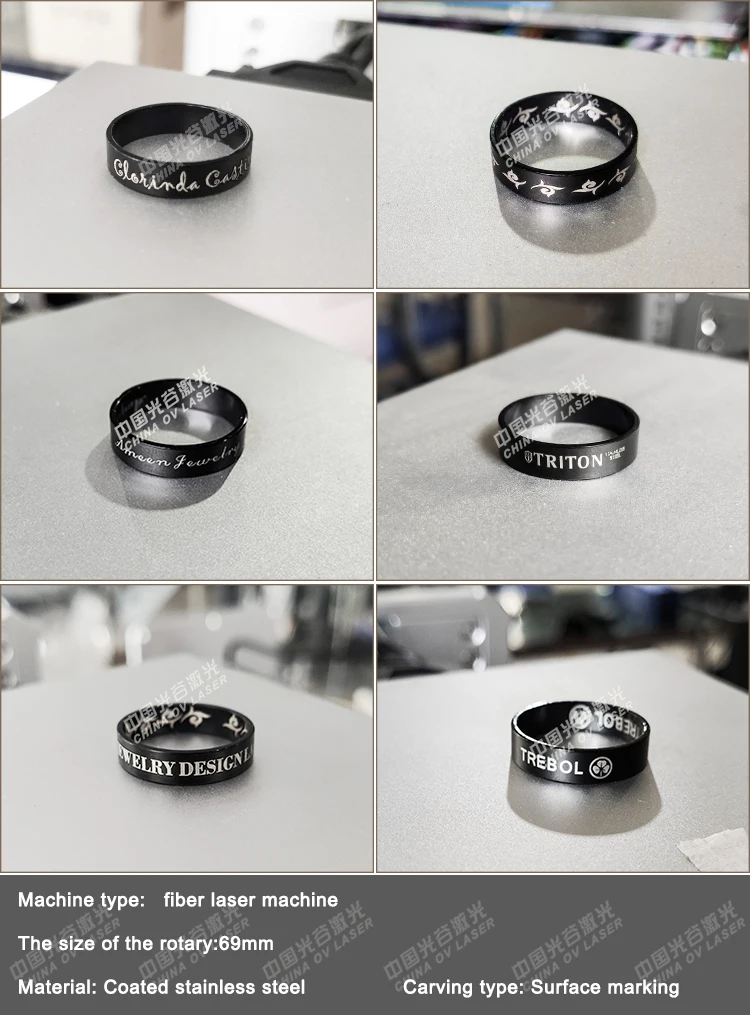

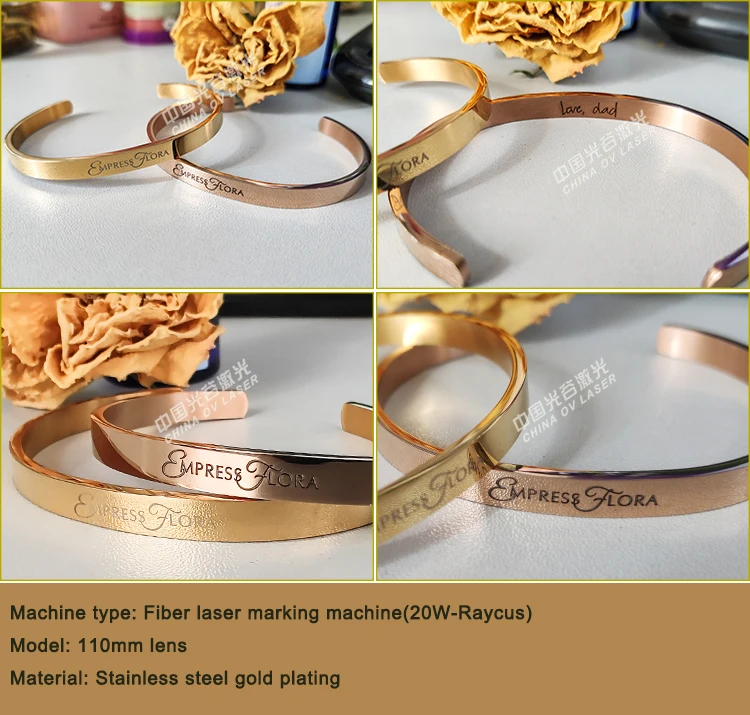

>>Ring marking

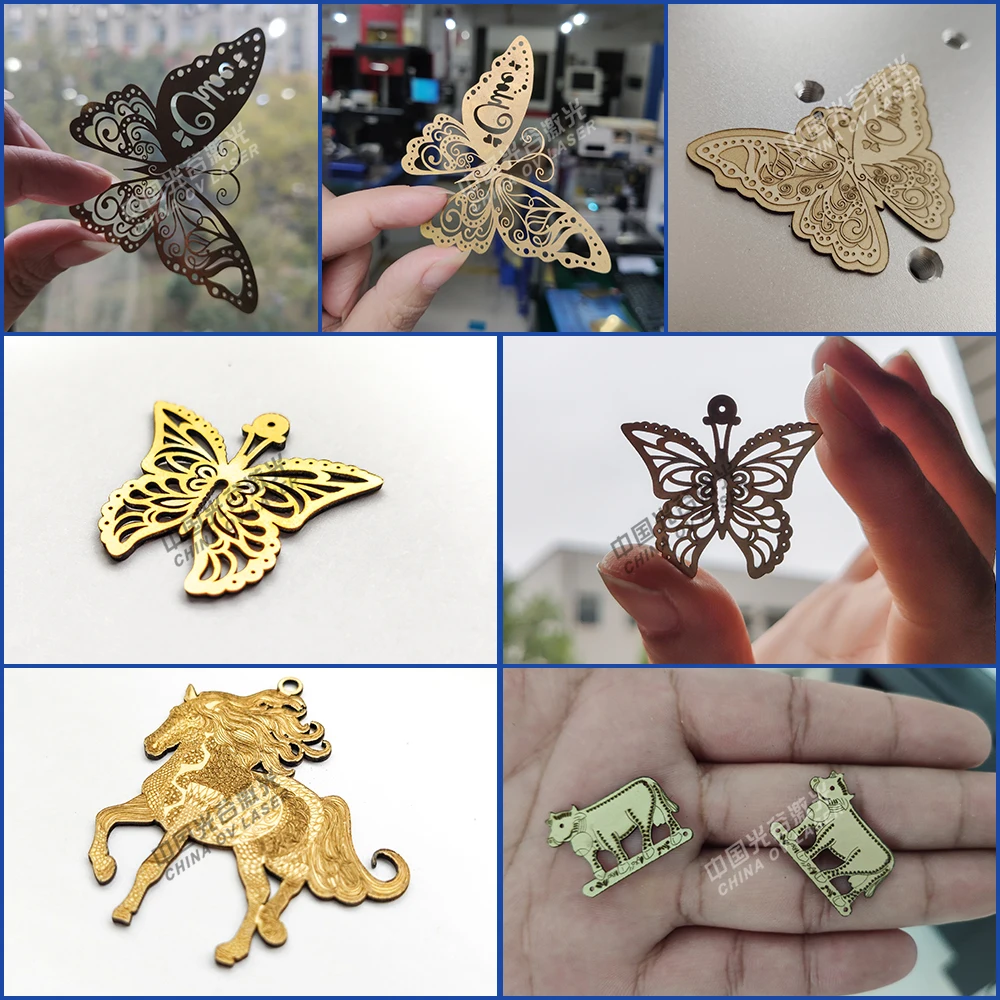

>>Jewelry cutting and deep engraving
>>Nonmetallic material
>>Coin engraving
>>2.5D/3D engraving

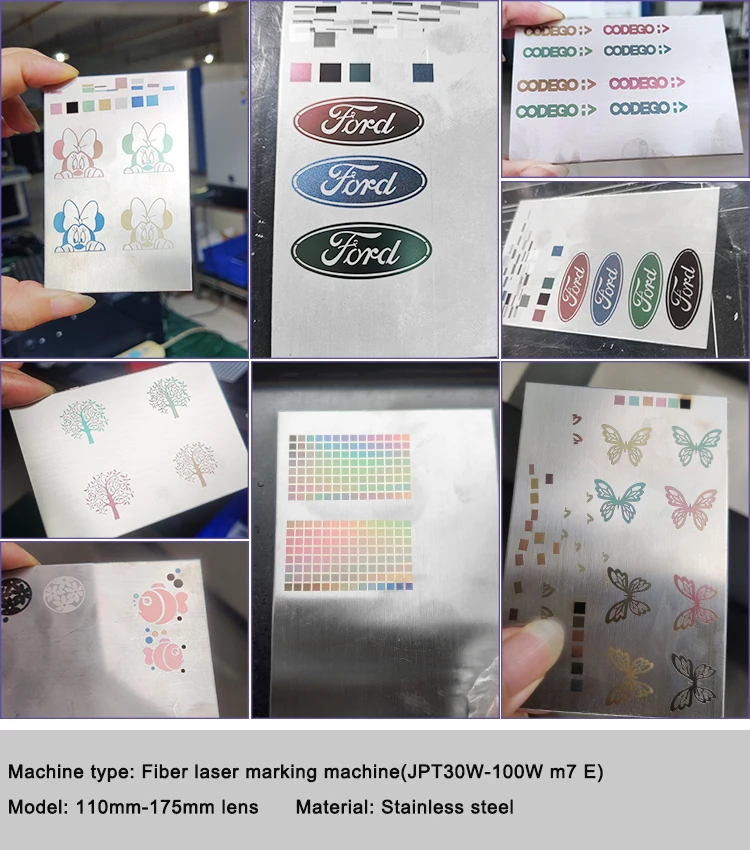

>>MOPA Color Marking

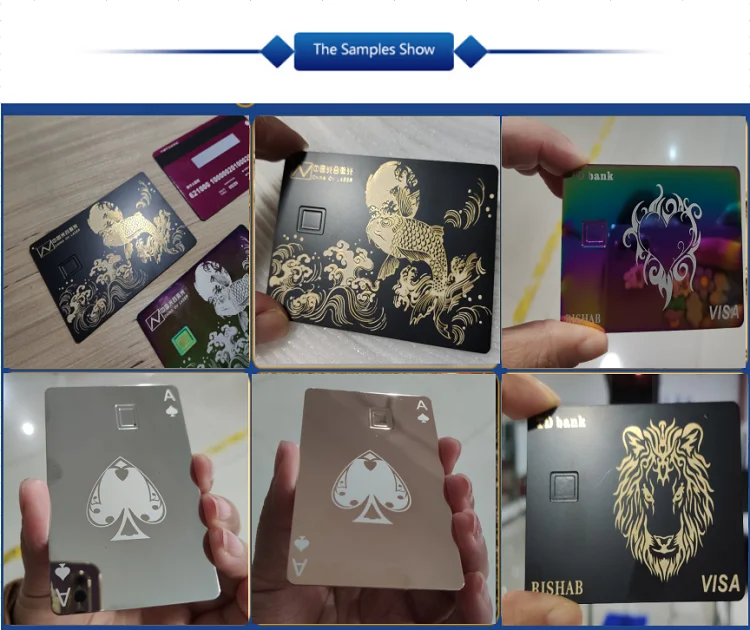

>>Credit Card Marking
>>Cup Marking
Packaging & Shipping
customer feedback
Company Information

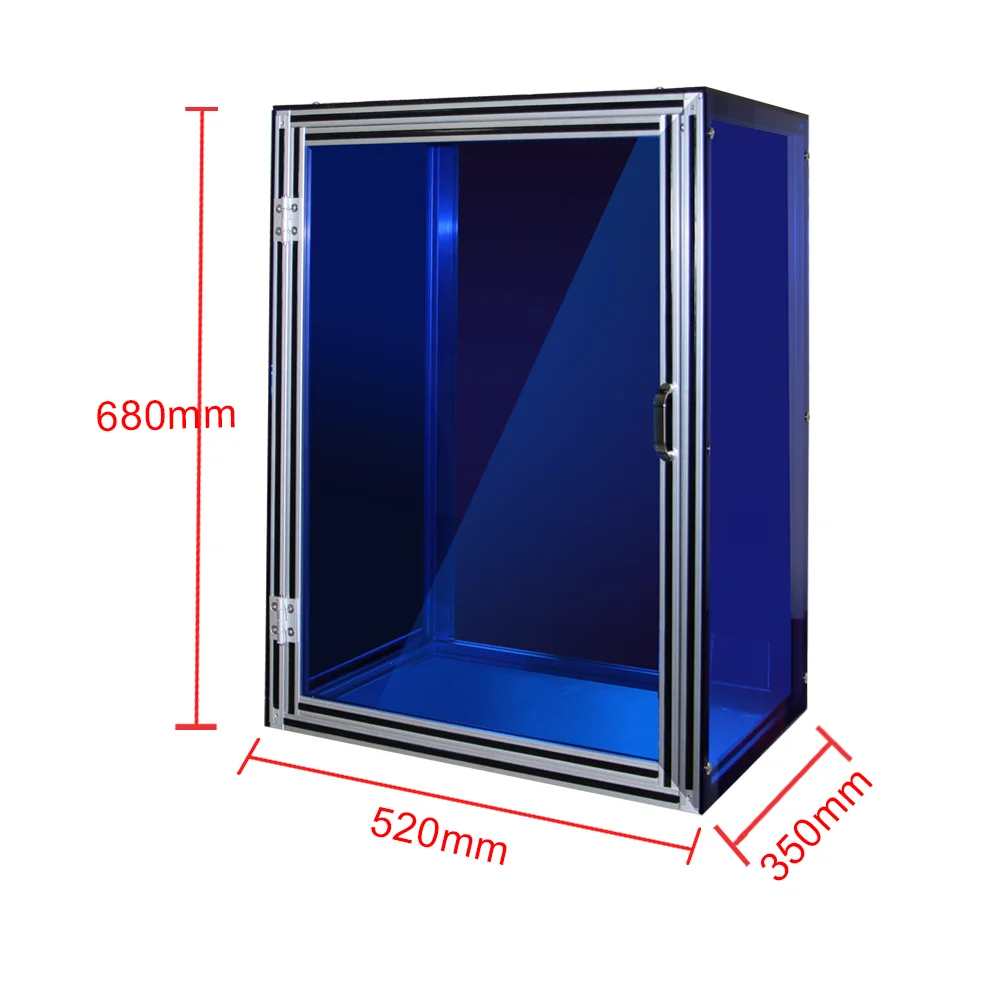

Other optional shape
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models, such as separate portable, table type, enclosed type, mini portable, fly type etc.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according to your requirement!
