Burglar Alarm System Buried Intrusion Alarm Sensor Leakage Cable Sensor

Product Overview

Description

How the buried leak cable alarm system works:

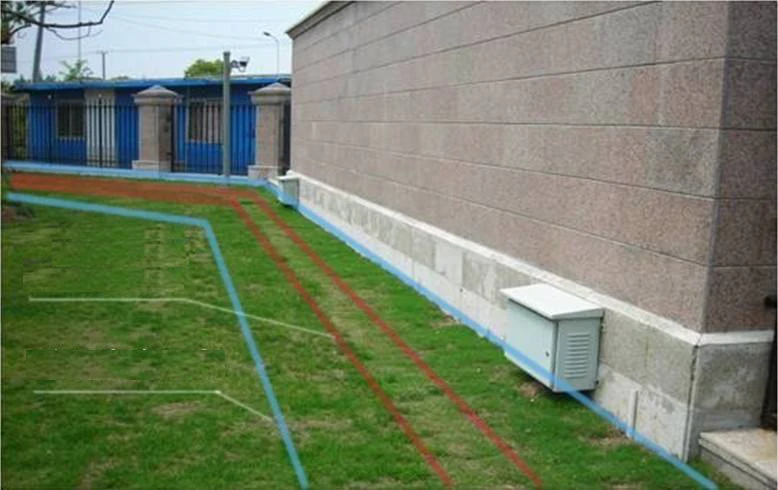

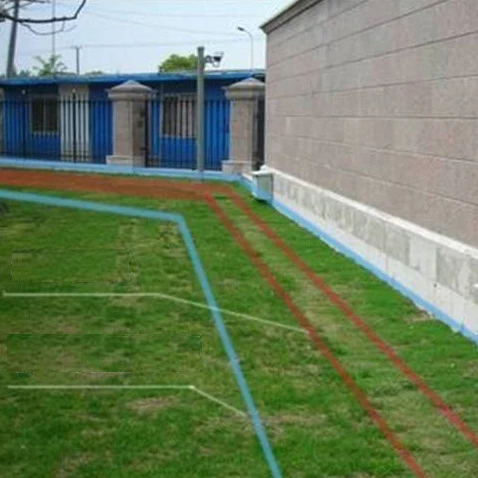

Buried leakage cable alarm work, through a leak cable to transmit a certain frequency of radio frequency electromagnetic field, in the leak cable's outer conductor slot, to the outside of the electromagnetic field. Another parallel laid-off leakage cable receives the electromagnetic field, forming the direct coupling of transceiver energy, when the intruder enters the electromagnetic field detection area formed by the two leak cables, the electric field energy is disturbed, causing the change of the receiving signal, the signal of this change is detected after amplification processing, resulting in alarm.

Scope of application:

Buried cable intrusion detector with its unique performance characteristics, widely used in prisons, detention centers, re-education through labour, drug treatment centers, oil depots, gas stations, museums, border lines, foreign-funded factories, government office compounds, important warehouses, coal mine explosives depots, high-end villas, military facilities, senior cadres sanatoriums, Cultural relics protection and other places need to be isolated and security precautions around the border.





Product parameters

Product name	Leak cable intrusion alarm system
Model	TT-XL
How to supply electricity	AC220V(±15%) 50HZ
Host power consumption	≤10W
Spare battery	Lead-acid battery 12V7A
Alarm delay	1S
Zone length	100M
Use environment	Temperature:-40℃~+70℃ Humidity:0%~95%
Alarm output	Switch volume output

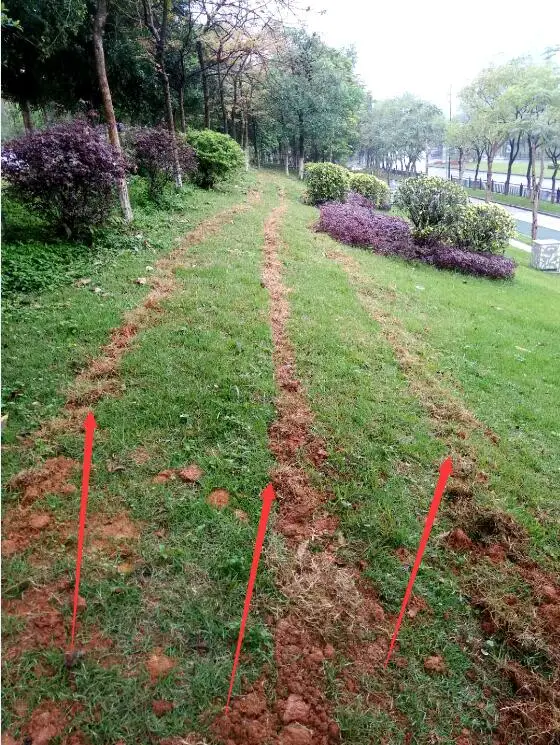

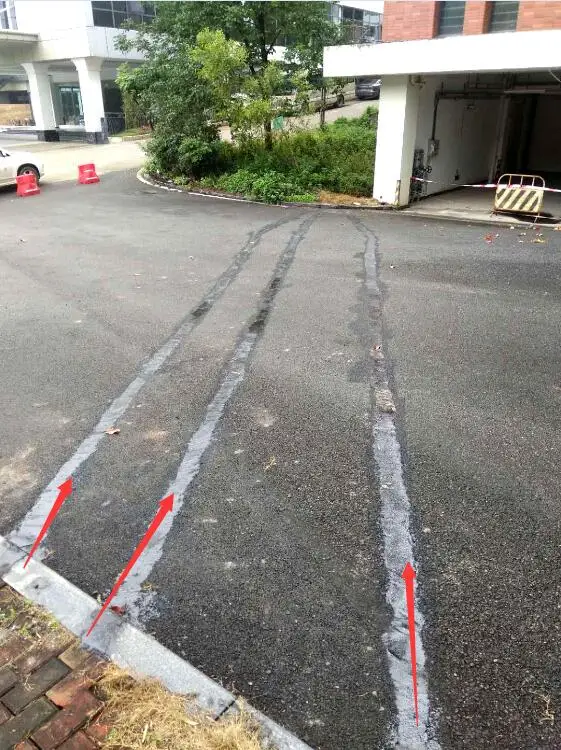

Leak cable installation spacing	0.3~1M
Leakcable buried depth	10CM
Protection level	IP55
Dimensions	230*180*60mm
