Product Overview
Description
Product Description

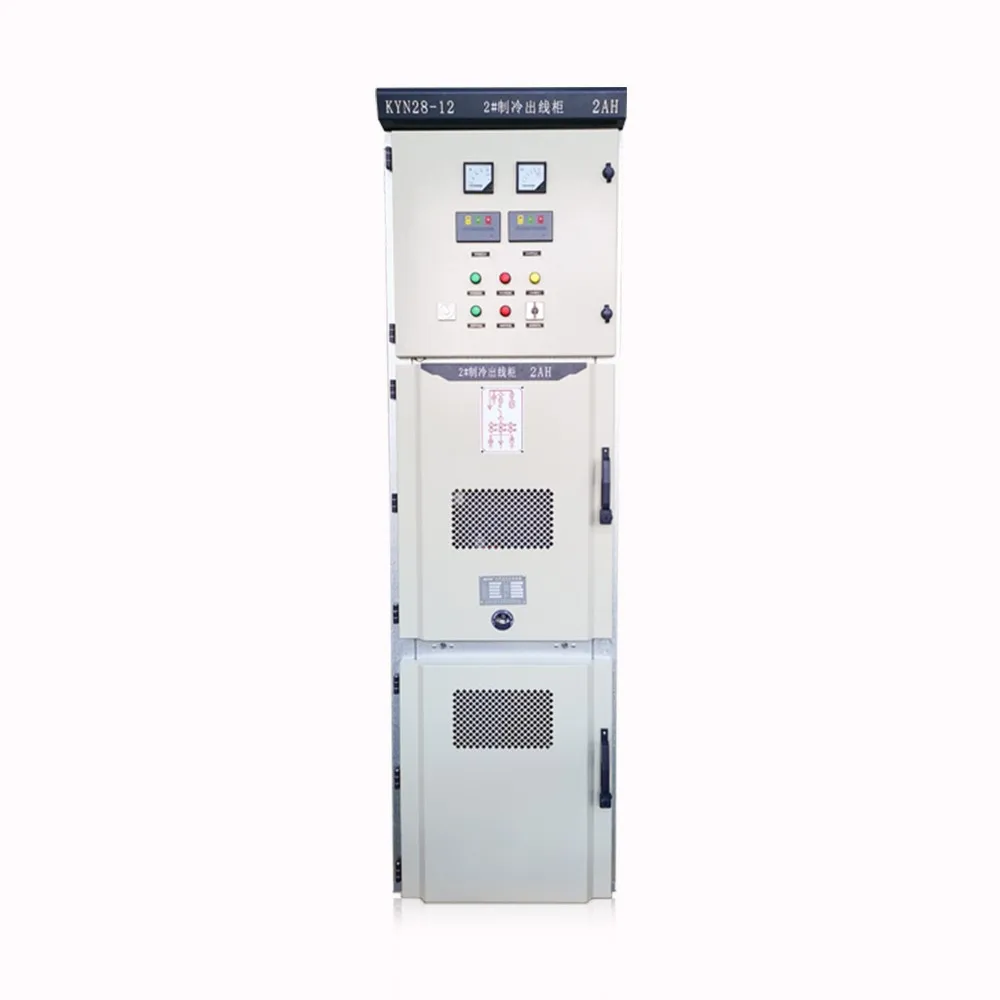

KYN28A-12(Z)(GZS1)Type a armored removable ac metal enclosed switchgear
KYN28A-12(Z)(GZS1)Type a armored removable ac metal enclosed switchgear (hereinafter referred to as switchgear) It is suitable for three-phase ac 50Hz power system to receive and distribute electric energy, control, protect and monitor the circuit
Main technical parameters | ||||||
Rated voltage | ..................................... | kV | 3.6、7.2、12 | |||
Rated frequency | ..................................... | Hz | 50 | |||
Rated current of circuit breaker | ..................................... | A | 630/4000 | |||
Rated current of switchgear | ..................................... | A | 630/4000 | |||
Rated short-time withstand current (4S) | ..................................... | kA | 20、25、31.5、40 | |||
Rated peak withstand current (peak) | ..................................... | kA | 50、63、80、100 | |||
Rated short-circuit breaking current | ..................................... | kA | 20、25、31.5、40 | |||
Rated insulation level 1min power frequency withstand voltage | Pole-to-pole, pole-to- ground | kV | 24、32、42 | |||
Between open contacts | kV | 24、32、48 | ||||
Lightning impulse withstand voltage (peak) | Pole-to-pole, pole-to- ground | kV | 40、60、75 | |||
Between open contacts | kV | 46、70、85 | ||||
The shell is IP4X, and it is IP2X when the compartment door and circuit breaker chamber door are opened | ||||||
Service Conditions
◎ Ambient airtemperature: -15°C~+40°C;
◎ Relative humidity: Daily average 95%，and daily average of water vapor pressure < 2.2kPa;
◎ Monthly average «90%, and monthly verage of water vapor pressure < 1.8kPa;
© Altitude: ^1000m;
◎ Seismic intensity: not beyond Ms8.
◎ Ambient air should be free of pollution of corrosive or flammable gas or vapor;
◎ No obvious vibration;
Our Delivery
We can deliver the goods by air or sea. We can provide you with a good shipping company to facilitate your choice Our delivery date is usually 15 to 20 days. If you need special customization, the time may be increased
Standard wooden boxes for outer packing
(1) 1 plastic bag/set
(1) 1 plastic bag/set
If you need to customize special packaging, please inform us in advance
