PET Bottle Crushing Equipment
- Category: >>>
- Supplier: Zhangjiagang Lonham Machinery Co. Ltd.
Share on (62391130329):
Product Overview
Description
Product Description
Description:
Plastic crusher is mainly used to crush various plastic and rubber products, such as plastic profiles, pipes, rods, wires, films, waste rubber products. Granules can be directly used in extruders or injection moulding, or can be regenerated through basic granulation. Another kind of plastic crusher is the auxiliary equipment of the injection moulding machine, which can crush and recycle the defective products and nozzle materials produced by the injection moulding machine.
Working principle: The plastic crusher drives the cutter disc to rotate at high speed by electric motor. During the process of high speed rotation of the moving blades, the relative movement between the moving blades and the fixed blades is formed. The gap between the moving blades and the fixed blades causes the plastic crushing and shearing incision, thus crushing the large plastic. The crushed plastic is filtered and exported through the screen.
Main technical specification of claw blade crusher:
Model | PC500 | PC600 | PC700 | PC800 | PC900 | PC1000 |
Motor power (kw) | 15 | 18.5 | 22 | 30 | 37 | 45 |
Moving knife qty (pcs) | 2 | 4 | 4 | 4 | 4 | 4 |
Fxied knife qty (pcs) | 15 | 18 | 21 | 24 | 27 | 30 |
Max capacity (kg/hr) | 200 | 300 | 500 | 700 | 800 | 900 |
Feeding mouth(LXWmm) | 550x450 | 650x450 | 750x500 | 850x600 | 950x700 | 1050x800 |
Machine weight (kg) | 780 | 1550 | 1900 | 2600 | 3600 | 4300 |
Main technical specification of flat blade crusher:
Model | SWP500 | SWP560 | SWP630 | SWP730 | SWP830 | SWP900 |
Rotor diameter (mm) | 500 | 550 | 630 | 730 | 830 | 900 |
Moving blade | 2 | 4 | 4 | 4 | 4 | 4 |
Fixed blade | 5 | 10 | 10 | 10 | 14 | 14 |
Screen mesh(mm) | 12 | 14 | 14 | 14 | 16 | 18 |
Capacity (kg/hr) | 400 | 500 | 600 | 700 | 800 | 1100 |
Feeding mouth (LXWmm) | 430X500 | 470x500 | 520x550 | 650x700 | 800x800 | 900x900 |
Motor power (kw) | 22 | 30 | 37 | 55 | 75 | 110 |
Machine weight (kg) | 1900 | 2400 | 2800 | 4200 | 5300 | 6500 |

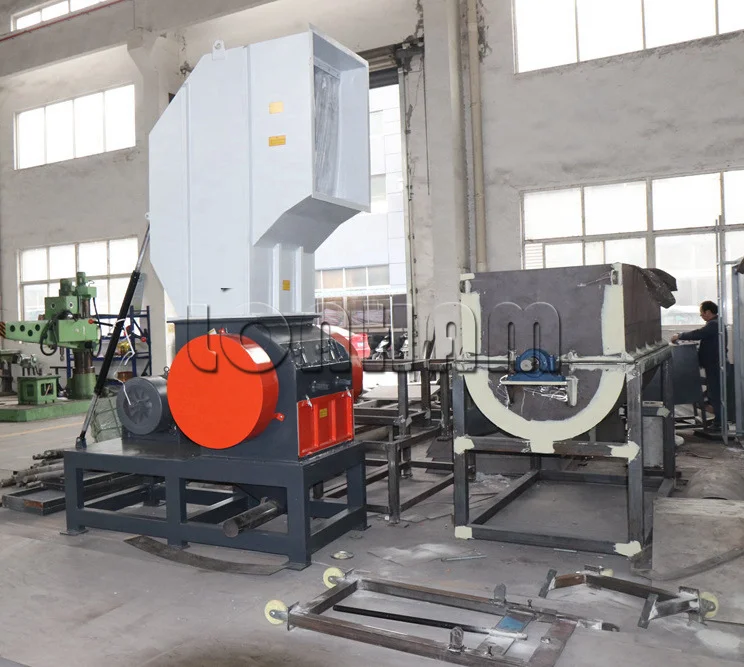

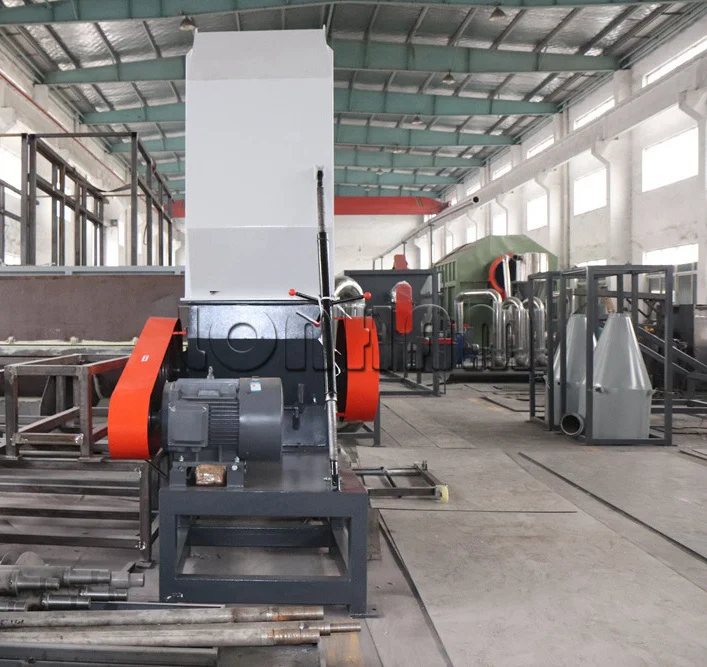

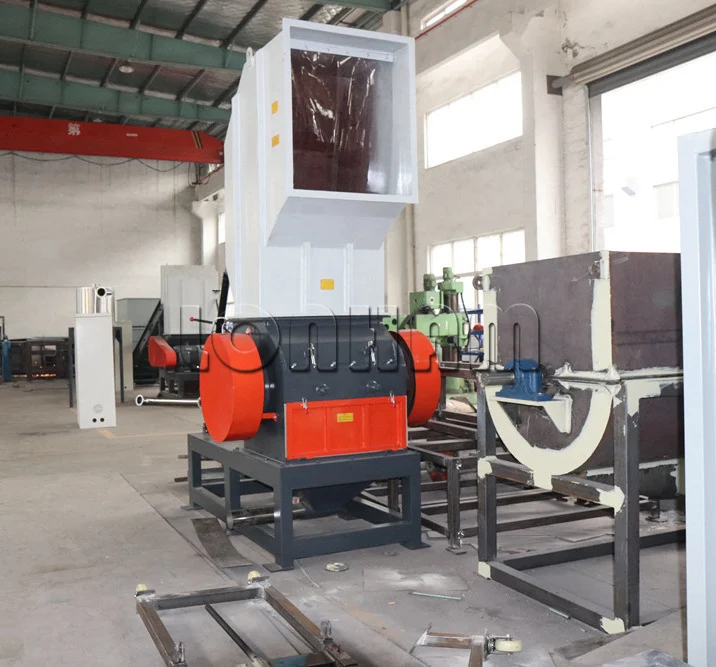

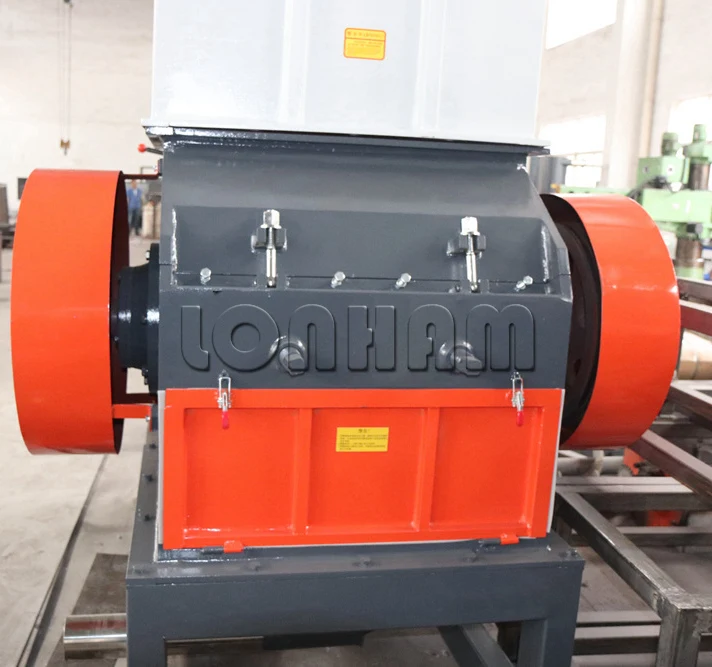

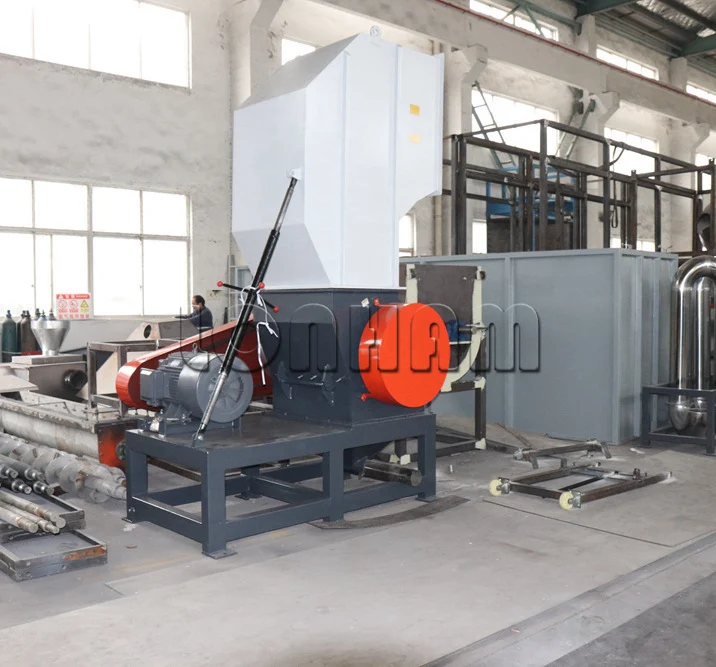

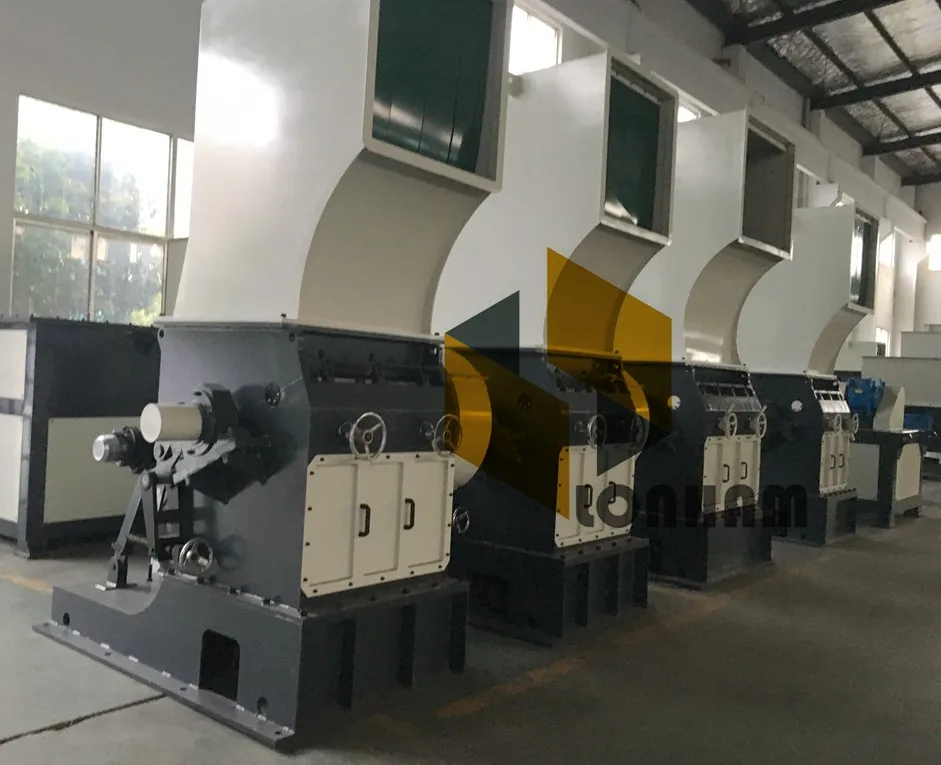

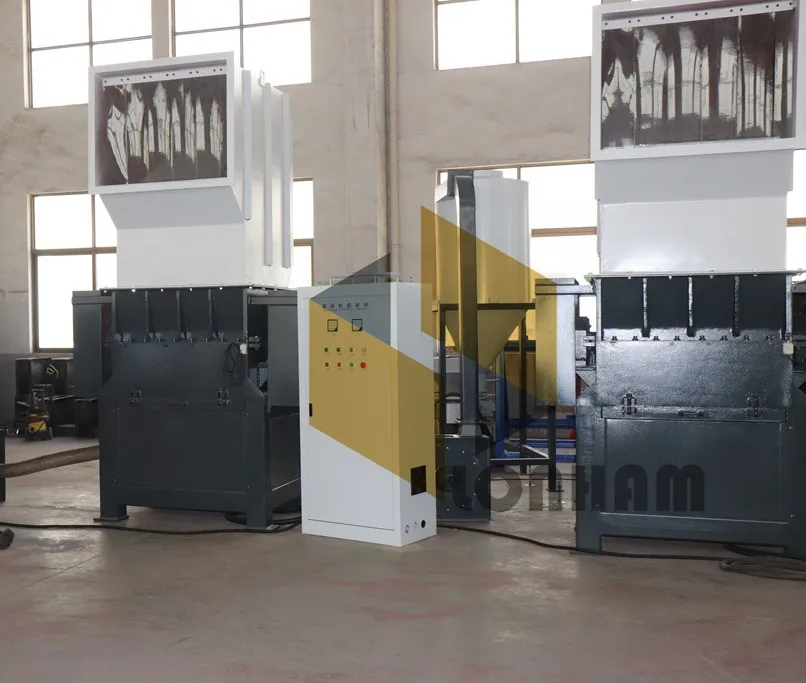

Reference photos
Flat blade
Claw blade
Applied material
Our Service
Equipment selection, technical negotiation process:
1. Let you know machines' details technical specification and character.
2. Designing the machines and arrange the water, electric layout according to your requirement.
3. We can provide turnkey project according to your requirement.
Equipment production process:
1. Improve product quality through advanced production management.
2. Let you know production schedule through regular pictures, video, show the real production process to you.
3. Invite you or your third party, to our factory to test, inspection machine before shipment, until you are satisfied.
Equipment operation process:
1. Engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
2. The equipment is completely free of charge for 12 months warranty. Spare parts are supplied with cost prices after 12moths after warranty time.
3. Establish the customer database, all the sold equipment can be checked any time.
4. Visit customers regularly, follow up the usage of each customer's equipment.
5. Increase service stations gradually, effectively improve service and spare parts supply speed.
