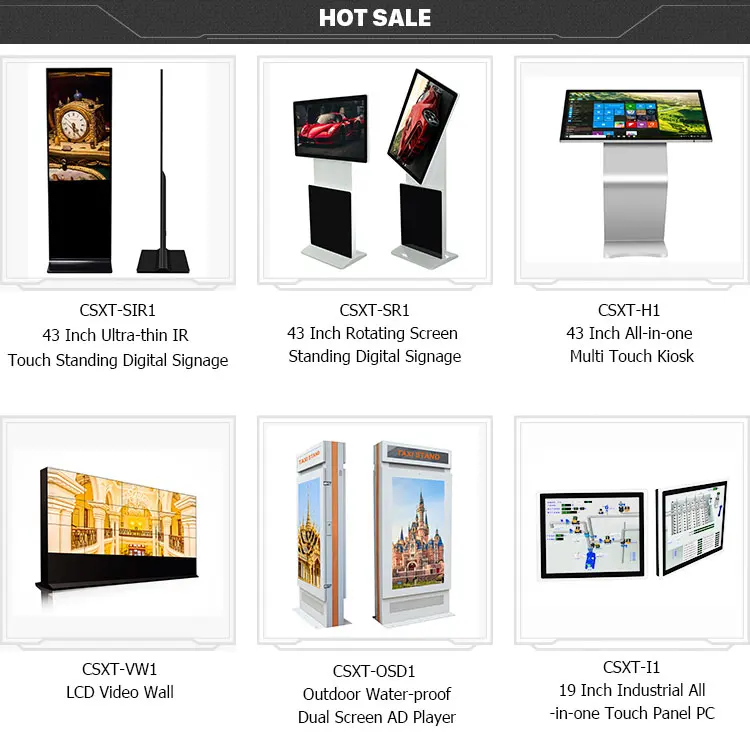

Hot Sales
Product Description
32 Customized indoor application lcd digital signage stand touch screen kiosk multi screen digital signage

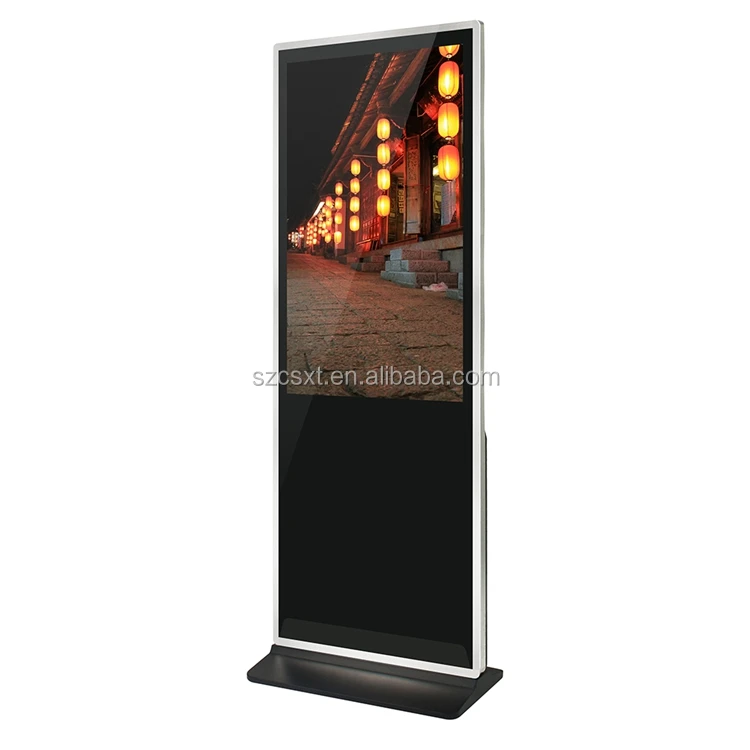

| CSXT-SIR3-43 | 43 Inch IR Touch Stand Alone LCD Digital Signage | |||||
| Quick View | Touch Screen | Infra-red touch 10 dots | ||||
| Frame Width | 24.5mm | |||||
| Frame Thickness | 30mm | |||||
| System | Windows/Android Optional | |||||
| Available Size | 21.5"/ 27"/ 32"/ 43"/ 49"/ 55"/ 65"/ 75"/ 86" or customized | |||||
| Materials | 3mm Aluminium alloy frame + 1.5mm cold-rolled steel shell + 5mm tempered glass display | |||||
| Optional Functions | 3G/4G, camera, card reader(ID/NFC/IC card), printer, scanner(QR code/biomini), microwave inductor, microphone, keyboard or customized | |||||
| Screen | Panel Brand | LG/SAMSUNG/AU/CMO Full New 100% A+ Grade Brand Panel | ||||
| Panel Size | 43" (19" to 100" optional) | |||||
| Display Size | 529.4mm(H)x941.2mm(V) | |||||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | |||||
| Compatible HD Input | 480P/576P/720P/1080I/1080P | |||||
| Backlits | LED | |||||
| Display Ratio | 9:16 | |||||
| Response Time | <8ms | |||||
| Field Rate | 60HZ | |||||
| Color | 16.7M | |||||
| Contrast Ratio | 1200:1 | |||||
| Resolution | 1080*1920 | |||||
| Brightness Nits | 300 cd/m2 | |||||
| Pixel Pitch | 0.282x 0.282 | |||||
| Operation System | PC Version | Android Version | ||||
| Main Board | J1900/Windows I3/Windows I5 optional | RK3288 | ||||
| Operating System | Win7/win8/win10 optional | Android 6.0 (Android 4.4/5.1.1/6.0.1/7.1.2 optional) | ||||
| CPU | J1900/I3-3217U/I5-3317U | RK3288 Cortex-A17 quad-core | ||||
| RAM | DDR3 1G/2G/4G/8G/16G optional | DDR3 2G/4G(optional) | ||||
| Storage | SSD:64G/128G NAND FLASH 500GB / 1T optional | NAND FLASH EMMC: 8GB/16G/32G optional | ||||
| OSD Language | English or customized | English or customized | ||||
| Connection to Network | RJ45/4G(optional)/WIFI (optional) | RJ45/4G(optional)/WIFI | ||||
| Interface | USB2.0*4, HDMI, VGA, RJ45, LAN, 4G/wifi(optional), audio, DC | USB2.0*2, SD card, HDMI, RJ45, 4G(optional), wifi, audio, DC | ||||
| System Upgrade | Support SD card upgrade | |||||
| File Formats | Video | 720P/1080P/H265/264/MPEG4/ AVI/WMV/3GP/MP4/MOV/FLV | Video | 720P/1080P/H263/264/MPEG4/ AVI/WMV/3GP/MP4/MOV/FLV | ||
| Picture | JPG/JPEG/BMP/GIF/PNG | Picture | JPG/JPEG/BMP/GIF/PNG | |||
| Music | MP3/WMA/AAC/AC3/DTS | Music | MP3/WMA/AAC/AC3/DTS | |||
| Touch Screen | Touch Type | Infra-red touch | ||||
| Touch Ways | Finger/touch pen | |||||
| Touch Dots | 10dots (20dots/40dots optional) | |||||
| Durability | Single point more than 600 million times | |||||
| Power | Power | 130W | ||||
| Power Supply | AC100-240V 50/60HZ | |||||
| Working&Storage Requirement | Working/Storage Temperature | 0-50°C/-20 - 60°C | ||||
| Working/ Storage Humidity | 20%~80%/5% - 95% | |||||
| Body | Material | Shell | 1.5mm cold-rolled steel with antirust paint | |||

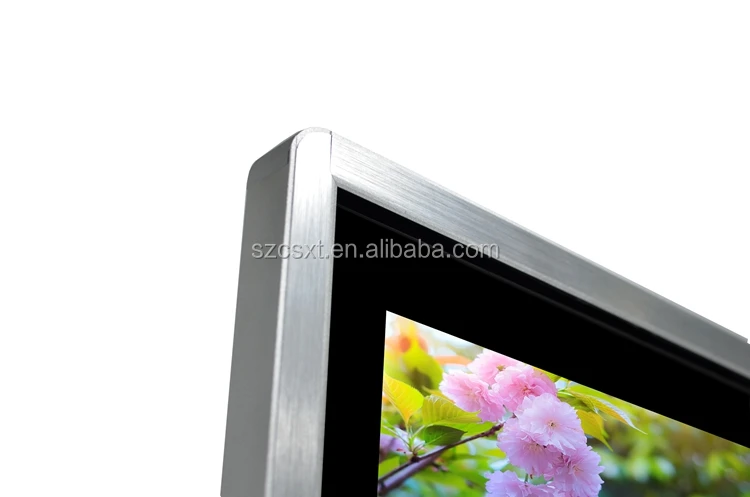

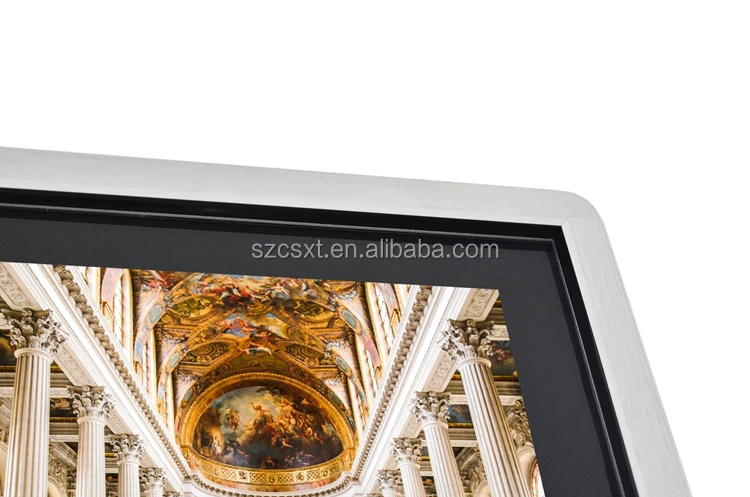

| Frame | 3mm wire drawing aluminium alloy | |||||
| Display | 5mm tempered glass | |||||
| Color | Black, silver, gold or customized | |||||
| Size | 645*405*1790mm | |||||
| Frame Width | 24.5mm | |||||
| Frame Thickness | 30mm | |||||
| Other Instructions | Play Mode | Support horizontal or vertical playing, automatically loop playing | ||||
| Scrolling Caption | Support over-long scrolling caption display | |||||
| Auto On/Off | Auto on/off according to the setting time | |||||
| Reset | With reset switch, easy to operation | |||||
| Input | LVDS directly drive | |||||
| Audio Mode | Hi-fi stereo audio | |||||
| Speaker | 2 * 5W (8 ohm) | |||||

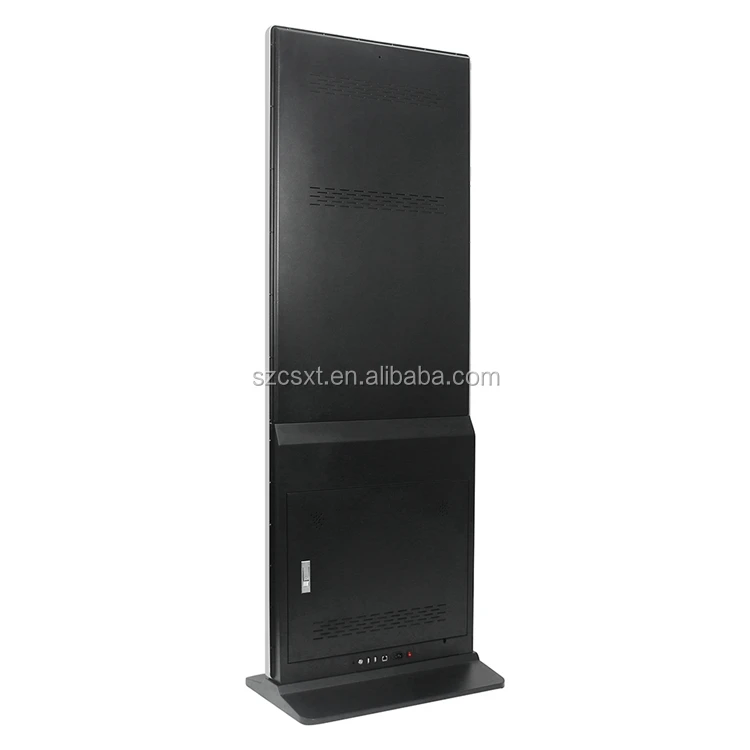

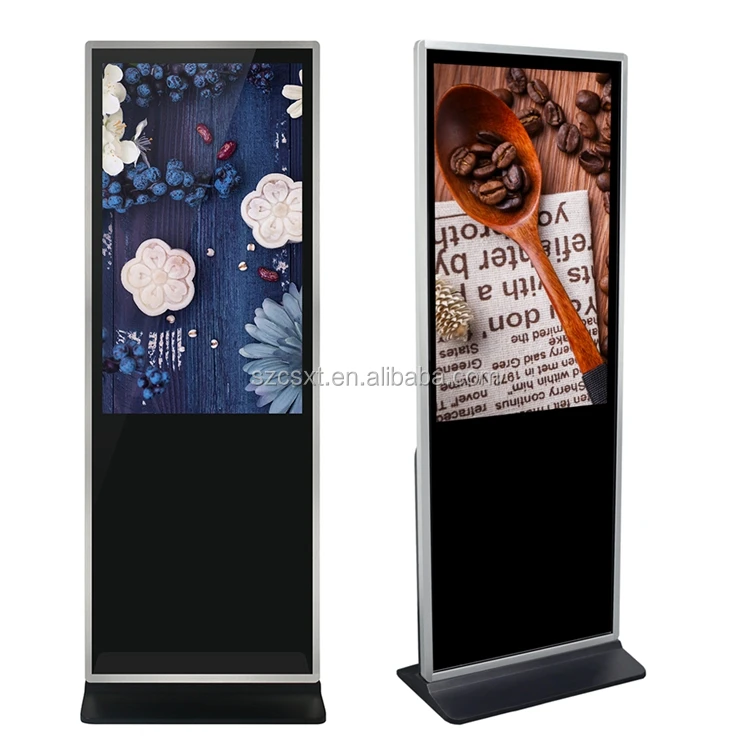

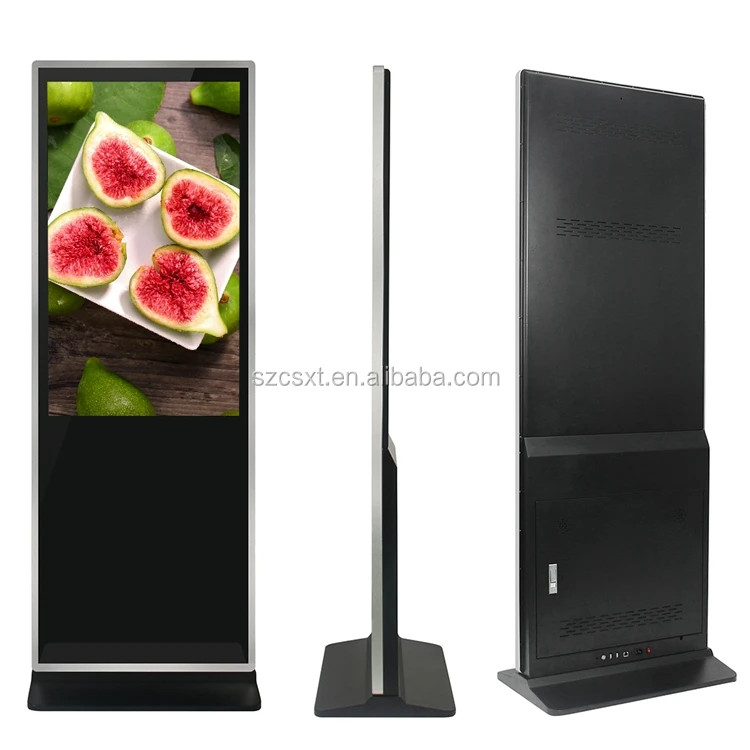

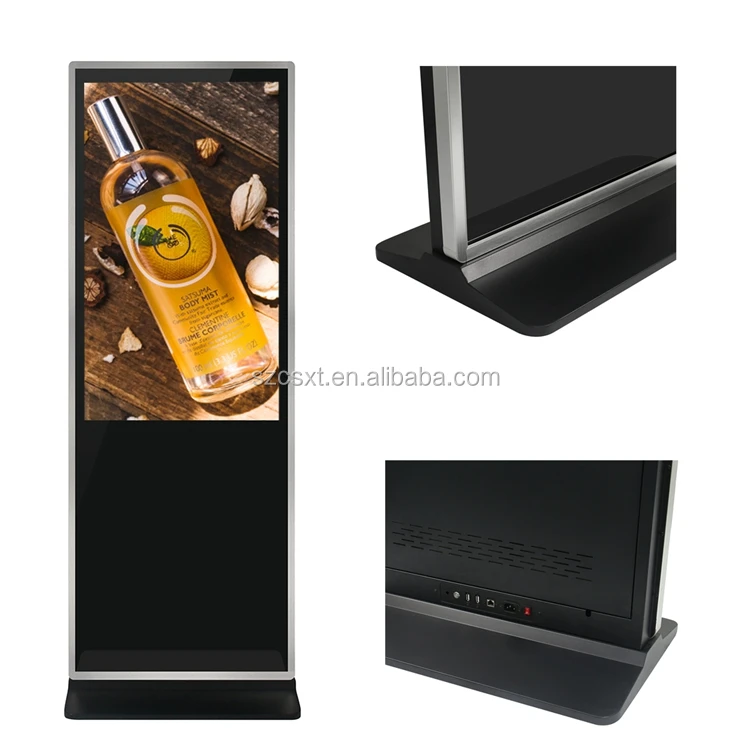

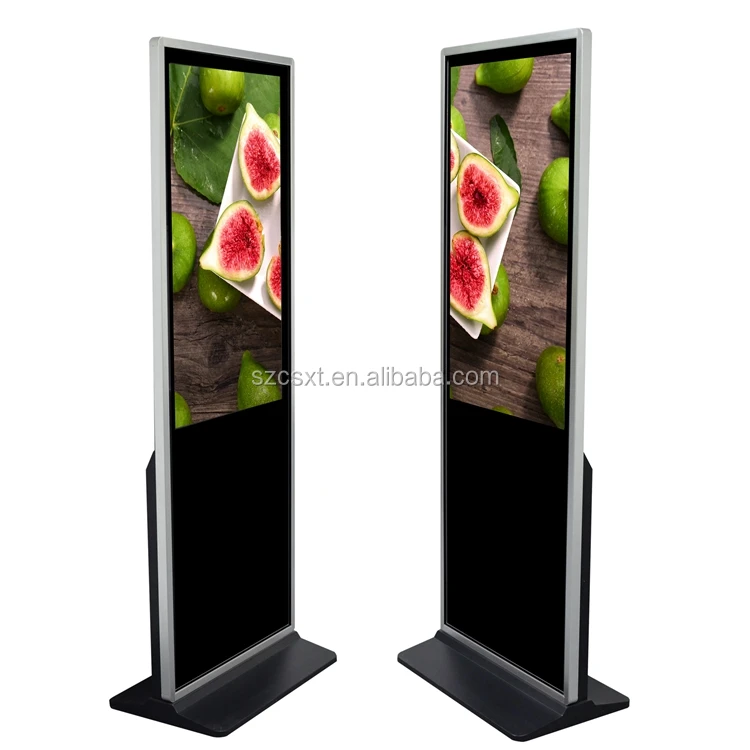

Product Detail
Packing
Factory Details
Our Certificates
Our Advantages
- 1. Direct factory - None middle man, you can get bottom price and quicker response.
- 2. OEM and ODM service - customized exterior designs, functions, sizes( 7”- 100”), colors(silver, gold, white, black, etc.) and logo are welcome.
- 3. Quick response - all inquiries will be replied within 1 day by our sales.
- 4. Promotional activity every month - 4% to 15% off for the activity models.
- 5. Original brand panel - Promise using original 100% A+ brand panels
- 6. Quick delivery - within 15 days
- 7. Worry-free quality assurance - 3 times full inspection (by our production QC, the 3rd party QC and our QC experts with 8 years experience) before shipment to ensure “0 defective rate”
- 8. 2 years warranty - We’ll also support clients for the maintenance even after the warranty runs out.
- 9. Trust of customers - 96% of customers who have worked with us once have maintained long term cooperation.
Quality Assurance
- Step 1. 100% inspection for all incoming materials by our IQC department, if the deficient rate is over our standard 2%, we will return the defective materials to our suppliers for rework, if less than 2%, we will change the defective parts by new qualified materials.
- Step 2. Before on-line production, all the appearance and functions of the boards must be 100% checked by our QC department.
- Step 3. Semi-finished goods must be 100% inspected by our QC department, if any defective part, we will repair it and then return it to the production line again.
- Step 4. IPQC(Input process quality control) must patrol inspecting during production process.
- Step 5. Completed sets must be 100% checked by the QC department, after that, all the goods start 24 hours aging testing
- Step 6. After aging testing, QC department will 100% check all goods again and then start packing.
- Step 7. After packing, QA department will start sampling inspection, then we will inform customers to arrange the inspection date of the goods.
