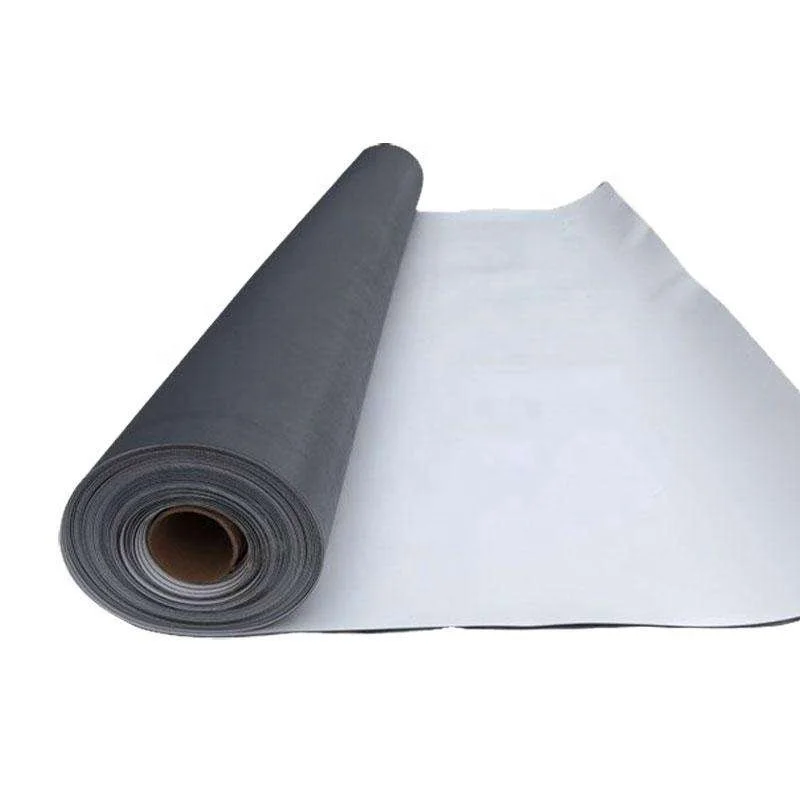

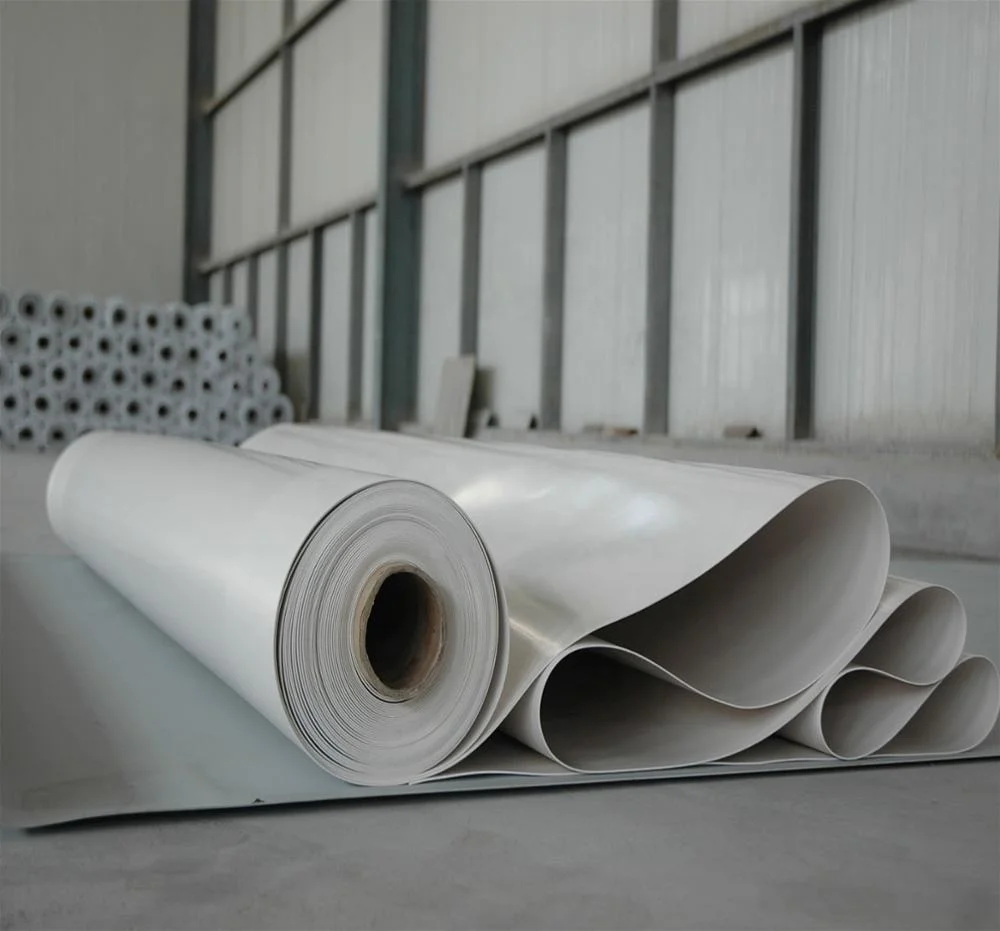

60Mil White Plastic Fabric Material PVC Sheet Film Membrane for Roof Waterproofing
- Category: Waterproofing Materials >>>
- Supplier: Qingdao Wenrun Holding Co. ltd
Share on (62391264210):
Product Overview
Description
Product Description
Plastic Fabric Waterproof Material PVC Sheet/Film/Membrane for Roof
The PVC waterproof rolls formulas are based upon polyvinyl chloride resin with other assistants added to provide flexibllity and stability such as anti-oxidant,absorbent of ultraviolet light,plasticizer and plastic filing agent.
TDS
The following technical data is based on a testing sample, different type may have different performance.Product appearance | ||||||||
Color | Top layer: Grey, White; Bottom layer: Grey | |||||||
Visible defects | No defects, conform to EN 1850-2 | |||||||
Technical specification | PENNFLEX PVC | |||||||
Item | Standard | Unit | PH1500(G) | |||||
Thickness | EN 1849-2 | mm | 1.5(-5/+10%) | |||||
Length | EN 1848-2 | m | 20(-0.5/+1%) | |||||
Width | EN 1848-2 | m | 2.0(-1/+1%) | |||||
Mass per unit area | EN1849-2 | Kg/m2 | 2.1(-5/+10%) | |||||
Tensile strength | EN12311-2 | N/mm2, ≥ | 14±2 | |||||
Elongation at beak | EN12311-2 | %, ≥ | 250±20 | |||||
Joint peel strength | EN12316-2 | N/50mm, ≥ | 300 | |||||
Joint shear strength | EN12317-2 | N/50mm, ≥ | 500 | |||||
Dimensional stability | EN 1107-2 | %, ≤ | 0.5 | |||||
Cold flexibility | EN 495-5 | ℃ | -25 | |||||
Static loading resistance | EN 1110 | kg | 20 | |||||
Impact resistance | EN 12691 | mm, ≥ | 800 | |||||
Watertightness | EN1928B | -- | PASS | |||||
UV-resistance | EN 1297 | Grade 0 | PASS | |||||
Fire-resistance | EN13501-1 | -- | Class E | |||||
Why it is so superior?
1) Excellent aging resistance.
2) Root resistant penetration, specially used on planting roofs.
3) Welding installation. Joints are solid and environment friendly, no pollution.
4) High tensile strength, good elongation and dimensional stability.
5) Good plasticity, easy and suitable for details installation.
2) Root resistant penetration, specially used on planting roofs.
3) Welding installation. Joints are solid and environment friendly, no pollution.
4) High tensile strength, good elongation and dimensional stability.
5) Good plasticity, easy and suitable for details installation.

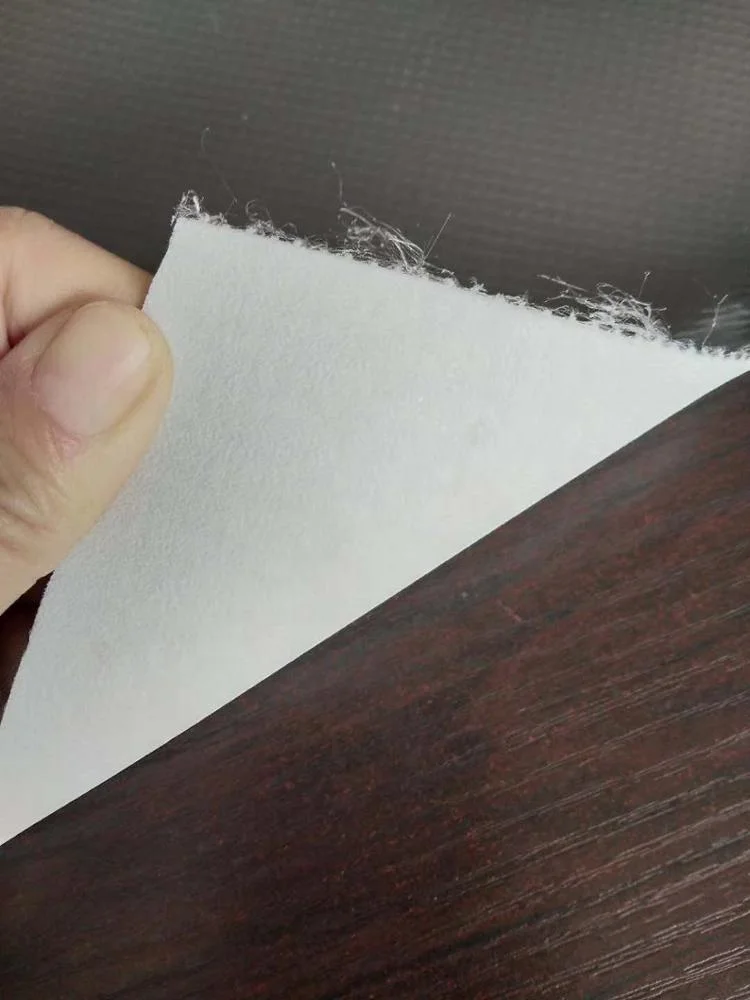

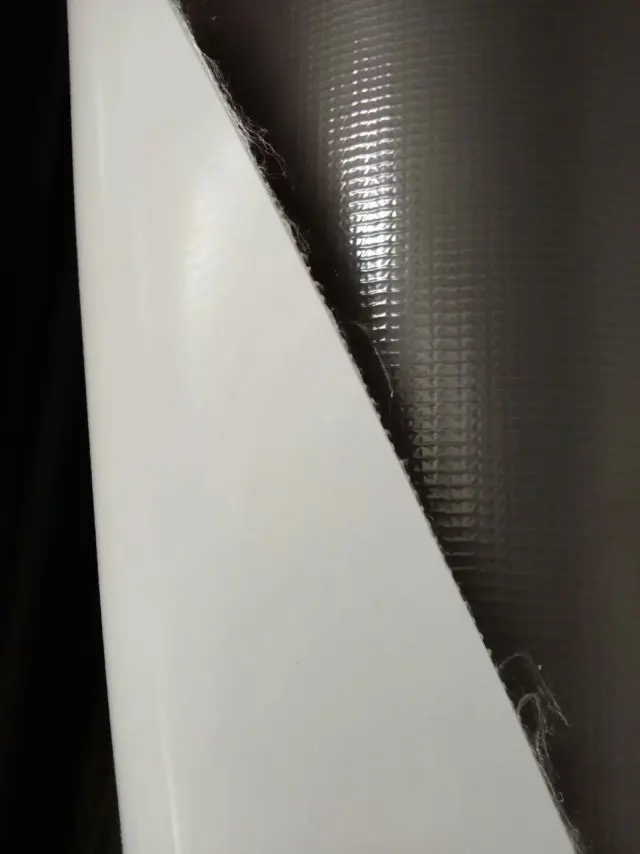

Detailed Images
Material: | PVC | |

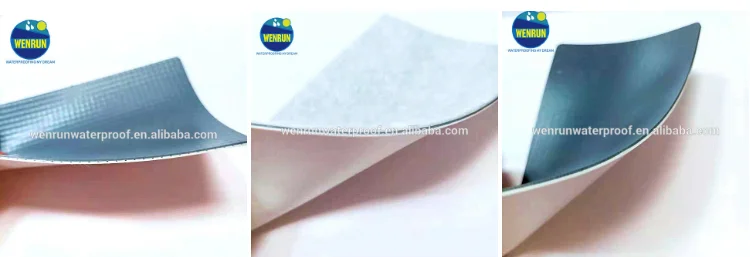

Product Type: | Homogeneous(H), Reinforced(P), Fleece backing(L), Self-adhesive(SA) | |
Thickness(mm) : | 1.0mm-3.0mm or as customized | |
Width(m) : | 1m/2m/2.05m/3.05m or as customized | |
Length(m/roll) : | 20m or as customized | |
Color: | White,Gray,Black,Blue,Orange or as customized | |
Certificate: | CE,FM,ISO | |
ONE STOP SERVICE FROM DESIGN OF WATERPROOF SYSTEM,PRODUCTS SUPPLYING TO CONSTRUCTION DIRECTION. | ||

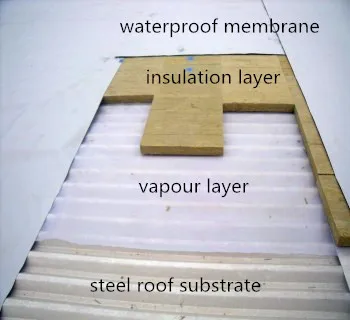

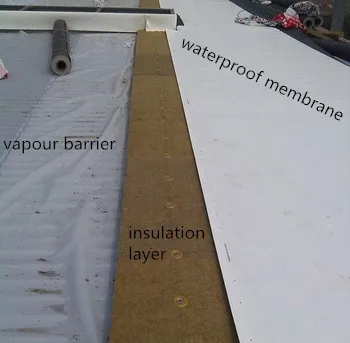

Our System

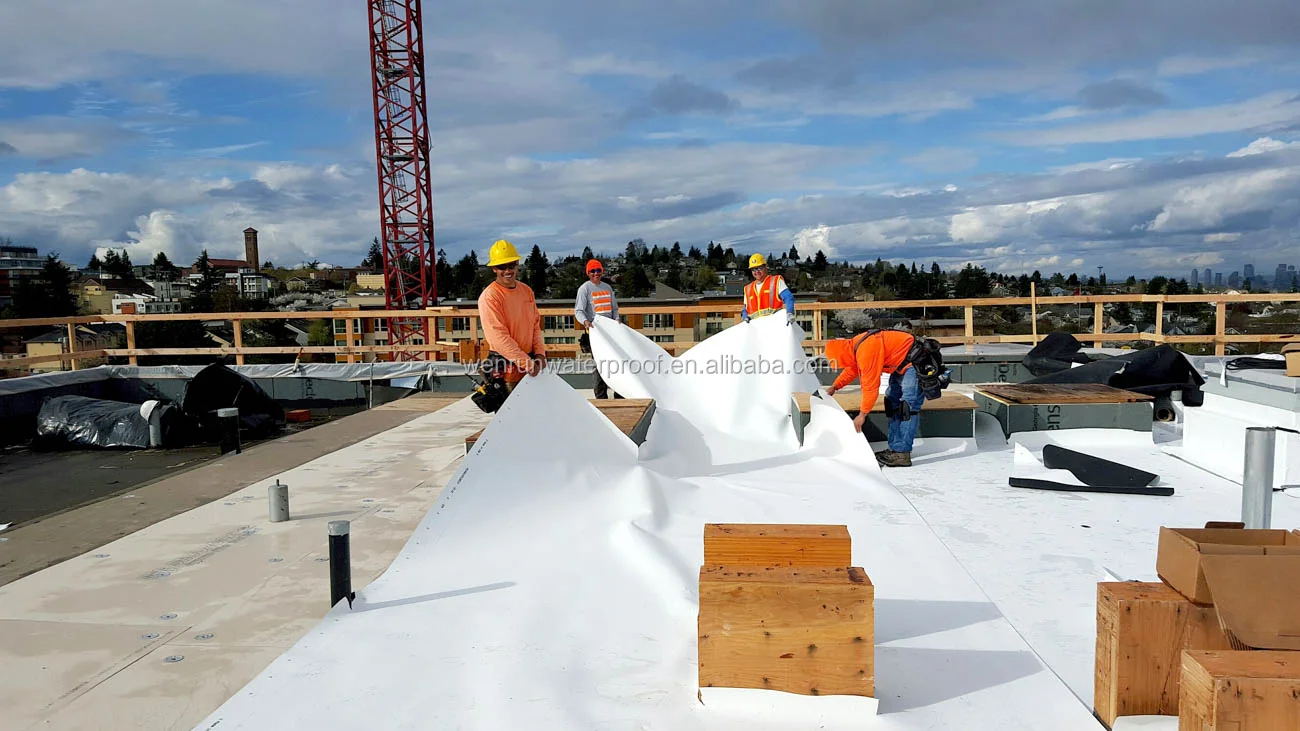

PVC single-ply roof system is widely used not only in different large roofs with low slope, but also in various structural new roofs like pitched roofs, arc roofs and refurbished roofs. Meanwhile, this system can meet different functional needs of roofs,such as walking, parking, planting, etc.
Advantage

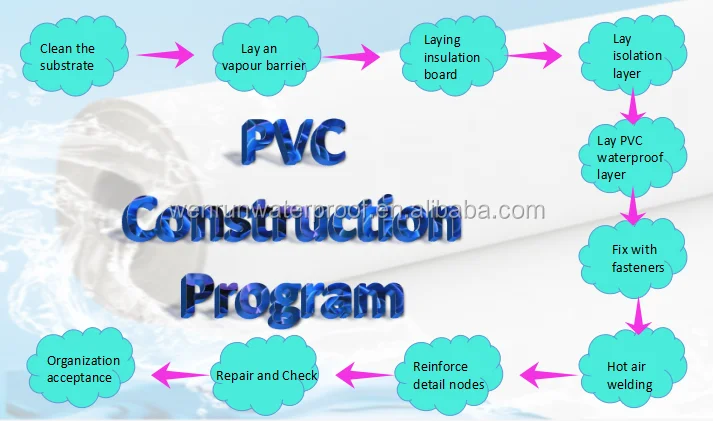

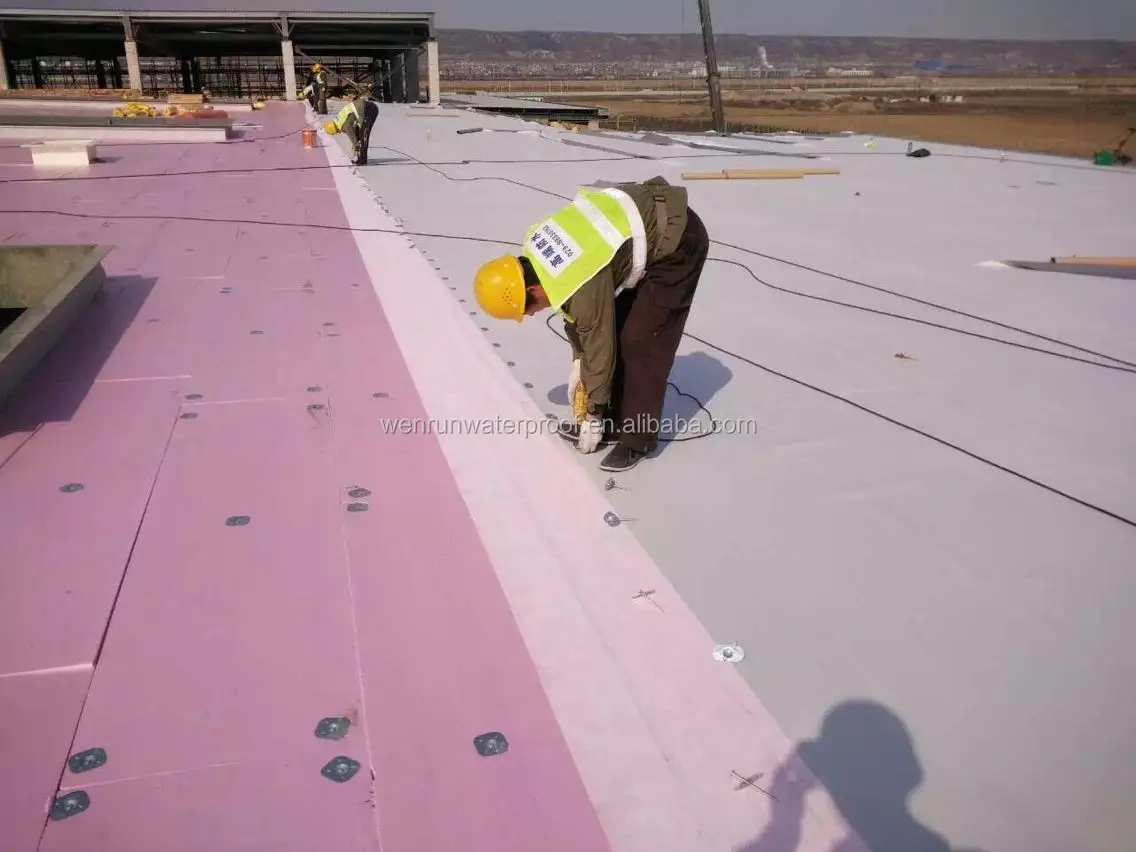

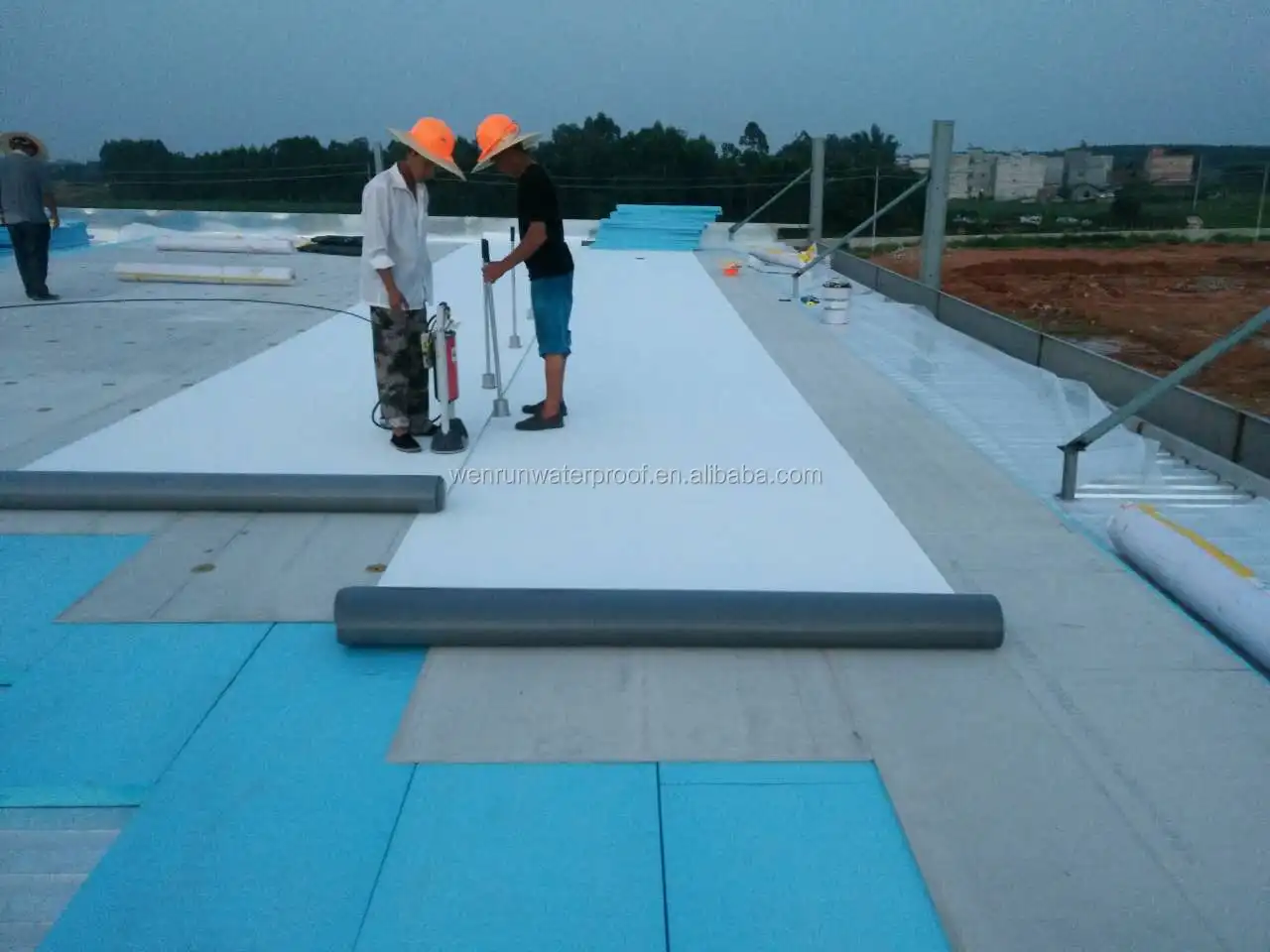

Construction Process
Certificate
FAQ
Q: What your one-stop service?
A: One stop service from design of waterproofing system,materials providing to technology support.
Q: What your advantagede?

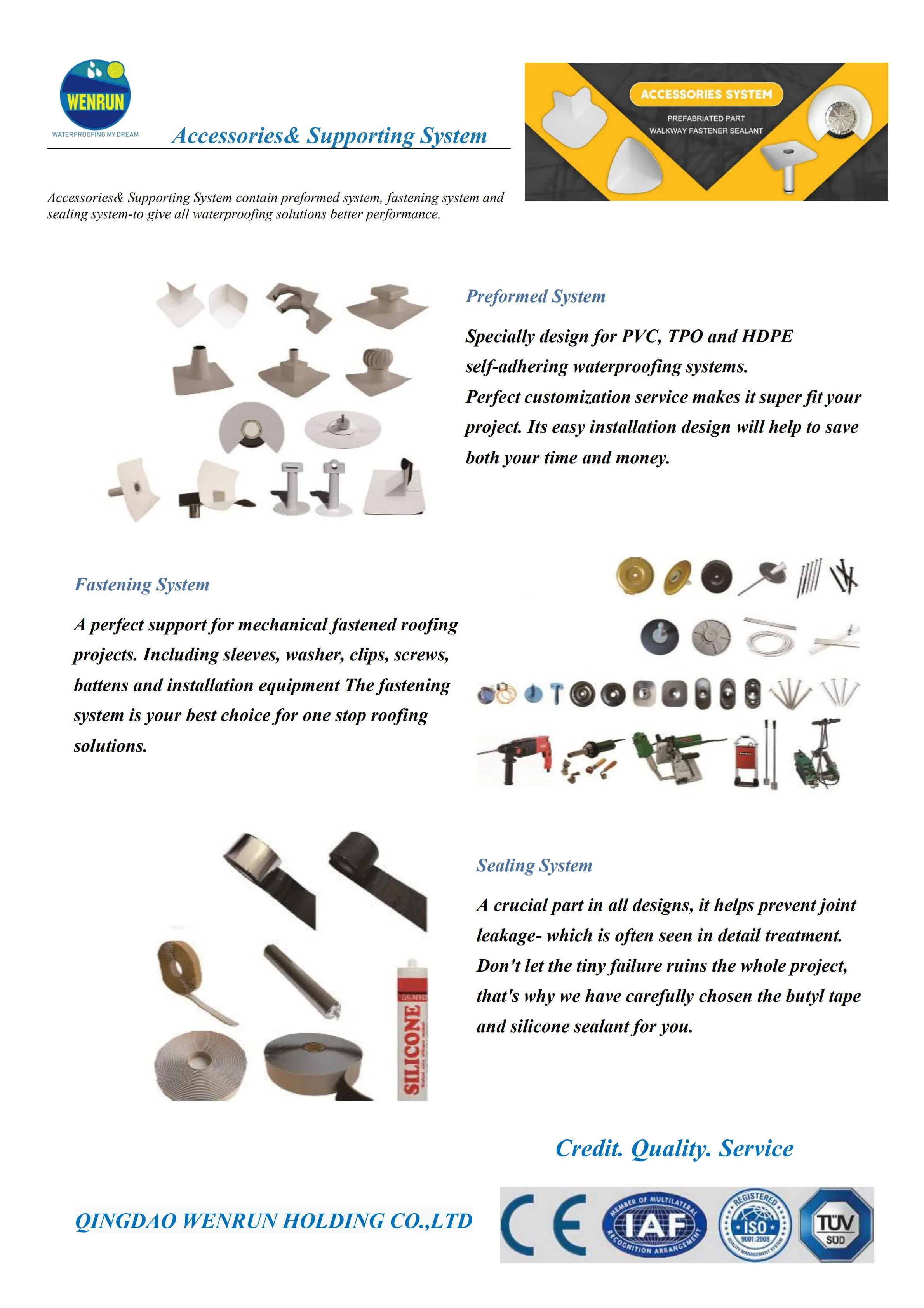

A: Supplying most accessories of waterproofing system,such as,fastener,sealants,welder,prefabriated parts.
Q: Do you provide design and technoligies? is it free or extra ?
A: Yes, It is free for design and technology support of waterproofing system.
